◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#79343) — 555 parça

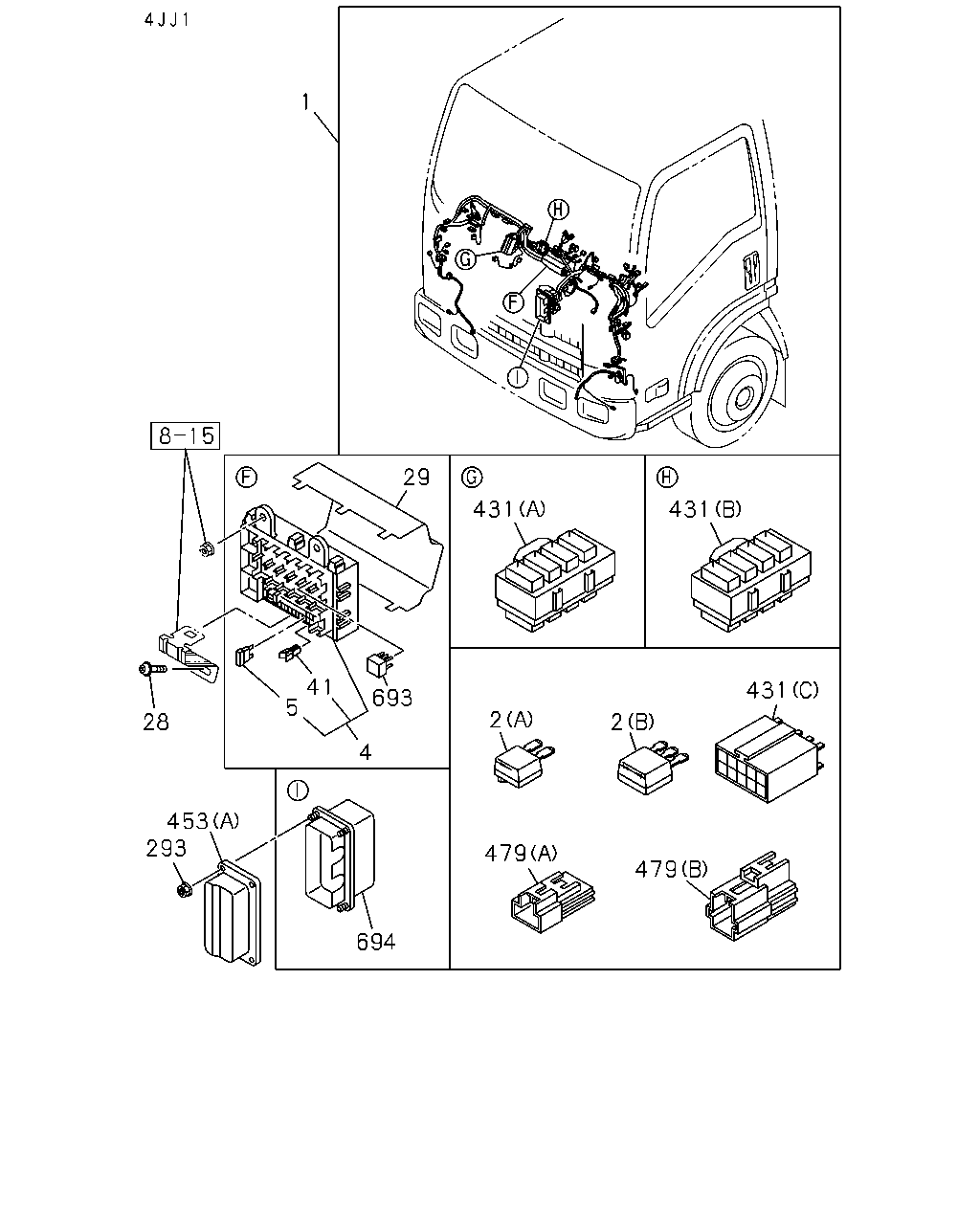

çizim 136057
1 29 431 431 41 5 431 693 2 2 28 4 453 293 479 479 694
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. FAST GLOW SYSTEM<KM6> 		8-98291-050-0 01 1 1504- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6> 		8-98298-792-0 01 1 1504- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98158-763-1 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98158-763-1 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98204-633-0 01 1 1205- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98204-633-0 01 1 1205- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98158-762-1 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. POWER WINDOW FRT&REAR DOOR<A31>, HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98158-762-1 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98200-863-0 01 1 1205-1312 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. POWER WINDOW FRT&REAR DOOR<A31>, HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98200-863-0 01 1 1205-1312 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98257-650-0 01 1 1401- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. POWER WINDOW FRT&REAR DOOR<A31>, HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98257-650-0 01 1 1401- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98172-121-3 01 1 1012-1301 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) 		8-98172-121-3 01 1 1302-1503 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> 		8-98172-121-3 01 1 1504- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 		8-98089-704-6 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 		8-98200-869-0 01 1 1205- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1012- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1012- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) 		8-98067-619-1 01 1 1012- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97187-921-1 01 1 1012-1301 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) 		8-97187-921-1 01 1 1302- ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A MINI CLEAR 		8-97062-025-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 1012- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1101 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
29 02.483 COVER; FUSE BOX
4JJ1-TCC ENG(RDU) 		8-98056-968-0 01 1 1012- ● ●
29 02.483 COVER; FUSE BOX
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97074-955-0 01 1 1012-1301 ●
29 02.483 COVER; FUSE BOX
4HG1 ENG(RJH) 		8-97074-955-0 01 1 1302- ●
41 08.821 PULLER; FUSE
4JJ1-TCC ENG(RDU) 		8-98054-260-0 01 1 1012- ● ●
41 08.821 PULLER; FUSE
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97103-388-0 01 1 1012-1301 ●
41 08.821 PULLER; FUSE
4HG1 ENG(RJH) 		8-97103-388-0 01 1 1302- ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012- ● ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (C) 10P 		8-97077-943-0 02 1 1012-1204 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (C) 10P 		8-97077-943-0 02 1 1012-1204 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (C) 10P 		8-97077-943-0 02 1 1205-1301 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) (C) 10P 		8-97077-943-0 02 1 1302- ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (B) 		8-98046-206-0 01 1 1012-1301 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (B) 		8-98046-206-0 01 1 1012-1301 ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1302- ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (B) 		8-98046-206-0 01 1 1302- ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (A) 		8-98046-205-0 01 1 1012- ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 04 1 1012-1409 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 03 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 03 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (E) 		8-94482-169-0 01 1 1012- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (E) 		8-94482-169-0 01 1 1012- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1310- ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1012- ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (A) 		8-98108-678-0 01 1 1012- ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B) 		8-98108-679-0 01 1 1012- ● ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1012- ● ●
694 02.483 BOX ASM; CONNECTOR
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98190-772-0 01 1 1201-1204 ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) 		8-98190-772-0 01 1 1205-1301 ● ●
694 02.483 BOX ASM; CONNECTOR
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98190-772-0 01 1 1205-1301 ●
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1302- ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) 		8-98190-772-0 01 1 1302- ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) 		8-98057-640-0 01 1 1012-1112 ● ●
694 02.483 BOX ASM; CONNECTOR
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98057-640-0 01 1 1012-1112 ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) 		8-98057-640-0 01 1 1201-1204 ● ●

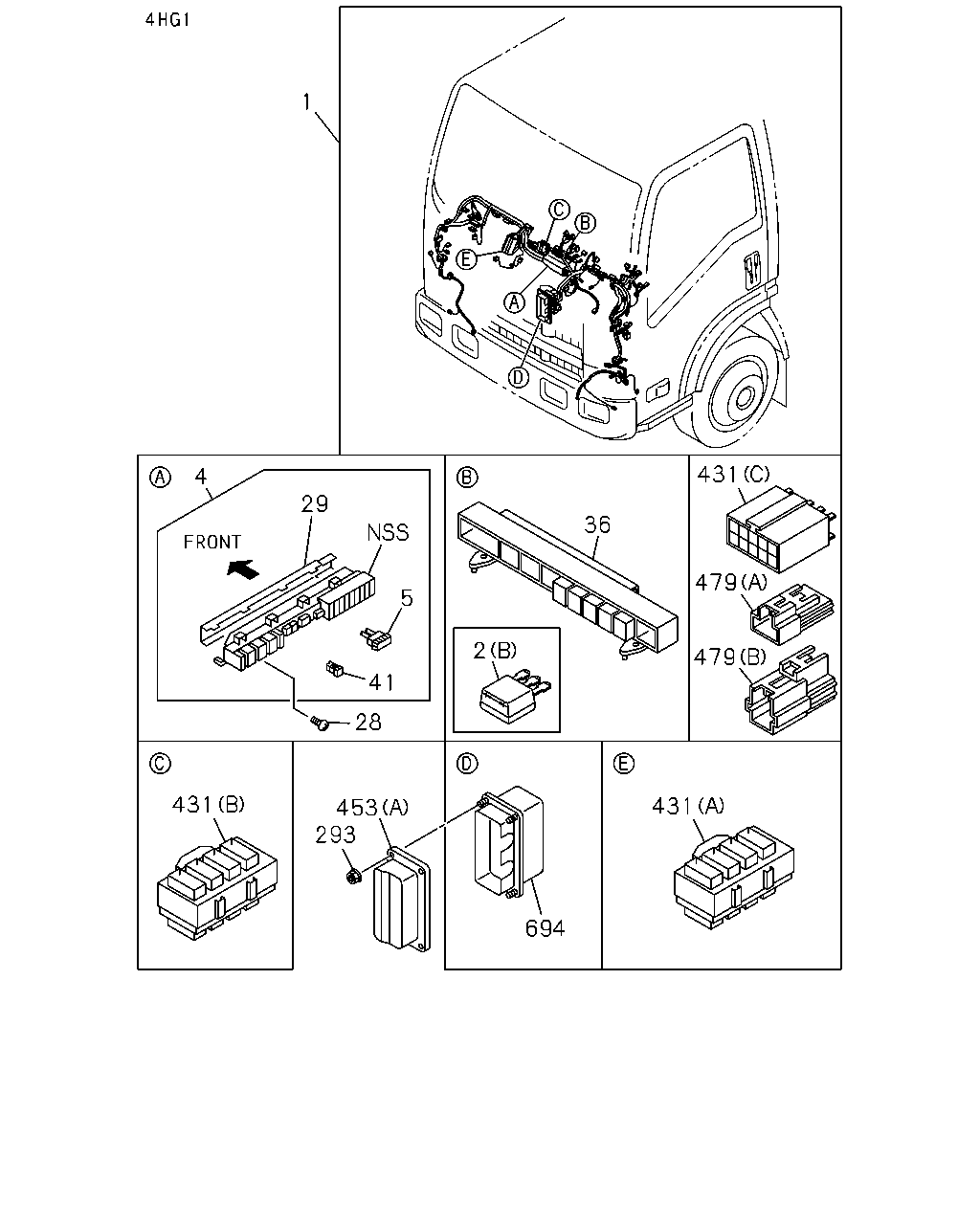

çizim 136305
1 431 4 29 36 479 5 2 479 41 28 431 431 453 293 694
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. FAST GLOW SYSTEM<KM6> 		8-98291-050-0 01 1 1504- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6> 		8-98298-792-0 01 1 1504- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98158-763-1 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98158-763-1 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98204-633-0 01 1 1205- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98204-633-0 01 1 1205- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98158-762-1 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. POWER WINDOW FRT&REAR DOOR<A31>, HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98158-762-1 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98200-863-0 01 1 1205-1312 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. POWER WINDOW FRT&REAR DOOR<A31>, HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98200-863-0 01 1 1205-1312 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98257-650-0 01 1 1401- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. POWER WINDOW FRT&REAR DOOR<A31>, HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98257-650-0 01 1 1401- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98172-121-3 01 1 1012-1301 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) 		8-98172-121-3 01 1 1302-1503 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> 		8-98172-121-3 01 1 1504- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 		8-98089-704-6 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 		8-98200-869-0 01 1 1205- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1012- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1012- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) 		8-98067-619-1 01 1 1012- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97187-921-1 01 1 1012-1301 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) 		8-97187-921-1 01 1 1302- ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A MINI CLEAR 		8-97062-025-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 1012- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1101 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
29 02.483 COVER; FUSE BOX
4JJ1-TCC ENG(RDU) 		8-98056-968-0 01 1 1012- ● ●
29 02.483 COVER; FUSE BOX
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97074-955-0 01 1 1012-1301 ●
29 02.483 COVER; FUSE BOX
4HG1 ENG(RJH) 		8-97074-955-0 01 1 1302- ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97187-918-1 01 1 1012-1301 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) 		8-97187-918-1 01 1 1302- ●
41 08.821 PULLER; FUSE
4JJ1-TCC ENG(RDU) 		8-98054-260-0 01 1 1012- ● ●
41 08.821 PULLER; FUSE
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97103-388-0 01 1 1012-1301 ●
41 08.821 PULLER; FUSE
4HG1 ENG(RJH) 		8-97103-388-0 01 1 1302- ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012- ● ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (C) 10P 		8-97077-943-0 02 1 1012-1204 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (C) 10P 		8-97077-943-0 02 1 1012-1204 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (C) 10P 		8-97077-943-0 02 1 1205-1301 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) (C) 10P 		8-97077-943-0 02 1 1302- ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (B) 		8-98046-206-0 01 1 1012-1301 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (B) 		8-98046-206-0 01 1 1012-1301 ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1302- ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (B) 		8-98046-206-0 01 1 1302- ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (A) 		8-98046-205-0 01 1 1012- ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 04 1 1012-1409 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 03 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 03 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (E) 		8-94482-169-0 01 1 1012- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (E) 		8-94482-169-0 01 1 1012- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1310- ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1012- ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (A) 		8-98108-678-0 01 1 1012- ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B) 		8-98108-679-0 01 1 1012- ● ●
694 02.483 BOX ASM; CONNECTOR
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98190-772-0 01 1 1201-1204 ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) 		8-98190-772-0 01 1 1205-1301 ● ●
694 02.483 BOX ASM; CONNECTOR
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98190-772-0 01 1 1205-1301 ●
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1302- ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) 		8-98190-772-0 01 1 1302- ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) 		8-98057-640-0 01 1 1012-1112 ● ●
694 02.483 BOX ASM; CONNECTOR
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98057-640-0 01 1 1012-1112 ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) 		8-98057-640-0 01 1 1201-1204 ● ●

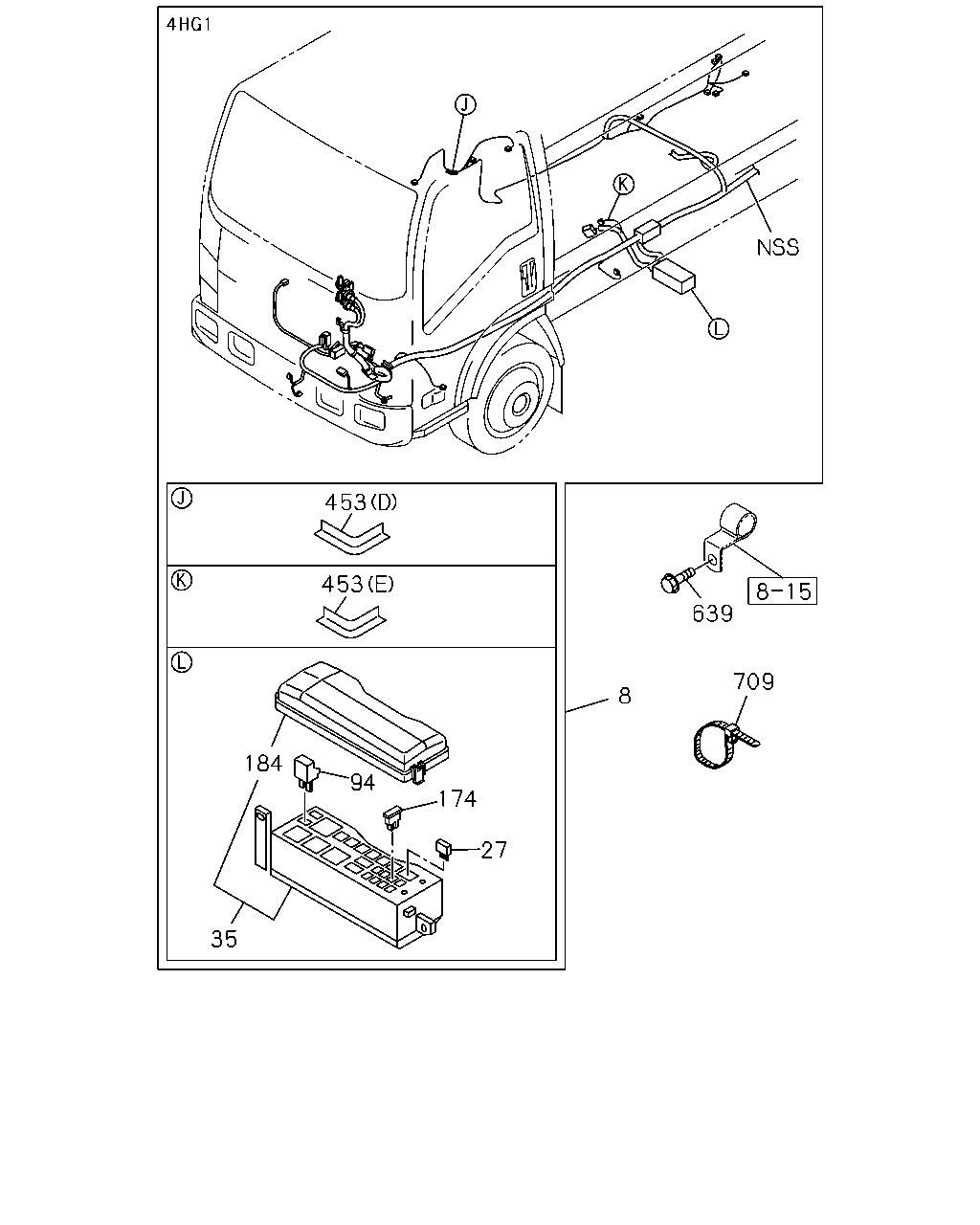

çizim 136389
453 453 639 709 8 184 94 174 27 35
BalonParca AdiParca NoAdetTipApplied Date A B

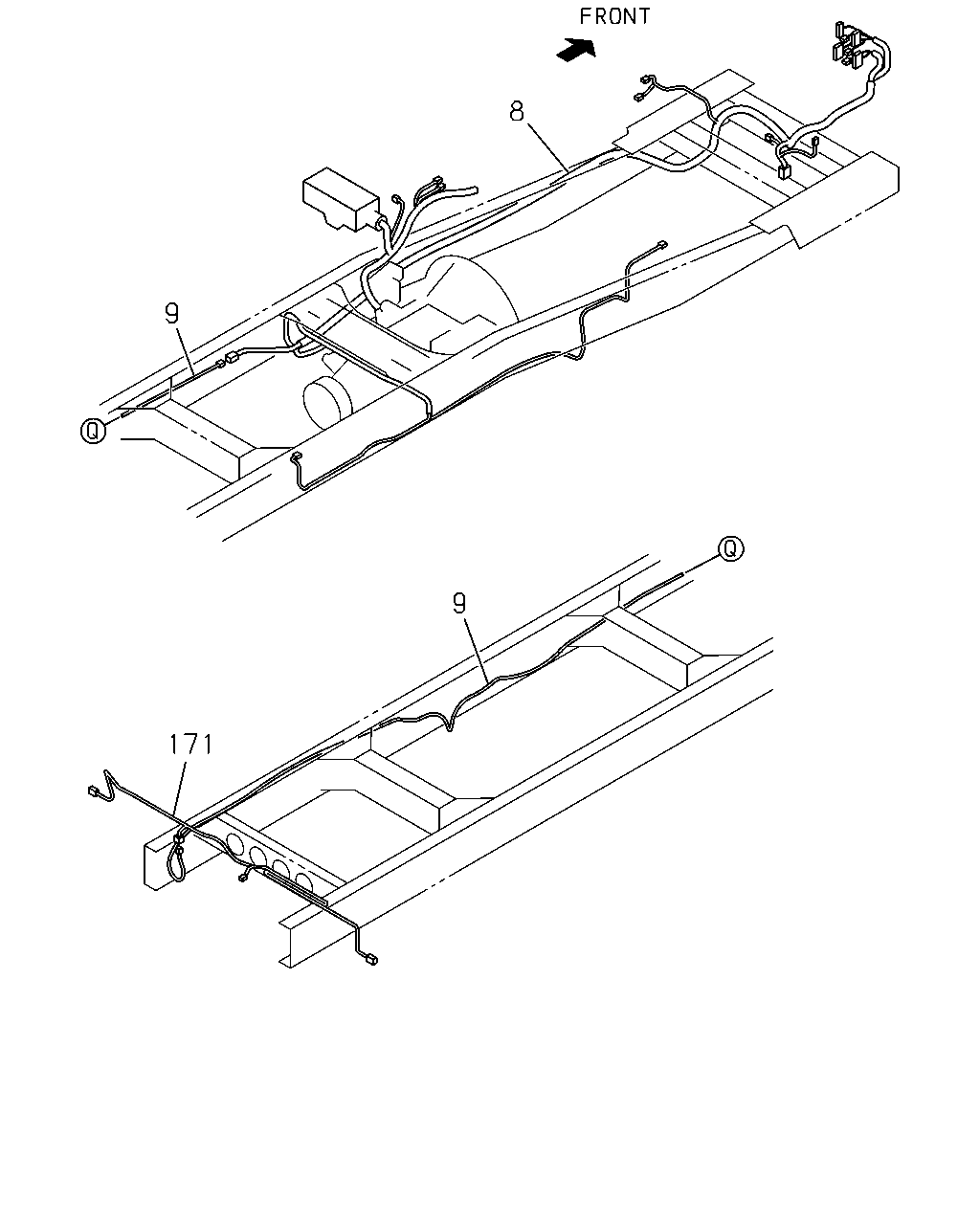

8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98228-514-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98228-514-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-852-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-852-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98113-017-3 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98293-848-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98220-008-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98294-114-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98220-009-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98294-115-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> 		8-98179-304-0 01 1 1012-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98179-304-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98294-109-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> 		8-98179-306-0 01 1 1012-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98179-306-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98294-111-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> 		8-98126-024-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98126-024-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> 		8-98293-801-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98293-801-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-835-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-835-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98117-813-2 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-813-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-837-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> 		8-98172-936-1 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> 		8-98294-118-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98117-812-3 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98254-634-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98293-844-0 01 1 1410- ●
27 08.965 FUSE UNIT
10A MINI RED 		8-97062-022-0 AR 1 1012- ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1012- ● ●
35 02.530 BOX; RELAY & FUSE
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> 		8-98173-937-0 01 1 1012- ●
35 02.530 BOX; RELAY & FUSE
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> 		8-98173-937-0 01 1 1012- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-763-0 01 1 1012-1309 ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-763-0 01 1 1012-1309 ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98030-763-0 01 1 1012-1309 ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) 		8-98030-763-0 01 1 1012-1309 ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> 		8-98030-763-0 01 1 1310- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-763-0 01 1 1310- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98030-763-0 01 1 1310- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98030-763-0 01 1 1310- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98030-763-0 01 1 1310- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) 		8-98030-763-0 01 1 1310- ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-97183-644-0 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-97183-643-0 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1012- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> 		8-98179-321-0 01 1 1012- ●
184 02.559 COVER; RELAY & FUSE BOX
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> 		8-98179-321-0 01 1 1012- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-766-0 01 1 1012-1309 ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-766-0 01 1 1012-1309 ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98030-766-0 01 1 1012-1309 ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) 		8-98030-766-0 01 1 1012-1309 ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> 		8-98030-766-0 01 1 1310- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-766-0 01 1 1310- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98030-766-0 01 1 1310- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98030-766-0 01 1 1310- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98030-766-0 01 1 1310- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) 		8-98030-766-0 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 04 1 1012-1409 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 03 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 03 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (E) 		8-94482-169-0 01 1 1012- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (E) 		8-94482-169-0 01 1 1012- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1310- ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1012- ● ●
639 08.900 BOLT; CLIP
4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
709 02.480 STRAP; HARNESS
4HG1 ENG(RJH) FRAME-KICK UP<7EW> 02.559 L=170.3 		1-09987-182-0 05 1 1012- ●
709 02.480 STRAP; HARNESS
FRAME-KICK UP<7EW> 02.559 L=170.3 		1-09987-182-0 05 1 1012-1012 ●
709 02.480 STRAP; HARNESS
4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> 02.559 L=170.3 		1-09987-182-0 06 1 1012- ●

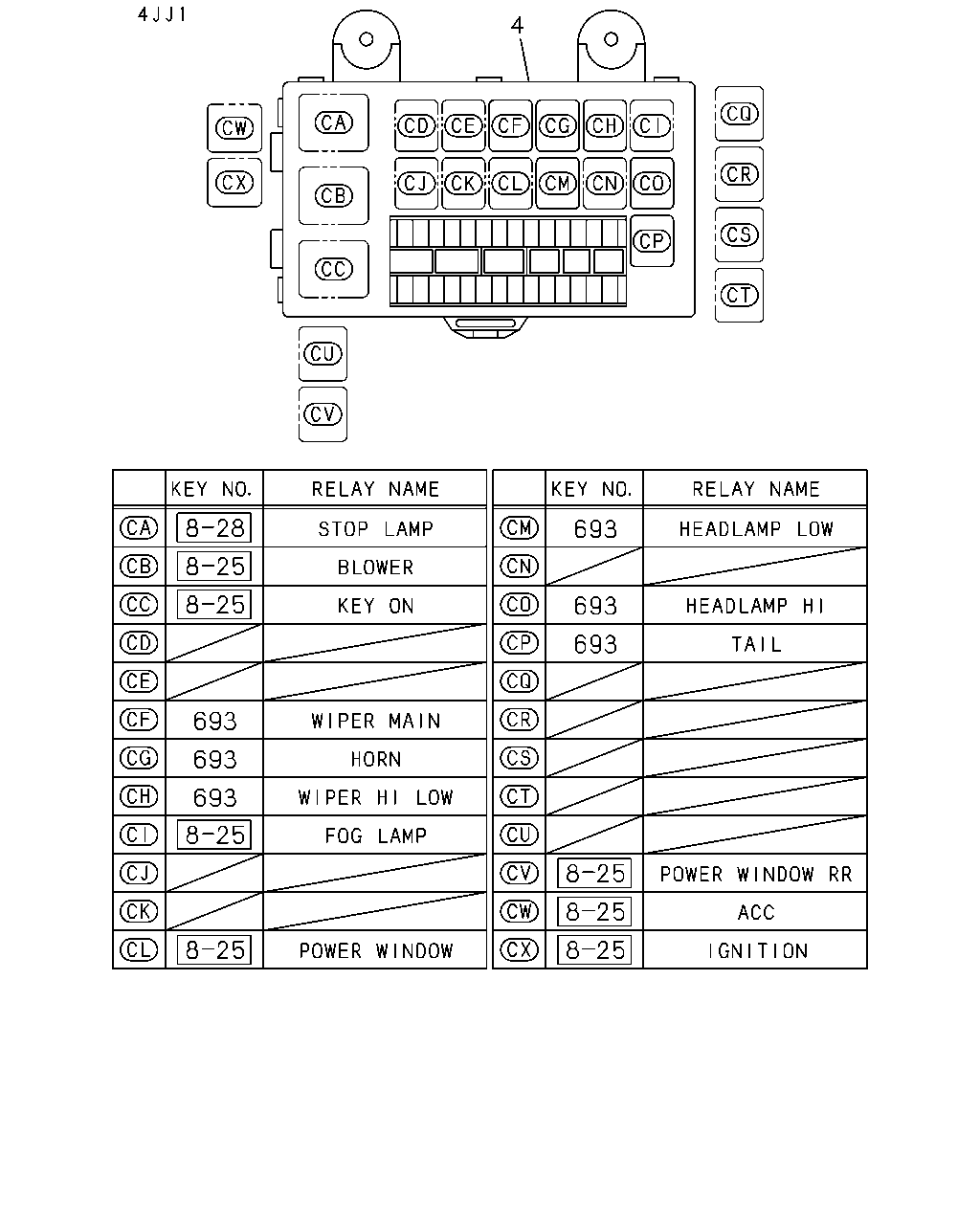

çizim 136650
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) 		8-98067-619-1 01 1 1012- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97187-921-1 01 1 1012-1301 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) 		8-97187-921-1 01 1 1302- ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1012- ● ●

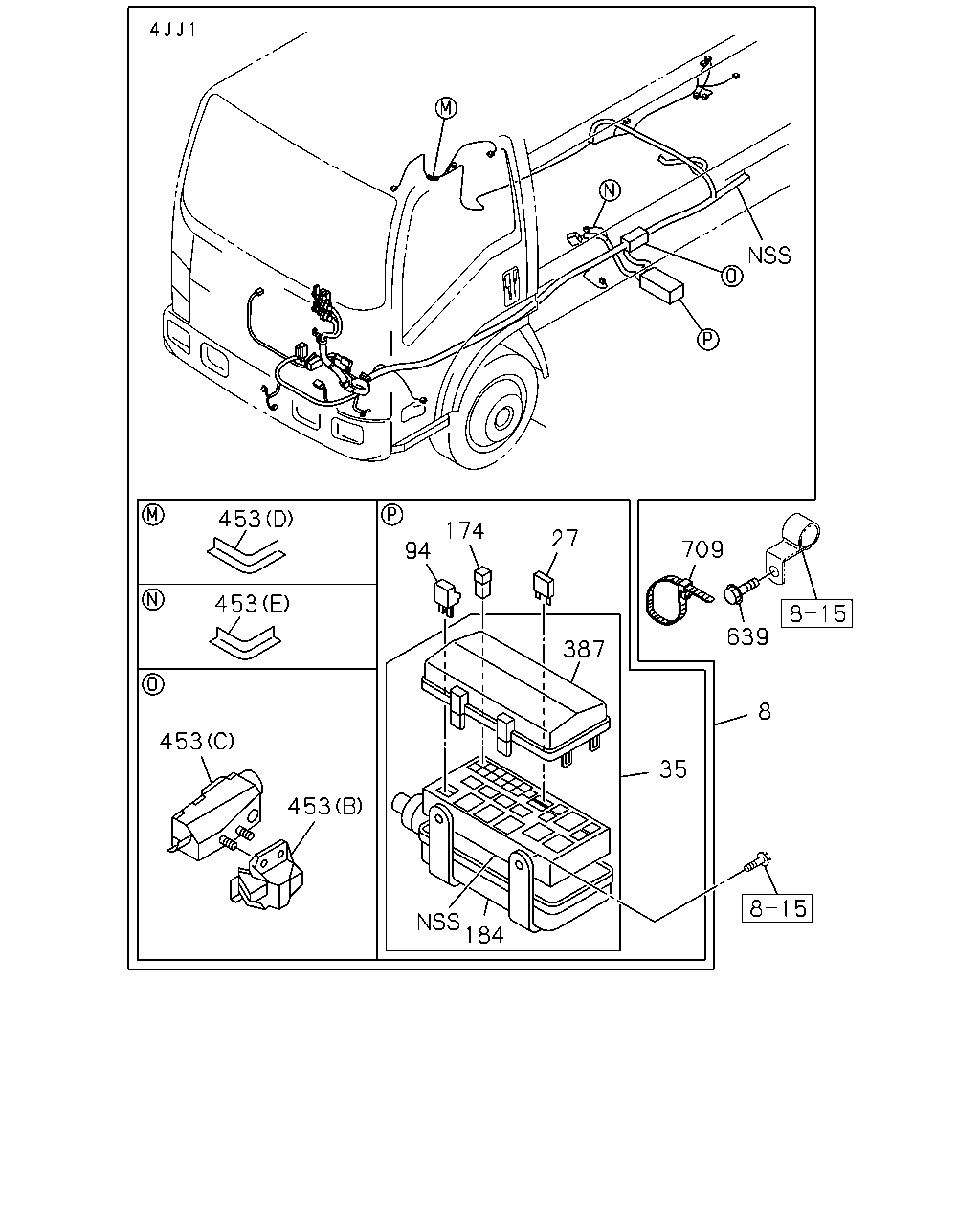

çizim 136806
453 174 27 709 94 453 639 387 8 453 35 453 184
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98228-514-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98228-514-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-852-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-852-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98113-017-3 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98293-848-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98220-008-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98294-114-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98220-009-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98294-115-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> 		8-98179-304-0 01 1 1012-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98179-304-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98294-109-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> 		8-98179-306-0 01 1 1012-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98179-306-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98294-111-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> 		8-98126-024-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98126-024-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> 		8-98293-801-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98293-801-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-835-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-835-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98117-813-2 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-813-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-837-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> 		8-98172-936-1 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> 		8-98294-118-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98117-812-3 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98254-634-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98293-844-0 01 1 1410- ●
27 08.965 FUSE UNIT
10A MINI RED 		8-97062-022-0 AR 1 1012- ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1012- ● ●
35 02.530 BOX; RELAY & FUSE
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> 		8-98173-937-0 01 1 1012- ●
35 02.530 BOX; RELAY & FUSE
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> 		8-98173-937-0 01 1 1012- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-763-0 01 1 1012-1309 ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-763-0 01 1 1012-1309 ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98030-763-0 01 1 1012-1309 ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) 		8-98030-763-0 01 1 1012-1309 ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> 		8-98030-763-0 01 1 1310- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-763-0 01 1 1310- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98030-763-0 01 1 1310- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98030-763-0 01 1 1310- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98030-763-0 01 1 1310- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) 		8-98030-763-0 01 1 1310- ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-97183-644-0 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-97183-643-0 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1012- ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1012- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> 		8-98179-321-0 01 1 1012- ●
184 02.559 COVER; RELAY & FUSE BOX
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> 		8-98179-321-0 01 1 1012- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-766-0 01 1 1012-1309 ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-766-0 01 1 1012-1309 ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98030-766-0 01 1 1012-1309 ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) 		8-98030-766-0 01 1 1012-1309 ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> 		8-98030-766-0 01 1 1310- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98030-766-0 01 1 1310- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98030-766-0 01 1 1310- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98030-766-0 01 1 1310- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98030-766-0 01 1 1310- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) 		8-98030-766-0 01 1 1310- ●
387 02.483 COVER; RELAY BOX
4JJ1-TCC ENG(RDU) 		8-98081-367-0 01 1 1012- ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 04 1 1012-1409 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 03 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 03 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (E) 		8-94482-169-0 01 1 1012- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (E) 		8-94482-169-0 01 1 1012- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (E) 		8-94452-553-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1310- ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 02 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98031-850-1 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98031-850-1 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-98031-851-2 01 1 1012-1309 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-98031-851-2 01 1 1310- ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1012- ● ●
639 08.900 BOLT; CLIP
4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
709 02.480 STRAP; HARNESS
4HG1 ENG(RJH) FRAME-KICK UP<7EW> 02.559 L=170.3 		1-09987-182-0 05 1 1012- ●
709 02.480 STRAP; HARNESS
FRAME-KICK UP<7EW> 02.559 L=170.3 		1-09987-182-0 05 1 1012-1012 ●
709 02.480 STRAP; HARNESS
4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> 02.559 L=170.3 		1-09987-182-0 06 1 1012- ●

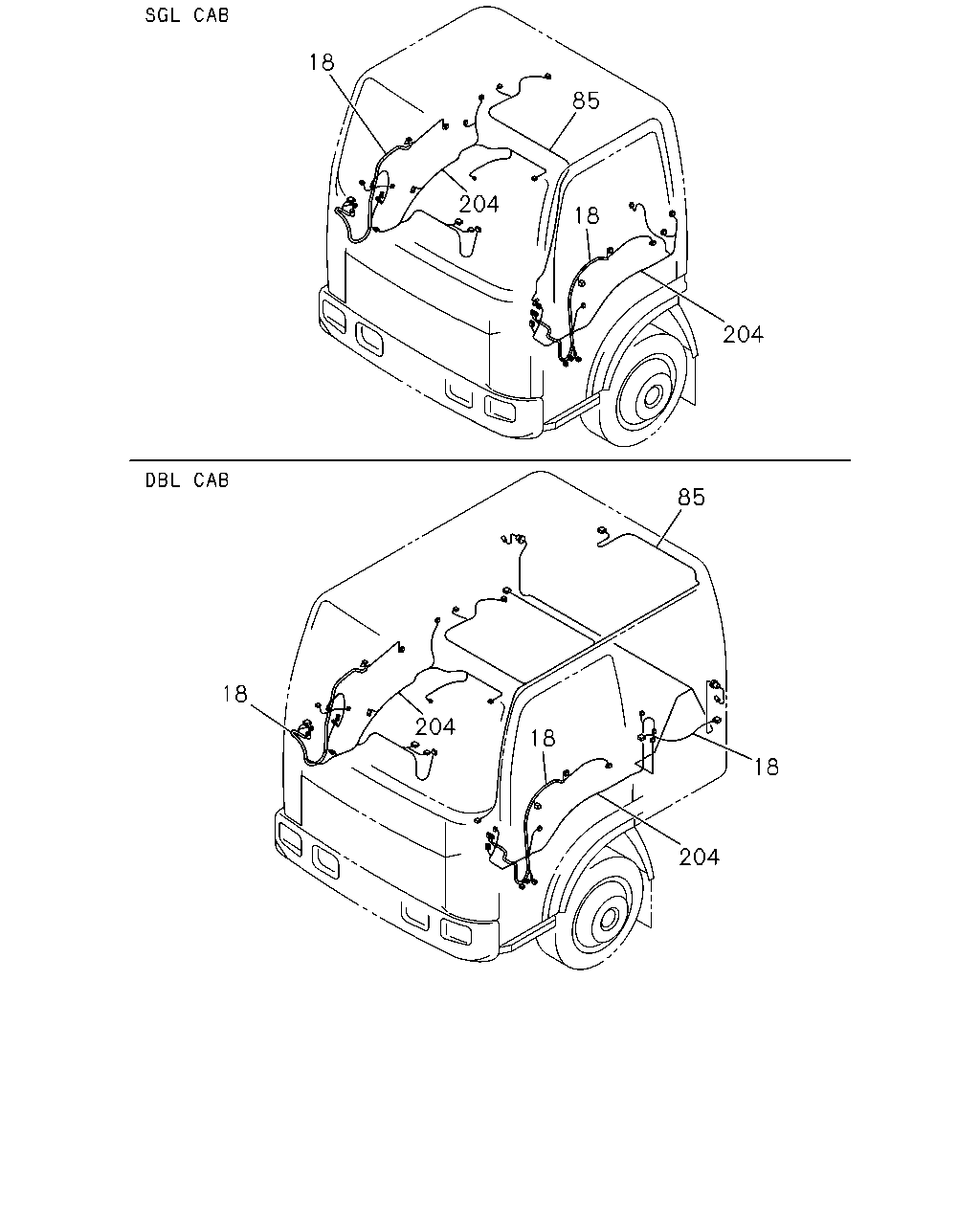

çizim 136811
18 85 204 18 204 85 18 204 18 18 204
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-592-3 01 1 1012- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-592-3 01 1 1012- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-600-3 01 1 1012- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-600-3 01 1 1012- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-591-2 01 1 1012- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-591-2 01 1 1012- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-599-2 01 1 1012- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-599-2 01 1 1012- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98056-047-1 02 1 1012-1203 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98202-555-0 02 1 1204- ●
85 06.495 HARNESS; ROOM LAMP 8-98072-201-2 01 1 1012- ●
85 06.495 HARNESS; ROOM LAMP 8-98072-203-1 01 1 1012- ●
204 02.559 HARNESS; CABLE,FLOOR 8-98070-799-5 01 1 1012- ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98071-073-3 01 1 1012- ●
204 02.559 HARNESS; CABLE,FLOOR
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-804-5 01 1 1012- ●
204 02.559 HARNESS; CABLE,FLOOR
4JJ1-TCC ENG(RDU) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-803-5 01 1 1012- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98071-072-3 01 1 1012- ●

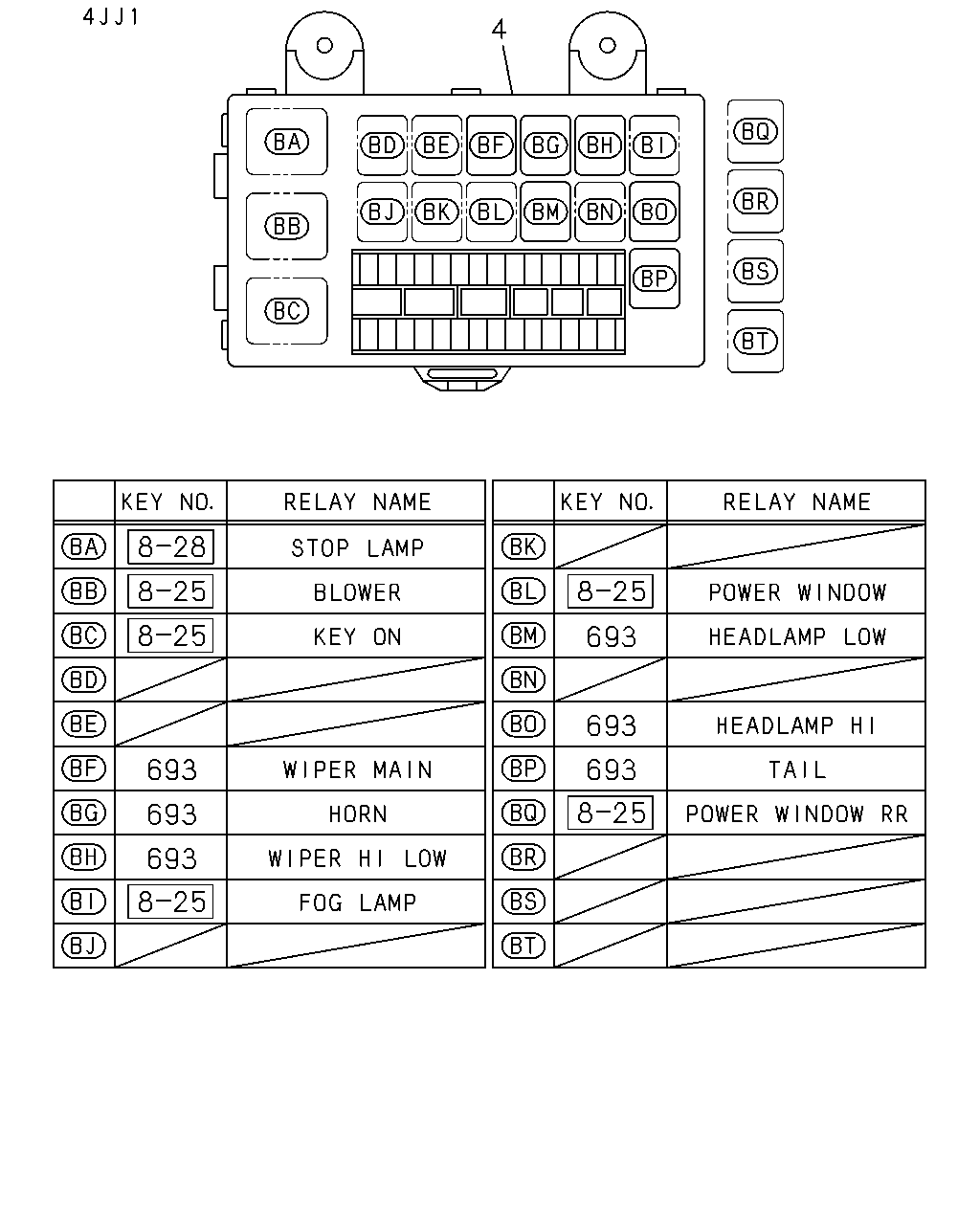

çizim 137180
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) 		8-98067-619-1 01 1 1012- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97187-921-1 01 1 1012-1301 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) 		8-97187-921-1 01 1 1302- ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1012- ● ●
çizim 137216
101 290 267 101 267 101 290 101 101 290 101 374
BalonParca AdiParca NoAdetTipApplied Date A B
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) 02.183 (A) 		8-98030-725-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (C) 		8-98078-070-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (D) 		8-98078-071-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (E) 		8-98079-011-1 01 1 1012-1205 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (F) 		8-98217-757-0 01 1 1206- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (B) 		8-98093-465-1 01 1 1012- ● ●
267 02.483 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ● ●
267 02.483 BOLT; BRKT
4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1012-1301 ●
267 02.483 BOLT; BRKT
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1302-1309 ●
267 02.483 BOLT; BRKT
4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1302-1309 ●
267 02.483 BOLT; BRKT
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ●
267 02.483 BOLT; BRKT
4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ●
267 02.483 BOLT; BRKT
4JJ1-TCC ENG(RDU) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ●
290 02.483 NUT; BRKT
4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
290 02.483 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 1012- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 1012- ●
çizim 190970
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98228-514-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98228-514-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-852-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-852-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98113-017-3 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98293-848-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98220-008-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98294-114-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98220-009-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98294-115-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> 		8-98179-304-0 01 1 1012-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98179-304-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98294-109-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. FRAME-KICK UP<7EW> 		8-98179-306-0 01 1 1012-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98179-306-1 01 1 1206-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98294-111-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> 		8-98126-024-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98126-024-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> FRAME-KICK UP<7EW> 		8-98293-801-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98293-801-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-835-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-835-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, FRAME-KICK UP<7EW> 		8-98117-813-2 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-813-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>, HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-837-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> 		8-98172-936-1 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME-KICK UP<7EW> 		8-98294-118-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98117-812-3 01 1 1012-1309 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98254-634-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98293-844-0 01 1 1410- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 		8-98048-412-2 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98048-422-2 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCC ENG(RDU) 		8-98048-422-2 01 1 1012- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. FRAME-KICK UP<7EW> 		8-98156-028-0 01 1 1012- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 1012- ●
çizim 190977
374
BalonParca AdiParca NoAdetTipApplied Date A B
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 1012- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 1012- ●
çizim 190979
13 699 699 161 329
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) 		8-97356-988-1 01 1 1012- ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 		8-98147-731-0 01 1 1012-1111 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) 		8-98147-731-0 01 1 1012-1111 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 		8-98172-159-1 01 1 1112-1409 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) 		8-98172-159-1 01 1 1112-1409 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 		8-98172-159-1 01 1 1410- ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) 		8-98172-159-1 01 1 1410- ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 1012- ● ●
329 02.480 CABLE; ENG TO FRAME
HEAVY DUTY FRAME<6WB> 		8-98174-803-0 01 1 1206-1301 ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH) HEAVY DUTY FRAME<6WB> 		8-98174-803-0 01 1 1302- ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCC ENG(RDU) 		8-98039-854-1 01 1 1012- ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH) 		8-98124-724-0 01 1 1012-1106 ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH) 		8-98140-006-0 01 1 1107-1205 ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH) EXC. HEAVY DUTY FRAME<6WB> 		8-98140-006-0 01 1 1206- ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 04.105 (A) L=140 		8-97122-360-0 03 1 1012-1409 ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) 04.105 (A) L=140 		8-97122-360-0 03 1 1012-1409 ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 04.105 (A) L=140 		8-97122-360-0 03 1 1410- ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) 04.105 (A) L=140 		8-97122-360-0 03 1 1410- ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (B) 		8-98088-438-0 01 1 1012-1409 ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98088-438-0 01 1 1012-1409 ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> (B) 		8-98088-438-0 01 1 1410- ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98088-438-0 01 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
