◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#7934) — 16 parça

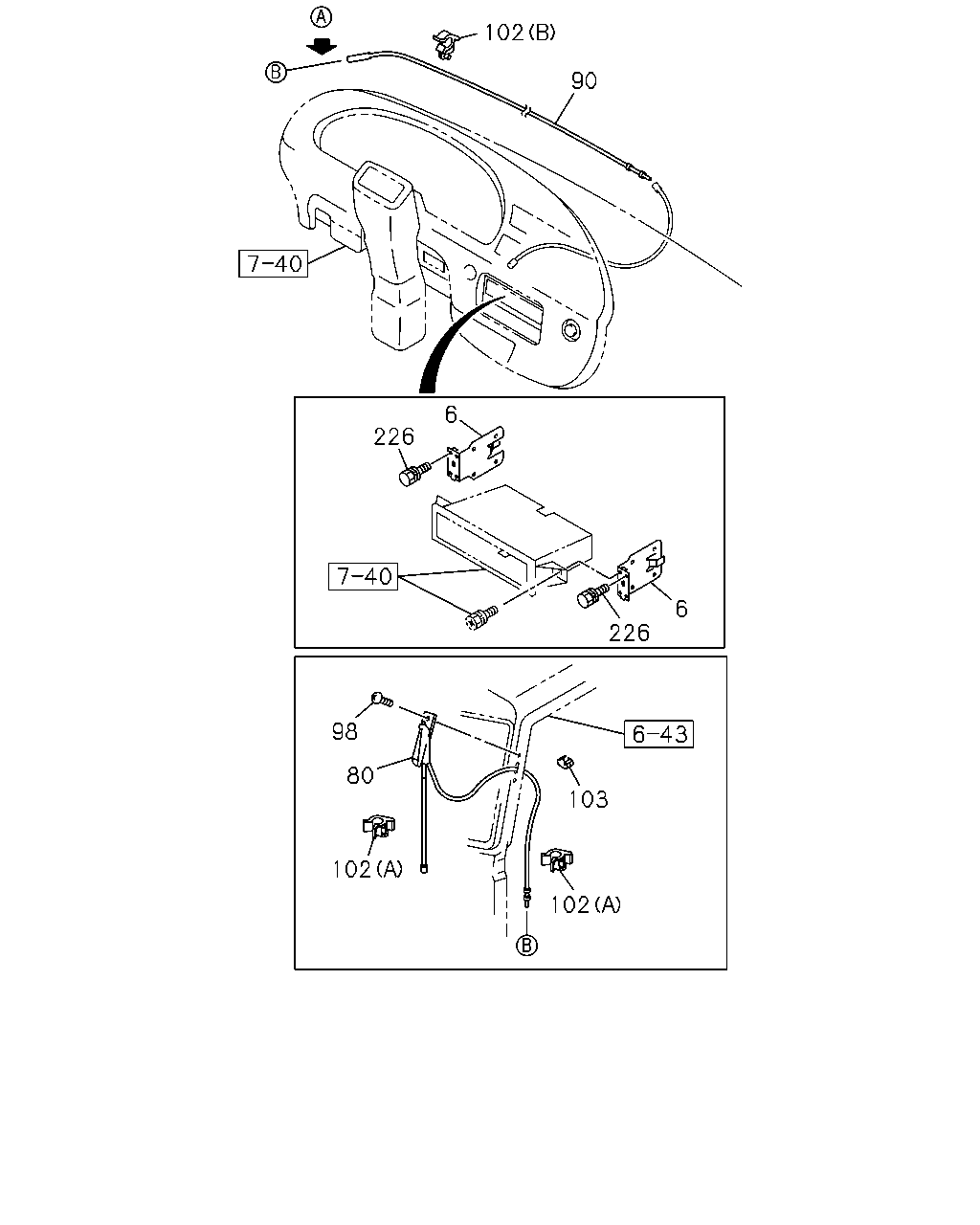

çizim 26954
102 90 6 226 6 226 98 80 103 102 102
BalonParca AdiParca NoAdetTipApplied Date A B C
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 9905-0301 ● ●
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 0302- ● ● ●
80 ANTENNA 1-84115-055-2 01 1 9905-0301 ● ●
80 ANTENNA 1-84115-055-2 01 1 0302- ● ● ●
90 CABLE; ANTENNA,FEEDER 1-84113-011-2 01 1 9905-0301 ● ●
90 CABLE; ANTENNA,FEEDER 1-84113-011-2 01 1 0302- ● ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 9905-0301 ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 0302- ● ● ●
102 CLIP; CABLE
(A) ID=4.8 		1-73907-618-0 05 1 9905-0301 ● ●
102 CLIP; CABLE
(A) ID=4.8 		1-73907-618-0 05 1 0302- ● ● ●
102 CLIP; CABLE
(B) ID=4.8 		8-94128-483-0 02 1 9905-0301 ● ●
102 CLIP; CABLE
(B) ID=4.8 		8-94128-483-0 02 1 0302- ● ● ●
103 GROMMET; ANTENNA HOLE,FRT 8-97027-381-0 01 1 9905-0301 ● ●
103 GROMMET; ANTENNA HOLE,FRT 8-97027-381-0 01 1 0302- ● ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9905-0301 ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0302- ● ● ●
