Isuzu WW
▶
TRUCKS
▶
NMR
▶
51283 - NMR(MIDDLE EAST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

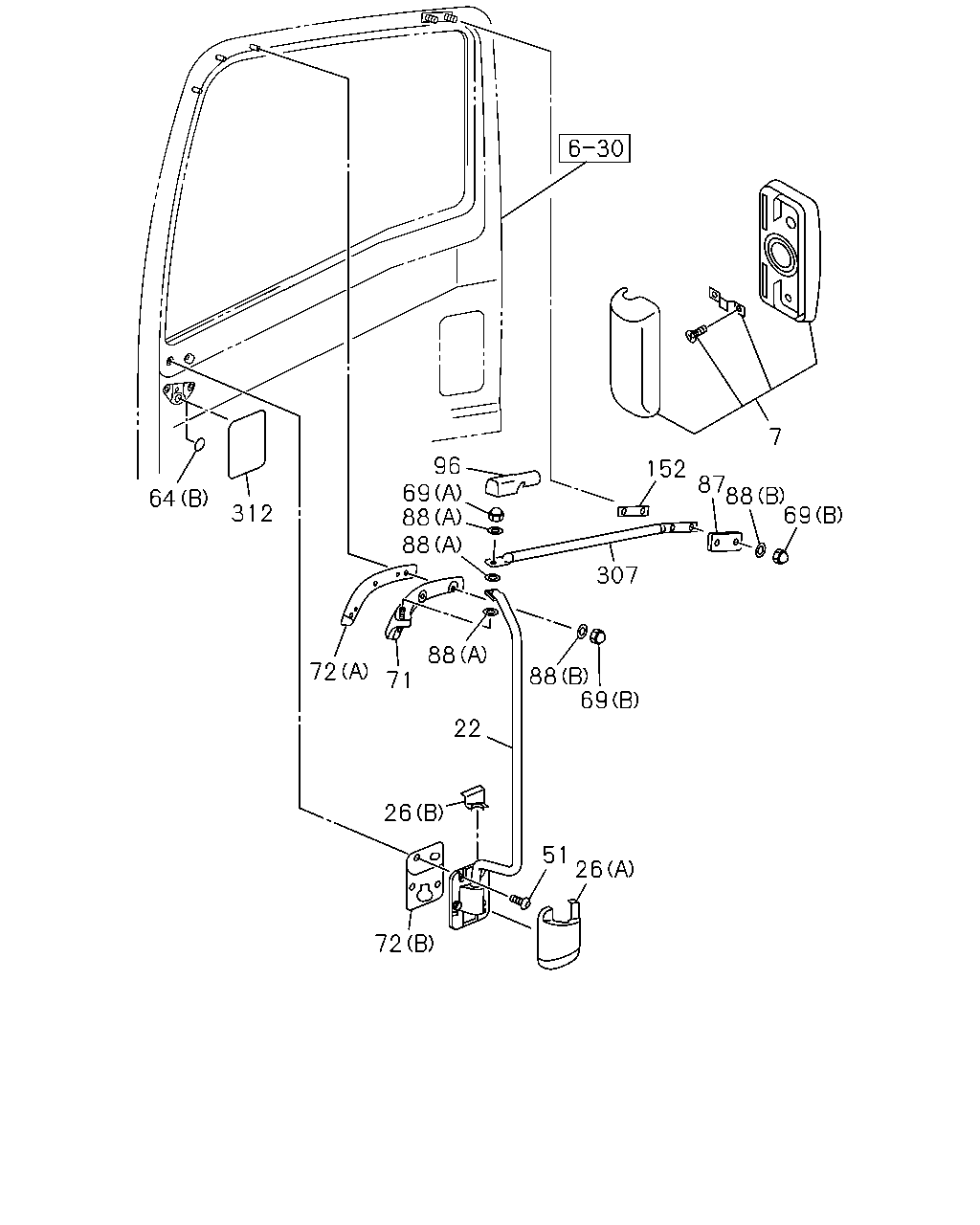

7-20 — MIRROR AND MIRROR STAY
(#79332) — 37 parça
Tümü
A - NMR6SN
B - NMR6WN
◀
[720A] DOOR MIRROR (33 parça)
[720A] ROOM MIRROR (4 parça)
▶
7
96
69
88
88
152
87
88
69
64
312
307
88
72
88
69
71
22
26
51
26
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
16.068 MIRROR ASM; DOOR
8-98043-056-2
01
1
1012-
●
●
7
16.068 MIRROR ASM; DOOR
8-98043-172-2
01
1
1012-
●
●
22
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
8-98067-510-0
01
1
1012-1204
●
●
22
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
8-98158-846-0
01
1
1205-
●
●
22
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
8-98067-511-0
01
1
1012-1204
●
●
22
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
8-98158-847-0
01
1
1205-
●
●
22
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98067-512-0
01
1
1012-1202
●
●
22
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98158-848-0
01
1
1203-
●
●
22
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98067-513-0
01
1
1012-1202
●
●
22
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98158-849-0
01
1
1203-
●
●
26
16.069 COVER; OUTSIDE MIRROR
(A)
8-98031-802-2
01
1
1012-
●
●
26
16.069 COVER; OUTSIDE MIRROR
(A)
8-98031-803-2
01
1
1012-
●
●
26
16.069 COVER; OUTSIDE MIRROR
(B)
8-98031-805-0
01
1
1012-
●
●
26
16.069 COVER; OUTSIDE MIRROR
(B)
8-98031-806-0
01
1
1012-
●
●
51
16.069 SCREW; MIRROR
16.323 M8X23
8-97310-216-1
08
1
1012-
●
●
64
16.069 SEAL; MIRROR
16.165 (A) OD=25 BLACK
1-76798-019-0
02
1
1012-
●
●
64
16.069 SEAL; MIRROR
16.332 (B) OD=52 BLACK
1-76798-041-0
02
1
1012-
●
●
69
16.069 NUT; CAP
(A) M10 CAP NUT
8-98059-913-0
02
1
1012-1404
●
●
69
16.069 NUT; CAP
(A) M10 CAP NUT
1-09984-134-0
02
1
1405-
●
●
69
16.069 NUT; CAP
(B) M8 CAP NUT
8-98059-914-0
10
1
1012-
●
●
71
16.069 BRACKET; OUTSIDE MIRROR
8-98031-793-2
01
1
1012-
●
●
71
16.069 BRACKET; OUTSIDE MIRROR
8-98031-794-2
01
1
1012-
●
●
72
16.069 SHEET
(A)
8-98031-796-0
01
1
1012-
●
●
72
16.069 SHEET
(A)
8-98031-797-0
01
1
1012-
●
●
72
16.069 SHEET
(B)
8-98080-418-0
02
1
1012-
●
●
87
16.069 SPACER
8-98063-789-0
02
1
1012-
●
●
88
16.069 WASHER; PL,SUPPORT STAY
(B) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
10
1
1012-
●
●
88
16.069 WASHER; PL,SUPPORT STAY
(A) ID=10.5 OD=26 T=2.6
1-09985-204-0
06
1
1012-
●
●
96
16.069 CAP; MIRROR STAY
8-98080-173-0
02
1
1012-
●
●
152
16.069 SHEET; MIRROR STAY
8-98063-786-0
02
1
1012-
●
●
307
16.069 STAY; MIRROR SUPPORT
8-98063-784-2
01
1
1012-
●
●
307
16.069 STAY; MIRROR SUPPORT
8-98063-785-2
01
1
1012-
●
●
312
16.081 TAPE
8-98164-812-0
02
1
1012-
●
●
2
64
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.068 MIRROR; ROOM
DARK GRAY
8-98097-534-1
01
1
1012-
●
●
2
16.069 SCREW; MIRROR TO BODY
16.070 M6X26
8-98033-674-0
02
1
1012-
●
●
64
16.069 SEAL; MIRROR
16.165 (A) OD=25 BLACK
1-76798-019-0
02
1
1012-
●
●
64
16.069 SEAL; MIRROR
16.332 (B) OD=52 BLACK
1-76798-041-0
02
1
1012-
●
●
