6-75 — MAT AND CARPET (#79323) — 18 parça

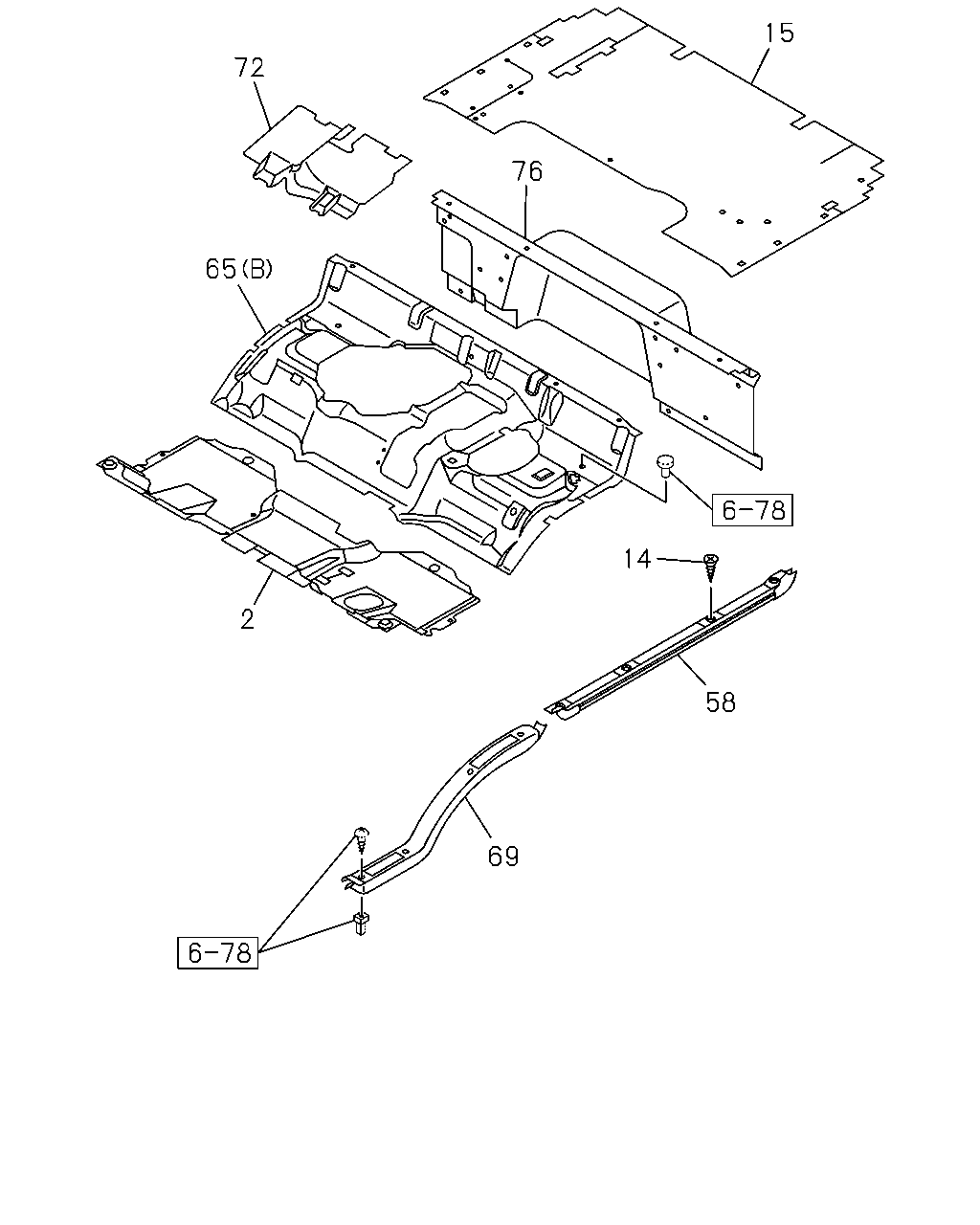

15 72 76 65 14 2 58 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR GRAY	8-97422-051-0	01	1	1012-	●	●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1012-		●
15	16.800 MAT; FLOOR REAR GRAY	8-97412-598-3	01	1	1012-		●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	1012-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (A) GRAY	8-97422-053-1	01	1	1012-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B)	8-97421-983-1	01	1	1012-		●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1012-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1012-	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-598-1	01	1	1012-	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-598-1	01	1	1012-		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97412-597-2	01	1	1012-		●

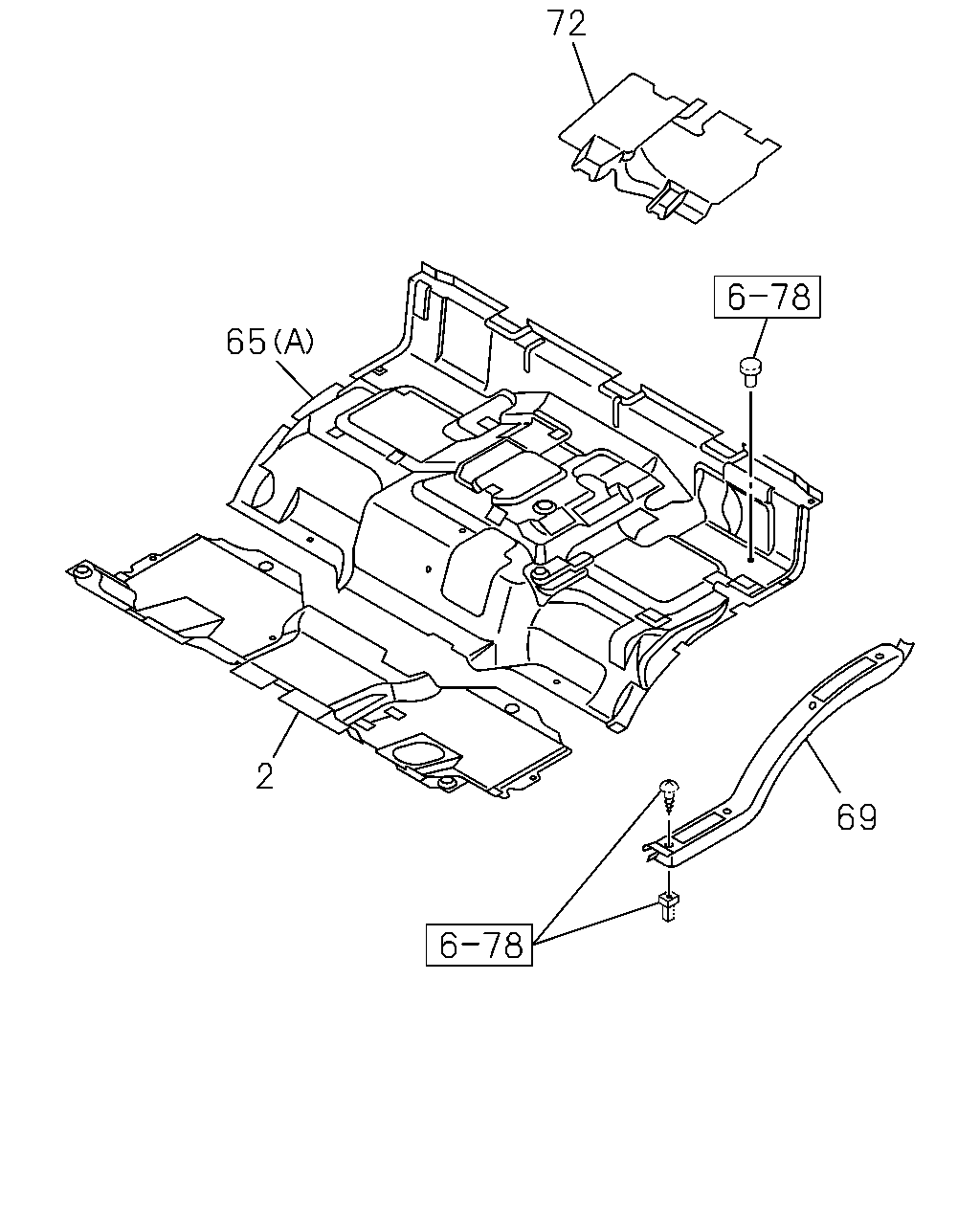

72 65 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR GRAY	8-97422-051-0	01	1	1012-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (A) GRAY	8-97422-053-1	01	1	1012-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B)	8-97421-983-1	01	1	1012-		●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1012-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1012-	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-598-1	01	1	1012-	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-598-1	01	1	1012-		●
