◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#7932) — 90 parça

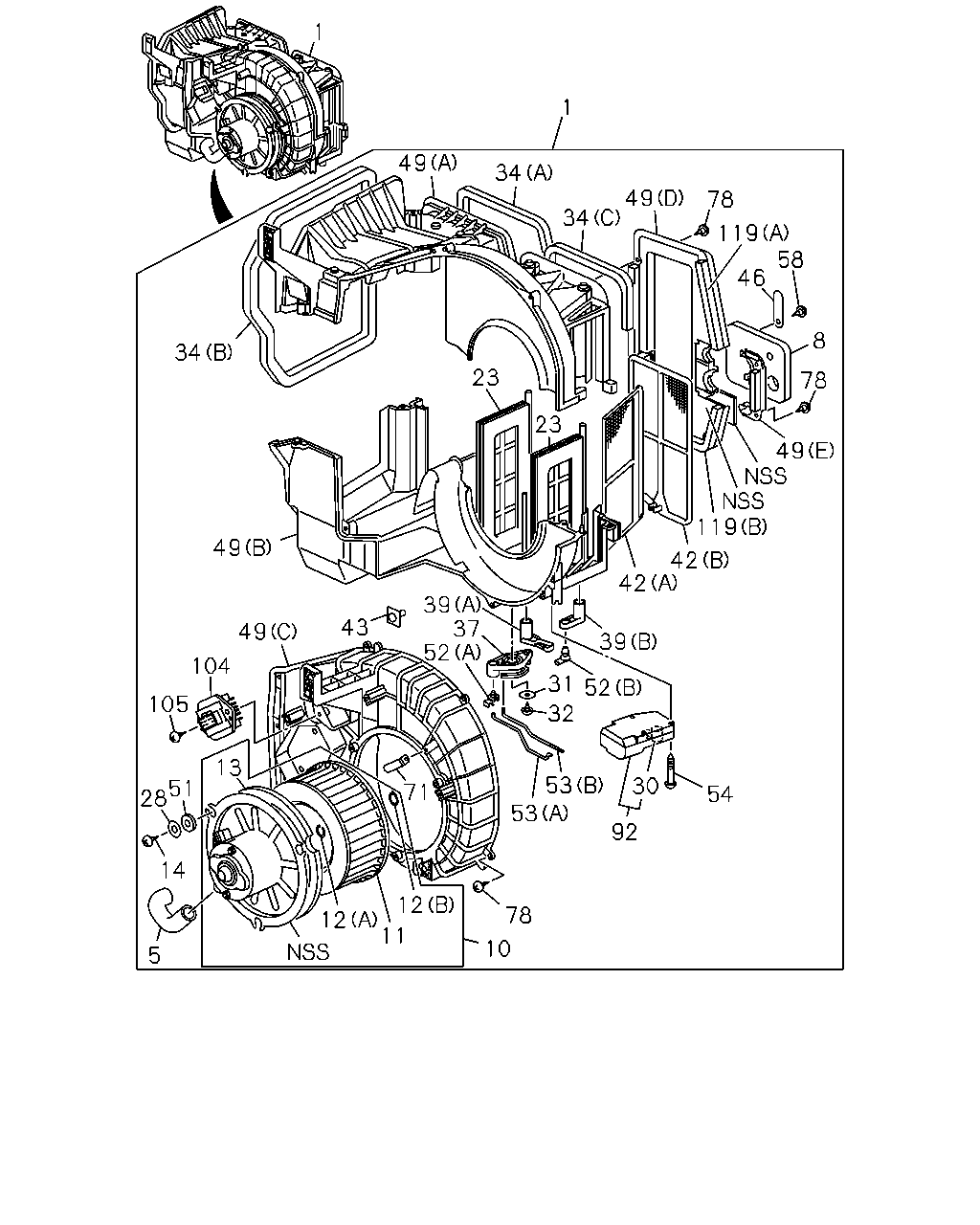

çizim 98679
1 1 49 34 49 34 78 119 58 46 8 34 23 78 23 49 119 49 42 42 39 37 52 43 49 39 104 31 52 105 32 13 53 53 30 51 28 71 54 92 14 12 78 12 11 10 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOWER ASM 1-83561-110-4 01 1 9905-0301 ● ●
1 BLOWER ASM 1-83561-110-6 01 1 0302- ● ● ●
5 HOSE; AIR 1-83563-147-0 01 1 9905-0301 ● ●
5 HOSE; AIR 1-83563-147-0 01 1 0302- ● ● ●
8 SEAL; BLOWER UNIT 1-83579-801-1 01 1 9905-0301 ● ●
8 SEAL; BLOWER UNIT 1-83579-801-1 01 1 0302- ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-121-0 01 1 9905-0011 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 0012-0301 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 0302- ● ● ●
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 9905-0301 ● ●
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 0302- ● ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9905-0301 ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0302- ● ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9905-0301 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0302- ● ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9905-0301 ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0302- ● ● ●
14 SCREW; COVER TO CASE 8-97130-601-0 03 1 9905-0011 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0012-0301 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0302- ● ● ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 9905-0301 ● ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 0302- ● ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9905-0301 ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0302- ● ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9905-0301 ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0302- ● ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 9905-0301 ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 0302- ● ● ●
32 SCREW; LEVER 8-97130-601-0 01 1 9905-0011 ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0012-0301 ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0302- ● ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9905-0301 ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0302- ● ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 9905-0301 ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 0302- ● ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 9905-0301 ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 0302- ● ● ●
37 LEVER; MODE LEVER 1-83564-375-0 01 1 9905-0301 ● ●
37 LEVER; MODE LEVER 1-83564-375-0 01 1 0302- ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 9905-0301 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 0302- ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 9905-0301 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 0302- ● ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-0 01 1 9905-0301 ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 0302- ● ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-933-0 02 1 9905-0011 ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 0012-0301 ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 0302- ● ● ●
43 BOLT; CASE 1-83579-657-2 04 1 9905-0301 ● ●
43 BOLT; CASE 1-83579-657-2 04 1 0302- ● ● ●
46 PLATE; BLOWER UNIT 1-83571-870-1 01 1 9905-0301 ● ●
46 PLATE; BLOWER UNIT 1-83571-870-1 01 1 0302- ● ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 9905-0301 ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 0302- ● ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-369-0 01 1 9905-0301 ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-369-0 01 1 0302- ● ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 9905-0301 ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 0302- ● ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 9905-0301 ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 0302- ● ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 9905-0301 ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 0302- ● ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9905-0301 ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0302- ● ● ●
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 9905-0301 ● ●
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 0302- ● ● ●
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 9905-0301 ● ●
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 0302- ● ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9905-0301 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0302- ● ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 9905-0301 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 0302- ● ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9905-0301 ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0302- ● ● ●
58 SCREW; PLATE TO CASE
M4X16 		8-94324-850-0 01 1 9905-0301 ● ●
58 SCREW; PLATE TO CASE
M4X16 		8-94324-850-0 01 1 0302- ● ● ●
71 CLIP; HARNESS 8-97096-145-0 01 1 9905-0301 ● ●
71 CLIP; HARNESS 8-97096-145-0 01 1 0302- ● ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 9905-0301 ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 0302- ● ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 9905-0301 ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 0302- ● ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9905-0301 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 0302- ● ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9905-0301 ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0302- ● ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 9905-0301 ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0302- ● ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 9905-0301 ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0302- ● ● ●
