Isuzu WW
▶
TRUCKS
▶
NMR
▶
51283 - NMR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

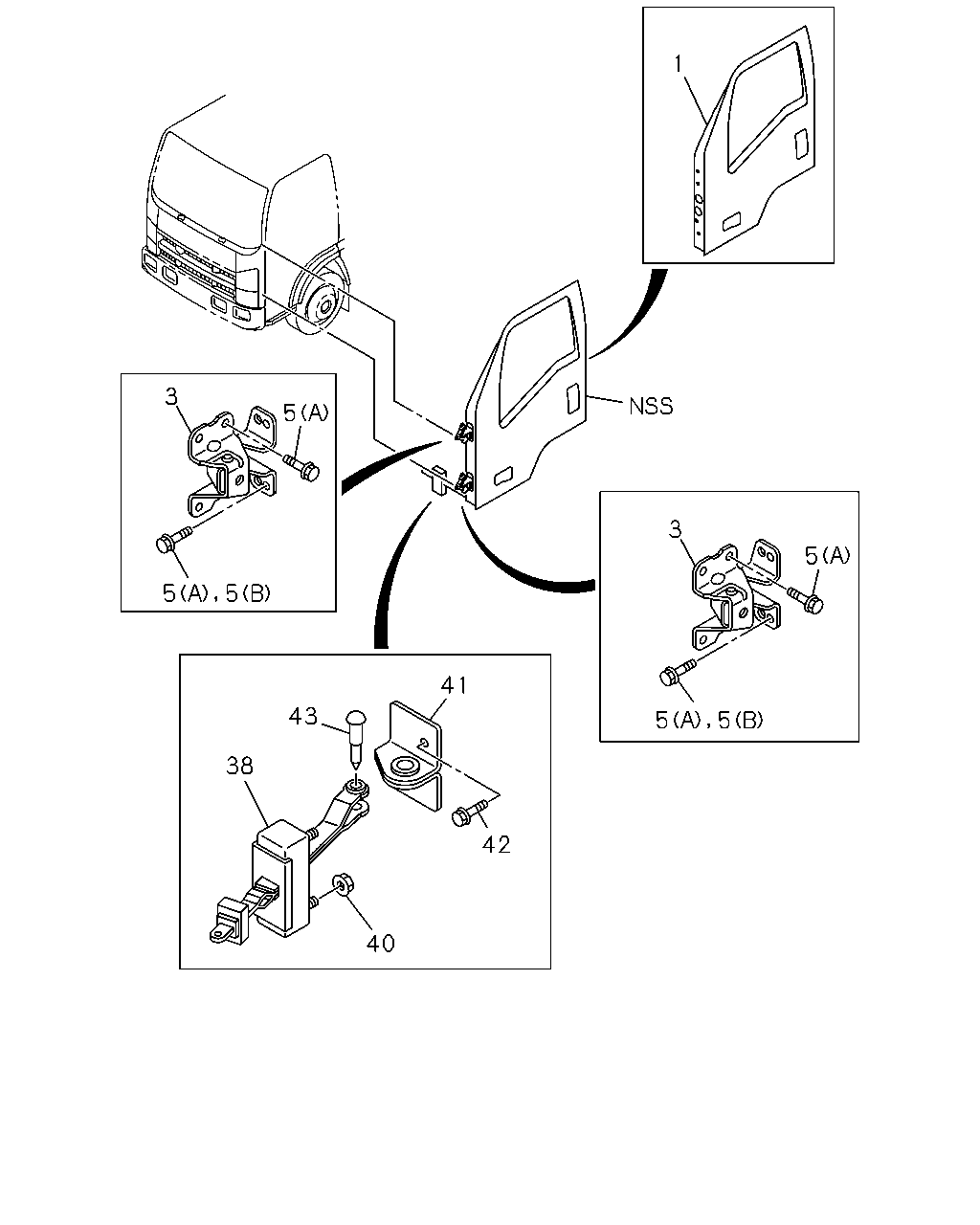

6-30 — FRONT DOOR AND HINGE
(#79310) — 22 parça
Tümü
A - NMR6SN
B - NMR6WN
1
3
5
3
5
5
5
41
43
5
5
38
42
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.150 DOOR ASM; FRT,WO/TRIM
8-98084-118-0
01
1
1012-1012
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-98171-227-0
01
1
1101-1411
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-98260-605-0
01
1
1412-
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-98084-119-0
01
1
1012-1012
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-98171-236-0
01
1
1101-1411
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-98260-606-0
01
1
1412-
●
●
3
16.320 HINGE; DOOR FRT
8-98038-293-0
04
1
1012-1104
●
●
3
16.320 HINGE; DOOR FRT
8-98191-302-0
04
1
1105-
●
●
5
16.320 BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE
8-98049-756-0
08
1
1012-
●
5
16.320 BOLT; HINGE
(B) M8X23 FLANGE
8-98029-440-0
08
1
1012-1408
●
●
5
16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE
8-98029-440-0
08
1
1012-1408
●
5
16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE
8-98029-440-0
08
1
1409-
●
5
16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE
8-98029-440-0
08
1
1409-
●
5
16.320 BOLT; HINGE
(B) M8X23 FLANGE
8-98029-440-0
08
1
1409-
●
5
16.320 BOLT; HINGE
(A) M8X20 FLANGE
8-98049-756-0
12
1
1012-
●
●
38
16.320 CHECKER ASM; DOOR
8-98031-730-6
02
1
1012-1508
●
●
38
16.320 CHECKER ASM; DOOR
8-98296-602-0
02
1
1509-
●
●
40
16.320 NUT; CHECKER
M8 FLANGE
8-98029-441-0
04
1
1012-1012
●
●
40
16.320 NUT; CHECKER
01.840 M8 W/DISHED WASHER
8-97329-625-0
04
1
1101-
●
●
41
16.320 BRACKET; CHECKER
8-98029-290-3
02
1
1012-
●
●
42
16.320 BOLT; BRKT
M6X20 W/PL WASHER
8-98032-159-2
04
1
1012-
●
●
43
16.320 PIN
8-98037-152-2
02
1
1012-
●
●
