◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#7931) — 73 parça

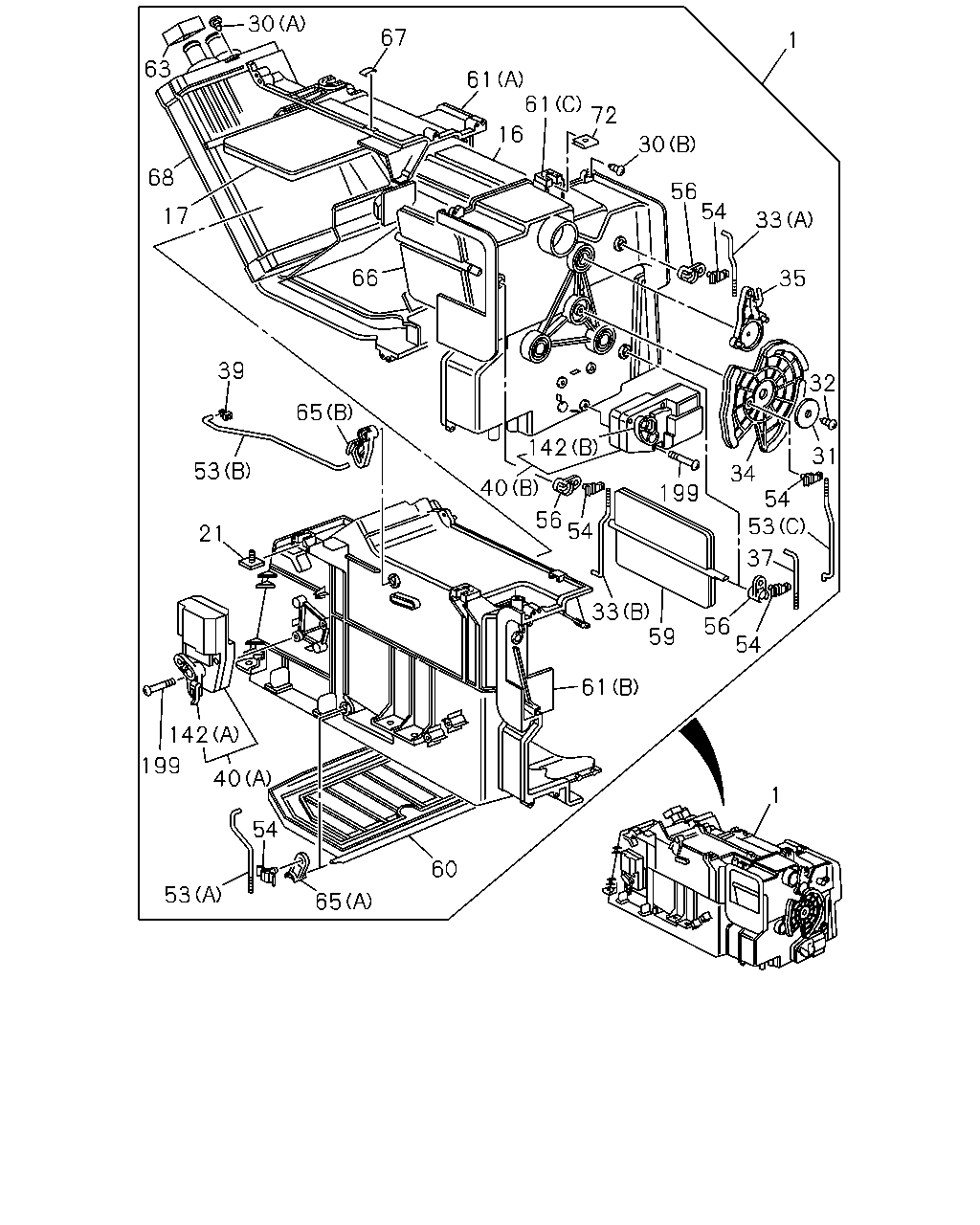

çizim 98678
30 67 1 63 61 61 72 16 30 68 56 54 17 33 66 35 39 32 65 142 31 53 34 54 53 40 199 56 54 21 37 33 59 56 54 61 142 199 40 1 54 60 53 65
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEATER UNIT 1-83511-137-3 01 1 9905-0301 ● ●
1 HEATER UNIT 1-83511-137-4 01 1 0302- ● ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 9905-0301 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 0302- ● ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 9905-0301 ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 0302- ● ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 9905-0301 ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0302- ● ● ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 9905-0301 ● ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 0302- ● ● ●
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 9905-0301 ● ●
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 0302- ● ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9905-0301 ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0302- ● ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9905-0301 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0302- ● ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 9905-0301 ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0302- ● ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 9905-0301 ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0302- ● ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 9905-0301 ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 0302- ● ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 9905-0301 ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 0302- ● ● ●
37 ROD; LEVER 1-83579-620-1 01 1 9905-0301 ● ●
37 ROD; LEVER 1-83579-620-1 01 1 0302- ● ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 9905-0301 ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0302- ● ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 9905-0301 ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 0302- ● ● ●
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 9905-0301 ● ●
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 0302- ● ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 9905-0301 ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 0302- ● ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 9905-0301 ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 0302- ● ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 9905-0301 ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 0302- ● ● ●
54 CLIP; SHUTTER LEVER 1-83579-488-0 05 1 9905-0011 ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0012-0301 ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0302- ● ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 9905-0301 ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0302- ● ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 9905-0301 ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 0302- ● ● ●
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 9905-0301 ● ●
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 0302- ● ● ●
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 9905-0301 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 0302- ● ● ●
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 9905-0301 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 0302- ● ● ●
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 9905-0301 ● ●
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 0302- ● ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 9905-0301 ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 0302- ● ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-328-1 01 1 9905-0301 ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-328-1 01 1 0302- ● ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 9905-0301 ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 0302- ● ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 9905-0301 ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 0302- ● ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 9905-0301 ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0302- ● ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 9905-0301 ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 0302- ● ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 9905-0301 ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0302- ● ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 0012-0301 ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 0302- ● ● ●
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 9905-0301 ● ●
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 0302- ● ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 9905-0301 ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0302- ● ● ●
