◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#79307) — 104 parça

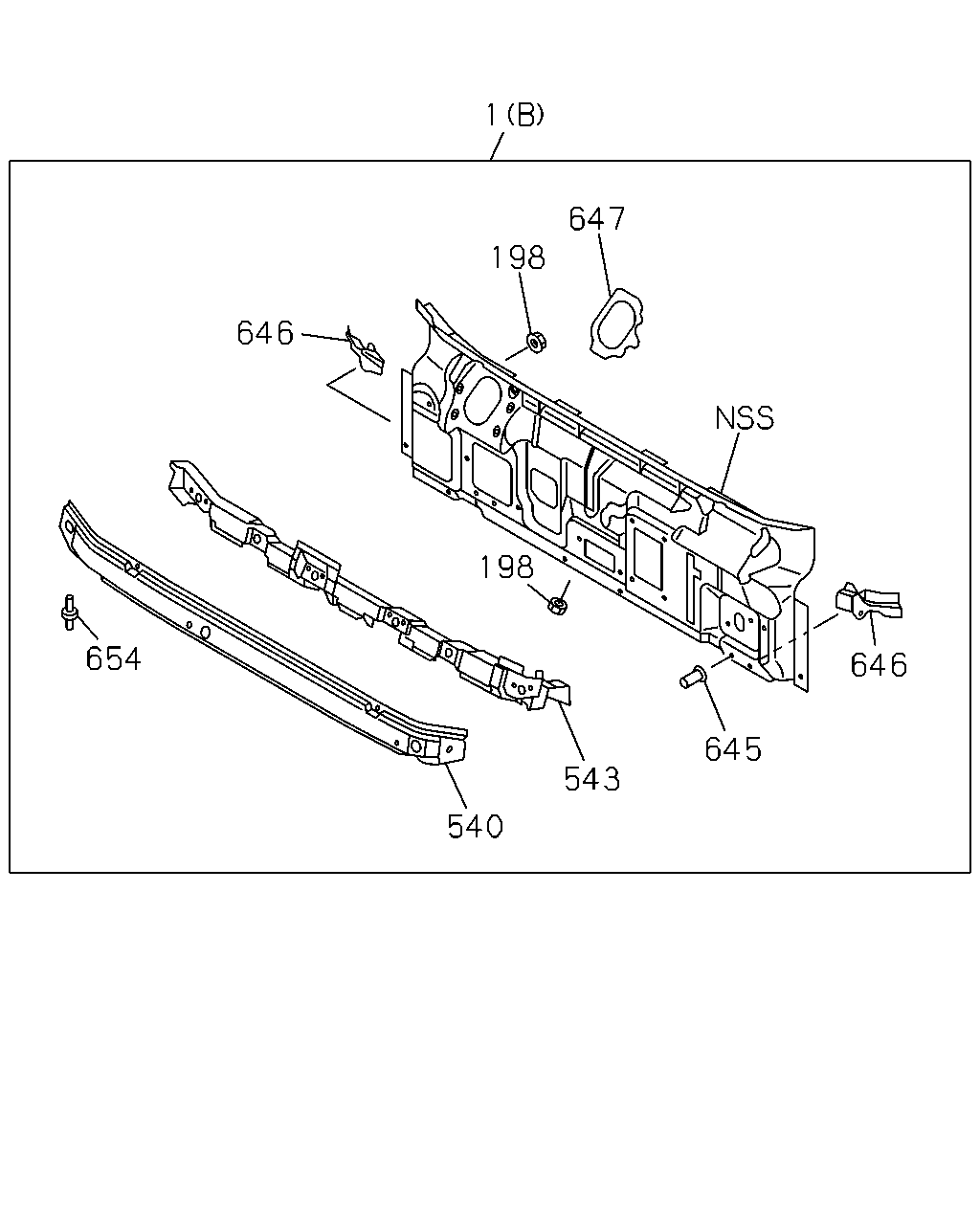

çizim 126638
1 647 198 646 198 654 646 645 543 540
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (B) 		8-98100-514-0 01 1 1012-1101 ● ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (B) 		8-98186-858-0 01 1 1102-1310 ● ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) (B) 		8-98186-858-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) 		8-98186-858-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (B) 		8-98186-858-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-97585-954-1 01 1 1012-1101 ● ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1102-1310 ● ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) (B) 		8-98100-515-0 01 1 1012-1101 ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) (B) 		8-98186-859-0 01 1 1102-1310 ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) DUMP CHASSIS(V4D) (B) 		8-98186-859-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) 		8-98186-859-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98034-706-1 01 1 1012-1101 ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-857-0 01 1 1102-1310 ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98186-857-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1012- ● ●
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 08 1 1012- ● ●
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1012- ● ●
540 16.588 PANEL; FRONT,OUTER 8-97585-963-0 01 1 1012- ● ●
543 16.570 CLOSING; FRT MTG RAIL 8-98008-130-0 01 1 1012- ● ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1012- ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1012- ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1012- ● ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1012- ● ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1012- ● ●

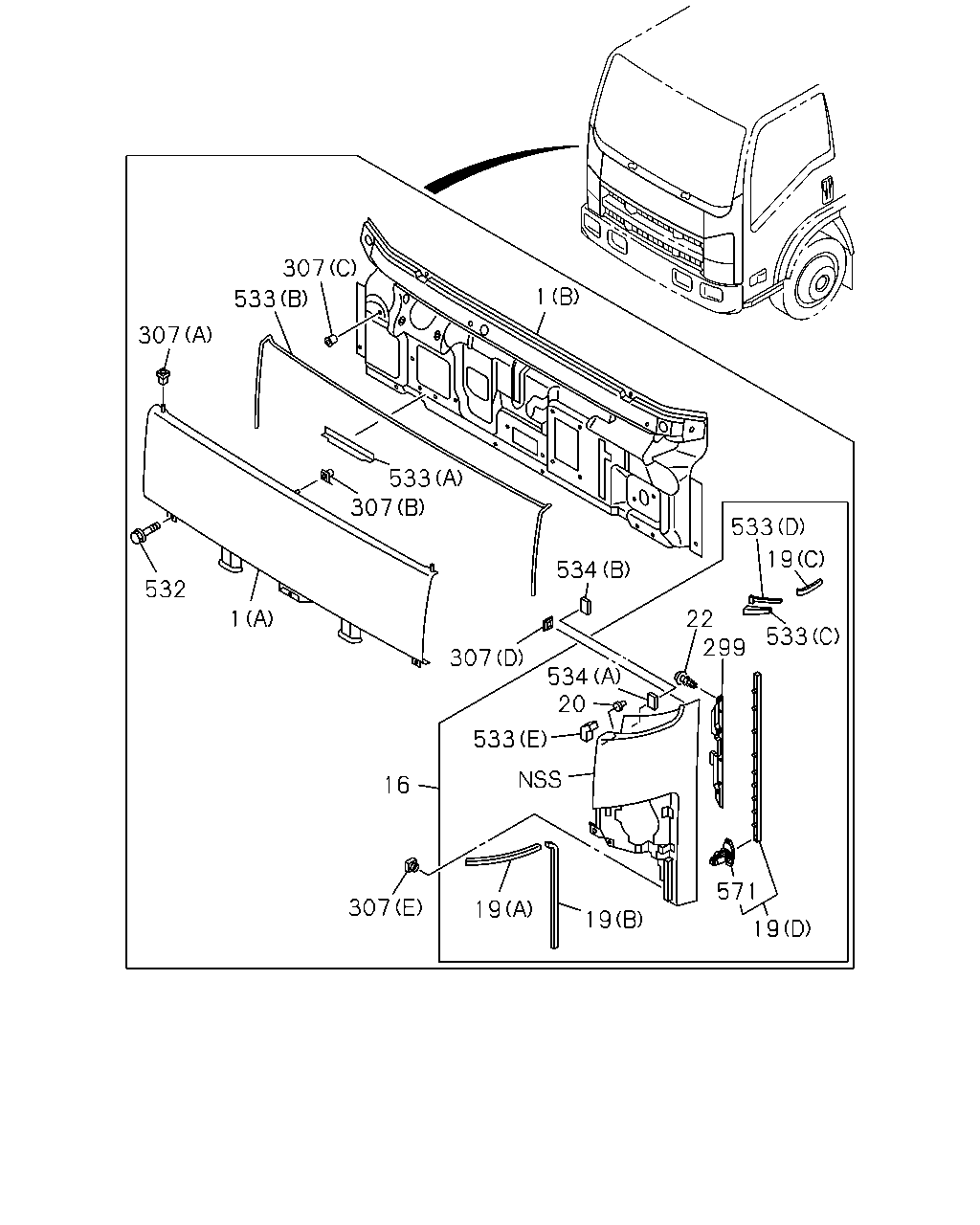

çizim 126670
307 1 533 307 533 307 533 19 534 532 22 299 1 533 307 534 20 533 16 571 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (B) 		8-98100-514-0 01 1 1012-1101 ● ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (B) 		8-98186-858-0 01 1 1102-1310 ● ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) (B) 		8-98186-858-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) 		8-98186-858-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (B) 		8-98186-858-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-97585-954-1 01 1 1012-1101 ● ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1102-1310 ● ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) (B) 		8-98100-515-0 01 1 1012-1101 ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) (B) 		8-98186-859-0 01 1 1102-1310 ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) DUMP CHASSIS(V4D) (B) 		8-98186-859-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) 		8-98186-859-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98034-706-1 01 1 1012-1101 ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-857-0 01 1 1102-1310 ●
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98186-857-0 01 1 1311- ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLACK 		8-97407-904-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLACK 		8-97407-909-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> GRAY 		8-97417-302-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> GRAY 		8-97417-308-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> WHITE 		8-97417-303-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> WHITE 		8-97417-310-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97417-304-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97417-311-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> RED 		8-97417-305-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> RED 		8-97417-312-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97407-905-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97407-910-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> WHITE 		8-97406-039-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> WHITE 		8-97406-040-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> RED 		8-97407-342-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> RED 		8-97407-343-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> DARK GREEN 		8-97407-906-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> DARK GREEN 		8-97407-911-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FRENCH VANILLA(812) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> YELLOW 		8-97407-907-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FRENCH VANILLA(812) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> YELLOW 		8-97407-912-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BEIGE 		8-97417-306-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BEIGE 		8-97417-314-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97415-715-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97415-716-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> ORANGE 		8-97417-307-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> ORANGE 		8-97417-313-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> GREEN 		8-97412-842-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> GREEN 		8-97412-843-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> LIGHT GRAY 		8-97414-635-9 01 1 1012- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> LIGHT GRAY 		8-97414-636-9 01 1 1012- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97409-870-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97409-872-9 01 1 1012- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1012- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1012- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1012- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1012- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1012- ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 1012- ● ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1012- ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1012- ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1012- ● ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1012- ● ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-002-1 01 1 1012- ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98030-961-4 01 1 1012-1506 ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-763-0 01 1 1507- ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1012- ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1012- ● ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1012- ● ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1012- ● ●
534 16.550 FASTENER
(A) 40X25 		8-98089-412-1 02 1 1012- ● ●
534 16.550 FASTENER
(B) 40X25 		8-98089-411-1 02 1 1012- ● ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 1012- ● ●
çizim 190951
524 523
BalonParca AdiParca NoAdetTipApplied Date A B
523 08.212 COVER; FENDER RR 8-98039-013-2 01 1 1012- ●
523 08.212 COVER; FENDER RR 8-98039-014-2 01 1 1012- ●
524 08.212 CLIP; FENDER COVER
OD=8.5 GRAY 		8-97893-482-0 06 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
