5-10 — CAB MOUNTING; FRAME SIDE (#79300) — 92 parça

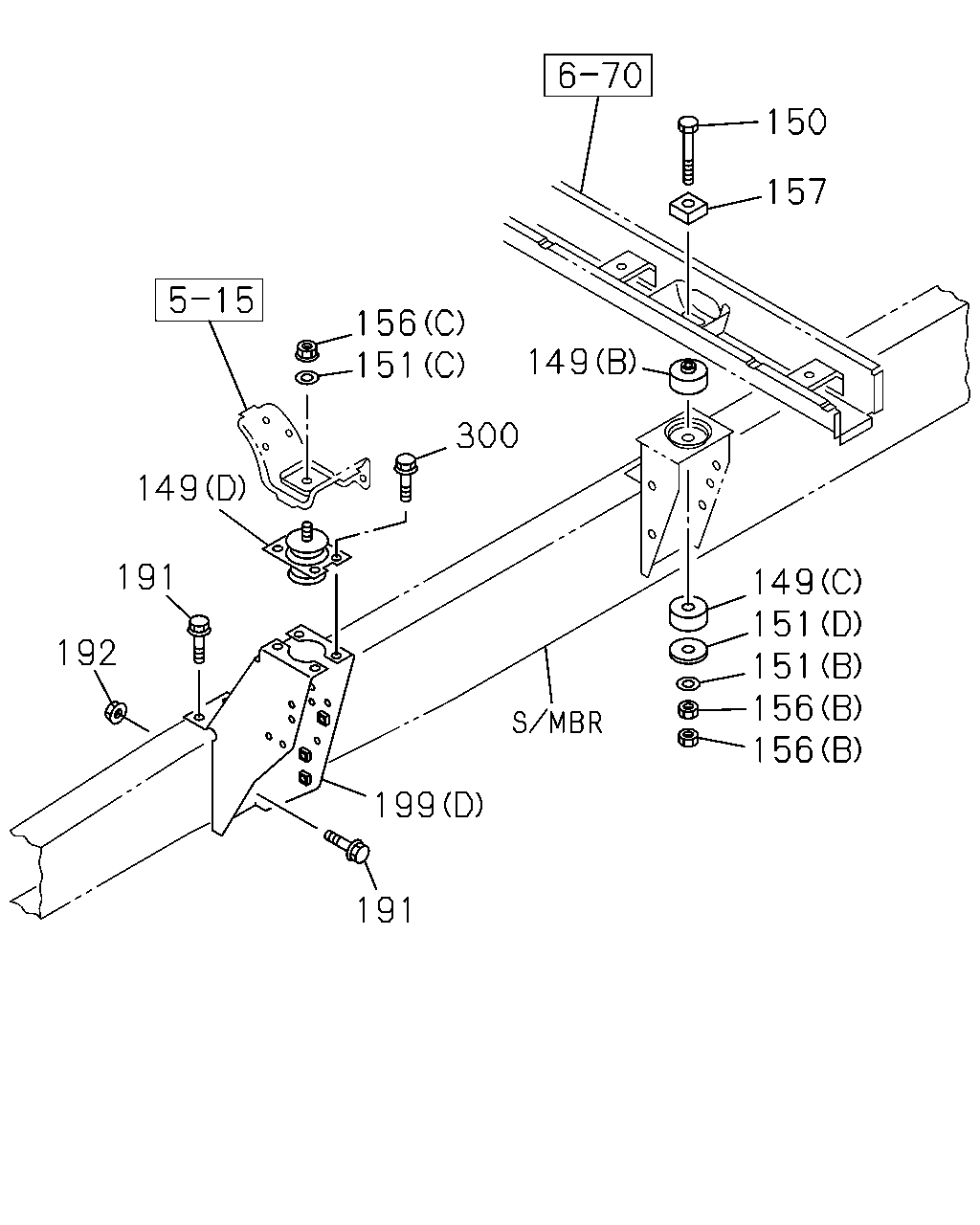

150 157 156 151 149 300 149 191 149 151 151 156 156 192 199 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1012-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (D) H=94	8-98038-868-0	02	1	1012-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=94	8-98038-868-0	02	1	1012-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=26.5	5-53459-041-0	02	1	1012-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=30.6	8-94128-501-0	02	1	1012-		●
150	09.011 BOLT; CAB MTG RR M10X105	8-98004-320-0	02	1	1012-		●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1012-	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (C) ID=16.5 OD=58	8-97359-040-1	02	1	1012-	●
151	09.011 WASHER; CAB MTG,RR UPR (C) ID=16.5 OD=58	8-97359-040-1	02	1	1012-		●
151	09.011 WASHER; CAB MTG,RR UPR (B) OD=33 ID=10.2 T=3.2	8-98004-321-0	02	1	1012-		●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=14 OD=60	8-98004-322-0	02	1	1012-		●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1012-	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (C) M14 FLANGE	0-91180-114-0	02	1	1012-	●
156	07.529 NUT; CAB MTG RR (C) M14 FLANGE	0-91180-114-0	02	1	1012-		●
156	07.529 NUT; CAB MTG RR 00.833 (B) M10	0-91110-510-0	04	1	1012-		●
157	09.023 RUBBER; MTG,CAB,TOP RR	9-53459-603-0	02	1	1012-		●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	1012-	●	●
192	09.003 NUT; BRKT FIX EXC. FRAME-KICK UP<7EW> 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98001-443-4	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	1012-1511	●
199	09.003 BRACKET; CAB RR MTG 4JJ1-TCC ENG(RDU) (D)	8-98001-443-4	02	1	1012-1511		●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	1512-	●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	02	1	1512-		●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1012-	●	●

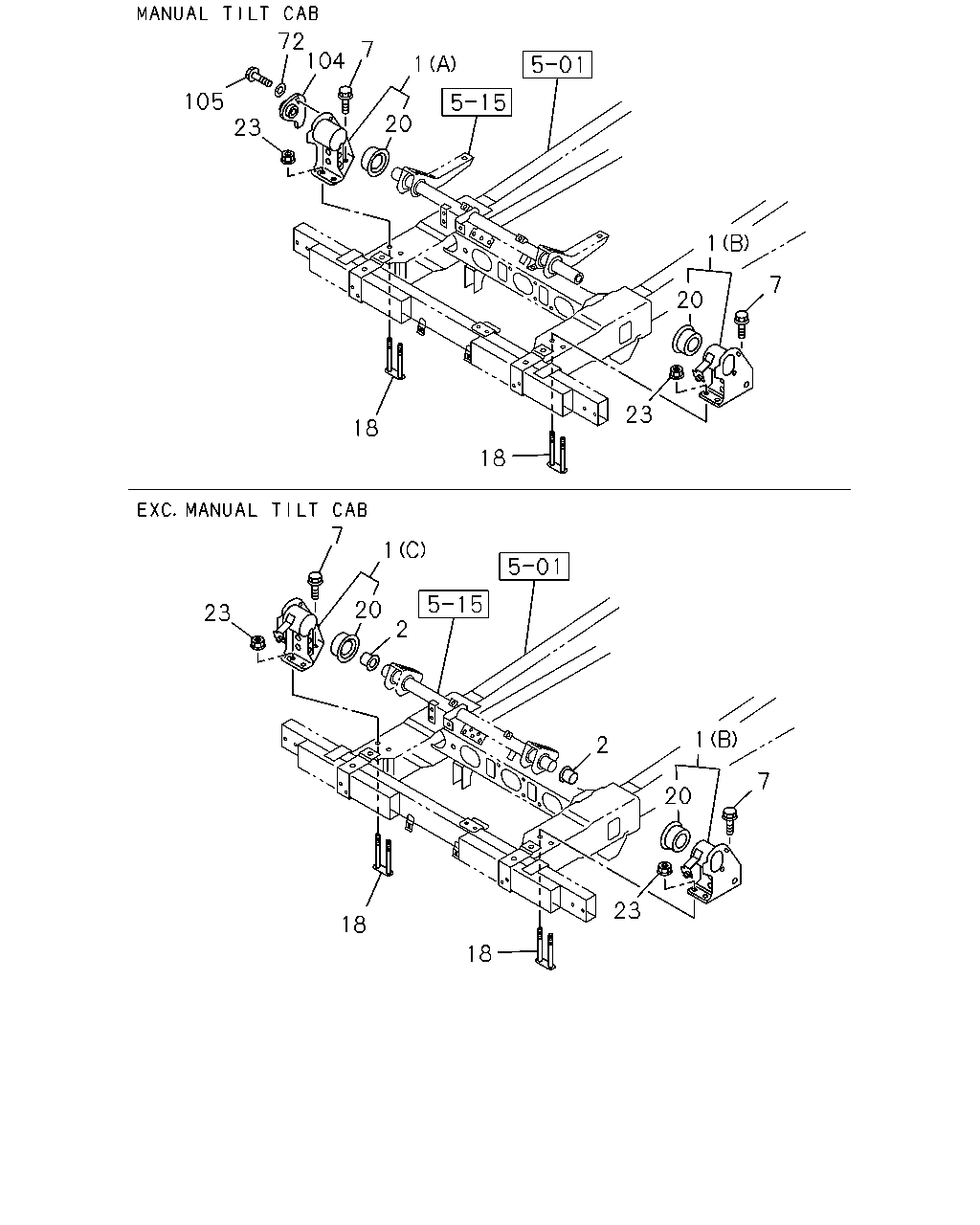

72 104 7 1 105 20 23 1 7 20 23 18 18 7 1 20 23 2 1 2 7 20 23 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> 16.545 (A)	8-98021-409-3	01	1	1012-	●
1	09.003 BRACKET; CAB MTG (B)	8-98021-408-3	01	1	1012-	●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> 16.545 (C)	8-98021-407-4	01	1	1012-	●
1	09.003 BRACKET; CAB MTG 16.545 (C)	8-98021-407-4	01	1	1012-		●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	1012-	●
2	09.009 BUSHING; TORSION BAR	8-97061-514-0	02	1	1012-		●
7	09.003 BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	1012-	●	●
18	09.003 PLATE; MTG BRKT FIX	8-98029-285-1	02	1	1012-	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	02	1	1012-	●	●
23	09.003 NUT; MTG BRKT M14	8-98039-989-0	04	1	1012-	●	●
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	1012-	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-98006-455-1	01	1	1012-	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	1012-	●

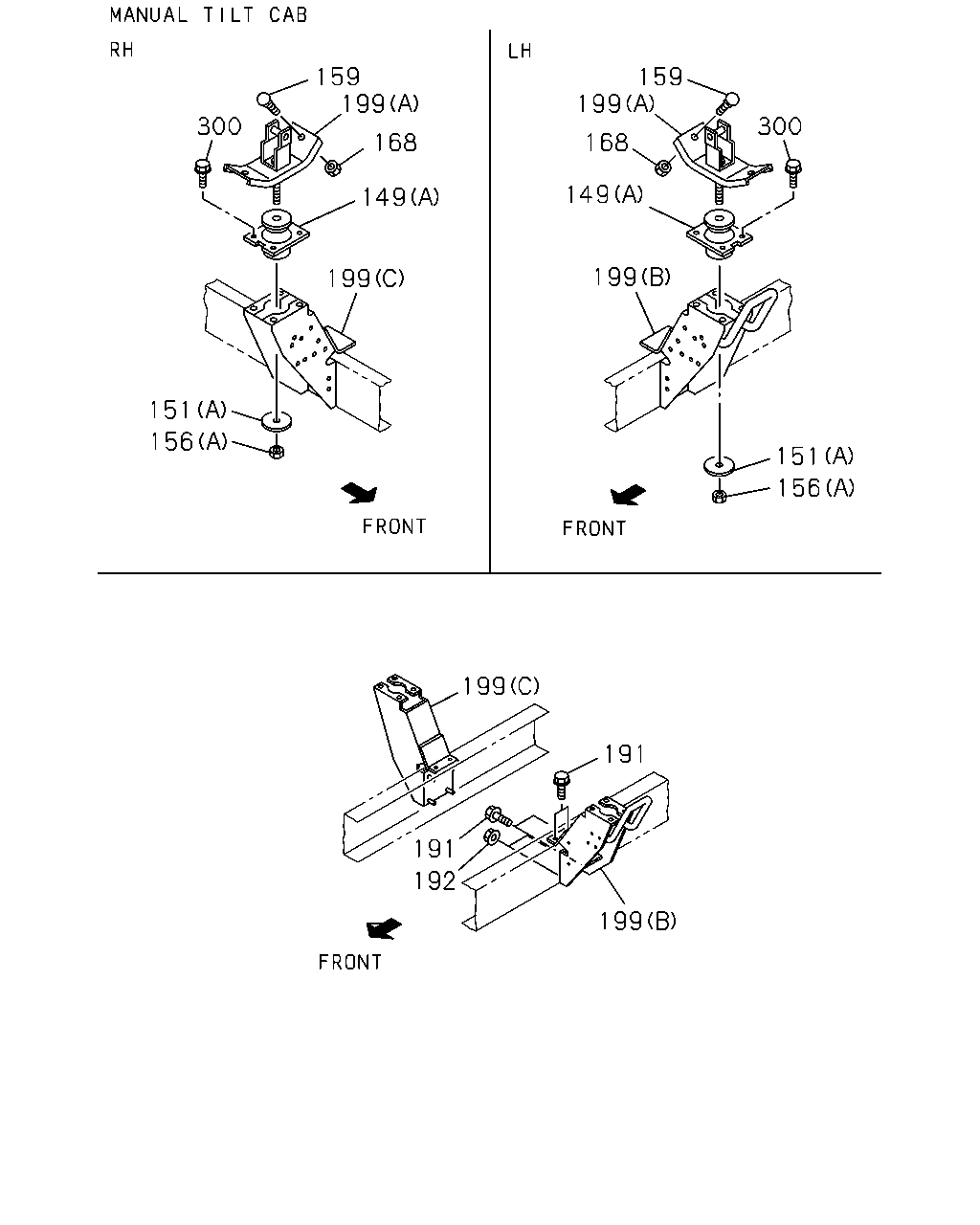

159 199 159 199 300 300 168 168 149 149 199 199 151 156 151 156 199 191 191 192 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1012-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (D) H=94	8-98038-868-0	02	1	1012-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=94	8-98038-868-0	02	1	1012-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=26.5	5-53459-041-0	02	1	1012-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=30.6	8-94128-501-0	02	1	1012-		●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1012-	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (C) ID=16.5 OD=58	8-97359-040-1	02	1	1012-	●
151	09.011 WASHER; CAB MTG,RR UPR (C) ID=16.5 OD=58	8-97359-040-1	02	1	1012-		●
151	09.011 WASHER; CAB MTG,RR UPR (B) OD=33 ID=10.2 T=3.2	8-98004-321-0	02	1	1012-		●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=14 OD=60	8-98004-322-0	02	1	1012-		●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1012-	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (C) M14 FLANGE	0-91180-114-0	02	1	1012-	●
156	07.529 NUT; CAB MTG RR (C) M14 FLANGE	0-91180-114-0	02	1	1012-		●
156	07.529 NUT; CAB MTG RR 00.833 (B) M10	0-91110-510-0	04	1	1012-		●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	1012-	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	1012-	●	●
192	09.003 NUT; BRKT FIX EXC. FRAME-KICK UP<7EW> 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98001-443-4	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	1012-1511	●
199	09.003 BRACKET; CAB RR MTG 4JJ1-TCC ENG(RDU) (D)	8-98001-443-4	02	1	1012-1511		●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	1512-	●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	02	1	1512-		●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1012-	●	●

156 151 199 300 149 192 199 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1012-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (D) H=94	8-98038-868-0	02	1	1012-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=94	8-98038-868-0	02	1	1012-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=26.5	5-53459-041-0	02	1	1012-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=30.6	8-94128-501-0	02	1	1012-		●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1012-	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (C) ID=16.5 OD=58	8-97359-040-1	02	1	1012-	●
151	09.011 WASHER; CAB MTG,RR UPR (C) ID=16.5 OD=58	8-97359-040-1	02	1	1012-		●
151	09.011 WASHER; CAB MTG,RR UPR (B) OD=33 ID=10.2 T=3.2	8-98004-321-0	02	1	1012-		●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=14 OD=60	8-98004-322-0	02	1	1012-		●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1012-	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (C) M14 FLANGE	0-91180-114-0	02	1	1012-	●
156	07.529 NUT; CAB MTG RR (C) M14 FLANGE	0-91180-114-0	02	1	1012-		●
156	07.529 NUT; CAB MTG RR 00.833 (B) M10	0-91110-510-0	04	1	1012-		●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	1012-	●	●
192	09.003 NUT; BRKT FIX EXC. FRAME-KICK UP<7EW> 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98001-443-4	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	1012-1511	●
199	09.003 BRACKET; CAB RR MTG 4JJ1-TCC ENG(RDU) (D)	8-98001-443-4	02	1	1012-1511		●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	1512-	●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	02	1	1512-		●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
