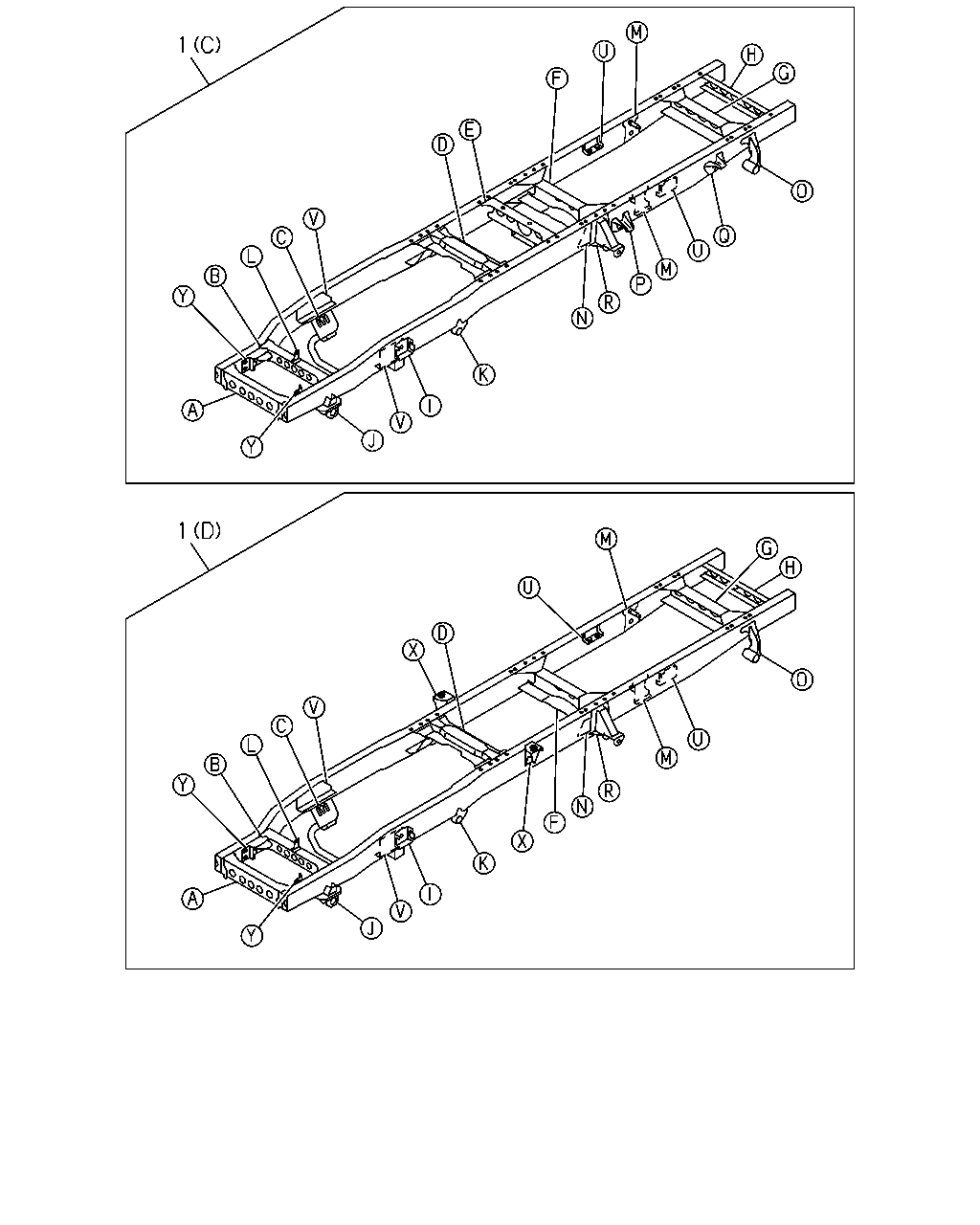

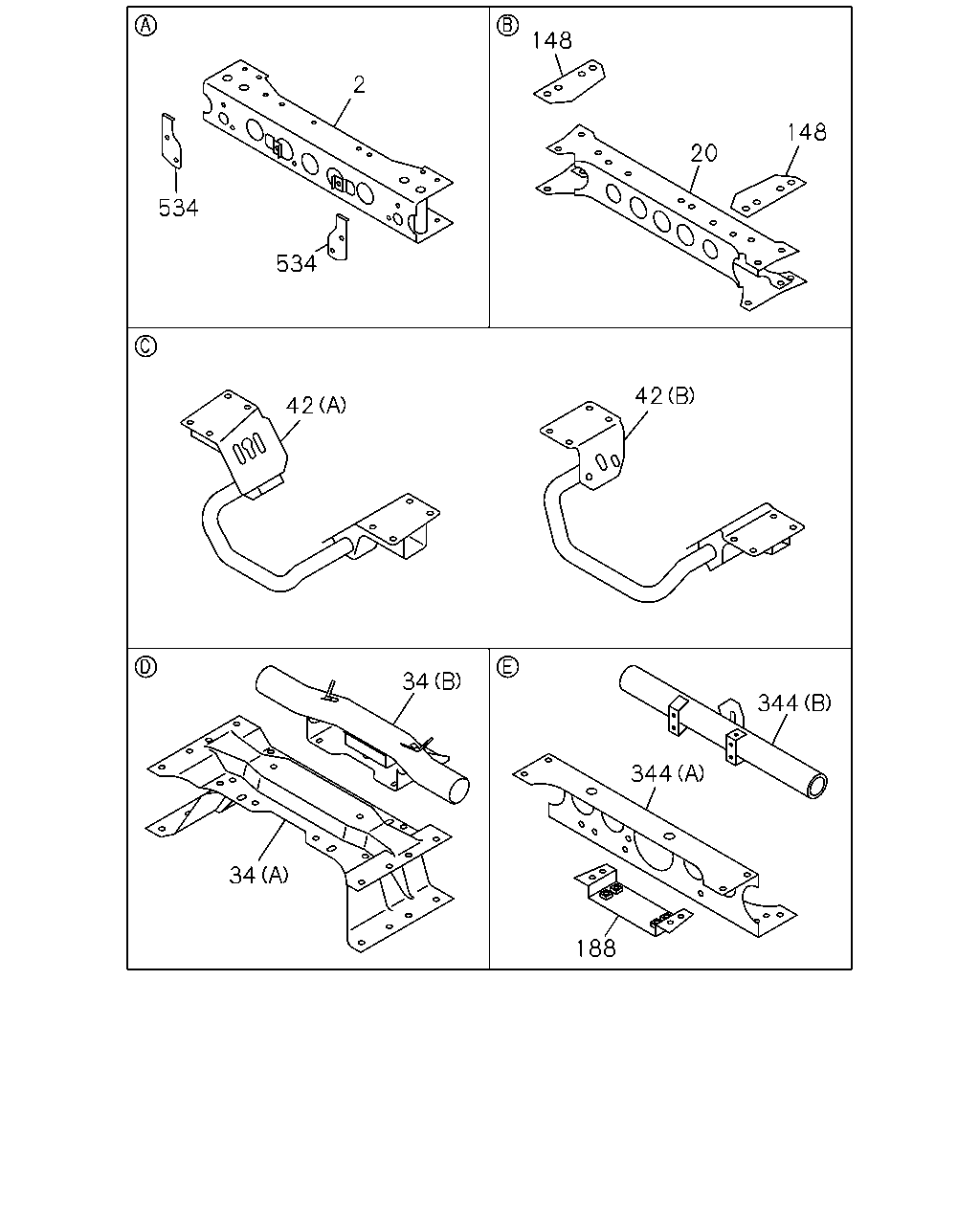

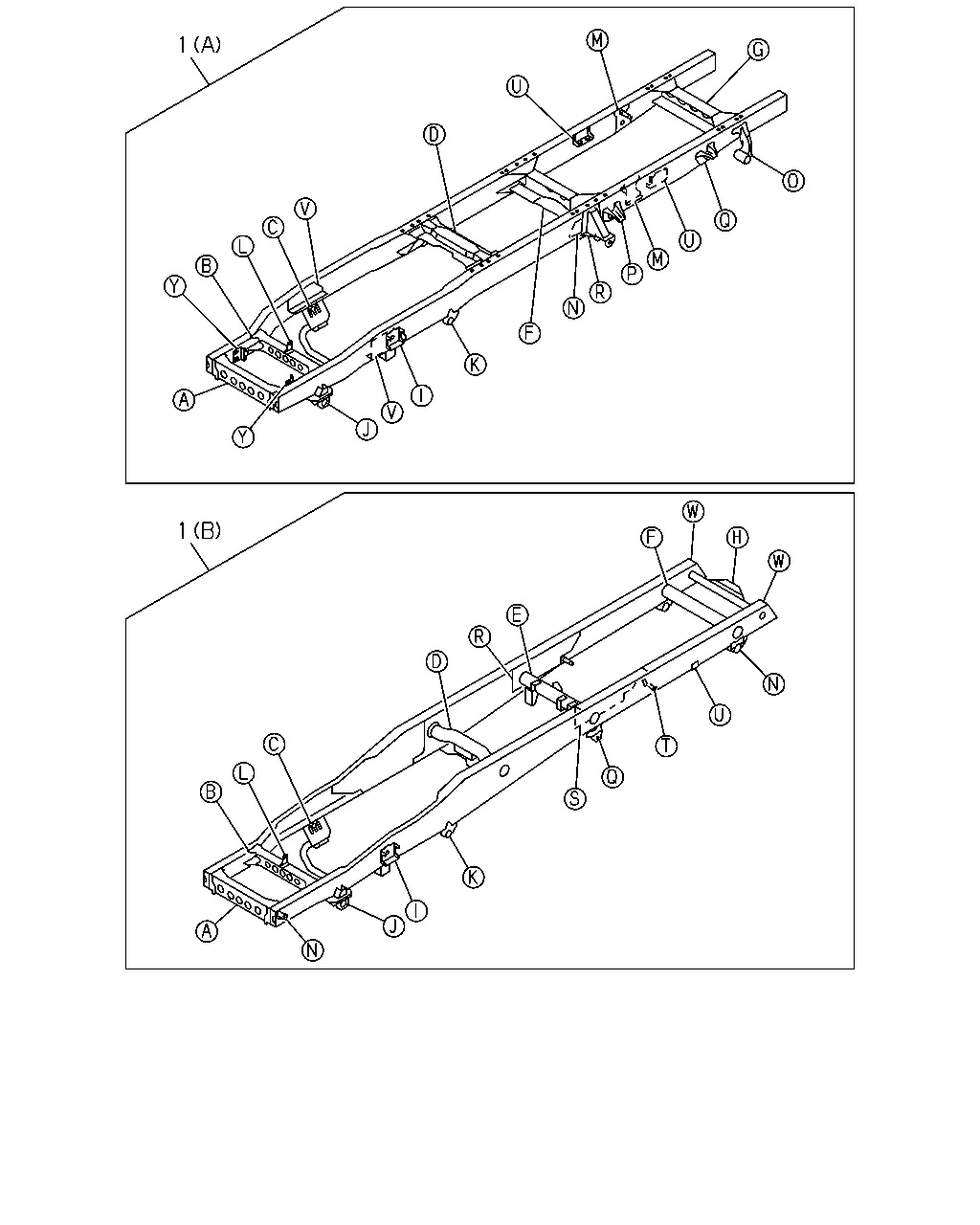

5-01 — FRAME AND OTHER PARTS (#79299) — 316 parça

173 140 140 173 215 215 105 105 215 215 446 103 103 147 147 101 101 365 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98243-604-0	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-98243-604-0	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT 4JJ1-TCC ENG(RDU) (A)	8-98243-604-0	02	1	1310-		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) (A)	8-97034-156-1	02	1	1012-1309	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-97034-156-1	02	1	1012-1309	●
101	07.112 BRACKET; RR SPR,FRT 4JJ1-TCC ENG(RDU) (A)	8-97034-156-1	02	1	1012-1309		●
101	07.112 BRACKET; RR SPR,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-97034-156-1	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-97034-156-1	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97034-223-1	02	1	1012-	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) (B)	8-97223-748-0	02	1	1012-1309	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-97223-748-0	02	1	1012-1309	●
103	07.420 STOPPER; SUB SPR 4JJ1-TCC ENG(RDU) (B)	8-97223-748-0	02	1	1012-1309		●
103	07.420 STOPPER; SUB SPR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (B)	8-97223-748-0	02	1	1310-	●
103	07.420 STOPPER; SUB SPR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (B)	8-97223-748-0	02	1	1310-	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (B)	8-97223-748-0	02	1	1310-	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B)	8-97223-748-0	02	1	1310-	●
103	07.420 STOPPER; SUB SPR 4JJ1-TCC ENG(RDU) (B)	8-97223-748-0	02	1	1310-		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) (A)	8-97223-750-0	02	1	1012-1309	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-97223-750-0	02	1	1012-1309	●
103	07.420 STOPPER; SUB SPR 4JJ1-TCC ENG(RDU) (A)	8-97223-750-0	02	1	1012-1309		●
103	07.420 STOPPER; SUB SPR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-97223-750-0	02	1	1310-	●
103	07.420 STOPPER; SUB SPR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-97223-750-0	02	1	1310-	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-97223-750-0	02	1	1310-	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-97223-750-0	02	1	1310-	●
103	07.420 STOPPER; SUB SPR 4JJ1-TCC ENG(RDU) (A)	8-97223-750-0	02	1	1310-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (A)	8-98032-488-0	01	1	1012-1309	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98032-488-0	01	1	1012-1309	●
105	07.112 BRACKET; RR SPR,RR 4JJ1-TCC ENG(RDU) (A)	8-98032-488-0	01	1	1012-1309		●
105	07.112 BRACKET; RR SPR,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98032-488-0	01	1	1310-	●
105	07.112 BRACKET; RR SPR,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98032-488-0	01	1	1310-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98032-488-0	01	1	1310-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-98032-488-0	01	1	1310-	●
105	07.112 BRACKET; RR SPR,RR 4JJ1-TCC ENG(RDU) (A)	8-98032-488-0	01	1	1310-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (A)	8-98032-489-0	01	1	1012-1309	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98032-489-0	01	1	1012-1309	●
105	07.112 BRACKET; RR SPR,RR 4JJ1-TCC ENG(RDU) (A)	8-98032-489-0	01	1	1012-1309		●
105	07.112 BRACKET; RR SPR,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98032-489-0	01	1	1310-	●
105	07.112 BRACKET; RR SPR,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98032-489-0	01	1	1310-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98032-489-0	01	1	1310-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-98032-489-0	01	1	1310-	●
105	07.112 BRACKET; RR SPR,RR 4JJ1-TCC ENG(RDU) (A)	8-98032-489-0	01	1	1310-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97184-907-0	02	1	1012-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) (A)	8-98006-176-0	01	1	1012-1309	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98006-176-0	01	1	1012-1309	●
140	07.112 BRACKET; S/ABS,RR 4JJ1-TCC ENG(RDU) (A)	8-98006-176-0	01	1	1012-1309		●
140	07.112 BRACKET; S/ABS,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98006-176-0	01	1	1310-	●
140	07.112 BRACKET; S/ABS,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98006-176-0	01	1	1310-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98006-176-0	01	1	1310-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-98006-176-0	01	1	1310-	●
140	07.112 BRACKET; S/ABS,RR 4JJ1-TCC ENG(RDU) (A)	8-98006-176-0	01	1	1310-		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) (B)	8-98006-180-0	01	1	1012-1309	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98006-180-0	01	1	1012-1309	●
140	07.112 BRACKET; S/ABS,RR 4JJ1-TCC ENG(RDU) (B)	8-98006-180-0	01	1	1012-1309		●
140	07.112 BRACKET; S/ABS,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98006-180-0	01	1	1310-	●
140	07.112 BRACKET; S/ABS,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98006-180-0	01	1	1310-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (B)	8-98006-180-0	01	1	1310-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B)	8-98006-180-0	01	1	1310-	●
140	07.112 BRACKET; S/ABS,RR 4JJ1-TCC ENG(RDU) (B)	8-98006-180-0	01	1	1310-		●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97259-035-0	01	1	1012-	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 3300MM(33W)	8-97254-387-0	04	1	1012-1309	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97254-387-0	04	1	1012-1309	●
147	07.535 RUBBER; SUB SPRING 4JJ1-TCC ENG(RDU)	8-97254-387-0	04	1	1012-1309		●
147	07.535 RUBBER; SUB SPRING 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-97254-387-0	04	1	1310-	●
147	07.535 RUBBER; SUB SPRING 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB>	8-97254-387-0	04	1	1310-	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB>	8-97254-387-0	04	1	1310-	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-97254-387-0	04	1	1310-	●
147	07.535 RUBBER; SUB SPRING 4JJ1-TCC ENG(RDU)	8-97254-387-0	04	1	1310-		●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 3300MM(33W) (B)	8-98012-947-3	02	1	1012-1309	●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98012-947-3	02	1	1012-1309	●
173	07.112 STIFFENER; RR SPRING 4JJ1-TCC ENG(RDU) (B)	8-98012-947-3	02	1	1012-1309		●
173	07.112 STIFFENER; RR SPRING 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98012-947-3	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98012-947-3	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (B)	8-98012-947-3	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B)	8-98012-947-3	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING 4JJ1-TCC ENG(RDU) (B)	8-98012-947-3	02	1	1310-		●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 3300MM(33W) (A)	8-98012-948-2	02	1	1012-1309	●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98012-948-2	02	1	1012-1309	●
173	07.112 STIFFENER; RR SPRING 4JJ1-TCC ENG(RDU) (A)	8-98012-948-2	02	1	1012-1309		●
173	07.112 STIFFENER; RR SPRING 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98012-948-2	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98012-948-2	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98012-948-2	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-98012-948-2	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING 4JJ1-TCC ENG(RDU) (A)	8-98012-948-2	02	1	1310-		●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1012-	●	●
365	07.039 REINFORCEMENT; TRUNNION WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97033-251-2	01	1	1012-	●
365	07.039 REINFORCEMENT; TRUNNION WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97185-188-1	01	1	1012-	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W)	8-98060-184-1	01	1	1012-1309	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W)	8-98060-184-1	01	1	1310-	●
446	07.112 STIFFENER; SPRING STOPPER	8-98060-184-1	01	1	1310-		●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 40 60 176 176 118 62 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	08.155 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-1205	●
40	08.155 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1206-1309	●
40	08.155 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1206-1309	●
40	08.155 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1206-1309	●
40	08.155 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
40	08.155 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
40	08.155 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
40	08.155 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-		●
60	05.601 BOLT; MBR WHEEL BASE 3300MM(33W) 07.039 M10X30	0-20851-030-0	04	1	1012-1309	●
60	05.601 BOLT; MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 07.039 M10X30	0-20851-030-0	04	1	1012-1309	●
60	05.601 BOLT; MBR 4JJ1-TCC ENG(RDU) 07.039 M10X30	0-20851-030-0	04	1	1012-1309		●
60	05.601 BOLT; MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> 07.039 M10X30	0-20851-030-0	04	1	1310-	●
60	05.601 BOLT; MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> 07.039 M10X30	0-20851-030-0	04	1	1310-	●
60	05.601 BOLT; MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> 07.039 M10X30	0-20851-030-0	04	1	1310-	●
60	05.601 BOLT; MBR WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 07.039 M10X30	0-20851-030-0	04	1	1310-	●
60	05.601 BOLT; MBR 4JJ1-TCC ENG(RDU) 07.039 M10X30	0-20851-030-0	04	1	1310-		●
62	05.601 NUT; MBR WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-1309	●
62	05.601 NUT; MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-1309	●
62	05.601 NUT; MBR 4JJ1-TCC ENG(RDU) 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-1309		●
62	05.601 NUT; MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> 04.085 M10 FLANGE	0-91180-210-0	04	1	1310-	●
62	05.601 NUT; MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> 04.085 M10 FLANGE	0-91180-210-0	04	1	1310-	●
62	05.601 NUT; MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> 04.085 M10 FLANGE	0-91180-210-0	04	1	1310-	●
62	05.601 NUT; MBR WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 04.085 M10 FLANGE	0-91180-210-0	04	1	1310-	●
62	05.601 NUT; MBR 4JJ1-TCC ENG(RDU) 04.085 M10 FLANGE	0-91180-210-0	04	1	1310-		●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-	●	●
118	07.529 NUT; STOPPER WHEEL BASE 3300MM(33W) M8 LOCK NUT	0-91370-008-0	02	1	1012-1309	●
118	07.529 NUT; STOPPER WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M8 LOCK NUT	0-91370-008-0	02	1	1012-1309	●
118	07.529 NUT; STOPPER 4JJ1-TCC ENG(RDU) M8 LOCK NUT	0-91370-008-0	02	1	1012-1309		●
118	07.529 NUT; STOPPER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> M8 LOCK NUT	0-91370-008-0	02	1	1310-	●
118	07.529 NUT; STOPPER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> M8 LOCK NUT	0-91370-008-0	02	1	1310-	●
118	07.529 NUT; STOPPER WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> M8 LOCK NUT	0-91370-008-0	02	1	1310-	●
118	07.529 NUT; STOPPER WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> M8 LOCK NUT	0-91370-008-0	02	1	1310-	●
118	07.529 NUT; STOPPER 4JJ1-TCC ENG(RDU) M8 LOCK NUT	0-91370-008-0	02	1	1310-		●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> 03.890 (A) M10X30 FLANGE	0-28051-030-0	06	1	1206-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> 04.510 (B) M10X35 FLANGE	0-28051-035-0	02	1	1206-	●
176	04.085 BOLT; C/MBR,ENG MTG 4JJ1-TCC ENG(RDU) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1012-1309	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1012-1309		●
176	04.085 BOLT; C/MBR,ENG MTG 4JJ1-TCC ENG(RDU) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1310-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (A) M10X30 FLANGE	0-28061-030-0	08	1	1012-1205	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A) M10X30 FLANGE	0-28061-030-0	08	1	1012-1205	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A) M10X30 FLANGE	0-28061-030-0	08	1	1206-1309	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A) M10X30 FLANGE	0-28061-030-0	08	1	1206-1309	●
176	04.085 BOLT; C/MBR,ENG MTG (A) M10X30 FLANGE	0-28061-030-0	08	1	1310-		●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) M10X30 FLANGE	0-28061-030-0	06	1	1012-1205	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) M10X30 FLANGE	0-28061-030-0	06	1	1206-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A) M10X30 FLANGE	0-28061-030-0	06	1	1206-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 07.395 (B) M10X35 FLANGE	0-28061-035-0	02	1	1012-1205	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 07.395 (B) M10X35 FLANGE	0-28061-035-0	02	1	1206-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 07.395 (B) M10X35 FLANGE	0-28061-035-0	02	1	1206-	●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME 07.006 (L) D12X32 TAPER END	9-06751-232-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME 07.535 (M) D12X34 TAPER END	9-06751-234-0	AR	1	1012-	●	●
376	07.039 RIVET; FRAME 07.428 (N) D12X36 TAPER END	9-06751-236-0	AR	1	1012-	●	●

198 75 345 345 198 75 139 130 130 24 51 165 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1012-	●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1012-	●	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1012-	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4JJ1-TCC ENG(RDU)	8-98038-962-3	02	1	1012-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1012-		●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4HG1 ENG(RJH)	8-98092-751-0	01	1	1012-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4HG1 ENG(RJH)	8-98092-753-0	01	1	1012-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W)	8-98011-863-0	04	1	1012-1309	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98011-863-0	04	1	1012-1309	●
75	07.039 GUSSET; 5TH C/MBR 4JJ1-TCC ENG(RDU)	8-98011-863-0	04	1	1012-1309		●
75	07.039 GUSSET; 5TH C/MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98011-863-0	04	1	1310-	●
75	07.039 GUSSET; 5TH C/MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB>	8-98011-863-0	04	1	1310-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB>	8-98011-863-0	04	1	1310-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98011-863-0	04	1	1310-	●
75	07.039 GUSSET; 5TH C/MBR 4JJ1-TCC ENG(RDU)	8-98011-863-0	04	1	1310-		●
130	07.014 MEMBER; CROSS,END WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A)	8-94388-995-3	01	1	1012-	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W) (B)	8-98041-239-1	01	1	1012-	●
130	07.014 MEMBER; CROSS,END (B)	8-98041-239-1	01	1	1012-		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W)	8-97384-745-0	01	1	1012-1309	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97384-745-0	01	1	1012-1309	●
139	07.012 MEMBER; CROSS,6TH 4JJ1-TCC ENG(RDU)	8-97384-745-0	01	1	1012-1309		●
139	07.012 MEMBER; CROSS,6TH 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-97384-745-0	01	1	1310-	●
139	07.012 MEMBER; CROSS,6TH 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB>	8-97384-745-0	01	1	1310-	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB>	8-97384-745-0	01	1	1310-	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-97384-745-0	01	1	1310-	●
139	07.012 MEMBER; CROSS,6TH 4JJ1-TCC ENG(RDU)	8-97384-745-0	01	1	1310-		●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1012-	●	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1012-1309	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1012-1309	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1-TCC ENG(RDU) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1012-1309		●
198	07.039 GUSSET; 6TH C/MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1310-	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1310-	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1310-	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1310-	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1-TCC ENG(RDU) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1310-		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1012-1309	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1012-1309	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1-TCC ENG(RDU) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1012-1309		●
198	07.039 GUSSET; 6TH C/MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1310-	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1310-	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1310-	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1310-	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1-TCC ENG(RDU) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1310-		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) (A)	8-98011-861-2	01	1	1012-1309	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98011-861-2	01	1	1012-1309	●
345	07.012 MEMBER; CROSS,5TH 4JJ1-TCC ENG(RDU) (A)	8-98011-861-2	01	1	1012-1309		●
345	07.012 MEMBER; CROSS,5TH 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98011-861-2	01	1	1310-	●
345	07.012 MEMBER; CROSS,5TH 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98011-861-2	01	1	1310-	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98011-861-2	01	1	1310-	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-98011-861-2	01	1	1310-	●
345	07.012 MEMBER; CROSS,5TH 4JJ1-TCC ENG(RDU) (A)	8-98011-861-2	01	1	1310-		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97033-229-1	01	1	1012-	●

148 2 148 20 534 534 42 42 34 344 344 34 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	1012-	●	●
20	07.012 MEMBER; CROSS,2ND	8-98088-281-1	01	1	1012-	●	●
34	07.012 MEMBER; CROSS,3RD 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-97384-743-1	01	1	1206-1309	●
34	07.012 MEMBER; CROSS,3RD 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-97384-743-1	01	1	1206-1309	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-97384-743-1	01	1	1310-	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-97384-743-1	01	1	1310-	●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU) (A)	8-97384-743-1	01	1	1310-		●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 3300MM(33W) (A)	8-98081-959-0	01	1	1012-1205	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98081-959-0	01	1	1012-1205	●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU) (A)	8-98081-959-0	01	1	1012-1205		●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98081-959-0	01	1	1206-1309	●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98081-959-0	01	1	1206-1309	●
34	07.012 MEMBER; CROSS,3RD 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98081-959-0	01	1	1206-1309	●
34	07.012 MEMBER; CROSS,3RD 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98081-959-0	01	1	1206-1309	●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU) (A)	8-98081-959-0	01	1	1206-1309		●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98081-959-0	01	1	1310-	●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98081-959-0	01	1	1310-	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97256-169-0	01	1	1012-	●
42	07.011 MEMBER; CROSS,ENG MTG 4JJ1-TCC ENG(RDU) (A)	8-98006-224-1	01	1	1012-	●
42	07.011 MEMBER; CROSS,ENG MTG (A)	8-98006-224-1	01	1	1012-		●
42	07.011 MEMBER; CROSS,ENG MTG 4HG1 ENG(RJH) (B)	8-98092-533-0	01	1	1012-	●
148	07.105 SPACER; C/MBR WHEEL BASE 3300MM(33W)	8-98081-958-0	04	1	1012-1205	●
148	07.105 SPACER; C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98081-958-0	04	1	1012-1205	●
148	07.105 SPACER; C/MBR 4JJ1-TCC ENG(RDU)	8-98081-958-0	04	1	1012-1205		●
148	07.105 SPACER; C/MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98081-958-0	04	1	1206-1309	●
148	07.105 SPACER; C/MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98081-958-0	04	1	1206-1309	●
148	07.105 SPACER; C/MBR 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98081-958-0	04	1	1206-1309	●
148	07.105 SPACER; C/MBR 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB>	8-98081-958-0	04	1	1206-1309	●
148	07.105 SPACER; C/MBR 4JJ1-TCC ENG(RDU)	8-98081-958-0	04	1	1206-1309		●
148	07.105 SPACER; C/MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98081-958-0	04	1	1310-	●
148	07.105 SPACER; C/MBR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB>	8-98081-958-0	04	1	1310-	●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1012-	●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97083-157-1	01	1	1012-		●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98039-740-0	01	1	1012-	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W) (A)	8-98005-959-1	01	1	1012-	●
344	07.012 MEMBER; CROSS,4TH (A)	8-98005-959-1	01	1	1012-		●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	1012-	●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	1012-	●	●

43 43 356 356 217 234 533 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	09.003 BRACKET; CAB MTG,RR	8-98035-851-1	01	1	1012-		●
43	09.003 BRACKET; CAB MTG,RR	8-98035-852-1	01	1	1012-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 3300MM(33W)	8-97202-417-0	02	1	1012-1309	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97202-417-0	02	1	1012-1309	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JJ1-TCC ENG(RDU)	8-97202-417-0	02	1	1012-1309		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-97202-417-0	02	1	1310-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB>	8-97202-417-0	02	1	1310-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB>	8-97202-417-0	02	1	1310-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-97202-417-0	02	1	1310-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JJ1-TCC ENG(RDU)	8-97202-417-0	02	1	1310-		●
234	07.006 COVER; END,S/MBR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97033-249-0	02	1	1012-	●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 3300MM(33W) (A)	8-98062-610-1	01	1	1012-1205	●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98062-610-1	01	1	1012-1205	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) (A)	8-98062-610-1	01	1	1012-1205		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98062-610-1	01	1	1206-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98062-610-1	01	1	1206-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98062-610-1	01	1	1206-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98062-610-1	01	1	1206-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) (A)	8-98062-610-1	01	1	1206-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98062-610-1	01	1	1310-	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98062-610-1	01	1	1310-	●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 3300MM(33W) (B)	8-98062-611-1	01	1	1012-1205	●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98062-611-1	01	1	1012-1205	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) (B)	8-98062-611-1	01	1	1012-1205		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98062-611-1	01	1	1206-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98062-611-1	01	1	1206-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98062-611-1	01	1	1206-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98062-611-1	01	1	1206-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) (B)	8-98062-611-1	01	1	1206-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98062-611-1	01	1	1310-	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98062-611-1	01	1	1310-	●
533	07.010 STIFFENER; REINFORCEMENT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB>	8-98006-680-1	02	1	1310-	●
533	07.010 STIFFENER; REINFORCEMENT WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98006-680-1	02	1	1310-	●
533	07.010 STIFFENER; REINFORCEMENT 4JJ1-TCC ENG(RDU)	8-98006-680-1	02	1	1310-		●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98220-872-1	01	1	1206-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98255-010-1	01	1	1310-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (C)	8-98220-873-1	01	1	1206-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (C)	8-98255-011-1	01	1	1310-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98023-312-3	01	1	1012-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98023-312-3	01	1	1310-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98023-315-4	01	1	1012-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C)	8-98072-763-3	01	1	1012-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (C)	8-98072-763-3	01	1	1310-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98123-142-2	01	1	1012-1205	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98123-142-2	01	1	1206-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98254-657-1	01	1	1310-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98105-290-2	01	1	1012-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (C)	8-98105-289-1	01	1	1012-1205	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (C)	8-98105-289-1	01	1	1206-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (C)	8-98254-669-1	01	1	1310-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) RR BODY FLAT BED(RS6) (D)	8-98072-769-3	01	1	1012-1309		●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) RR BODY FLAT BED(RS6) (D)	8-98254-674-1	01	1	1310-		●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) EXC. RR BODY FLAT BED(RS6) (D)	8-98072-768-3	01	1	1012-1309		●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) EXC. RR BODY FLAT BED(RS6) (D)	8-98254-673-1	01	1	1310-		●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98220-872-1	01	1	1206-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98255-010-1	01	1	1310-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (C)	8-98220-873-1	01	1	1206-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (C)	8-98255-011-1	01	1	1310-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98023-312-3	01	1	1012-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98023-312-3	01	1	1310-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98023-315-4	01	1	1012-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C)	8-98072-763-3	01	1	1012-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (C)	8-98072-763-3	01	1	1310-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98123-142-2	01	1	1012-1205	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98123-142-2	01	1	1206-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98254-657-1	01	1	1310-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98105-290-2	01	1	1012-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (C)	8-98105-289-1	01	1	1012-1205	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (C)	8-98105-289-1	01	1	1206-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (C)	8-98254-669-1	01	1	1310-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) RR BODY FLAT BED(RS6) (D)	8-98072-769-3	01	1	1012-1309		●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) RR BODY FLAT BED(RS6) (D)	8-98254-674-1	01	1	1310-		●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) EXC. RR BODY FLAT BED(RS6) (D)	8-98072-768-3	01	1	1012-1309		●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) EXC. RR BODY FLAT BED(RS6) (D)	8-98254-673-1	01	1	1310-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
