◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#79291) — 33 parça

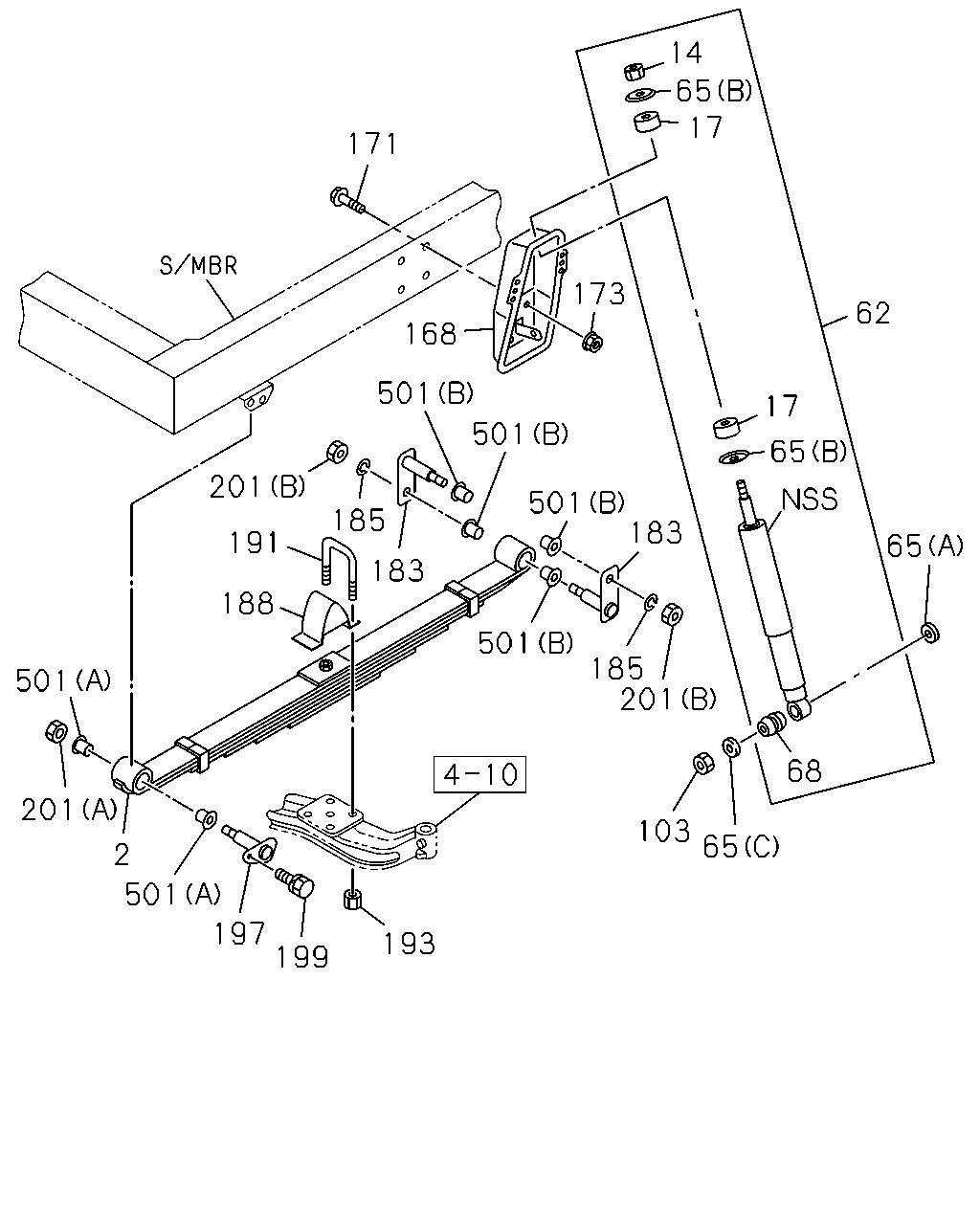

çizim 124112
14 65 17 171 173 62 168 501 17 501 65 201 501 183 185 191 65 183 188 501 185 201 501 68 201 103 65 2 501 197 199 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME-KICK UP<7EW> 5-LEAF 		8-98079-897-0 01 1 1012- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME-KICK UP<7EW> 5-LEAF 		8-98079-898-0 01 1 1012- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRAME-KICK UP<7EW> 2-LEAF 		8-98001-530-0 01 1 1012- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF 		8-98001-530-0 01 1 1012- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRAME-KICK UP<7EW> 2-LEAF 		8-98001-531-0 01 1 1012- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF 		8-98001-531-0 01 1 1012- ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 1012- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1012- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98085-709-1 02 1 1012-1506 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-159-0 02 1 1304-1506 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98316-235-0 02 1 1507- ● ●
65 07.347 WASHER; S/ABS
07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 1012- ● ●
65 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 1012- ● ●
65 07.347 WASHER; S/ABS
07.529 (A) ID=17 OD=32 		9-09164-616-0 02 1 1012-1012 ● ●
65 07.347 WASHER; S/ABS
(A) ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 1012- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
04.439 M12 		0-91111-512-0 02 1 1012- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98002-080-1 01 1 1012- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98002-081-0 01 1 1012- ● ●
171 07.395 BOLT; S/ABS BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1012- ● ●
173 07.395 NUT; S/ABS
03.162 M10 FLANGE 		0-91180-110-0 08 1 1012- ● ●
183 07.436 SHACKLE; FRT SUSP 8-98034-341-0 04 1 1012- ● ●
185 07.427 WASHER; LK,PIN
ID=16.5 		8-98011-489-0 04 1 1012- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 1012- ● ●
191 07.417 U-BOLT; FRT SPR
L=105 		8-97304-074-1 04 1 1012- ● ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1012- ● ●
197 07.427 PIN; FRT SPR,FRT 8-94117-900-1 02 1 1012- ● ●
199 07.427 BOLT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1012- ● ●
201 07.427 NUT; PIN LK
06.509 (B) M16 		0-91110-516-0 04 1 1012- ● ●
201 07.427 NUT; PIN LK
(A) M16 FLANGE 		8-97360-125-0 02 1 1012- ● ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 (A) 		8-97081-531-0 04 1 1012-1301 ● ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 (A) 		8-97081-531-0 12 1 1302- ● ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 (B) 		8-97081-531-0 08 1 1012-1301 ● ●
