4-40 — STEERING UNIT (#79289) — 12 parça

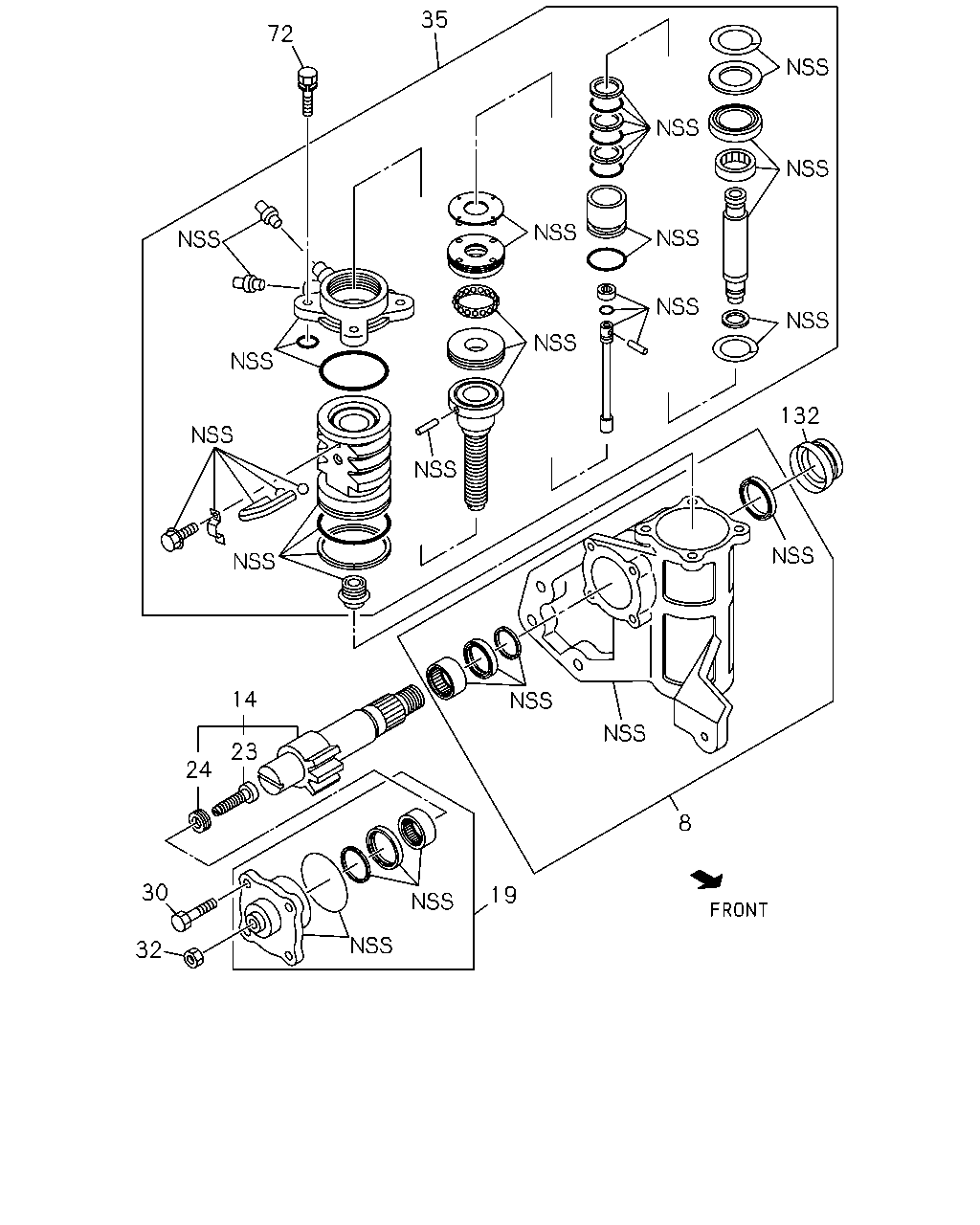

çizim 124264
35 72 132 14 23 24 8 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-98101-298-3, 98101298 		8-98101-308-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-98101-298-3, 98101298 		8-98061-393-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-98101-298-3, 98101298 		8-98036-333-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-98101-298-3, 98101298 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-98101-298-3, 98101298 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-98101-298-3, 98101298 		8-98036-336-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-98101-298-3, 98101298 		8-98036-337-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-98101-298-3, 98101298 		8-98112-932-3 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-98101-298-3, 98101298 		8-98036-336-0 04 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: A = 8-98101-298-3, 98101298 		8-97076-372-0 01 1 -

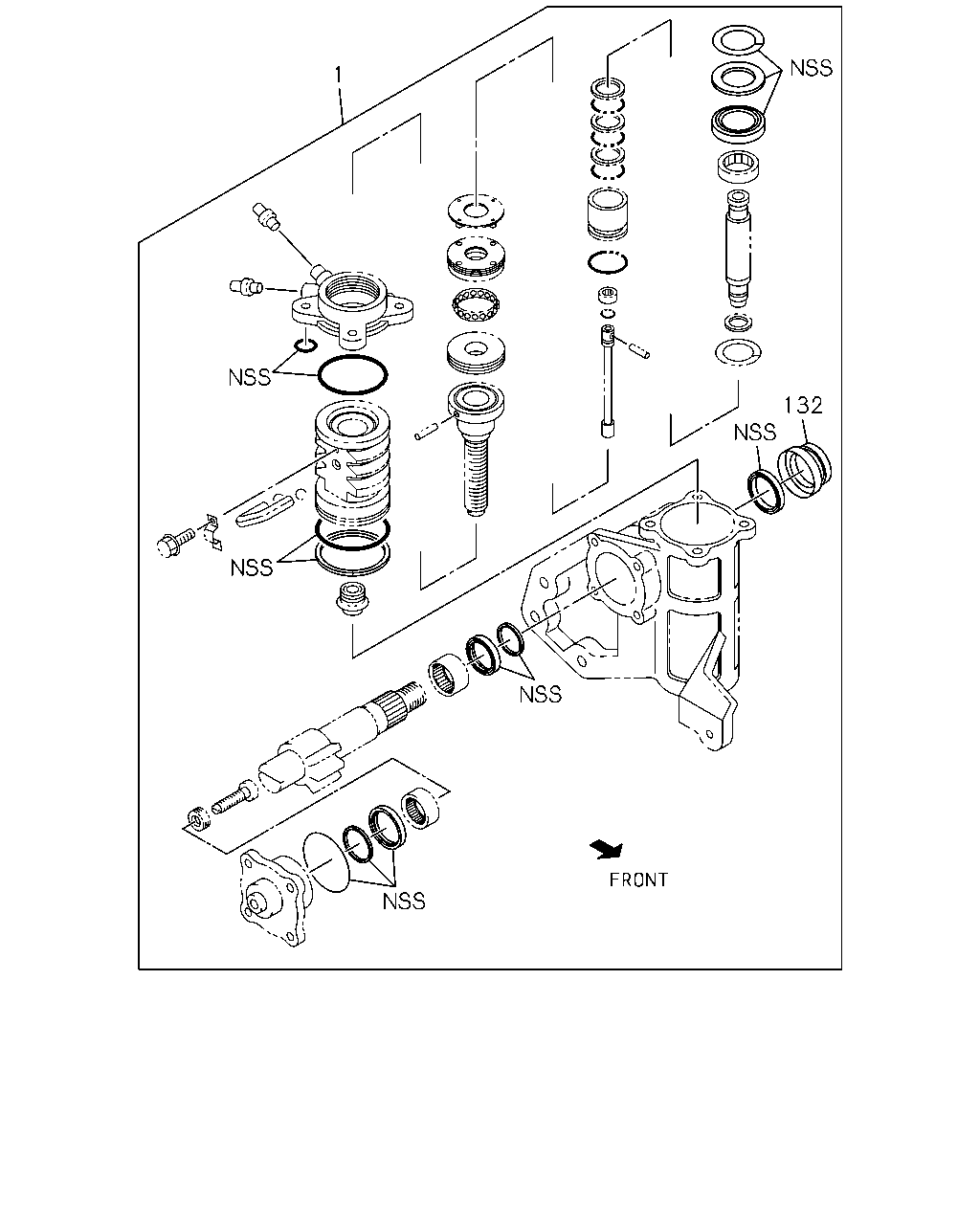

çizim 191054
1 132
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-98101-298-3, 98101298 		8-98171-736-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: A = 8-98101-298-3, 98101298 		8-97076-372-0 01 1 -
