◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#79288) — 10 parça
çizim 124230
29 1 36 7 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH) 		8-98114-577-3 01 1 1012- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) 		8-98043-205-4 01 1 1012- ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HG1 ENG(RJH) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1012- ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH) M14X20 FLANGE 		0-28851-420-0 01 1 1012- ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) 		8-98036-532-0 01 1 1012- ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●

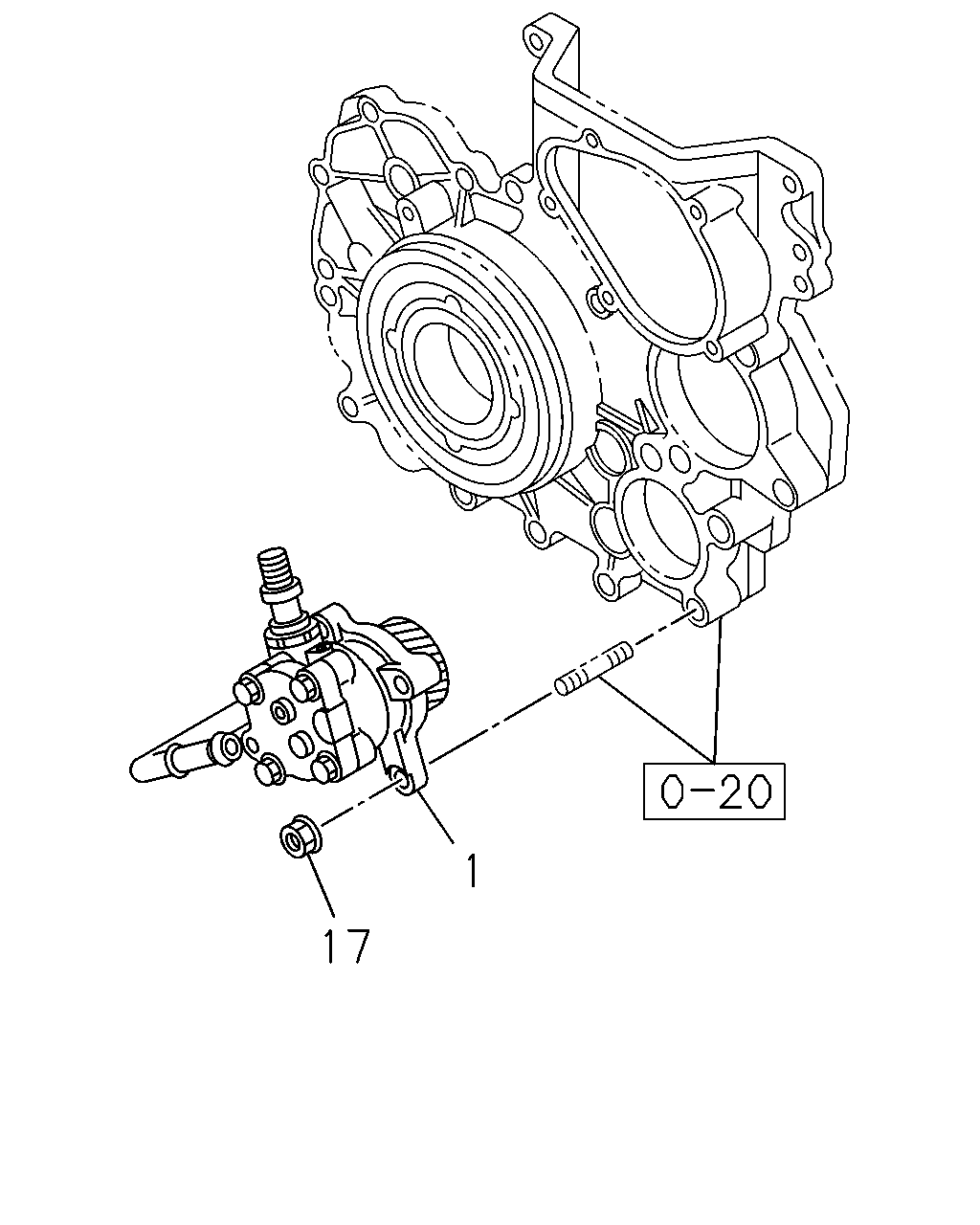

çizim 191055
1 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH) 		8-98114-577-3 01 1 1012- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) 		8-98043-205-4 01 1 1012- ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1012- ● ●
