Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#79287) — 220 parça

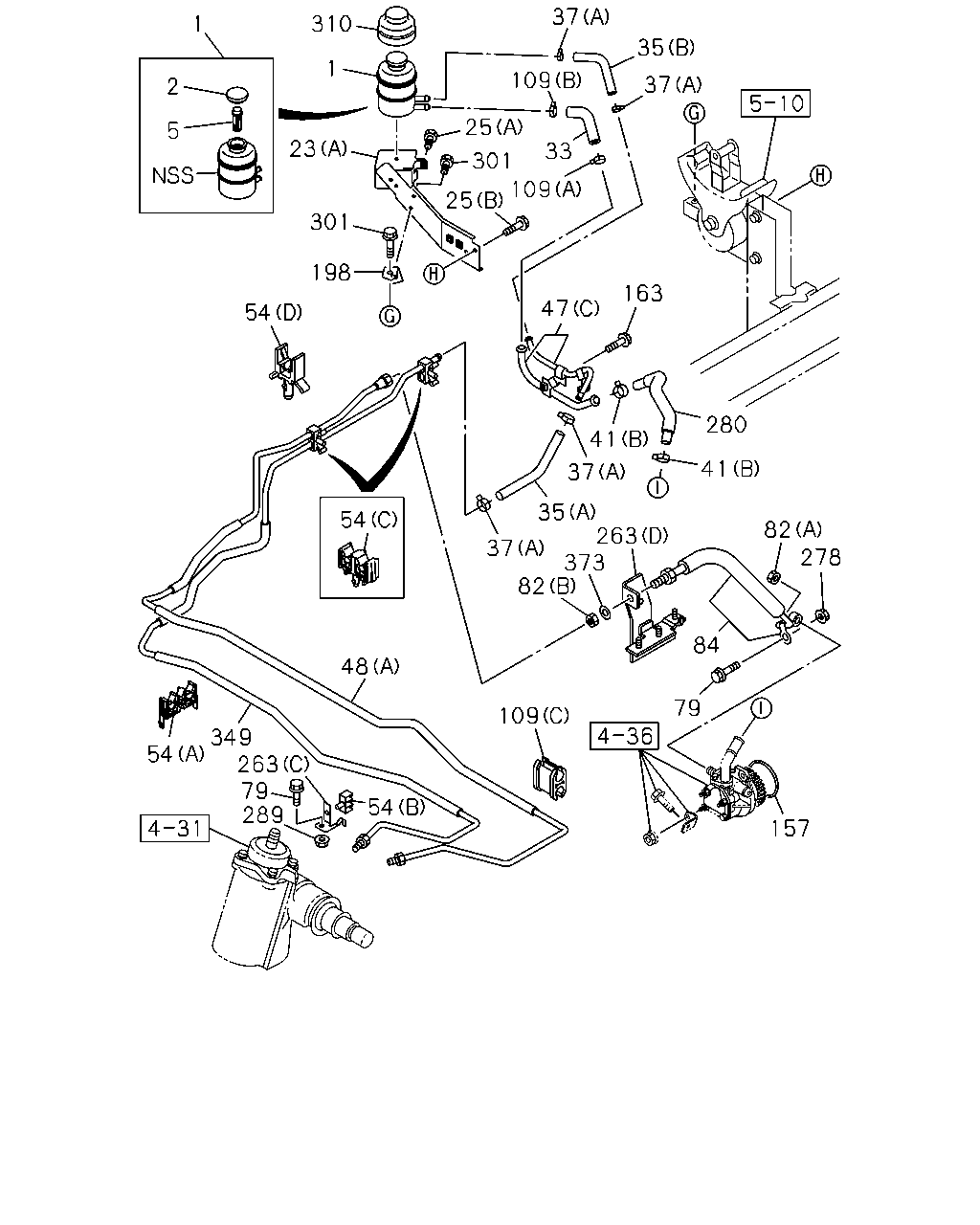

1 2 5 109 37 35 37 109 33 301 25 25 301 1 310 23 198 48 54 76 37 35 37 48 54 47 79 54 263 109 289 79 324 163 47 372 37 263 348 286 82 217 277 374 84 41 263 278 280 41 37 289 79 163 33 109 37 35 37 109 25 25 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1012-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	1012-	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	1012-		●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1012-		●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1012-	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1012-		●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1012-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1012-	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 08.846 (A) ID=21.7	8-97203-074-0	01	1	1012-	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.681 (B) ID=21	8-98150-355-0	01	1	1012-	●	●
41	06.672 CLIP; HOSE,P/S 4HG1 ENG(RJH) 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) (B)	8-98174-013-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) (A)	8-98125-312-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4HG1 ENG(RJH) (C)	8-98174-015-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) (B)	8-98051-539-2	01	1	1012-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (A) L=1337	8-98125-313-0	01	1	1012-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH) (A)	8-98100-175-4	01	1	1012-1211	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH) (A)	8-98193-191-0	01	1	1212-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (B)	8-98250-106-0	01	1	1401-	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH) 04.930 (D) ID=10 H=40	8-94462-219-0	01	1	1012-	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH) 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	1012-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-	●	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1012-	●	●
76	06.673 UNION; OIL PIPE 4JJ1-TCC ENG(RDU) M16 STRAIGHT L=42	0-92123-010-0	01	1	1012-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1012-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
79	06.672 BOLT; BRKT 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1 ENG(RJH) 06.897 (B) M16	8-94370-339-0	01	1	1012-	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98095-050-0	01	1	1012-1312	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98250-111-0	01	1	1401-	●	●
84	06.670 HOSE; FLEX,P/S 4HG1 ENG(RJH)	8-98100-088-3	01	1	1012-	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●	●
109	06.672 CLIP; RUBBER HOSE 4HG1 ENG(RJH) (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1012-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1012-	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1012	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1012	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1012-	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1012-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (C)	8-98063-136-0	01	1	1012-	●	●
263	06.672 BRACKET; P/S PIPE 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98063-136-0	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98008-078-0	01	1	1012-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (B)	8-98094-949-1	01	1	1012-1312	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (E)	8-98250-108-0	01	1	1401-	●	●
263	06.672 BRACKET; P/S PIPE 4HG1 ENG(RJH) (D)	8-98100-182-3	01	1	1012-	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-1312	●	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
278	06.670 NUT; HOSE CLIP 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCC ENG(RDU)	8-98041-245-2	01	1	1012-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1 ENG(RJH)	8-98100-178-0	01	1	1012-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCC ENG(RDU) 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1012-	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
289	06.673 NUT; BRKT,POWER STRG 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 02.042 M12 FLANGE	0-91180-112-0	01	1	1012-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1012-	●
324	06.660 NUT; OIL PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU)	8-98047-170-3	01	1	1012-1012	●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU)	8-98156-807-0	01	1	1101-1312	●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU)	8-98250-107-0	01	1	1401-	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU)	8-98054-269-0	01	1	1012-1312	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCC ENG(RDU)	8-98139-036-0	01	1	1012-	●	●

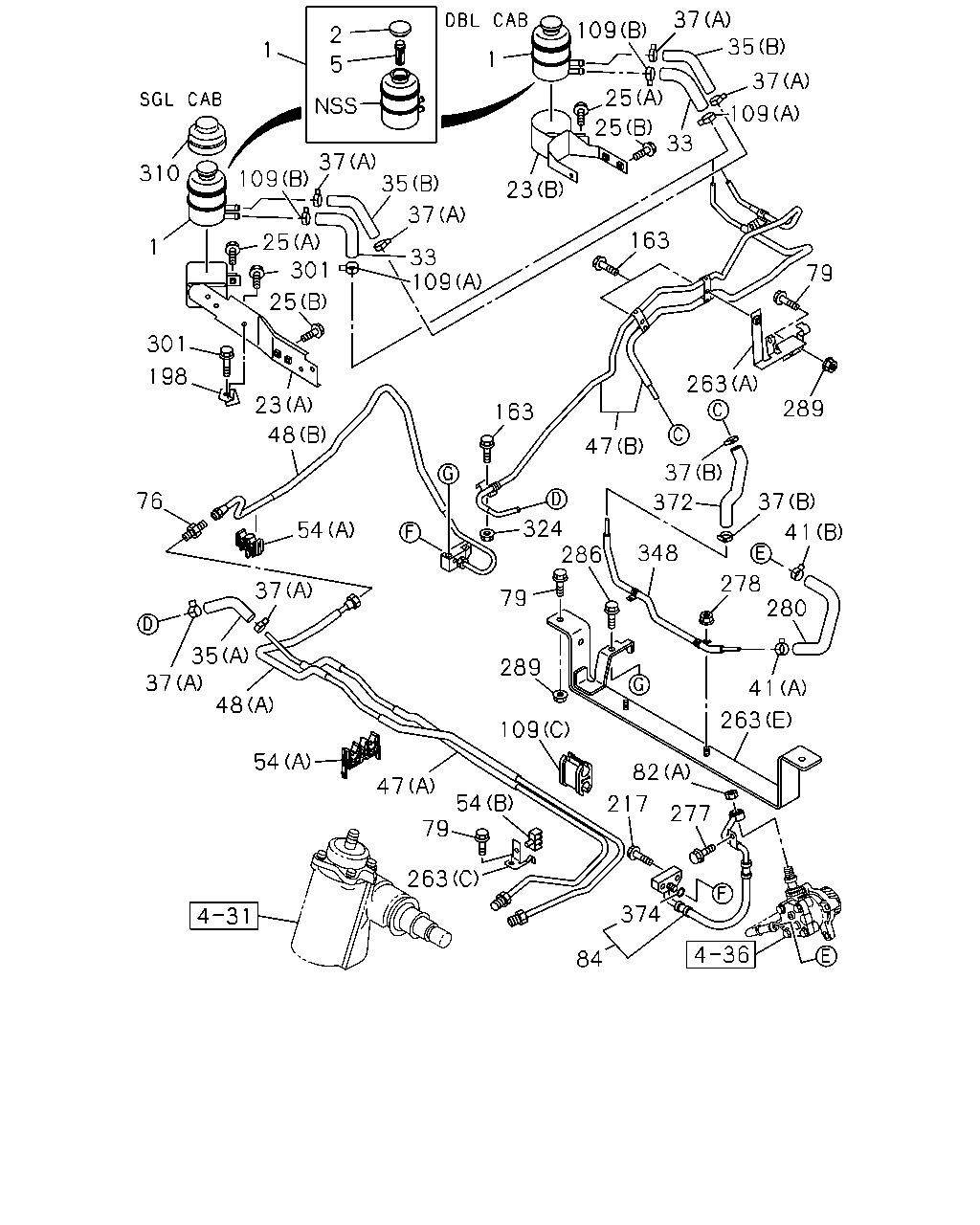

1 2 5 310 109 1 301 198 76 278 23 25 301 25 37 35 37 33 109 37 372 163 286 37 79 35 37 37 48 54 47 54 79 263 109 79 84 277 217 374 278 82 289 79 263 47 41 280 163 23 33 109 37 35 37 109 25 25 1 324 278 348 41 277 263 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1012-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	1012-	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	1012-		●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1012-		●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1012-	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1012-		●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1012-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1012-	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 08.846 (A) ID=21.7	8-97203-074-0	01	1	1012-	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.681 (B) ID=21	8-98150-355-0	01	1	1012-	●	●
41	06.672 CLIP; HOSE,P/S 4HG1 ENG(RJH) 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) (B)	8-98174-013-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) (A)	8-98125-312-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4HG1 ENG(RJH) (C)	8-98174-015-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) (B)	8-98051-539-2	01	1	1012-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (A) L=1337	8-98125-313-0	01	1	1012-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH) (A)	8-98100-175-4	01	1	1012-1211	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH) (A)	8-98193-191-0	01	1	1212-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (B)	8-98250-106-0	01	1	1401-	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH) 04.930 (D) ID=10 H=40	8-94462-219-0	01	1	1012-	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH) 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	1012-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-	●	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1012-	●	●
76	06.673 UNION; OIL PIPE 4JJ1-TCC ENG(RDU) M16 STRAIGHT L=42	0-92123-010-0	01	1	1012-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1012-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
79	06.672 BOLT; BRKT 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1 ENG(RJH) 06.897 (B) M16	8-94370-339-0	01	1	1012-	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98095-050-0	01	1	1012-1312	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98250-111-0	01	1	1401-	●	●
84	06.670 HOSE; FLEX,P/S 4HG1 ENG(RJH)	8-98100-088-3	01	1	1012-	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●	●
109	06.672 CLIP; RUBBER HOSE 4HG1 ENG(RJH) (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1012-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1012-	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1012	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1012	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1012-	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1012-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (C)	8-98063-136-0	01	1	1012-	●	●
263	06.672 BRACKET; P/S PIPE 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98063-136-0	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98008-078-0	01	1	1012-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (B)	8-98094-949-1	01	1	1012-1312	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (E)	8-98250-108-0	01	1	1401-	●	●
263	06.672 BRACKET; P/S PIPE 4HG1 ENG(RJH) (D)	8-98100-182-3	01	1	1012-	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-1312	●	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
278	06.670 NUT; HOSE CLIP 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCC ENG(RDU)	8-98041-245-2	01	1	1012-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1 ENG(RJH)	8-98100-178-0	01	1	1012-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCC ENG(RDU) 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1012-	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
289	06.673 NUT; BRKT,POWER STRG 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 02.042 M12 FLANGE	0-91180-112-0	01	1	1012-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1012-	●
324	06.660 NUT; OIL PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU)	8-98047-170-3	01	1	1012-1012	●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU)	8-98156-807-0	01	1	1101-1312	●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU)	8-98250-107-0	01	1	1401-	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU)	8-98054-269-0	01	1	1012-1312	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCC ENG(RDU)	8-98139-036-0	01	1	1012-	●	●

1 2 5 310 23 301 198 54 37 1 109 25 301 25 109 33 35 37 47 163 280 41 41 37 35 37 263 373 82 84 82 278 79 109 48 54 349 54 263 79 289 54 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1012-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	1012-	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	1012-		●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1012-		●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1012-	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1012-		●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1012-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1012-	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 08.846 (A) ID=21.7	8-97203-074-0	01	1	1012-	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.681 (B) ID=21	8-98150-355-0	01	1	1012-	●	●
41	06.672 CLIP; HOSE,P/S 4HG1 ENG(RJH) 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) (B)	8-98174-013-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) (A)	8-98125-312-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4HG1 ENG(RJH) (C)	8-98174-015-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) (B)	8-98051-539-2	01	1	1012-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (A) L=1337	8-98125-313-0	01	1	1012-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH) (A)	8-98100-175-4	01	1	1012-1211	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH) (A)	8-98193-191-0	01	1	1212-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (B)	8-98250-106-0	01	1	1401-	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH) 04.930 (D) ID=10 H=40	8-94462-219-0	01	1	1012-	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH) 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	1012-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-	●	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1012-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1012-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
79	06.672 BOLT; BRKT 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1 ENG(RJH) 06.897 (B) M16	8-94370-339-0	01	1	1012-	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98095-050-0	01	1	1012-1312	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98250-111-0	01	1	1401-	●	●
84	06.670 HOSE; FLEX,P/S 4HG1 ENG(RJH)	8-98100-088-3	01	1	1012-	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●	●
109	06.672 CLIP; RUBBER HOSE 4HG1 ENG(RJH) (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1012-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1012-	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HG1 ENG(RJH)	8-97101-875-2	01	1	1012-	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1012	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1012	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (C)	8-98063-136-0	01	1	1012-	●	●
263	06.672 BRACKET; P/S PIPE 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98063-136-0	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98008-078-0	01	1	1012-	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (B)	8-98094-949-1	01	1	1012-1312	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (E)	8-98250-108-0	01	1	1401-	●	●
263	06.672 BRACKET; P/S PIPE 4HG1 ENG(RJH) (D)	8-98100-182-3	01	1	1012-	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
278	06.670 NUT; HOSE CLIP 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCC ENG(RDU)	8-98041-245-2	01	1	1012-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1 ENG(RJH)	8-98100-178-0	01	1	1012-	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
289	06.673 NUT; BRKT,POWER STRG 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 02.042 M12 FLANGE	0-91180-112-0	01	1	1012-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1012-	●
349	06.671 PIPE; OIL,P/S RETURN 4HG1 ENG(RJH)	8-98100-176-4	01	1	1012-1211	●
349	06.671 PIPE; OIL,P/S RETURN 4HG1 ENG(RJH)	8-98193-192-0	01	1	1212-	●
373	06.673 WASHER; HOSE,P/S 4HG1 ENG(RJH) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
