◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#79282) — 49 parça
çizim 122948
67 96
BalonParca AdiParca NoAdetTipApplied Date A B
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 1012- ● ●
96 04.730 BRACKET; LSPV,AXLE CASE
REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 		8-98030-957-0 01 1 1012- ●

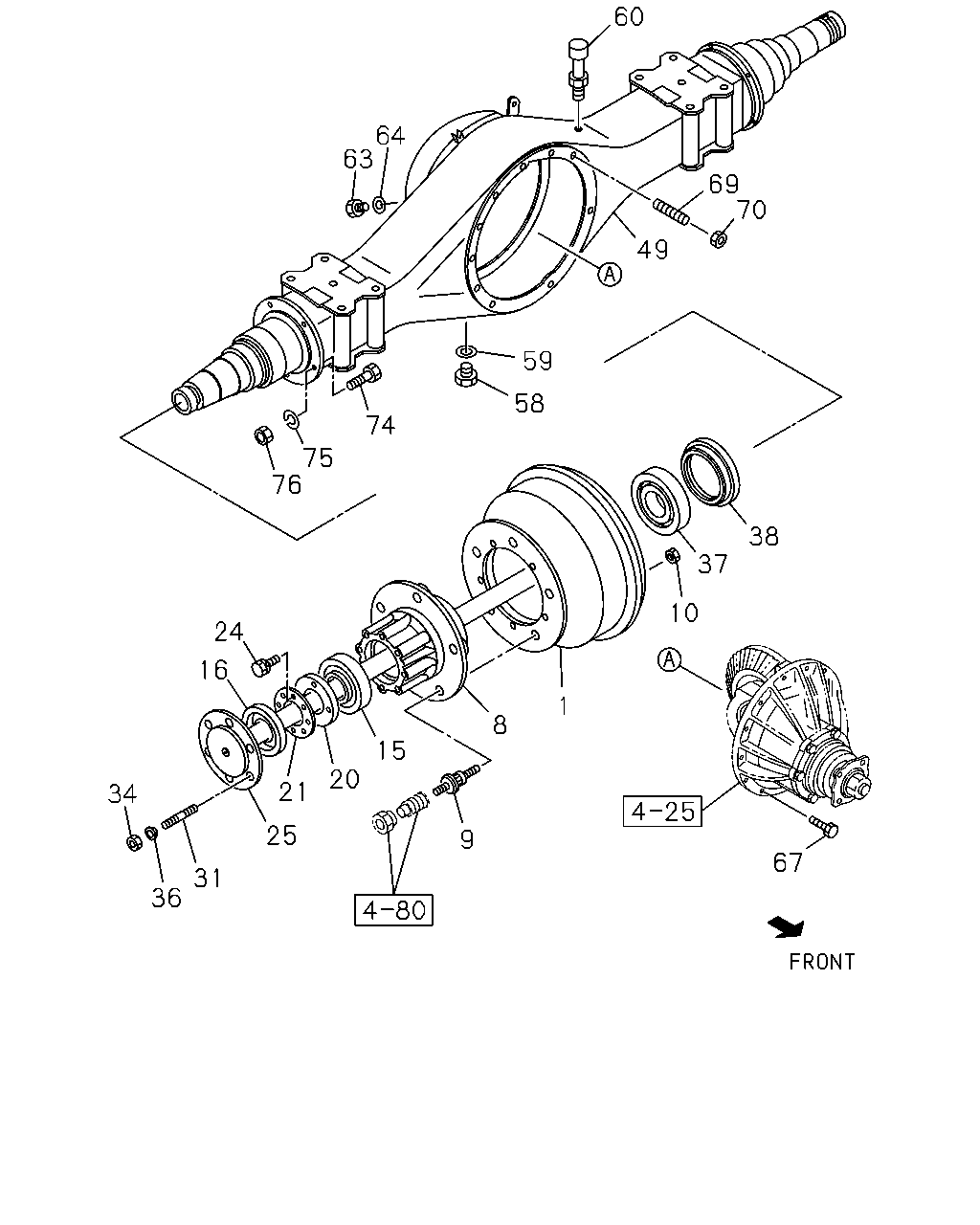

çizim 123119
60 64 63 69 70 49 59 58 74 75 76 38 37 10 24 16 1 8 15 20 21 34 25 9 67 31 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.809 DRUM; BRK,RR
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97036-367-1 02 1 1302- ● ●
1 05.809 DRUM; BRK,RR 8-94382-884-4 02 1 1012-1301 ● ●
1 05.809 DRUM; BRK,RR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-94382-884-4 02 1 1302- ● ●
8 05.809 HUB; RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97173-549-0 02 1 1302- ● ●
8 05.809 HUB; RR AXLE 8-97026-139-3 02 1 1012-1301 ● ●
8 05.809 HUB; RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97026-139-3 02 1 1302- ● ●
9 05.812 PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> M18X29,M20X55 RH THREAD 		8-97017-043-2 05 1 1302- ● ●
9 05.812 PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-2 05 1 1302- ● ●
9 05.812 PIN; WHEEL,RR AXLE
M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1012-1301 ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1302- ● ●
9 05.812 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1012-1301 ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1302- ● ●
10 05.813 NUT; WHEEL PIN,RR AXLE
05.812 M20 		0-91110-520-0 10 1 1012- ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 1012- ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-140-0 02 1 1012- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 1012-1207 ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-911-0 02 1 1208- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 1012-1106 ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 1012-1303 ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-98236-850-0 02 1 1304- ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-1 02 1 1012- ● ●
24 05.830 BOLT; LK WASHER
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 1012-1508 ● ●
24 05.830 BOLT; LK WASHER
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1509- ● ●
25 05.420 SHAFT; AXLE,RR
DUMP CHASSIS(V4D) 		8-97032-495-0 02 1 1012- ●
25 05.420 SHAFT; AXLE,RR
EXC. DUMP CHASSIS(V4D) 		8-97032-496-0 02 1 1012- ●
25 05.420 SHAFT; AXLE,RR 8-97032-496-0 02 1 1012- ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 1012- ● ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 16 1 1012- ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 1012- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 1012- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-142-0 02 1 1012- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 1012- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 1012- ● ●
49 05.387 CASE; RR AXLE
DUMP CHASSIS(V4D) 		8-97258-241-1 01 1 1012- ●
49 05.387 CASE; RR AXLE
EXC. DUMP CHASSIS(V4D) 		8-97032-861-5 01 1 1012- ●
49 05.387 CASE; RR AXLE 8-97032-861-5 01 1 1012- ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1012- ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 1012- ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1012- ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 1012- ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 1012- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 1012- ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 1012- ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 1012- ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 1012- ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
07.347 ID=12.2 		0-91510-812-0 12 1 1012- ● ●
76 05.002 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 12 1 1012- ● ●
