Isuzu WW
▶
TRUCKS
▶
FRR
▶
10808 - FRR-G/FSR/FTR TAIWAN
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

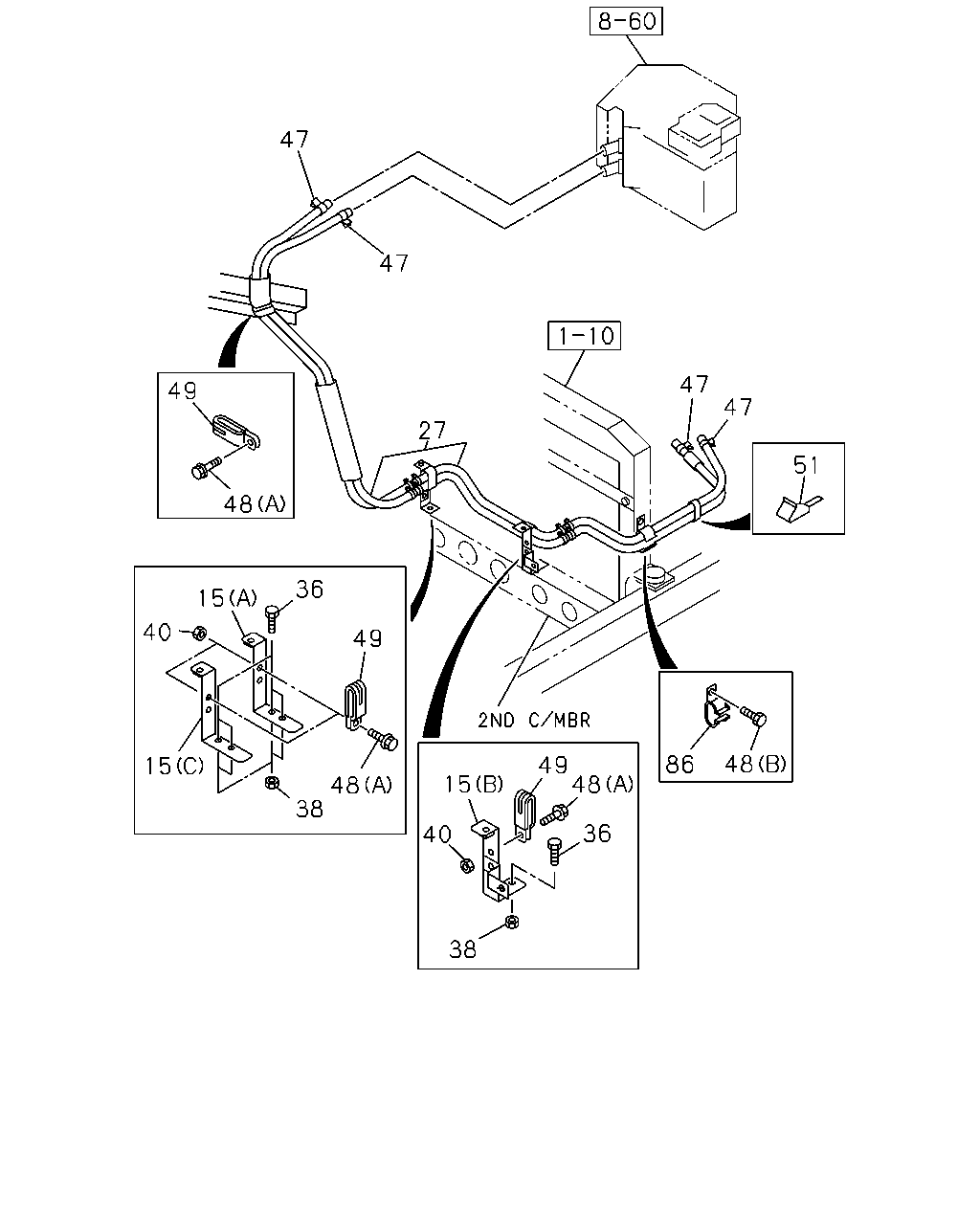

8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#7928) — 36 parça
Tümü
A - FTR6MF
B - FRR6MF
C - FSR6MF
47
47
47
49
47
27
51
48
36
15
40
49
48
86
49
48
15
15
48
38
36
40
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
15
BRACKET; WATER HOSE
(A)
1-83571-927-1
01
1
0302-
●
15
BRACKET; WATER HOSE
(C)
1-83573-145-0
01
1
0302-
●
15
BRACKET; WATER HOSE
(A)
1-83571-927-1
01
1
9905-9908
●
●
15
BRACKET; WATER HOSE
(A)
1-83571-927-1
02
1
9909-
●
●
15
BRACKET; WATER HOSE
(B)
1-83573-111-1
01
1
9905-0301
●
●
15
BRACKET; WATER HOSE
(B)
1-83573-111-1
01
1
0302-
●
●
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-716-2
01
1
9905-0301
●
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-716-2
01
1
0302-
●
●
●
36
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
04
1
9905-9908
●
●
36
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
06
1
9909-0301
●
●
36
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
06
1
0302-0512
●
●
●
36
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
06
1
0601-
●
●
●
38
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
9905-9908
●
●
38
NUT; BRKT
M8 FLANGE
0-91150-108-0
06
1
9909-0301
●
●
38
NUT; BRKT
M8 FLANGE
0-91150-108-0
06
1
0302-0602
●
●
●
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
06
1
0603-
●
●
●
40
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
9905-9908
●
●
40
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
9909-0301
●
●
40
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
0302-0602
●
●
●
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0603-
●
●
●
47
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
04
1
9905-0301
●
●
47
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
04
1
0302-0611
●
●
●
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
0612-
●
●
●
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28680-820-0
05
1
9905-9908
●
●
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28680-820-0
06
1
9909-0301
●
●
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28680-820-0
06
1
0302-0512
●
●
●
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
06
1
0601-
●
●
●
48
BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
9905-0301
●
●
48
BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
0302-
●
●
●
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
05
1
9905-9908
●
●
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
06
1
9909-0301
●
●
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
06
1
0302-
●
●
●
51
CLIP; WATER HOSE,HTR
L=170
1-83574-139-0
02
1
9905-0301
●
●
51
CLIP; WATER HOSE,HTR
L=170
1-83574-139-0
02
1
0302-
●
●
●
86
CLIP; HTR HOSE
1-83571-049-1
01
1
9905-0301
●
●
86
CLIP; HTR HOSE
1-83571-049-1
01
1
0302-
●
●
●
