3-58 — FIXING PARTS; OIL PIPING (#79277) — 64 parça

19 67 68 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
4	04.686 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
4	04.686 BOLT; BRKT 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
4	04.686 BOLT; BRKT 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
19	04.686 BRACKET; OIL PIPE	8-98162-759-0	01	1	1012-	●	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
68	04.686 BRACKET; CLIP 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98178-046-0	01	1	1012-	●
68	04.686 BRACKET; CLIP 4HG1 ENG(RJH) (C)	8-98178-046-0	01	1	1012-	●
68	04.686 BRACKET; CLIP 4JJ1-TCC ENG(RDU) (C)	8-98178-046-0	01	1	1012-		●
68	04.686 BRACKET; CLIP (A)	8-98039-558-2	01	1	1012-	●	●
68	04.686 BRACKET; CLIP (B)	8-98060-870-2	01	1	1012-	●	●

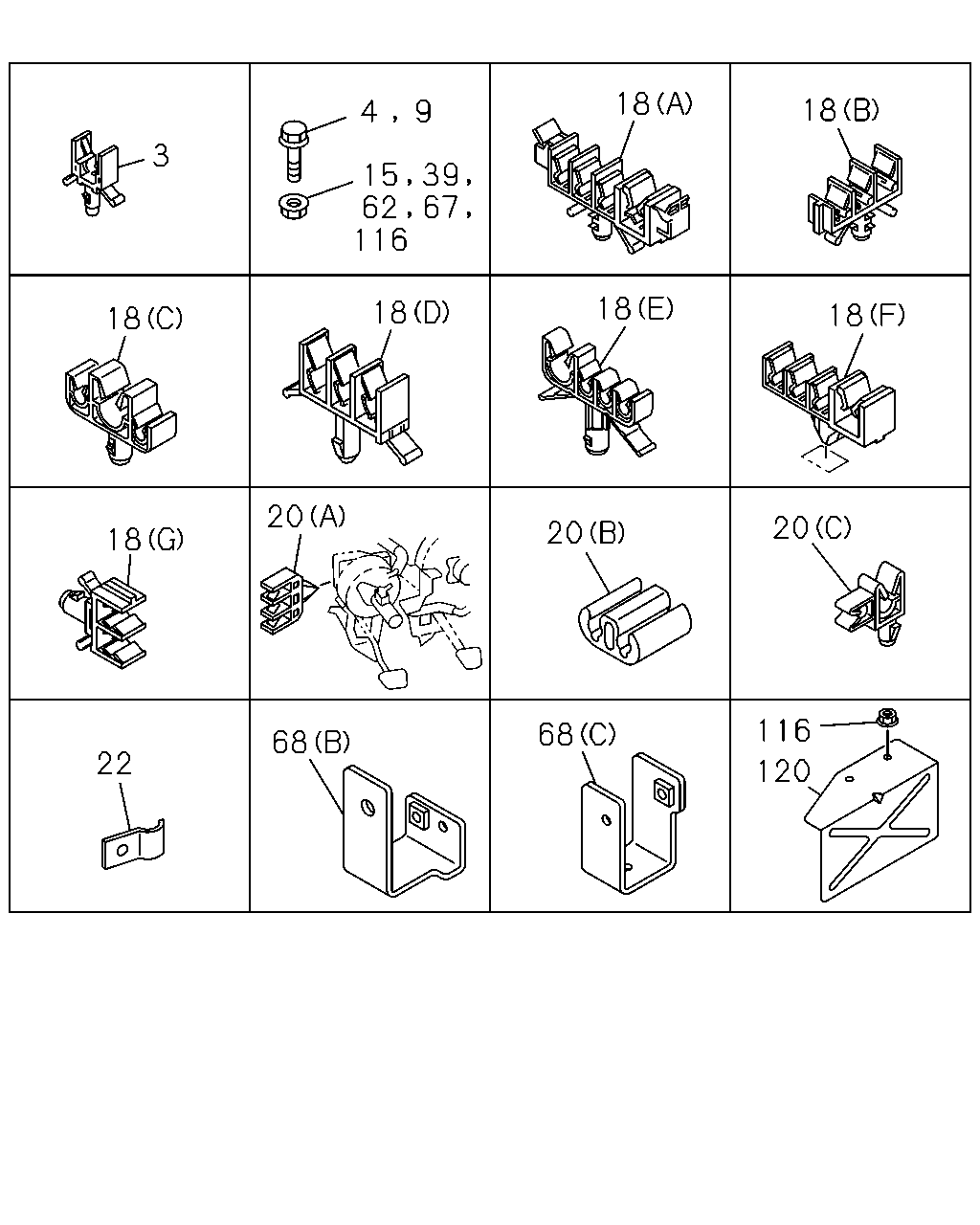

18 18 9 4 3 116 18 18 18 18 20 20 20 18 116 68 68 22 120 15 39 62 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	04.685 CLIP; BRK PIPE 4HG1 ENG(RJH) 04.930 ID=10 H=40	8-94462-219-0	01	1	1012-	●
3	04.685 CLIP; BRK PIPE 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 04.930 ID=10 H=40	8-94462-219-0	01	1	1012-	●
3	04.685 CLIP; BRK PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 04.930 ID=10 H=40	8-94462-219-0	01	1	1012-	●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
4	04.686 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
4	04.686 BOLT; BRKT 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
4	04.686 BOLT; BRKT 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
9	04.686 BOLT; BRKT EXC. FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	1012-	●
9	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	1012-		●
15	04.686 NUT; CLIP,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●
18	04.686 CLIP; BRK PIPE HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (F) ID=10 & 4.76X3	8-97168-819-0	01	1	1206-1309	●
18	04.686 CLIP; BRK PIPE HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (F) ID=10 & 4.76X3	8-97168-819-0	01	1	1310-	●
18	04.686 CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	01	1	1310-		●
18	04.686 CLIP; BRK PIPE 4JJ1-TCC ENG(RDU) (D) ID=6.5 & 4.8X2	8-94131-710-2	01	1	1012-	●	●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1012-	●
18	04.686 CLIP; BRK PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1012-	●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1012-	●
18	04.686 CLIP; BRK PIPE 4JJ1-TCC ENG(RDU) 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1012-		●
18	04.686 CLIP; BRK PIPE 4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76	8-97305-169-1	03	1	1012-	●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76	8-97305-169-1	03	1	1012-	●
18	04.686 CLIP; BRK PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1012-	●
18	04.686 CLIP; BRK PIPE 4JJ1-TCC ENG(RDU) (C) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1012-		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	1012-	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) ID=10 & 4.76X3	8-97326-158-1	03	1	1012-	●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	03	1	1012-		●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> (G) ID=4.8X2	8-94316-410-0	02	1	1012-	●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> (F) ID=10 & 4.76X3	8-97168-819-0	09	1	1012-	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-820-0	01	1	1012-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (E) ID=10 & 4.76X3	8-97168-820-0	01	1	1012-	●	●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	02	1	1012-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (A) ID=10 & 4.76X3	8-97326-158-1	02	1	1012-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1012-	●	●
18	04.686 CLIP; BRK PIPE (C) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	1012-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (F) ID=10 & 4.76X3	8-97168-819-0	07	1	1012-	●	●
20	04.686 CLIP; BRK PIPE (A) ID=6.35 & 4.76X2	8-94250-923-2	01	1	1012-	●	●
20	04.686 CLIP; BRK PIPE 03.162 (B) ID=6.35 & 6.35	8-94474-113-0	01	1	1012-	●	●
20	04.686 CLIP; BRK PIPE 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	1012-	●	●
22	04.686 CLIP; PIPE TO FRAME 00.785 B=14 L=16	9-09916-996-0	02	1	1012-	●	●
39	04.686 NUT; BRKT FIX EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
39	04.686 NUT; BRKT FIX 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●
62	04.686 NUT EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
68	04.686 BRACKET; CLIP 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98178-046-0	01	1	1012-	●
68	04.686 BRACKET; CLIP 4HG1 ENG(RJH) (C)	8-98178-046-0	01	1	1012-	●
68	04.686 BRACKET; CLIP 4JJ1-TCC ENG(RDU) (C)	8-98178-046-0	01	1	1012-		●
68	04.686 BRACKET; CLIP (A)	8-98039-558-2	01	1	1012-	●	●
68	04.686 BRACKET; CLIP (B)	8-98060-870-2	01	1	1012-	●	●
116	04.686 NUT; PROTECTOR 4HG1 ENG(RJH) FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
120	04.686 PROTECTOR; HEAT 4HG1 ENG(RJH) FRAME-KICK UP<7EW>	8-98081-354-1	01	1	1012-	●
