8-40 — HEATER SYSTEM (#7927) — 78 parça

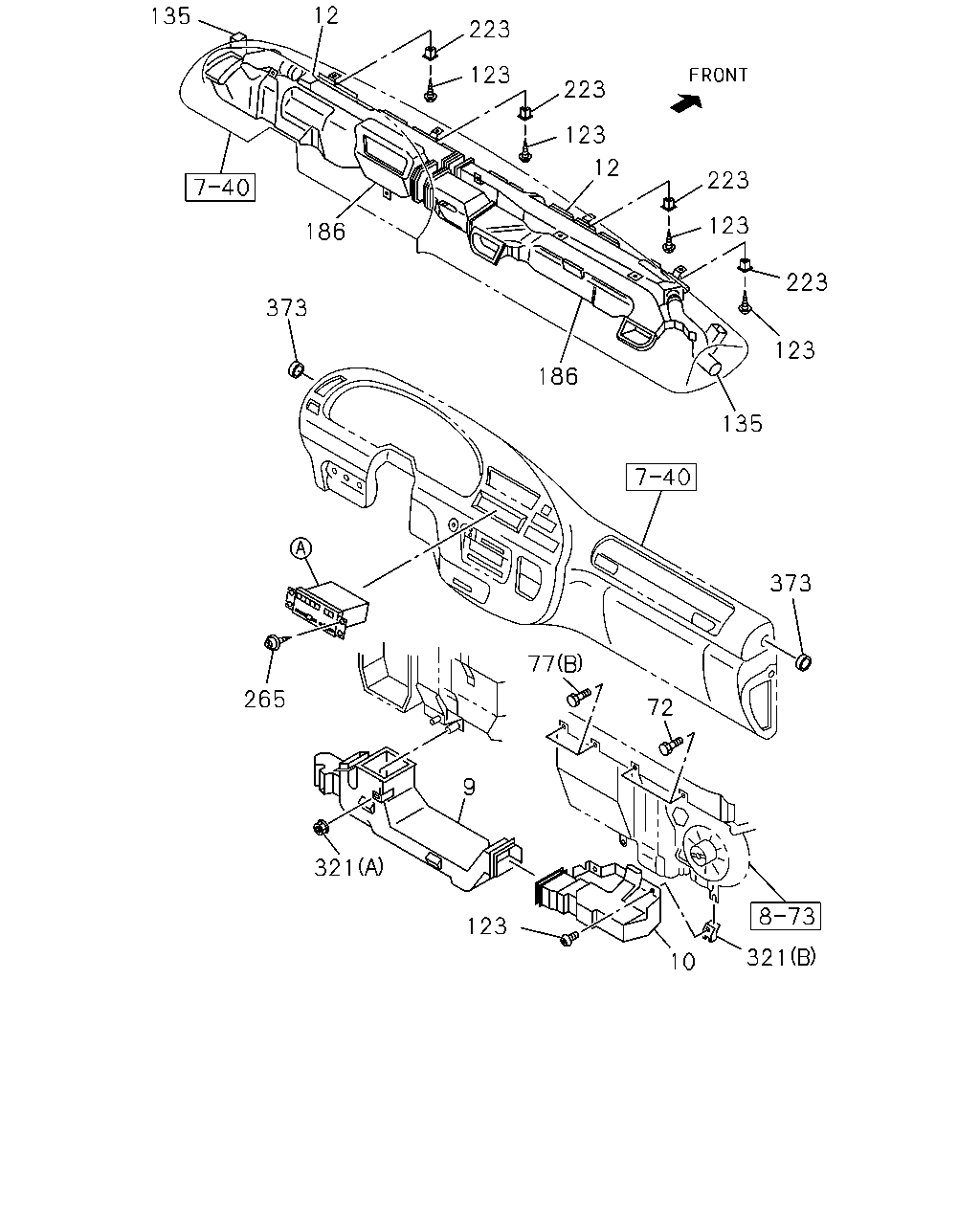

çizim 26778
12 135 223 123 223 123 12 223 123 186 223 373 123 186 135 373 77 265 72 9 321 123 321 10
BalonParca AdiParca NoAdetTipApplied Date A B C
9 DUCT; HTR AIR,FOOT CENTER 1-76378-377-3 01 1 9905-0006 ● ●
9 DUCT; HTR AIR,FOOT CENTER 1-76378-431-2 01 1 0007-0301 ● ●
9 DUCT; HTR AIR,FOOT CENTER 1-76378-431-2 01 1 0302- ● ● ●
10 DUCT; HTR AIR,ASSIST FOOT 1-76378-368-2 01 1 9905-0301 ● ●
10 DUCT; HTR AIR,ASSIST FOOT 1-76378-368-2 01 1 0302- ● ● ●
12 NOZZLE; DEFROSTER 1-76378-360-2 01 1 9905-0207 ●
12 NOZZLE; DEFROSTER 1-76378-360-2 01 1 0208-0301 ● ●
12 NOZZLE; DEFROSTER 1-76378-360-2 01 1 0302- ● ● ●
12 NOZZLE; DEFROSTER 1-76378-359-2 01 1 9905-0207 ●
12 NOZZLE; DEFROSTER 1-76378-359-2 01 1 0208-0301 ● ●
12 NOZZLE; DEFROSTER 1-76378-359-2 01 1 0302- ● ● ●
12 NOZZLE; DEFROSTER 1-76378-360-2 01 1 9905-0207 ●
12 NOZZLE; DEFROSTER 1-76378-359-2 01 1 9905-0207 ●
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-0301 ● ●
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302- ● ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 9905-0301 ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0302- ● ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-0301 ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302- ● ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 02 1 9905-0207 ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 10 1 0208-0301 ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 10 1 0302- ● ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 08 1 9905-0207 ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 08 1 9905-0207 ●
135 HOSE; DEFROSTER 1-76378-364-2 01 1 9905-0207 ●
135 HOSE; DEFROSTER 1-76378-364-3 01 1 0208-0301 ● ●
135 HOSE; DEFROSTER 1-76378-364-3 01 1 0302- ● ● ●
135 HOSE; DEFROSTER 1-76378-363-2 01 1 9905-0207 ●
135 HOSE; DEFROSTER 1-76378-363-2 01 1 0208-0301 ● ●
135 HOSE; DEFROSTER 1-76378-363-2 01 1 0302- ● ● ●
135 HOSE; DEFROSTER 1-76378-364-2 01 1 9905-0207 ●
135 HOSE; DEFROSTER 1-76378-363-2 01 1 9905-0207 ●
186 DUCT; VENTILATOR 1-76378-362-4 01 1 9905-0207 ●
186 DUCT; VENTILATOR 1-76378-362-4 01 1 0208-0301 ● ●
186 DUCT; VENTILATOR 1-76378-362-4 01 1 0302- ● ● ●
186 DUCT; VENTILATOR 1-76378-361-3 01 1 9905-0207 ●
186 DUCT; VENTILATOR 1-76378-361-3 01 1 0208-0301 ● ●
186 DUCT; VENTILATOR 1-76378-361-3 01 1 0302- ● ● ●
186 DUCT; VENTILATOR 1-76378-362-4 01 1 9905-0207 ●
186 DUCT; VENTILATOR 1-76378-361-3 01 1 9905-0207 ●
223 GROMMET; SCREW 8-94279-084-2 04 1 9905-0207 ●
223 GROMMET; SCREW 8-94279-084-2 04 1 0208-0301 ● ●
223 GROMMET; SCREW 8-94279-084-2 04 1 0302- ● ● ●
223 GROMMET; SCREW 8-94279-084-2 04 1 9905-0207 ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9905-0301 ● ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0302-0604 ● ● ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ●
321 NUT; DUCT FIX
(A) M6 FLANGE 		0-91150-106-0 01 1 9905-0301 ● ●
321 NUT; DUCT FIX
(A) M6 FLANGE 		0-91150-106-0 01 1 0302-0602 ● ● ●
321 NUT; DUCT FIX
(A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ●
321 NUT; DUCT FIX
(B) M5 		1-09984-150-0 01 1 9905-0301 ● ●
321 NUT; DUCT FIX
(B) M5 		1-09984-150-0 01 1 0302-0409 ● ● ●
321 NUT; DUCT FIX
(B) M5 		1-09984-196-0 01 1 0410- ● ● ●
373 RUBBER; JOINT 1-76378-291-0 02 1 9905-0301 ● ●
373 RUBBER; JOINT 1-76378-291-0 02 1 0302- ● ● ●

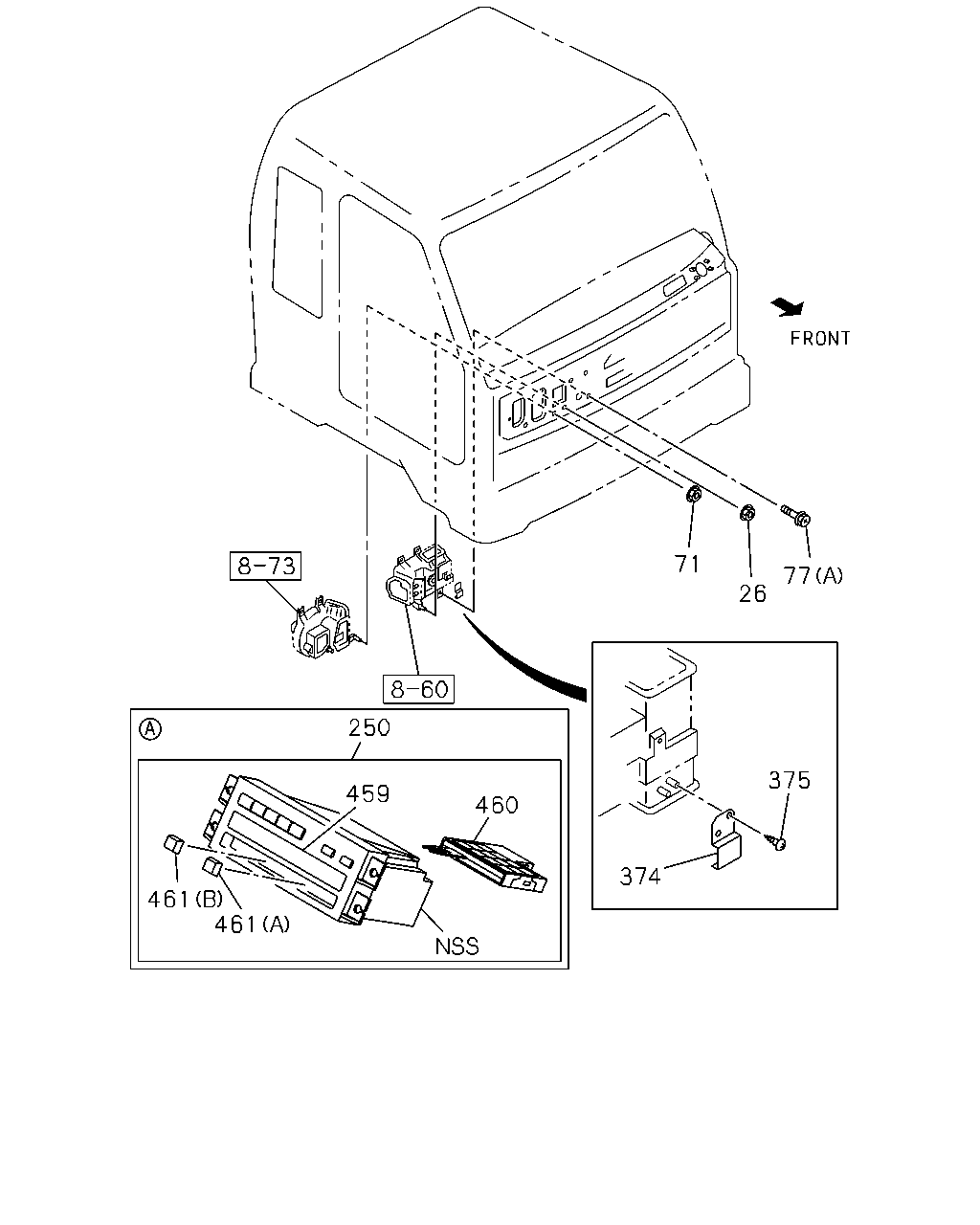

çizim 26952
71 77 26 250 375 459 460 374 461 461
BalonParca AdiParca NoAdetTipApplied Date A B C
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9905-0301 ● ●
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0302- ● ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9905-0301 ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0302- ● ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 9905-0301 ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0302- ● ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-0301 ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302- ● ● ●
250 CONTROL ASM; A/C 1-83543-033-2 01 1 9905-9909 ● ●
250 CONTROL ASM; A/C 1-83543-050-0 01 1 9910-0301 ● ●
250 CONTROL ASM; A/C 1-83543-050-0 01 1 0302- ● ● ●
374 HOLDER; DUCT 1-76398-012-1 01 1 9905-0301 ● ●
374 HOLDER; DUCT 1-76398-012-1 01 1 0302- ● ● ●
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 9905-0301 ● ●
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 0302- ● ● ●
459 PANEL; CONTROL ASM,A/C 1-83549-013-0 01 1 9905-0301 ● ●
459 PANEL; CONTROL ASM,A/C 1-83549-013-0 01 1 0302- ● ● ●
460 SWITCH; CONTROL ASM,A/C 1-82489-006-0 01 1 9905-0301 ● ●
460 SWITCH; CONTROL ASM,A/C 1-82489-006-0 01 1 0302- ● ● ●
461 KNOB; CONTROL ASM,A/C
(B) 		1-83549-015-0 01 1 9905-0301 ● ●
461 KNOB; CONTROL ASM,A/C
(B) 		1-83549-015-0 01 1 0302- ● ● ●
461 KNOB; CONTROL ASM,A/C
(A) 		1-83549-016-0 01 1 9905-0301 ● ●
461 KNOB; CONTROL ASM,A/C
(A) 		1-83549-016-0 01 1 0302- ● ● ●
