3-05 — REAR WHEEL BRAKE (#79266) — 69 parça

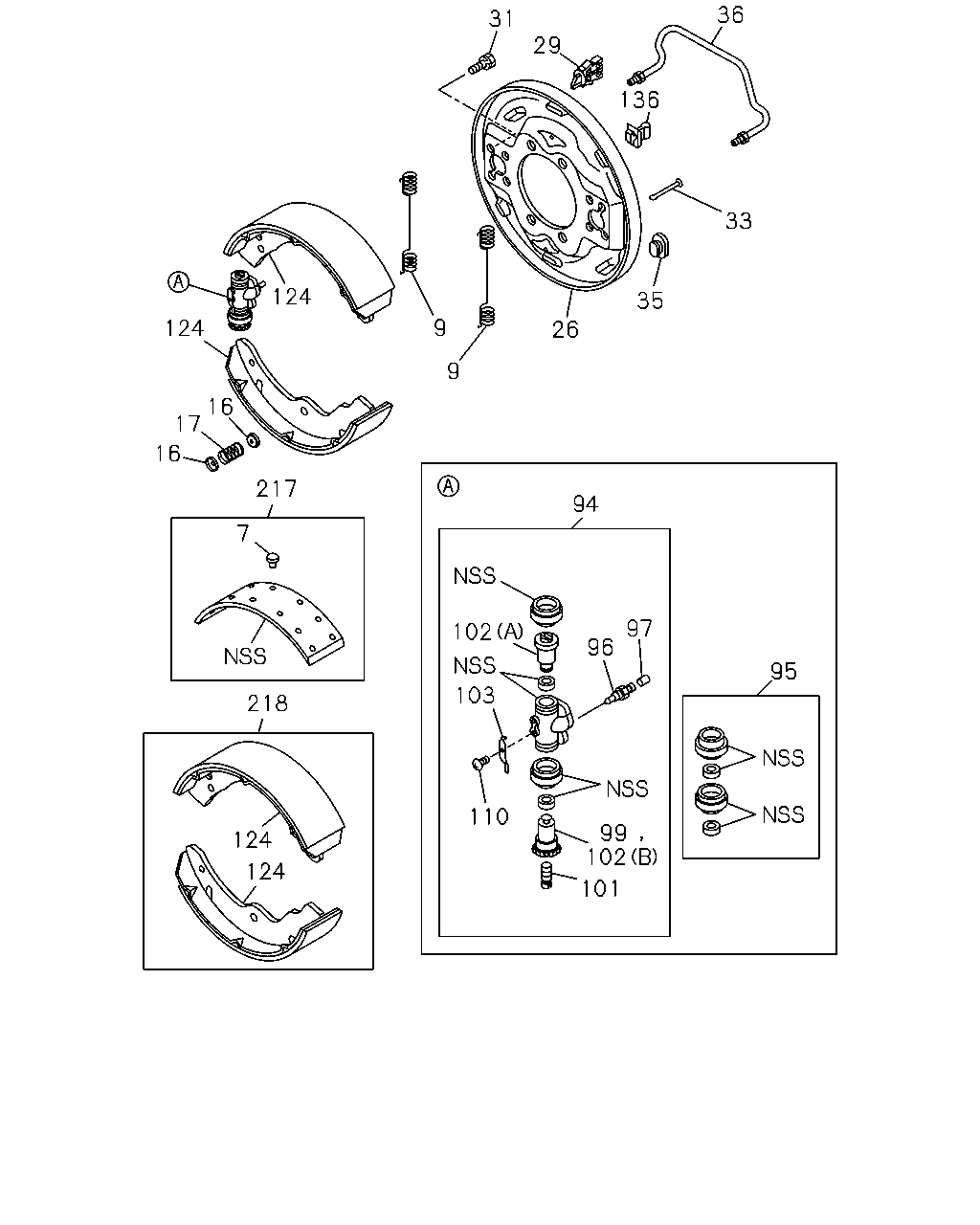

çizim 114823
36 136 29 31 33 35 26 9 9 124 124 16 17 16 217 7 218 124 124 94 97 96 102 103 110 99 102 101 95
BalonParca AdiParca NoAdetTipApplied Date A B
7 05.019 RIVET; LINING,RR BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		1-09732-029-0 48 1 1302- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97022-087-0 04 1 1302- ● ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97078-739-0 04 1 1012-1301 ● ●
9 05.026 SPRING; RETURN,BRK SHOE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97078-739-0 04 1 1302- ● ●
16 05.043 CUP; SHOE HOLDING
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		9-47165-096-0 08 1 1302- ● ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 1012-1301 ● ●
16 05.043 CUP; SHOE HOLDING
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		9-47162-033-0 08 1 1302- ● ●
17 04.043 SPRING; SHOE HOLD DOWN
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 05.043 		5-09580-101-1 04 1 1302- ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 1012-1301 ● ●
17 04.043 SPRING; SHOE HOLD DOWN
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 05.043 		9-09940-989-1 04 1 1302- ● ●
26 05.001 PLATE; BACK,RR BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97223-573-0 01 1 1302- ● ●
26 05.001 PLATE; BACK,RR BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97223-574-0 01 1 1302- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97078-679-0 01 1 1012-1301 ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97078-679-0 01 1 1302- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97078-680-0 01 1 1012-1301 ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97078-680-0 01 1 1302- ● ●
29 04.685 CLIP; PIPE,BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97022-086-0 02 1 1302- ● ●
29 04.685 CLIP; PIPE,BRK 8-94128-307-0 02 1 1012-1301 ● ●
29 04.685 CLIP; PIPE,BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-94128-307-0 02 1 1302- ● ●
31 04.665 BOLT; RR WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97081-305-0 16 1 1302- ● ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-036-1 16 1 1012-1301 ● ●
31 04.665 BOLT; RR WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		5-09030-036-1 16 1 1302- ● ●
33 05.043 PIN; SHOE HOLD DOWN
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97022-089-0 04 1 1302- ● ●
33 05.043 PIN; SHOE HOLD DOWN 9-47162-607-0 04 1 1012-1301 ● ●
33 05.043 PIN; SHOE HOLD DOWN
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		9-47162-607-0 04 1 1302- ● ●
35 05.002 GROMMET; CHECK HOLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97017-507-0 02 1 1302- ● ●
35 05.002 GROMMET; CHECK HOLE 8-94344-919-0 02 1 1012-1301 ● ●
35 05.002 GROMMET; CHECK HOLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-94344-919-0 02 1 1302- ● ●
36 04.685 PIPE; OIL,RR BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97192-215-0 02 1 1302- ● ●
36 04.685 PIPE; OIL,RR BRK 8-94128-192-0 02 1 1012-1301 ● ●
36 04.685 PIPE; OIL,RR BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-94128-192-0 02 1 1302- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> FRONT 		8-97139-822-0 01 1 1302- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> REAR 		8-97139-824-0 01 1 1302- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97139-825-0 02 1 1302- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97139-840-0 01 1 1012-1301 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> FRONT 		8-97139-840-0 01 1 1302- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97139-841-0 01 1 1012-1301 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> REAR 		8-97139-841-0 01 1 1302- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97139-842-0 02 1 1012-1301 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97139-842-0 02 1 1302- ● ●
95 04.665 CUP SET; RR WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		5-87831-598-0 02 1 1302- ● ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-621-0 01 1 1012-1301 ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		5-87831-621-0 01 1 1302- ● ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 1012- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 1012- ● ●
99 04.668 PISTON; RR WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-94414-700-1 04 1 1302- ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97078-698-0 03 1 1012-1301 ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97078-698-0 03 1 1302- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-94414-702-0 04 1 1302- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 		8-97078-623-0 04 1 1012-1301 ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 05.110 		8-97078-623-0 04 1 1302- ● ●
102 04.668 PISTON; REAR WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (A) 		8-97078-045-0 04 1 1302- ● ●
102 04.668 PISTON; REAR WHEEL CYL
(A) D=25.4 		8-94128-531-1 04 1 1012-1301 ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (A) D=25.4 		8-94128-531-1 04 1 1302- ● ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97078-698-0 01 1 1012-1301 ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (B) 		8-97078-698-0 01 1 1302- ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 1012- ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 1012- ● ●
124 05.017 SHOE ASM; BRK,RR
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97201-061-0 04 1 1302- ● ●
124 05.017 SHOE ASM; BRK,RR 8-97035-085-1 04 1 1012-1301 ● ●
124 05.017 SHOE ASM; BRK,RR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97035-085-1 04 1 1302- ● ●
136 05.002 GROMMET
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97044-742-1 04 1 1302- ● ●
136 05.002 GROMMET 9-09956-640-0 04 1 1012-1301 ● ●
136 05.002 GROMMET
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		9-09956-640-0 04 1 1302- ● ●
217 05.018 LINING KIT; RR BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		5-87831-774-0 01 1 1302- ● ●
217 05.018 LINING KIT; RR BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> BEST VALUE PARTS 		5-87610-120-0 01 1 1302- ● ●
218 05.017 SHOE KIT; BRK,RR
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		5-87831-775-0 01 1 1302- ● ●
218 05.017 SHOE KIT; BRK,RR 5-87832-045-0 01 1 1012-1301 ● ●
218 05.017 SHOE KIT; BRK,RR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		5-87832-045-0 01 1 1302- ● ●
