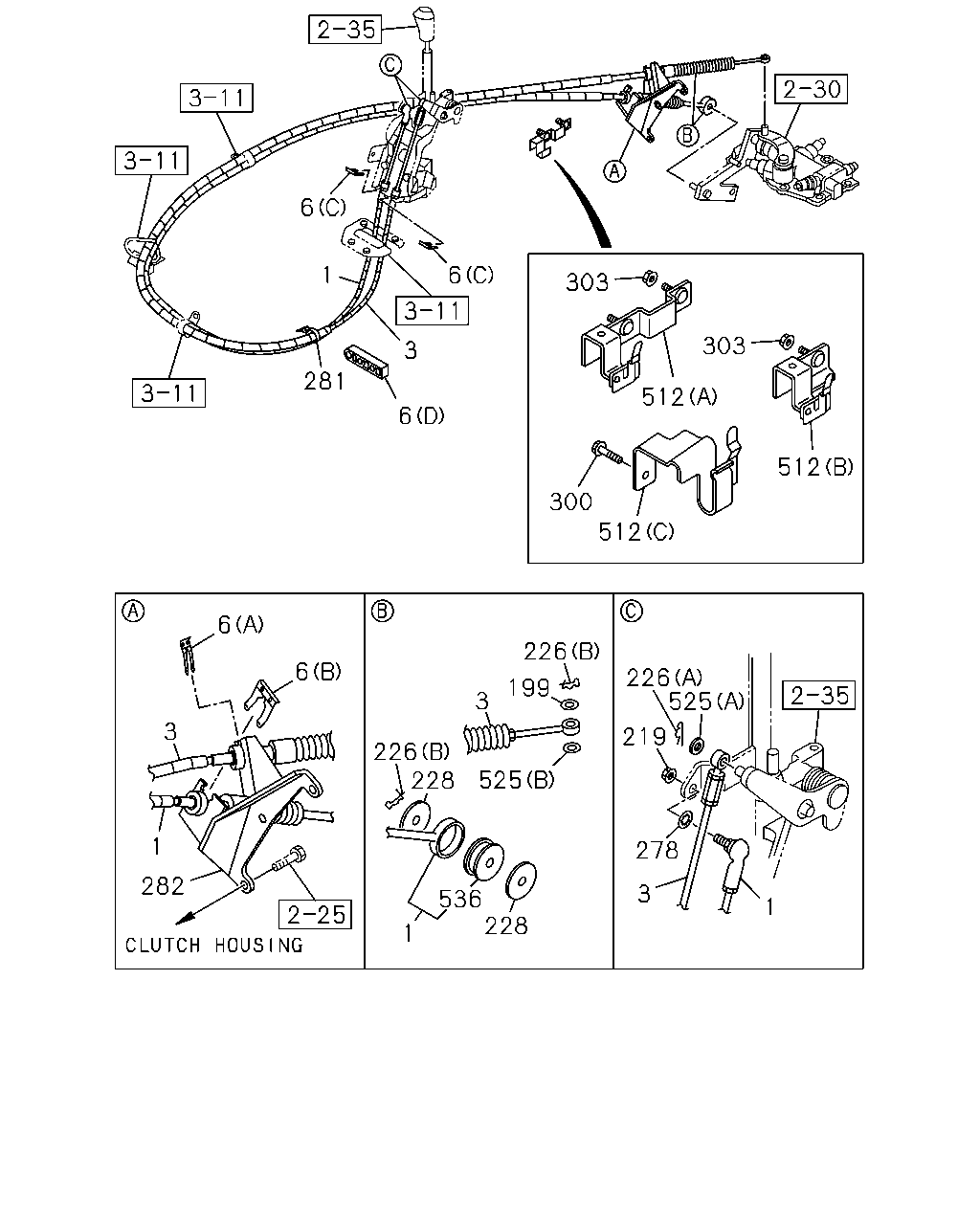

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#79262) — 27 parça

6 1 6 303 303 3 281 512 6 512 300 512 6 226 6 226 525 199 3 3 219 226 228 525 1 278 282 3 536 228 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1-TCC ENG(RDU) L=3035	8-98146-825-1	01	1	1012-
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH)	8-98146-830-1	01	1	1012-
3	00.852 CABLE; SELECT,TRANS CONT 4JJ1-TCC ENG(RDU) L=3120	8-98021-700-2	01	1	1012-
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH)	8-98099-698-2	01	1	1012-
6	04.047 CLIP; CABLE 00.854 (A) ID=22.2	1-09701-209-1	01	1	1012-
6	04.047 CLIP; CABLE (C)	8-97011-448-0	02	1	1012-
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	1012-
6	04.047 CLIP; CABLE SGL CAB(NM*S) EXC. MANUAL TILT CAB<RWZ> 04.008 (D)	8-97093-491-1	01	1	1012-
6	04.047 CLIP; CABLE DBL CAB(NM*W) 04.008 (D)	8-97093-491-1	01	1	1012-
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1012-
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	1012-
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	1012-
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	02	1	1012-
228	04.047 WASHER; PL,SHIFT CABLE ID=8.2 OD=40	8-97182-975-0	01	1	1012-1109
228	04.047 WASHER; PL,SHIFT CABLE ID=8.2 OD=40	8-97182-975-0	02	1	1110-
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	1012-
281	04.042 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	1012-
282	04.010 BRACKET; TRANS SIDE 4JJ1-TCC ENG(RDU)	8-97350-449-0	01	1	1012-
282	04.010 BRACKET; TRANS SIDE 4HG1 ENG(RJH)	8-97311-441-1	01	1	1012-
300	00.854 BOLT; CLIP 4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-
303	00.855 NUT; CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-
512	04.012 GUIDE; CABLE,GEAR CONT 4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> (C)	8-98032-833-1	01	1	1012-
512	04.012 GUIDE; CABLE,GEAR CONT 4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> (B)	8-98032-835-1	01	1	1012-
512	04.012 GUIDE; CABLE,GEAR CONT 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (A)	8-98111-916-0	01	1	1012-
525	04.047 WASHER; SHIFT CABLE 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1012-
525	04.047 WASHER; SHIFT CABLE 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1012-
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	1012-
