8-28 — CHASSIS ELECTRICAL (#7926) — 114 parça

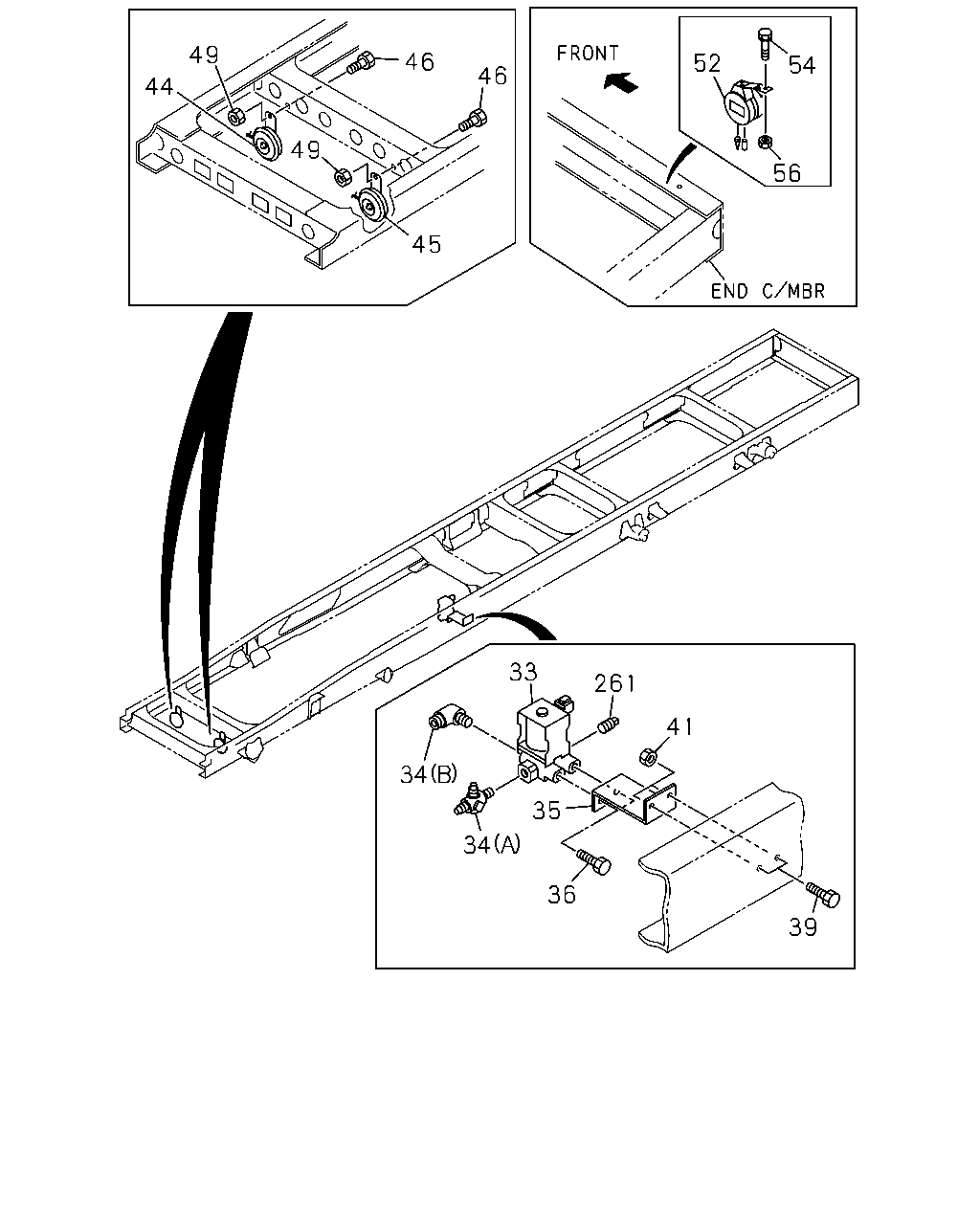

49 46 52 54 46 44 49 56 45 33 261 41 34 35 34 36 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	VALVE; MAG,PTO CONT PTO CONT<SV6>	1-82563-600-4	01	1	9905-0301	●
33	VALVE; MAG,PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6>	1-82563-600-4	01	1	9905-0301		●
33	VALVE; MAG,PTO CONT PTO CONT<SV6>	1-82563-600-5	01	1	0302-	●		●
33	VALVE; MAG,PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6>	1-82563-600-5	01	1	0302-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONT<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0301	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0301		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONT<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0302-	●		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0302-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONT<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-0301	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-0301		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONT<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0302-	●		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0302-		●
35	BRACKET; MAG VLV,PTO CONT PTO CONT<SV6>	1-47477-953-0	01	1	9905-0301	●
35	BRACKET; MAG VLV,PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6>	1-47477-953-0	01	1	9905-0301		●
35	BRACKET; MAG VLV,PTO CONT PTO CONT<SV6>	1-47477-953-1	01	1	0302-	●		●
35	BRACKET; MAG VLV,PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6>	1-47477-953-1	01	1	0302-		●
36	BOLT; MAG VLV,PTO CONT PTO CONT<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9905-0301	●
36	BOLT; MAG VLV,PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9905-0301		●
36	BOLT; MAG VLV,PTO CONT PTO CONT<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0302-0512	●		●
36	BOLT; MAG VLV,PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0302-0512		●
36	BOLT; MAG VLV,PTO CONT PTO CONT<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●
36	BOLT; MAG VLV,PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
39	BOLT; BRKT,MAG VLV PTO CONT<SV6> M8X30 FLANGE	0-28680-830-0	02	1	0302-0512			●
39	BOLT; BRKT,MAG VLV PTO CONT<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
39	BOLT; BRKT,MAG VLV PTO CONT<SV6> M8X25 FLANGE	0-28680-825-0	02	1	9905-0512	●
39	BOLT; BRKT,MAG VLV PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M8X25 FLANGE	0-28680-825-0	02	1	9905-0512		●
39	BOLT; BRKT,MAG VLV PTO CONT<SV6> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
39	BOLT; BRKT,MAG VLV PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
41	NUT; BRKT,MAG VLV PTO CONT<SV6> M8 FLANGE	0-91150-108-0	02	1	9905-0301	●
41	NUT; BRKT,MAG VLV PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M8 FLANGE	0-91150-108-0	02	1	9905-0301		●
41	NUT; BRKT,MAG VLV PTO CONT<SV6> M8 FLANGE	0-91150-108-0	02	1	0302-0602	●		●
41	NUT; BRKT,MAG VLV PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M8 FLANGE	0-91150-108-0	02	1	0302-0602		●
41	NUT; BRKT,MAG VLV PTO CONT<SV6> M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
41	NUT; BRKT,MAG VLV PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M8 FLANGE	0-91180-108-0	02	1	0603-		●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	9905-0106	●	●
44	HORN; HIGH NOTE	1-83410-061-1	01	1	0107-0301	●	●
44	HORN; HIGH NOTE	1-83410-061-1	01	1	0302-	●	●	●
45	HORN; LOW NOTE	1-83410-058-1	01	1	9905-0106	●	●
45	HORN; LOW NOTE	1-83410-062-1	01	1	0107-0301	●	●
45	HORN; LOW NOTE	1-83410-062-1	01	1	0302-	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9905-0301	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0302-0512	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	9905-0301	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
52	BUZZER; BACK METRO	1-83460-088-1	01	1	0302-0304			●
52	BUZZER; BACK METRO	1-83460-083-0	01	1	0305-			●
54	BOLT; BACK BUZZER M10X30 FLANGE	0-28681-030-0	01	1	0302-0512			●
54	BOLT; BACK BUZZER M10X30 FLANGE	0-28651-030-0	01	1	0601-			●
56	NUT; BACK BUZZER M10 FLANGE	0-91150-210-0	01	1	0302-0602			●
56	NUT; BACK BUZZER M10 FLANGE	0-91180-210-0	01	1	0603-			●
261	PLUG; MAG VLV PTO CONT<SV6> PT1/4	9-99204-513-0	01	1	9905-0301	●
261	PLUG; MAG VLV PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> PT1/4	9-99204-513-0	01	1	9905-0301		●
261	PLUG; MAG VLV PTO CONT<SV6> PT1/4	9-99204-513-0	01	1	0302-	●		●
261	PLUG; MAG VLV PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> PT1/4	9-99204-513-0	01	1	0302-		●

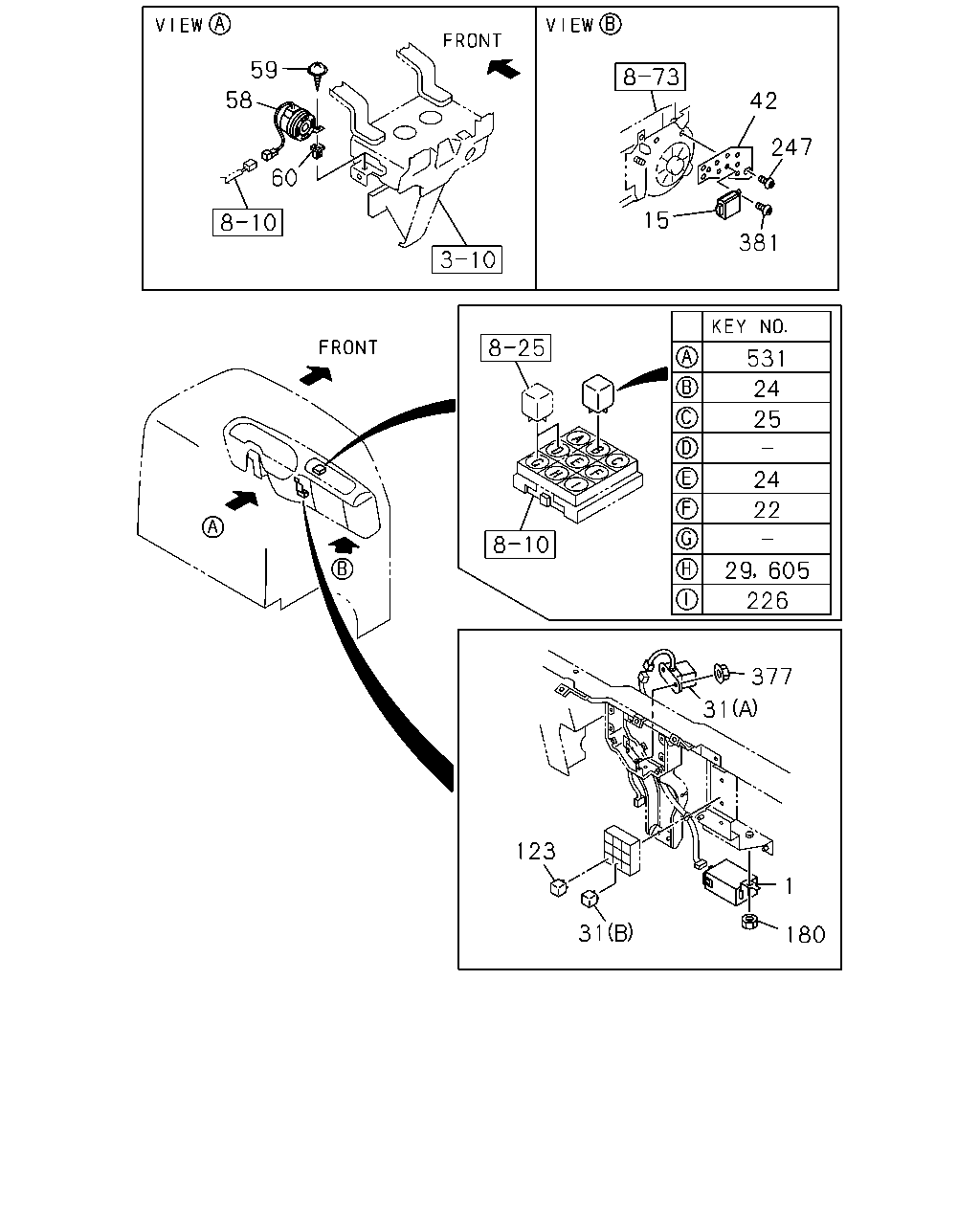

59 58 42 247 60 15 381 531 24 25 24 22 29 605 226 377 31 123 1 31 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	UNIT; FLASHER	1-83470-060-0	01	1	9905-0301	●	●
1	UNIT; FLASHER	1-83470-060-1	01	1	0302-	●	●	●
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0302-			●
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-0111	●	●
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0301	●	●
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0302-	●	●	●
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	9905-0111	●	●
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-0301	●	●
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0302-	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-0111	●	●
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0301	●	●
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0302-	●	●	●
29	RELAY; HORN 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-0111	●	●
29	RELAY; HORN 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0301	●	●
29	RELAY; HORN 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0302-	●	●	●
31	RELAY; PTO CONT PTO CONT<SV6> (A) 24V	1-82550-187-1	01	1	9905-0301	●
31	RELAY; PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (A) 24V	1-82550-187-1	01	1	9905-0301		●
31	RELAY; PTO CONT PTO CONT<SV6> (A) 24V	1-82550-187-1	01	1	0302-	●		●
31	RELAY; PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (A) 24V	1-82550-187-1	01	1	0302-		●
31	RELAY; PTO CONT PTO CONT<SV6> (B) 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-0111	●
31	RELAY; PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-0111		●
31	RELAY; PTO CONT PTO CONT<SV6> (B) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0301	●
31	RELAY; PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0301		●
31	RELAY; PTO CONT PTO CONT<SV6> (B) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0302-	●		●
31	RELAY; PTO CONT PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0302-		●
42	BRACKET; RELAY	1-82699-866-1	01	1	0302-			●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9905-0301	●	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	0302-	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-0	01	1	9905-9907	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO	1-83460-074-1	01	1	9908-	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9905-0301	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0302-0604	●	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-	●	●	●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9905-0301	●	●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0302-	●	●	●
123	RELAY; HTR 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-0111	●	●
123	RELAY; HTR 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0301	●	●
123	RELAY; HTR 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0302-	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9905-0301	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0302-0602	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-0111	●	●
226	RELAY; EXH BRK 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0301	●	●
226	RELAY; EXH BRK 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0302-	●	●	●
247	SCREW; BRKT M5X14	8-94279-325-0	02	1	0302-			●
377	NUT; RELAY PTO CONT<SV6> M6 FLANGE	0-91150-106-0	02	1	9905-0301	●
377	NUT; RELAY PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M6 FLANGE	0-91150-106-0	02	1	9905-0301		●
377	NUT; RELAY PTO CONT<SV6> M6 FLANGE	0-91150-106-0	02	1	0302-0602	●		●
377	NUT; RELAY PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M6 FLANGE	0-91150-106-0	02	1	0302-0602		●
377	NUT; RELAY PTO CONT<SV6> M6 FLANGE	0-91180-106-0	02	1	0603-	●		●
377	NUT; RELAY PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M6 FLANGE	0-91180-106-0	02	1	0603-		●
381	SCREW; RELAY M5X16 W/LK&PL WASHER	8-94279-400-0	01	1	0302-			●
531	RELAY; MAIN 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-0111	●	●
531	RELAY; MAIN 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0301	●	●
531	RELAY; MAIN 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0302-	●	●	●
605	RELAY; PCV 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-0111	●	●
605	RELAY; PCV 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0301	●	●
605	RELAY; PCV 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0302-	●	●	●
