◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#79255) — 46 parça

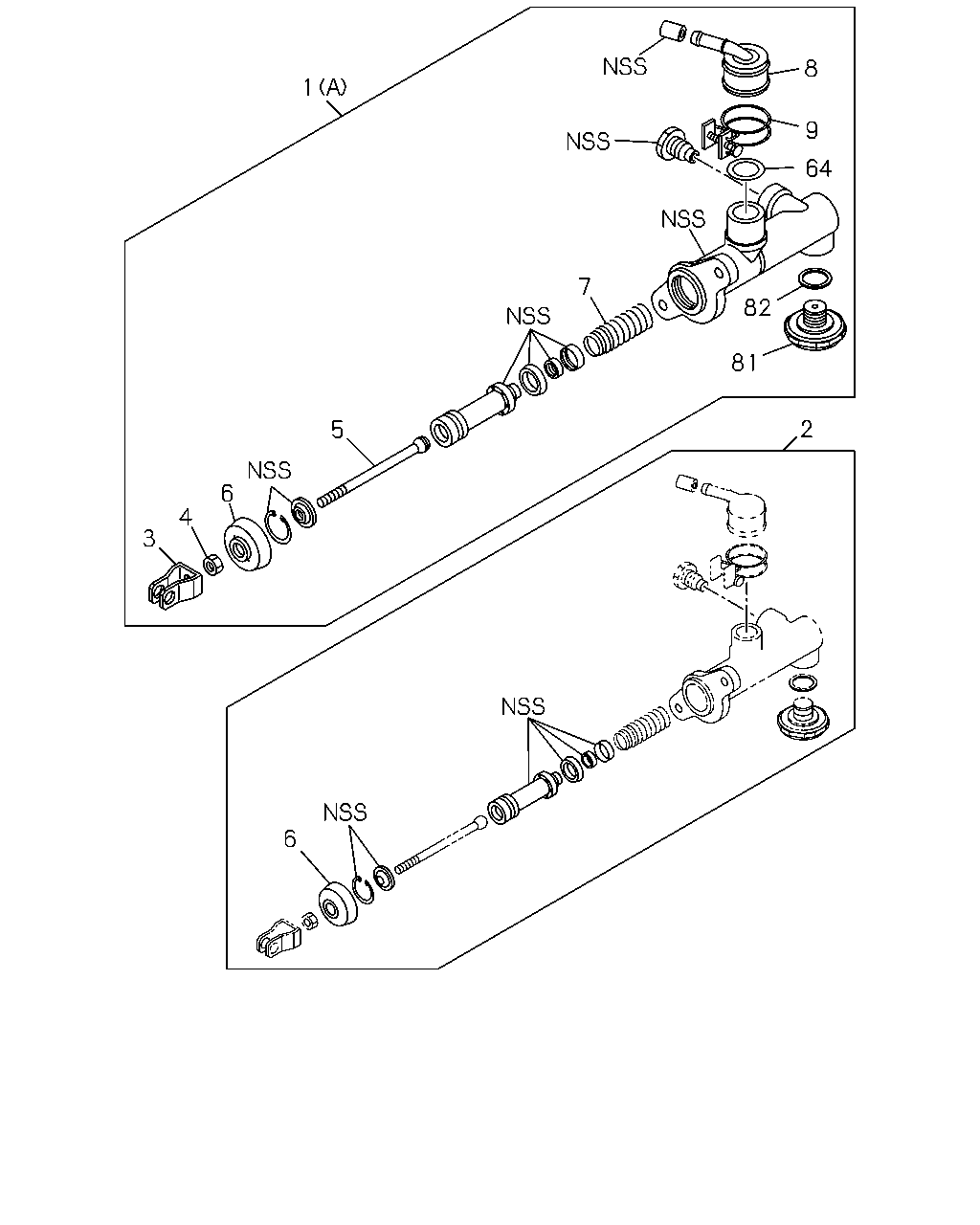

çizim 103205
8 1 9 64 7 82 81 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-643-0 01 1 1012-
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98117-642-0 01 1 1012-
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98098-251-0 01 1 1012-
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98025-308-0 01 1 1012-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 1012-
2 00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1012-
3 00.777 JOINT; JAW,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1012-
4 00.777 NUT; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1012-
5 00.775 ROD; PUSH,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1012-
6 00.775 BOOT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1012-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 1012-
7 00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1012-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 1012-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1012-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 1012-
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 1012-
81 00.777 DAMPER; MASTER CYL
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) 		8-97190-913-0 01 1 1012-
82 00.777 GASKET; DAMPER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) 		8-97191-396-0 01 1 1012-

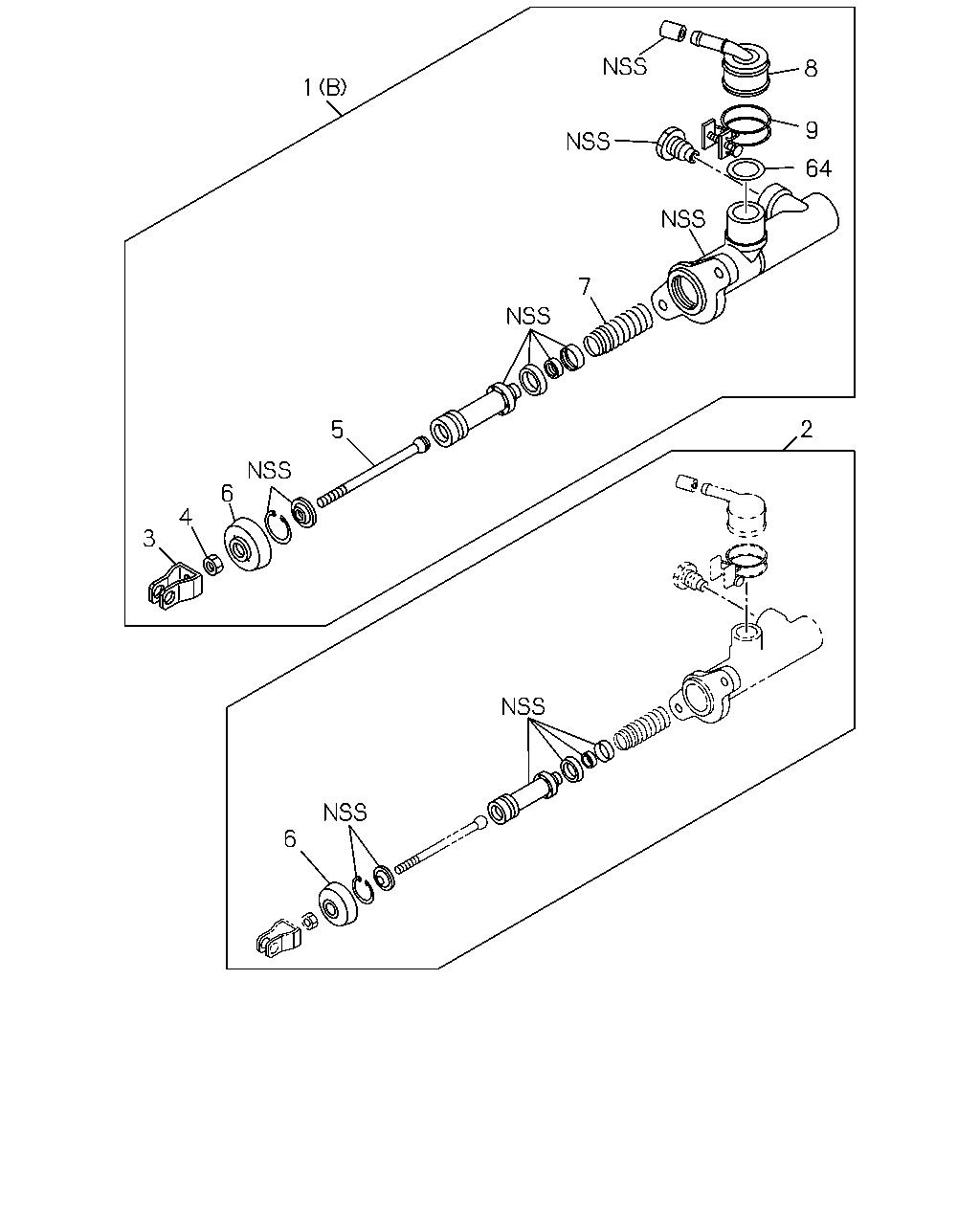

çizim 103719
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-643-0 01 1 1012-
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98117-642-0 01 1 1012-
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98098-251-0 01 1 1012-
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98025-308-0 01 1 1012-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 1012-
2 00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1012-
3 00.777 JOINT; JAW,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1012-
4 00.777 NUT; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1012-
5 00.775 ROD; PUSH,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1012-
6 00.775 BOOT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1012-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 1012-
7 00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1012-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 1012-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1012-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 1012-
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 1012-

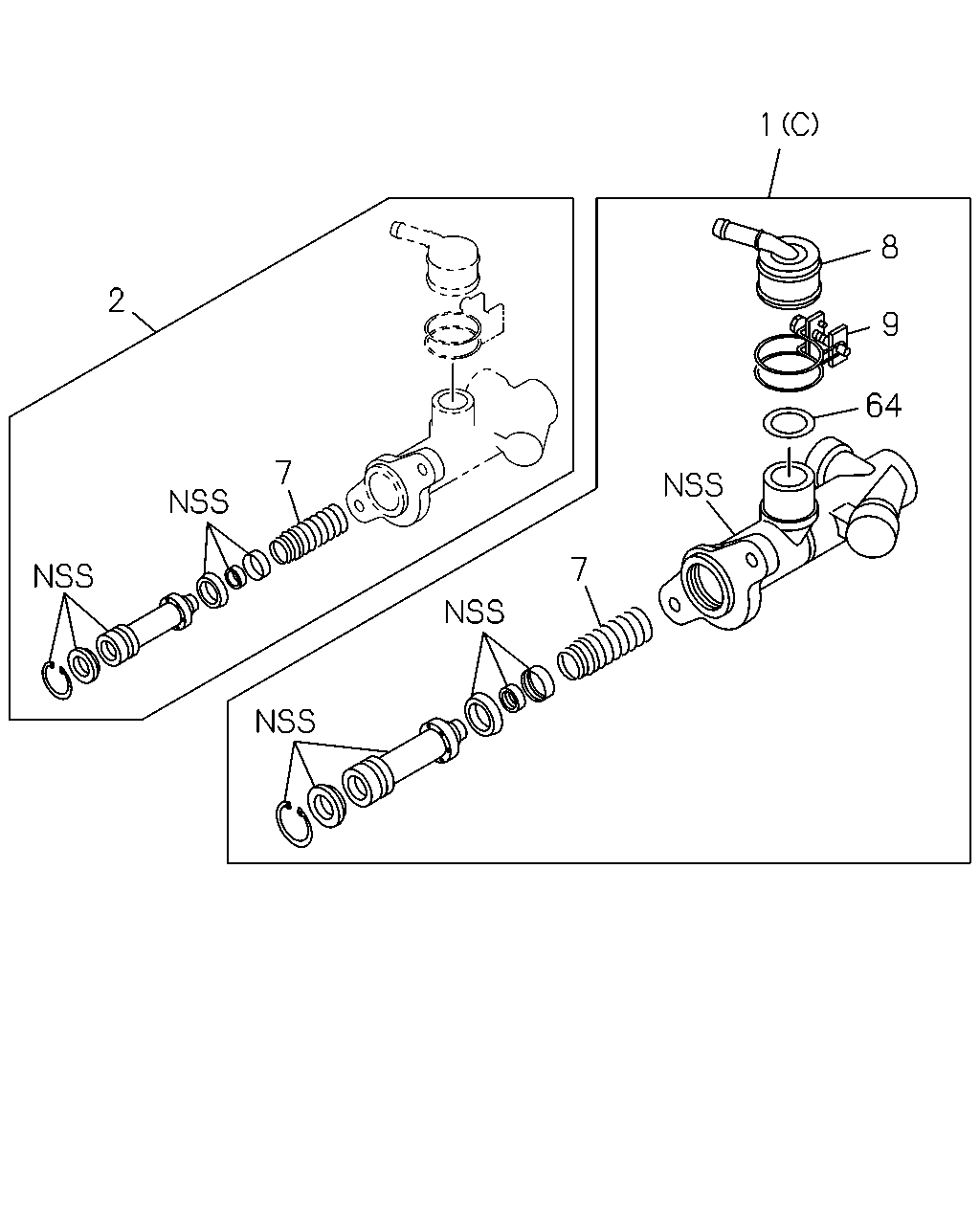

çizim 191037
1 8 2 9 64 7 7
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-643-0 01 1 1012-
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98117-642-0 01 1 1012-
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98098-251-0 01 1 1012-
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98025-308-0 01 1 1012-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 1012-
2 00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1012-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 1012-
7 00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1012-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 1012-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1012-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 1012-
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
