Isuzu WW
▶
TRUCKS
▶
NMR
▶
51283 - NMR(MIDDLE EAST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

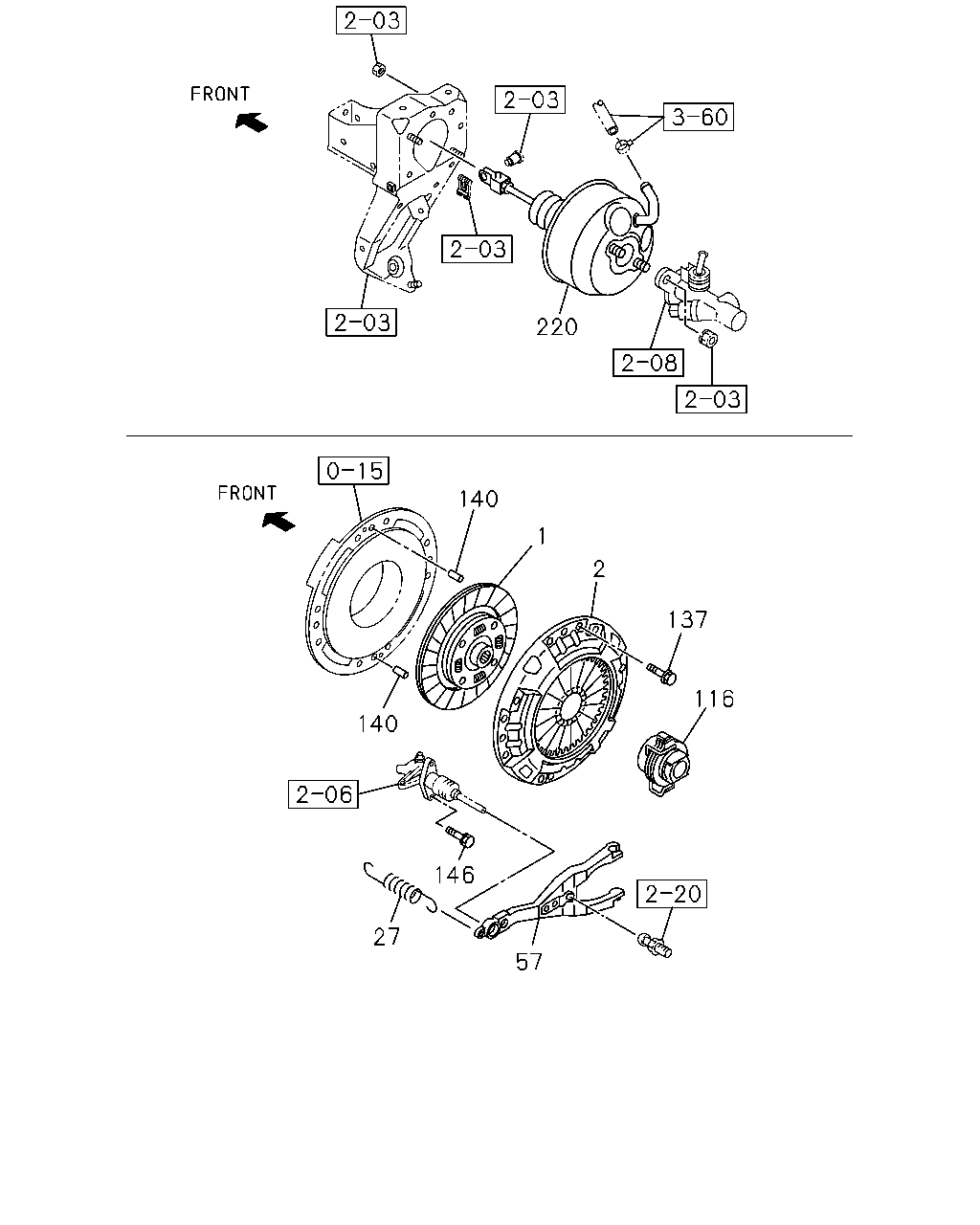

2-01 — CLUTCH
(#79250) — 18 parça
220
140
1
2
137
116
140
146
27
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.886 DISC; CLUTCH
4HG1 ENG(RJH)
8-97377-149-0
01
1
1012-1402
1
00.886 DISC; CLUTCH
4HG1 ENG(RJH)
8-98255-959-1
01
1
1403-
1
00.886 DISC; CLUTCH
4JJ1-TCC ENG(RDU)
8-98037-004-2
01
1
1012-1401
1
00.886 DISC; CLUTCH
4JJ1-TCC ENG(RDU)
8-98255-139-1
01
1
1402-
1
00.886 DISC; CLUTCH
4HG1 ENG(RJH) BEST VALUE PARTS
5-87610-049-2
01
1
1012-
1
00.886 DISC; CLUTCH
4JJ1-TCC ENG(RDU) BEST VALUE PARTS
5-87610-077-1
01
1
1012-
2
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH)
8-97310-796-0
01
1
1012-
2
00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCC ENG(RDU)
8-98040-093-0
01
1
1012-
2
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) BEST VALUE PARTS
5-87610-050-1
01
1
1012-
2
00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCC ENG(RDU) BEST VALUE PARTS
5-87610-091-0
01
1
1012-
27
00.837 SPRING; RETURN,SHIFT FORK
8-98025-313-0
01
1
1012-
57
00.795 FORK; SHIFT,CLU
8-97255-303-0
01
1
1012-
116
00.799 BLOCK; SHIFT,CLU
8-97255-313-0
01
1
1012-
116
00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS
5-87610-110-0
01
1
1012-
137
00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE
0-28051-016-0
10
1
1012-
140
00.862 PIN; STRAIGHT
L=25
8-94410-361-0
02
1
1012-
146
00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE
0-28650-830-0
02
1
1012-
220
00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)
8-98043-208-0
01
1
1012-
