Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#79247) — 423 parça

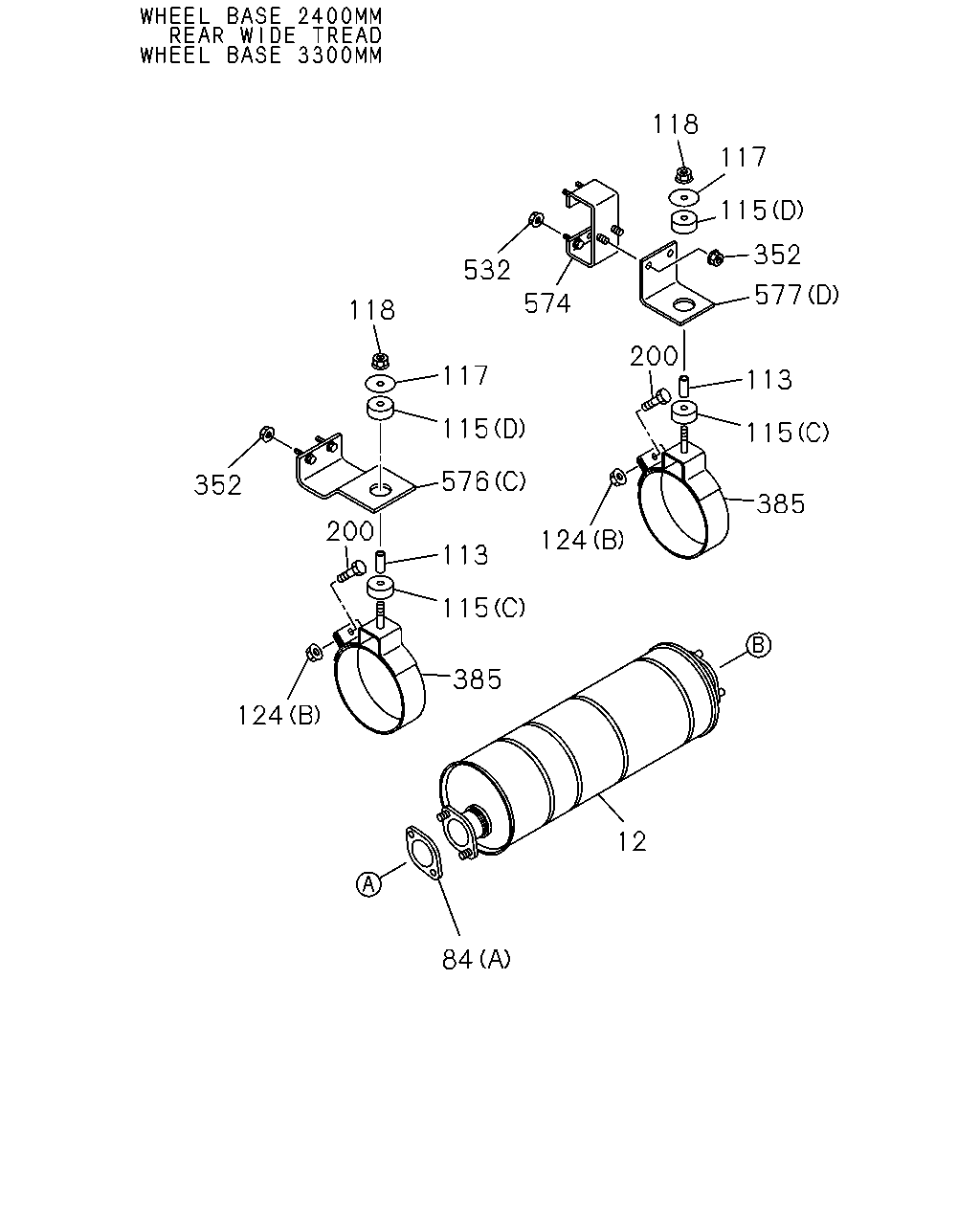

118 117 376 115 577 118 200 117 113 337 115 115 576 385 200 124 113 352 115 385 124 12 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU)	8-98027-813-1	01	1	1012-	●	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98108-930-1	01	1	1012-	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-518-0	01	1	1012-	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (B) ID=64	8-97373-108-0	01	1	1012-	●	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=64	8-97373-108-0	01	1	1012-	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) 03.704 (A) ID=64.7	8-94328-352-0	01	1	1012-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (A)	8-94457-277-1	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (B)	8-94457-278-1	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (C)	8-97379-882-0	02	1	1012-	●
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (D)	8-97379-927-0	02	1	1012-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-	●	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-		●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) 02.334 (B) M8	0-91110-508-0	02	1	1012-	●
200	03.704 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) M8X45 W/LK WASHER	0-50540-845-0	02	1	1012-	●
337	03.706 BOLT; RUBBER,SUPPORT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
337	03.706 BOLT; RUBBER,SUPPORT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
352	03.613 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
352	03.613 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
376	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
376	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-		●
376	03.708 BOLT; BRKT WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
385	03.704 BRACKET; SILENCER MTG 4HG1 ENG(RJH) 03.706	8-97076-020-0	02	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98072-139-0	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98067-992-0	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98067-992-0	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) (A)	8-98067-992-0	01	1	1012-		●
576	03.706 BRACKET; DPD FRT TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98117-517-1	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (C)	8-98117-517-1	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98108-191-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-141-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98107-265-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98107-266-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) (B)	8-98107-266-0	01	1	1012-		●
577	03.706 BRACKET; DPD RR TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98109-166-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (D)	8-98109-166-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (E)	8-98108-445-0	01	1	1012-	●

118 117 115 352 532 577 574 118 200 117 113 115 115 576 352 385 200 124 113 115 385 124 12 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU)	8-98027-813-1	01	1	1012-	●	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98108-930-1	01	1	1012-	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-518-0	01	1	1012-	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (B) ID=64	8-97373-108-0	01	1	1012-	●	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=64	8-97373-108-0	01	1	1012-	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) 03.704 (A) ID=64.7	8-94328-352-0	01	1	1012-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (A)	8-94457-277-1	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (B)	8-94457-278-1	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (C)	8-97379-882-0	02	1	1012-	●
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (D)	8-97379-927-0	02	1	1012-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-	●	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-		●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) 02.334 (B) M8	0-91110-508-0	02	1	1012-	●
200	03.704 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) M8X45 W/LK WASHER	0-50540-845-0	02	1	1012-	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
352	03.613 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
352	03.613 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
385	03.704 BRACKET; SILENCER MTG 4HG1 ENG(RJH) 03.706	8-97076-020-0	02	1	1012-	●
532	03.704 NUT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
532	03.704 NUT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
574	03.706 SPACER; DPD 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98137-248-0	01	1	1012-	●
574	03.706 SPACER; DPD 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98044-774-0	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98072-139-0	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98067-992-0	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98067-992-0	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) (A)	8-98067-992-0	01	1	1012-		●
576	03.706 BRACKET; DPD FRT TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98117-517-1	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (C)	8-98117-517-1	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98108-191-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-141-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98107-265-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98107-266-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) (B)	8-98107-266-0	01	1	1012-		●
577	03.706 BRACKET; DPD RR TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98109-166-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (D)	8-98109-166-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (E)	8-98108-445-0	01	1	1012-	●

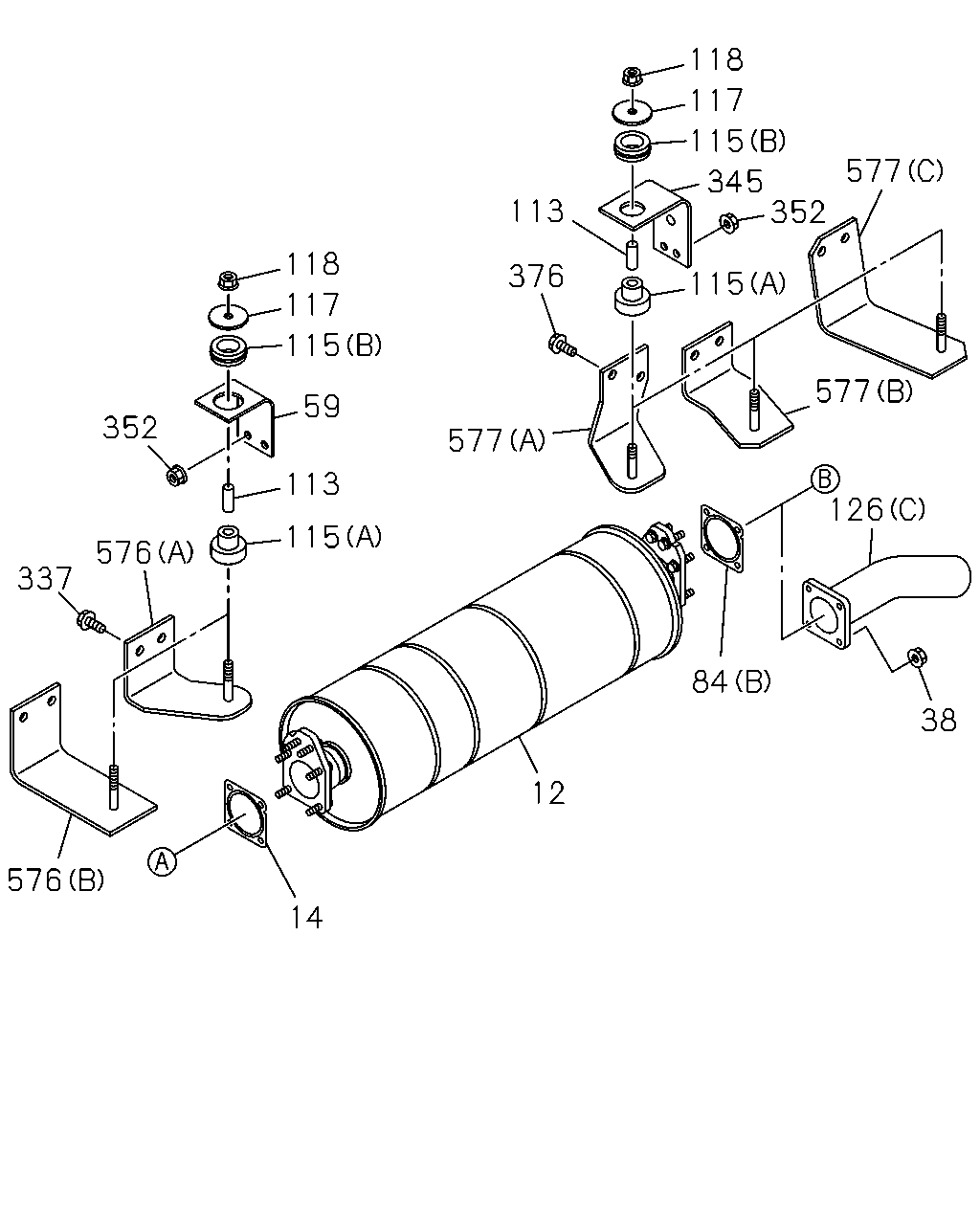

118 117 115 577 345 352 113 115 118 376 117 115 577 59 352 577 126 113 115 576 337 84 38 12 576 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU)	8-98027-813-1	01	1	1012-	●	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98108-930-1	01	1	1012-	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-518-0	01	1	1012-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 ID=64	8-97373-108-0	01	1	1012-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7	8-94328-352-0	01	1	1012-	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
38	00.002 NUT; SILENCER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
59	03.704 BRACKET; EXH SILENCER,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-98072-143-0	01	1	1012-	●
59	03.704 BRACKET; EXH SILENCER,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-98082-156-0	01	1	1012-	●
59	03.704 BRACKET; EXH SILENCER,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98082-156-0	01	1	1012-	●
59	03.704 BRACKET; EXH SILENCER,FRT 4JJ1-TCC ENG(RDU)	8-98082-156-0	01	1	1012-		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (B) ID=64	8-97373-108-0	01	1	1012-	●	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=64	8-97373-108-0	01	1	1012-	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) 03.704 (A) ID=64.7	8-94328-352-0	01	1	1012-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (A)	8-94457-277-1	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (B)	8-94457-278-1	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (C)	8-97379-882-0	02	1	1012-	●
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (D)	8-97379-927-0	02	1	1012-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-	●	●

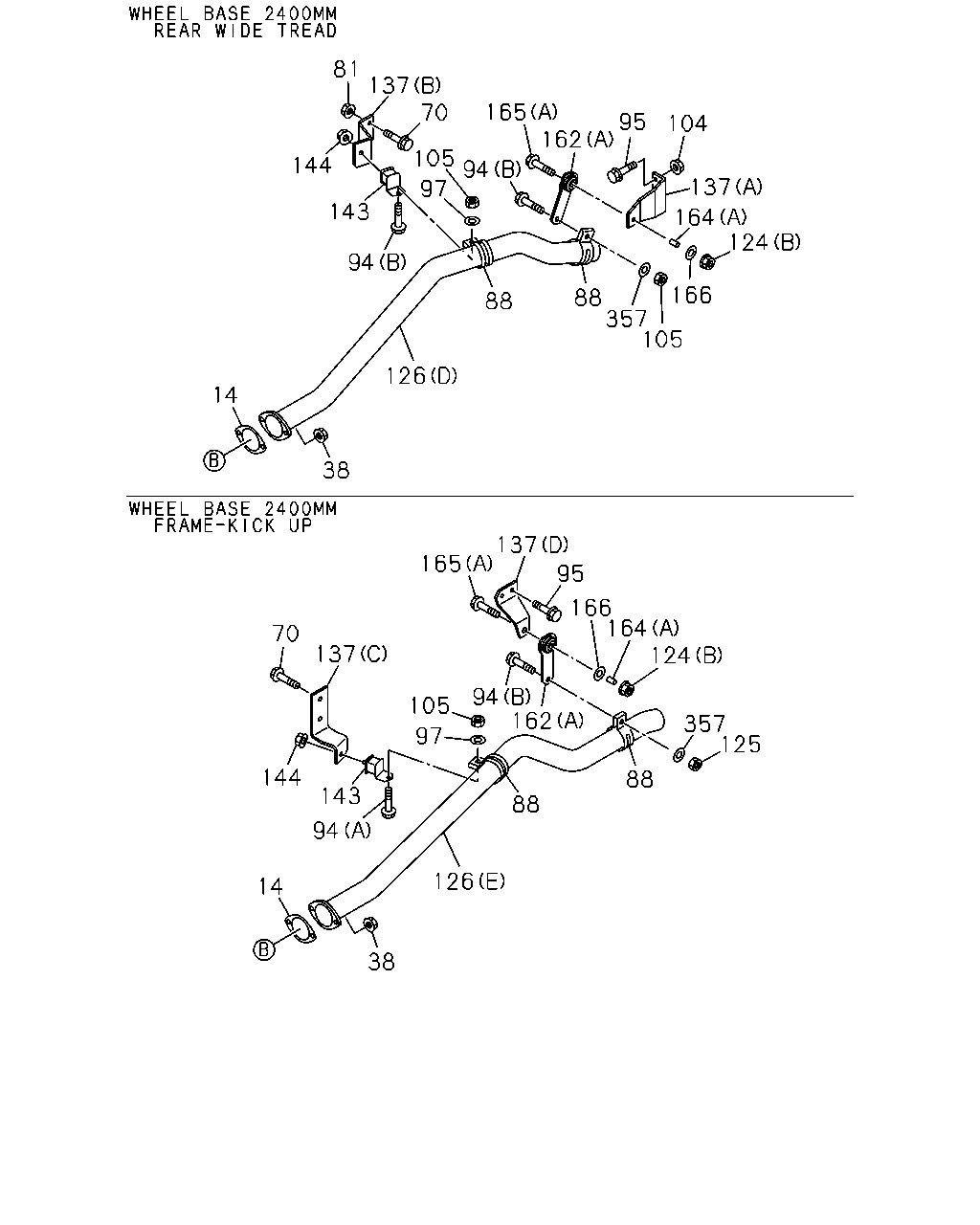

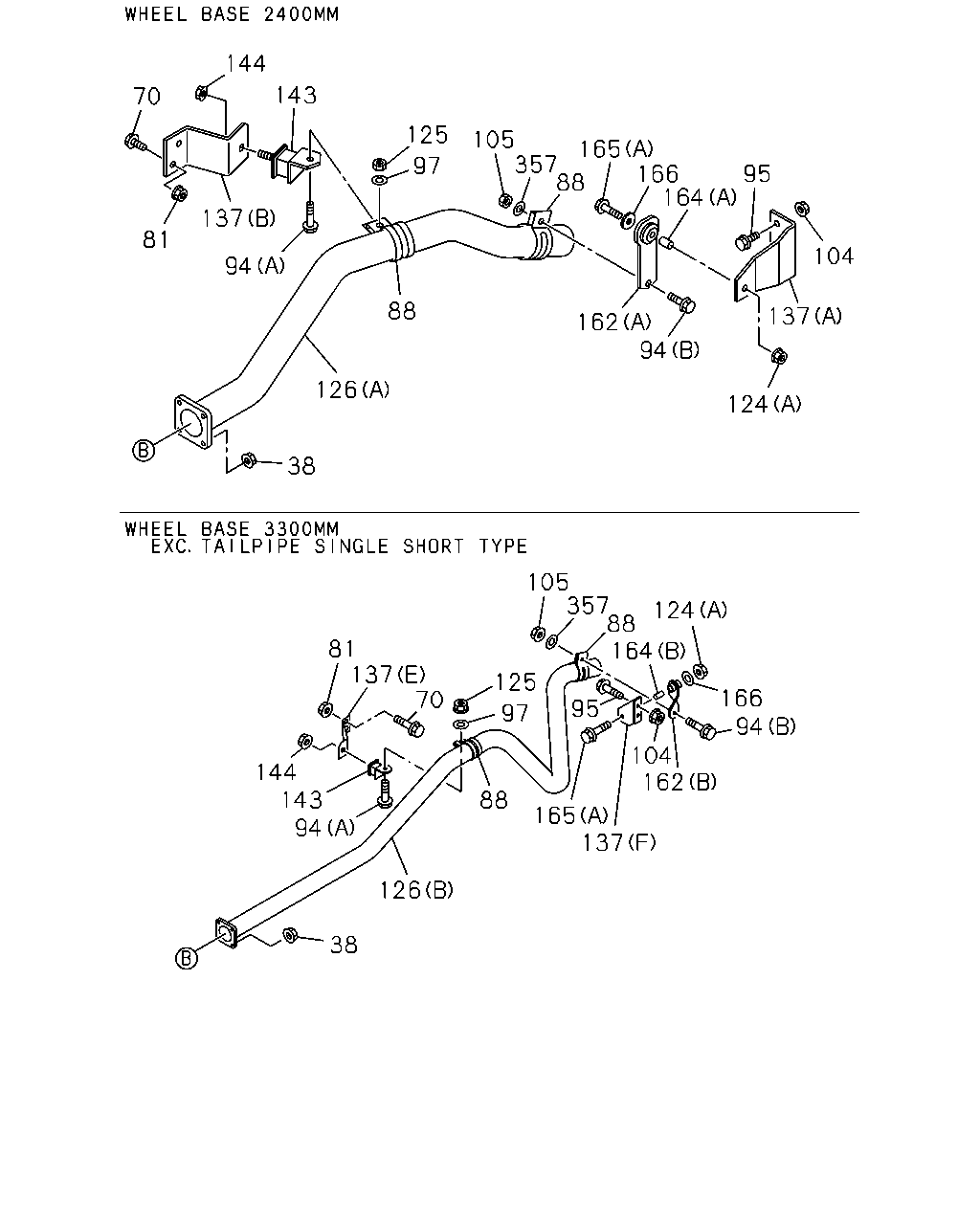

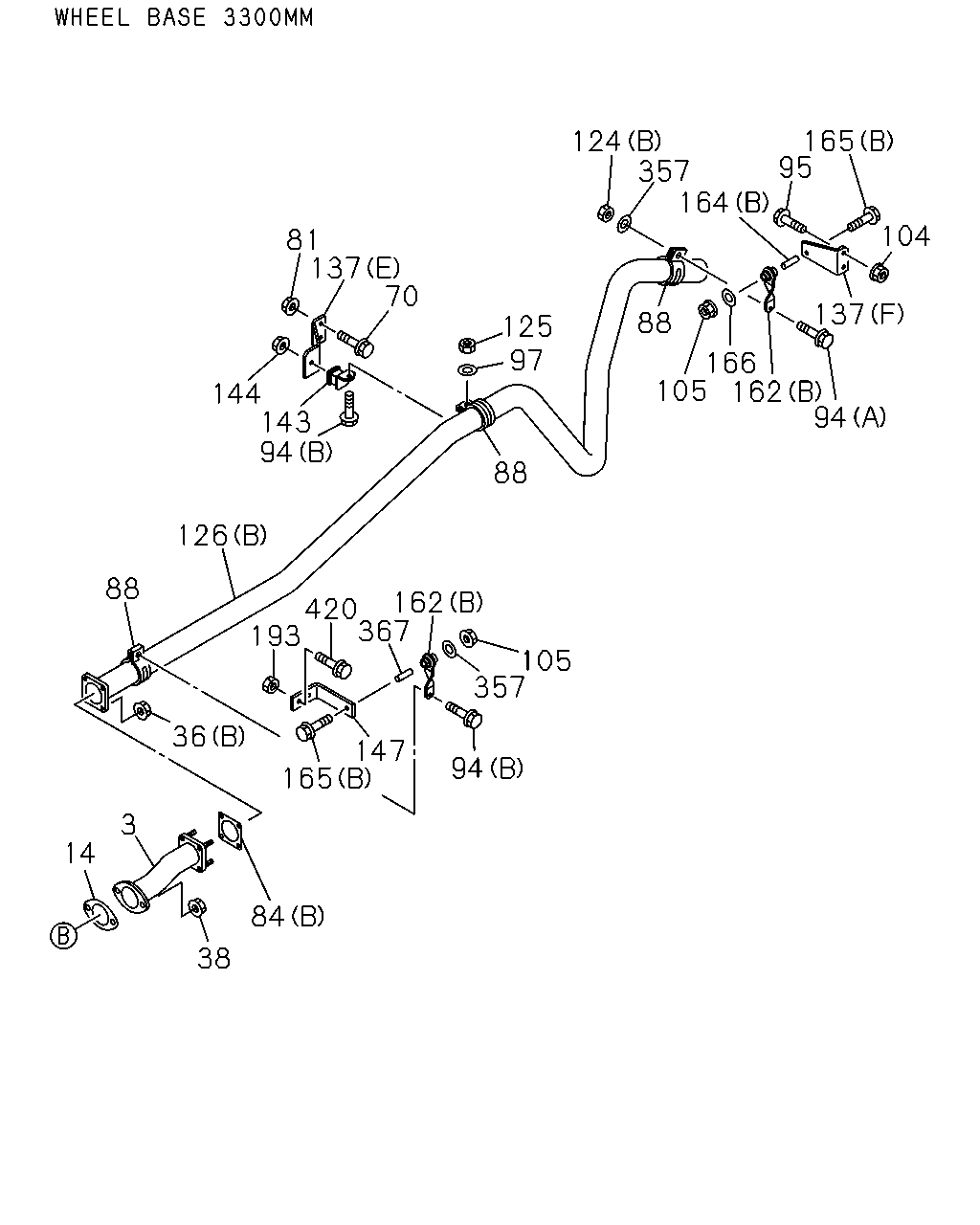

126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98072-138-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A)	8-98072-134-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	1012-		●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98108-182-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (E)	8-98108-183-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98116-727-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98116-727-0	01	1	1012-		●
337	03.706 BOLT; RUBBER,SUPPORT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
337	03.706 BOLT; RUBBER,SUPPORT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
345	03.704 BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-98082-027-0	01	1	1012-	●
345	03.704 BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-98027-822-0	01	1	1012-	●
345	03.704 BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98027-822-0	01	1	1012-	●
345	03.704 BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU)	8-98027-822-0	01	1	1012-		●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
352	03.613 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
352	03.613 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
376	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
376	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-		●
376	03.708 BOLT; BRKT WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98072-139-0	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98067-992-0	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98067-992-0	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) (A)	8-98067-992-0	01	1	1012-		●
576	03.706 BRACKET; DPD FRT TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98117-517-1	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (C)	8-98117-517-1	01	1	1012-	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98108-191-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-141-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98107-265-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98107-266-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) (B)	8-98107-266-0	01	1	1012-		●
577	03.706 BRACKET; DPD RR TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98109-166-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (D)	8-98109-166-0	01	1	1012-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (E)	8-98108-445-0	01	1	1012-	●

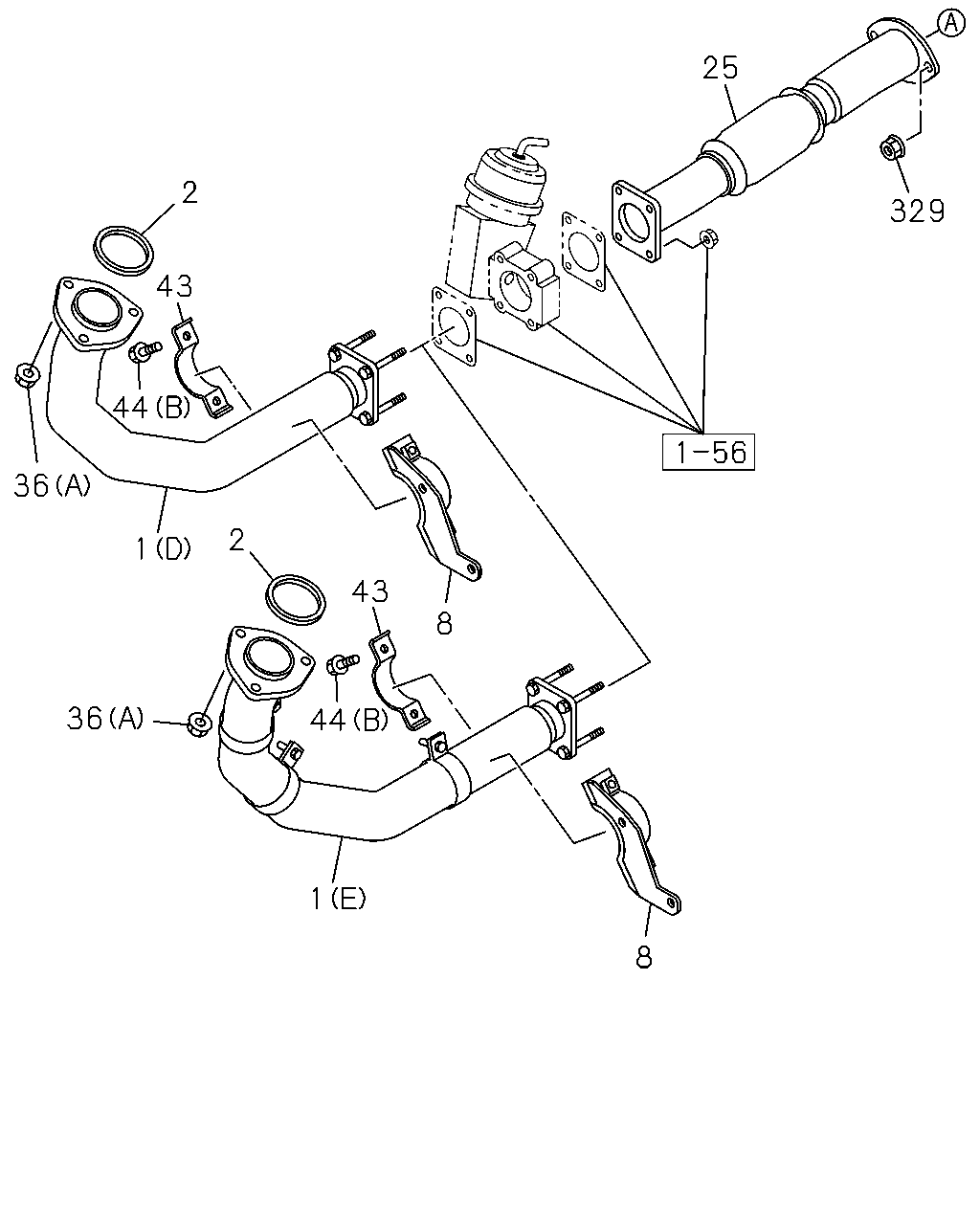

2 43 44 36 329 1 8 2 43 44 36 329 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU) (A)	8-98075-966-0	01	1	1012-	●	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (E)	8-98125-907-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (E)	8-98216-288-0	01	1	1206-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (D)	8-98108-157-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (D)	8-98216-286-0	01	1	1206-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (C)	8-98126-083-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (C)	8-98216-289-0	01	1	1206-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> (B)	8-98117-519-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> (B)	8-98216-287-0	01	1	1206-	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU)	8-97384-590-0	01	1	1012-	●	●
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH)	8-97381-455-0	01	1	1012-	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU) 03.613	8-98026-063-0	01	1	1012-	●	●
8	03.704 BRACKET; EXH PIPE 4HG1 ENG(RJH)	8-97358-599-4	01	1	1012-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	1012-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1012-	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●

25 2 329 43 44 36 2 1 43 8 44 36 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU) (A)	8-98075-966-0	01	1	1012-	●	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (E)	8-98125-907-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (E)	8-98216-288-0	01	1	1206-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (D)	8-98108-157-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (D)	8-98216-286-0	01	1	1206-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (C)	8-98126-083-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (C)	8-98216-289-0	01	1	1206-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> (B)	8-98117-519-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> (B)	8-98216-287-0	01	1	1206-	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU)	8-97384-590-0	01	1	1012-	●	●
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH)	8-97381-455-0	01	1	1012-	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU) 03.613	8-98026-063-0	01	1	1012-	●	●
8	03.704 BRACKET; EXH PIPE 4HG1 ENG(RJH)	8-97358-599-4	01	1	1012-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-98072-121-1	01	1	1012-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-98027-805-1	01	1	1012-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98027-805-1	01	1	1012-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU)	8-98027-805-1	01	1	1012-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-98108-163-1	01	1	1012-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	1012-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1012-	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●

2 329 25 36 1 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU) (A)	8-98075-966-0	01	1	1012-	●	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (E)	8-98125-907-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (E)	8-98216-288-0	01	1	1206-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (D)	8-98108-157-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (D)	8-98216-286-0	01	1	1206-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (C)	8-98126-083-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (C)	8-98216-289-0	01	1	1206-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> (B)	8-98117-519-0	01	1	1012-1205	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> (B)	8-98216-287-0	01	1	1206-	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU)	8-97384-590-0	01	1	1012-	●	●
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH)	8-97381-455-0	01	1	1012-	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU) 03.613	8-98026-063-0	01	1	1012-	●	●
8	03.704 BRACKET; EXH PIPE 4HG1 ENG(RJH)	8-97358-599-4	01	1	1012-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-98072-121-1	01	1	1012-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-98027-805-1	01	1	1012-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98027-805-1	01	1	1012-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU)	8-98027-805-1	01	1	1012-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-98108-163-1	01	1	1012-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	1012-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1012-	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●

144 143 70 125 105 357 88 165 166 164 97 95 137 81 104 94 88 137 162 94 126 124 38 105 357 88 164 124 81 137 70 125 166 94 95 97 104 162 144 143 94 88 165 137 126 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
38	00.002 NUT; SILENCER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
70	03.706 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW>,TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-	●	●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-	●	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●	●
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-	●	●
95	03.708 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
97	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-	●	●
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-		●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) 02.334 (B) M8	0-91110-508-0	02	1	1012-	●
125	03.708 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98072-138-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A)	8-98072-134-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	1012-		●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98108-182-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (E)	8-98108-183-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98116-727-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98116-727-0	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98038-762-1	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98075-678-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-151-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98072-152-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	1012-		●
143	03.704 RUBBER; SUPPORT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98034-767-0	01	1	1012-	●	●
144	03.613 NUT; MTG RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1012-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1012-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1012-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	1012-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	1012-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	1012-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	1012-		●
165	03.706 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●
357	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●

124 165 357 95 164 104 81 137 70 137 88 125 97 166 94 144 143 94 88 126 88 162 420 193 367 105 357 36 147 165 94 3 14 84 38 105 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-523-0	01	1	1012-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 ID=64	8-97373-108-0	01	1	1012-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7	8-94328-352-0	01	1	1012-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	1012-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-	●	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
38	00.002 NUT; SILENCER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
70	03.706 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW>,TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (B) ID=64	8-97373-108-0	01	1	1012-	●	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=64	8-97373-108-0	01	1	1012-	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) 03.704 (A) ID=64.7	8-94328-352-0	01	1	1012-	●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-	●	●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-	●	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●	●
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-	●	●
95	03.708 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
97	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-	●	●
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-		●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) 02.334 (B) M8	0-91110-508-0	02	1	1012-	●
125	03.708 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98072-138-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A)	8-98072-134-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	1012-		●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98108-182-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (E)	8-98108-183-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98116-727-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98116-727-0	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98038-762-1	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98075-678-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-151-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98072-152-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	1012-		●
143	03.704 RUBBER; SUPPORT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98034-767-0	01	1	1012-	●	●
144	03.613 NUT; MTG RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
147	03.704 BRACKET; VERTICAL PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-532-0	01	1	1012-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1012-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1012-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1012-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	1012-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	1012-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	1012-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	1012-		●
165	03.706 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●
357	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.706 L=37.5	9-22151-217-0	01	1	1012-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●

81 137 70 165 162 95 104 105 94 144 137 97 143 164 124 94 166 88 357 105 88 126 14 38 137 165 95 166 164 124 70 137 94 162 105 357 125 97 144 88 143 88 94 126 14 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 ID=64	8-97373-108-0	01	1	1012-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7	8-94328-352-0	01	1	1012-	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
38	00.002 NUT; SILENCER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
70	03.706 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW>,TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-	●	●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-	●	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●	●
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-	●	●
95	03.708 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
97	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-	●	●
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1012-		●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) 02.334 (B) M8	0-91110-508-0	02	1	1012-	●
125	03.708 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98072-138-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A)	8-98072-134-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	1012-		●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98108-182-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (E)	8-98108-183-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98116-727-0	01	1	1012-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98116-727-0	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98038-762-1	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98075-678-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-151-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98072-152-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	1012-		●
143	03.704 RUBBER; SUPPORT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98034-767-0	01	1	1012-	●	●
144	03.613 NUT; MTG RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1012-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1012-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1012-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	1012-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	1012-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	1012-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	1012-		●
165	03.706 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●
357	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
