Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#79242) — 250 parça

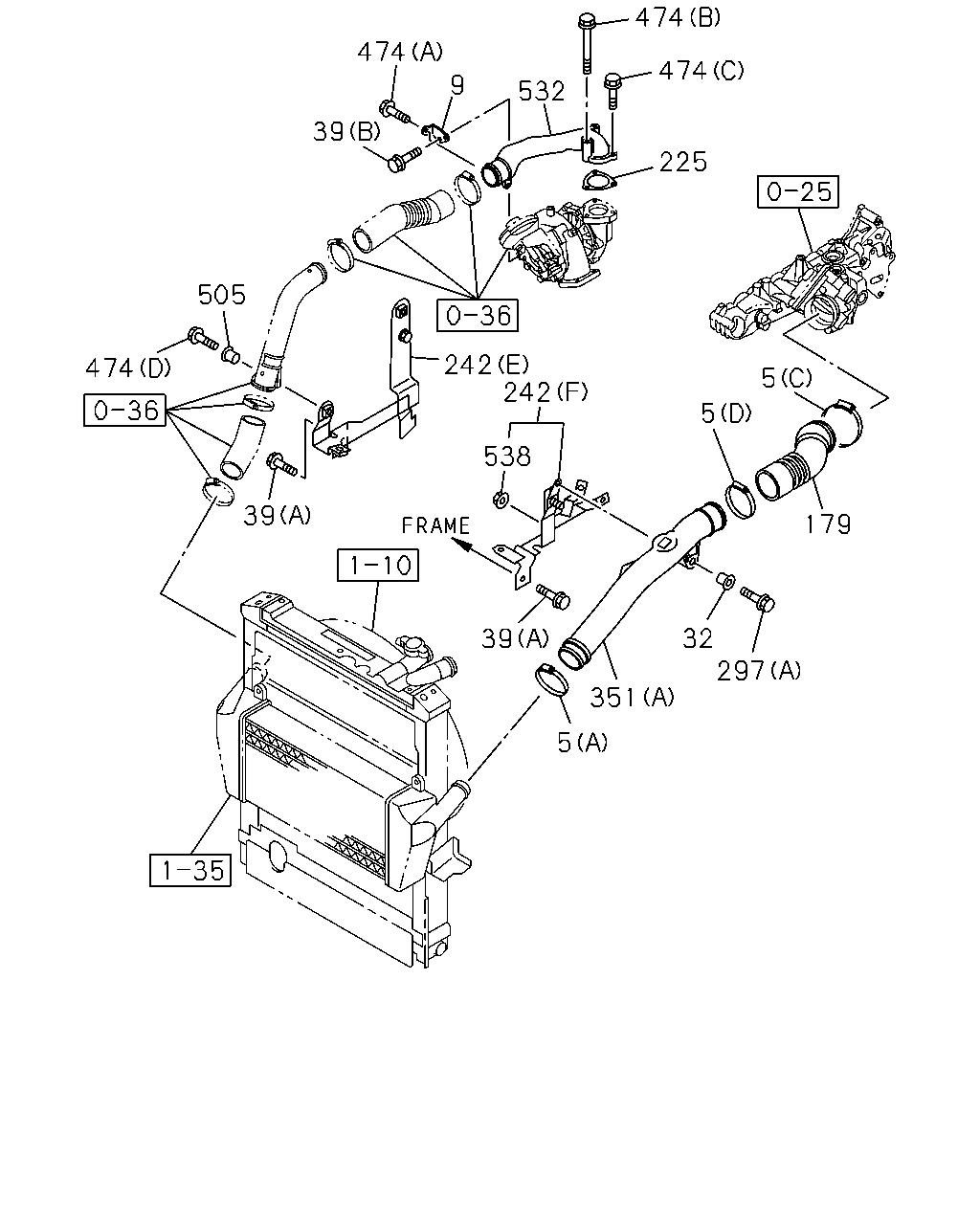

474 9 532 474 474 225 5 5 179 32 297 351 5 39 39 505 474 39 242 242 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (D) ID=58-79	1-09707-136-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (A) ID=60-65	8-98096-418-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=70-90	8-98122-372-0	03	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-		●
9	03.417 BRACKET; INT PIPE 4JJ1-TCC ENG(RDU)	8-98009-086-0	01	1	1012-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 03.265 OD=23	8-97105-689-6	01	1	1012-	●	●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1012-	●	●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1012-	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCC ENG(RDU)	8-98050-920-2	01	1	1012-	●	●
225	03.417 GASKET; AIR PIPE 4JJ1-TCC ENG(RDU) 03.270 ID=47	8-97202-328-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (E)	8-98079-905-2	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98108-313-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (I)	8-98055-243-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98055-246-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98055-247-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98066-918-1	01	1	1012-		●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●	●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-		●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	1012-	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1012-	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (C)	8-98072-163-1	01	1	1012-		●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98136-042-0	01	1	1012-		●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) (B) M6X70 FLANGE	0-28050-670-0	02	1	1012-	●	●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1012-	●	●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●	●
505	03.406 RUBBER; MTG 4JJ1-TCC ENG(RDU) 03.265 OD=23	8-97105-689-6	01	1	1012-	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCC ENG(RDU)	8-97385-203-1	01	1	1012-1303	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCC ENG(RDU)	8-98237-771-1	01	1	1304-	●	●
538	03.417 NUT; PLATE,AIR DUCT 4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●

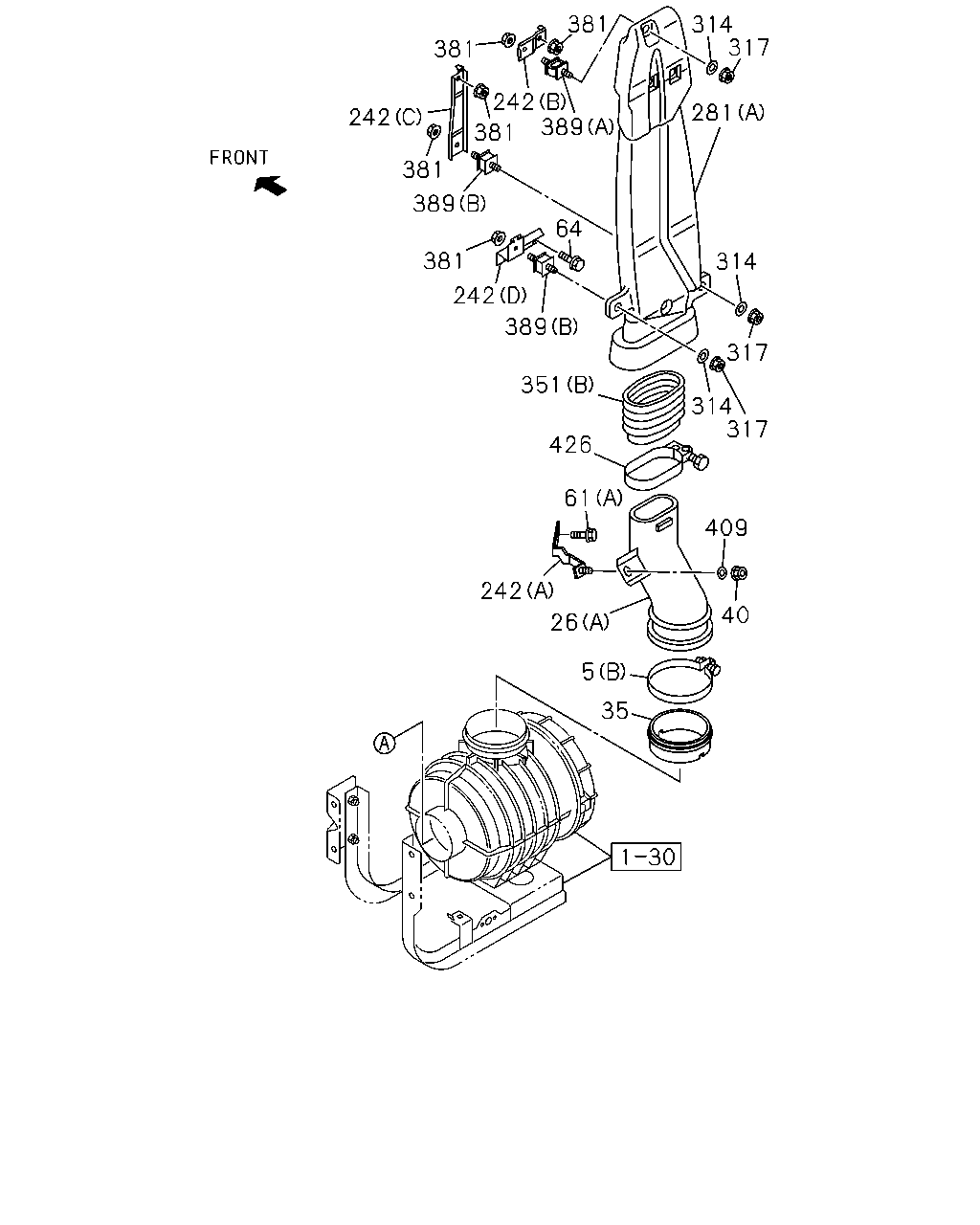

381 314 317 381 242 389 281 242 381 381 389 64 381 314 242 389 317 351 314 317 426 61 409 242 40 26 5 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (D) ID=58-79	1-09707-136-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (A) ID=60-65	8-98096-418-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=70-90	8-98122-372-0	03	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-		●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1012-	●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1012-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-		●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (E)	8-98079-905-2	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98108-313-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (I)	8-98055-243-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98055-246-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98055-247-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98066-918-1	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-98101-994-2	01	1	1012-	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97369-706-0	01	1	1012-	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) HEAVY DUTY AIR CLEANER<K46> (C)	8-98101-995-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98061-757-2	01	1	1012-		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	1012-	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1012-	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (C)	8-98072-163-1	01	1	1012-		●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98136-042-0	01	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	1012-	●

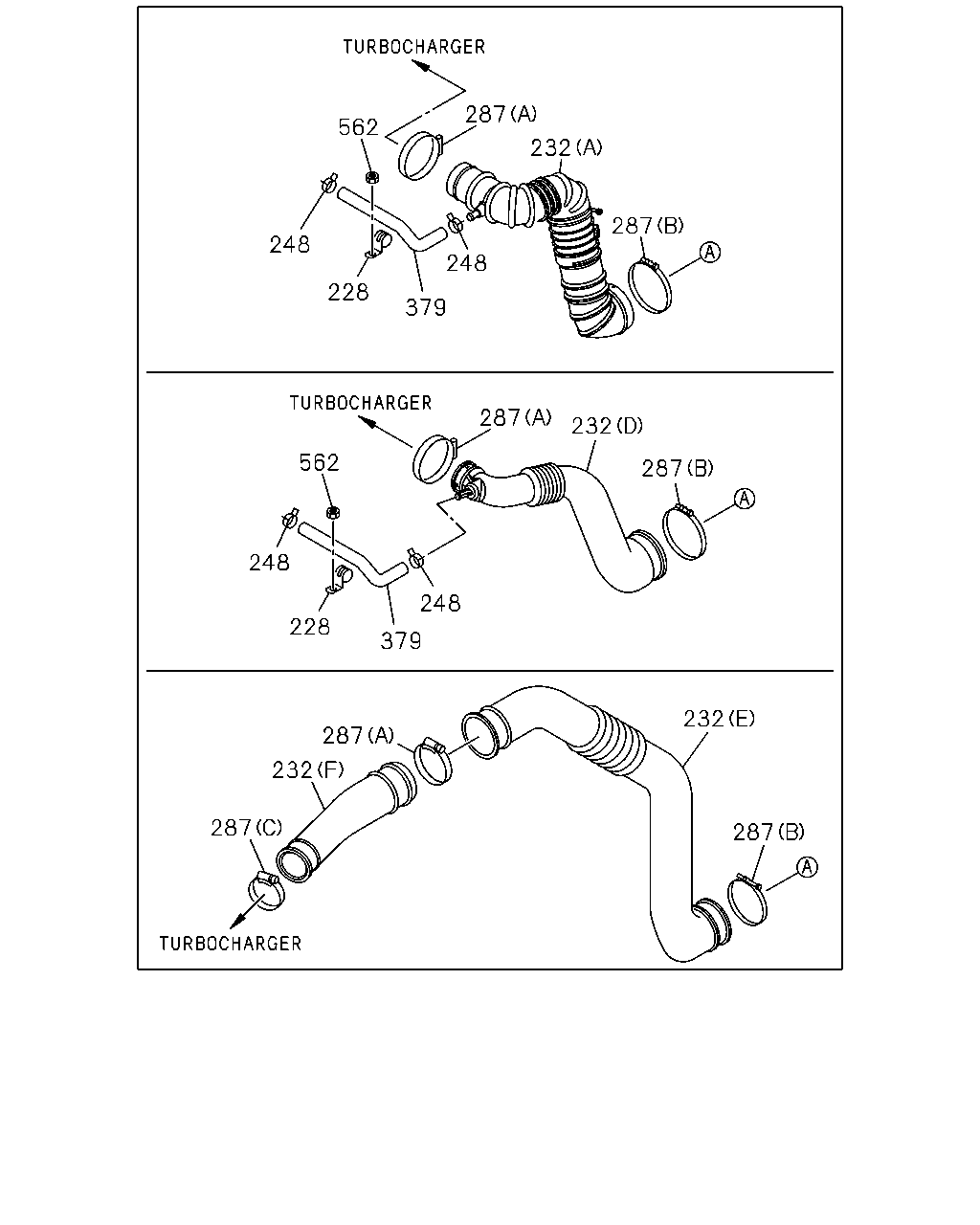

287 562 232 287 248 248 228 379 287 232 562 287 248 248 228 379 232 287 232 287 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> (D)	8-98067-737-0	01	1	1012-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (A)	8-98048-540-0	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (A)	8-98269-834-0	01	1	1410-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (E)	8-98105-056-1	01	1	1012-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (F)	8-98131-538-1	01	1	1012-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (C)	8-98108-234-0	01	1	1012-		●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 ID=21.7	8-97203-074-0	02	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 03.407 (B) ID=117	9-09915-075-1	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) 03.407 (B) ID=112	9-09915-074-1	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1012-	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU)	8-98135-511-0	01	1	1012-	●	●
562	03.403 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●

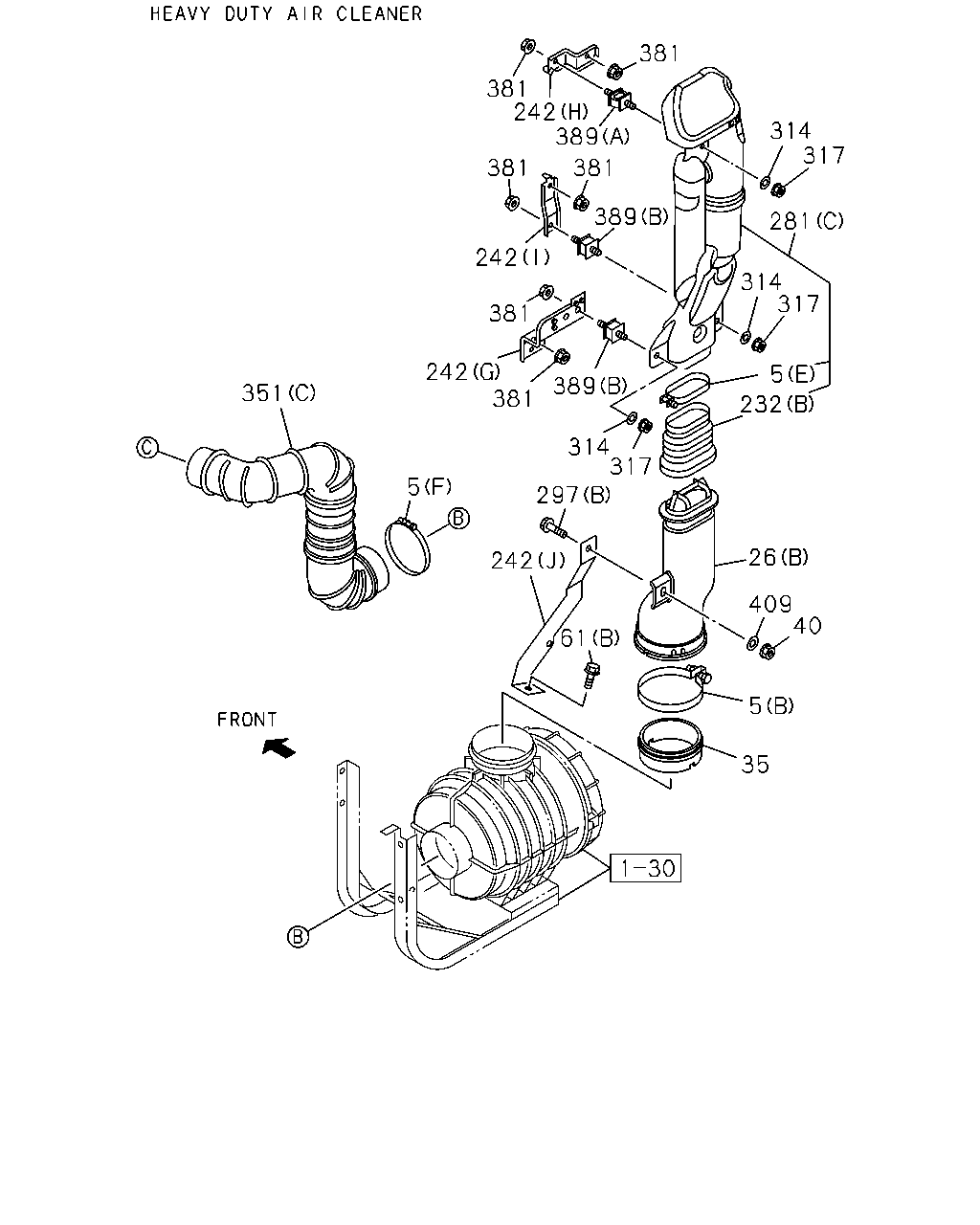

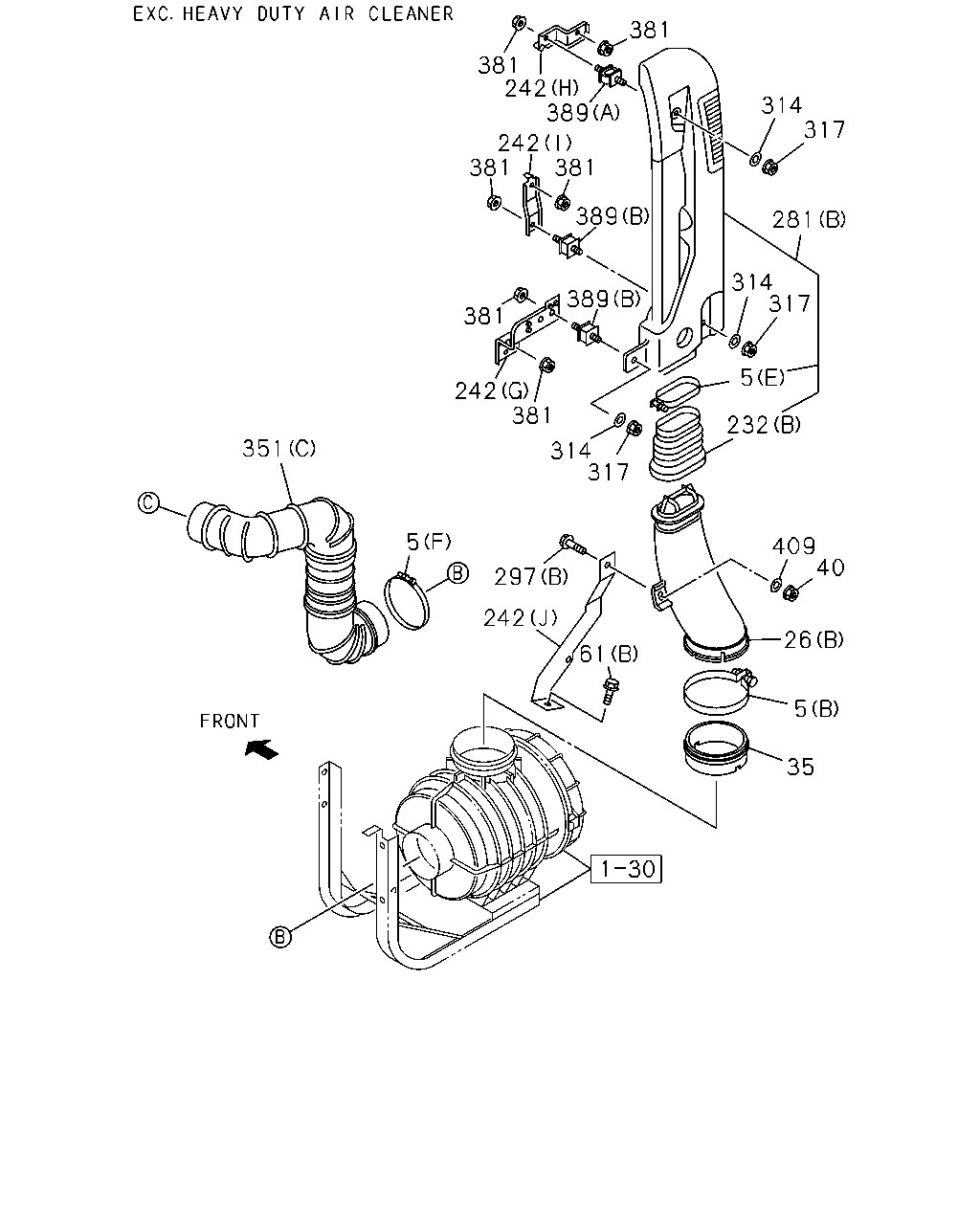

381 381 242 389 314 317 381 381 389 281 242 314 317 381 242 381 5 389 351 232 314 317 297 5 26 242 409 40 61 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (D) ID=58-79	1-09707-136-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (A) ID=60-65	8-98096-418-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=70-90	8-98122-372-0	03	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-		●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1012-	●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1012-		●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> (D)	8-98067-737-0	01	1	1012-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (A)	8-98048-540-0	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (A)	8-98269-834-0	01	1	1410-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (E)	8-98105-056-1	01	1	1012-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (F)	8-98131-538-1	01	1	1012-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (C)	8-98108-234-0	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (E)	8-98079-905-2	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98108-313-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (I)	8-98055-243-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98055-246-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98055-247-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98066-918-1	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-98101-994-2	01	1	1012-	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97369-706-0	01	1	1012-	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) HEAVY DUTY AIR CLEANER<K46> (C)	8-98101-995-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98061-757-2	01	1	1012-		●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●	●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	1012-	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1012-	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (C)	8-98072-163-1	01	1	1012-		●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98136-042-0	01	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●

5 351 5 232 48 5 562 248 248 228 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (D) ID=58-79	1-09707-136-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (A) ID=60-65	8-98096-418-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=70-90	8-98122-372-0	03	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-		●
48	03.417 BOLT; AIR DUCT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> (D)	8-98067-737-0	01	1	1012-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (A)	8-98048-540-0	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (A)	8-98269-834-0	01	1	1410-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (E)	8-98105-056-1	01	1	1012-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (F)	8-98131-538-1	01	1	1012-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (C)	8-98108-234-0	01	1	1012-		●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 ID=21.7	8-97203-074-0	02	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	1012-	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1012-	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (C)	8-98072-163-1	01	1	1012-		●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98136-042-0	01	1	1012-		●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU)	8-98135-511-0	01	1	1012-	●	●
562	03.403 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●

381 381 242 389 314 317 242 381 381 389 281 314 317 389 381 5 242 381 232 351 314 317 5 409 40 297 242 26 61 5 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (D) ID=58-79	1-09707-136-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (A) ID=60-65	8-98096-418-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=70-90	8-98122-372-0	03	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-		●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1012-	●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1012-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> (D)	8-98067-737-0	01	1	1012-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (A)	8-98048-540-0	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (A)	8-98269-834-0	01	1	1410-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (E)	8-98105-056-1	01	1	1012-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (F)	8-98131-538-1	01	1	1012-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (C)	8-98108-234-0	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (E)	8-98079-905-2	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98108-313-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (I)	8-98055-243-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98055-246-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98055-247-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98066-918-1	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-98101-994-2	01	1	1012-	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97369-706-0	01	1	1012-	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) HEAVY DUTY AIR CLEANER<K46> (C)	8-98101-995-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98061-757-2	01	1	1012-		●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●	●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	1012-	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1012-	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (C)	8-98072-163-1	01	1	1012-		●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98136-042-0	01	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
