8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#7924) — 48 parça

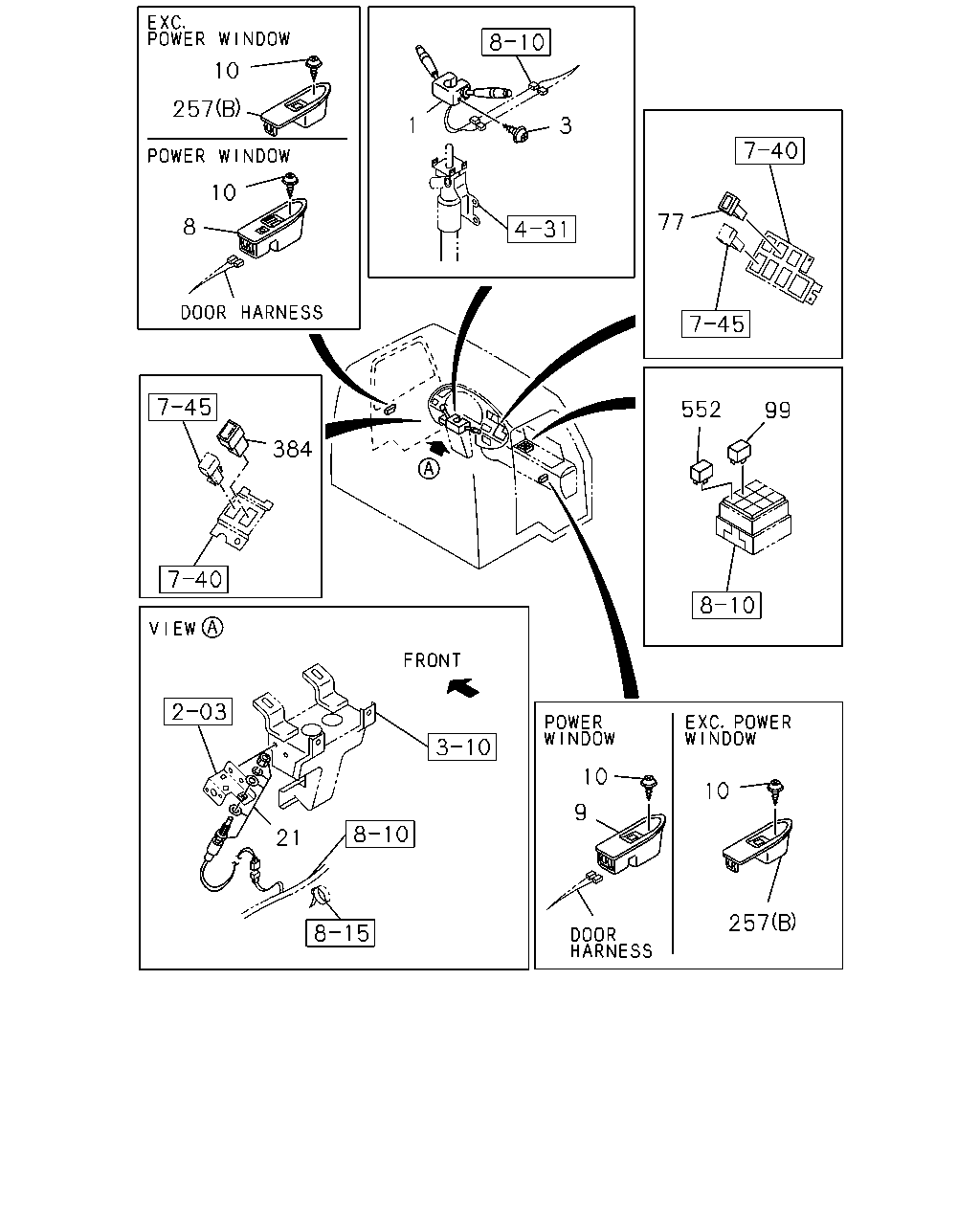

çizim 26777
10 257 3 1 10 77 8 552 99 384 10 10 9 21 257
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SWITCH; COMB 1-82360-405-4 01 1 9905-0103 ● ●
1 SWITCH; COMB 1-82360-647-0 01 1 0104-0301 ● ●
1 SWITCH; COMB 1-82360-647-0 01 1 0302-0312 ● ● ●
1 SWITCH; COMB 1-82360-734-0 01 1 0401- ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9905-0301 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0302-0604 ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-157-3 01 1 9905-0301 ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-157-4 01 1 0302- ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-157-4 01 1 0302- ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-158-3 01 1 9905-0301 ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-158-3 01 1 0302- ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-158-3 01 1 0302- ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9905-0301 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0302-0604 ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ● ●
21 SWITCH; CLU 1-82440-116-0 01 1 9905-0301 ● ●
21 SWITCH; CLU 1-82440-116-1 01 1 0302-0608 ● ● ●
21 SWITCH; CLU 1-82440-126-1 01 1 0609- ● ● ●
77 SWITCH; PTO
PTO CONT<SV6> 		1-82340-403-0 01 1 9905-0301 ●
77 SWITCH; PTO
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> 		1-82340-403-0 01 1 9905-0301 ●
77 SWITCH; PTO
PTO CONT<SV6> 		1-82340-403-0 01 1 0302- ● ●
77 SWITCH; PTO
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> 		1-82340-403-0 01 1 0302- ●
99 RELAY; FOG LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 9905-0111 ● ●
99 RELAY; FOG LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0301 ● ●
99 RELAY; FOG LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0302- ● ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 9905- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9905- ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 9905- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9905- ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9905-0301 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0302- ● ● ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 9905-0301 ● ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0302- ● ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A JIDECO 		8-97062-815-1 01 1 9905-0111 ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0301 ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0302- ● ● ●
çizim 99538
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C
29 SWITCH; DOOR 8-97855-032-3 01 1 9905-0301 ● ●
29 SWITCH; DOOR 8-97855-032-3 01 1 0302- ● ● ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9905-9906 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907-0301 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0302- ● ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 9905- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9905- ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 9905- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9905- ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9905-0301 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0302- ● ● ●
