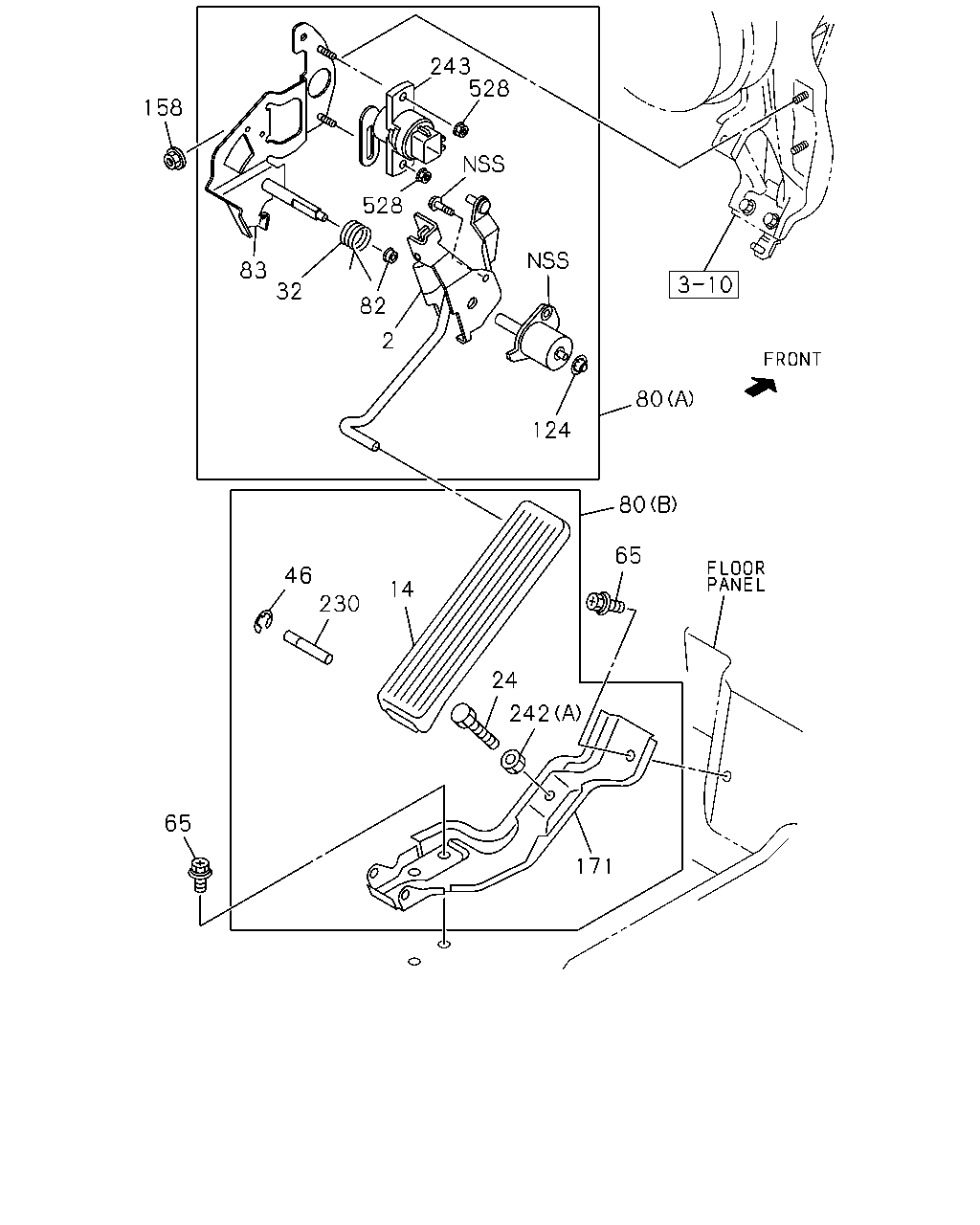

1-01 — ACCELERATOR PEDAL AND CONTROL (#79238) — 74 parça

243 528 158 528 83 32 82 2 80 124 80 65 46 14 230 24 242 65 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.454 LEVER; ENG CONT 4JJ1-TCC ENG(RDU)	8-98002-158-2	01	1	1012-	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1012-	●	●
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	1012-	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JJ1-TCC ENG(RDU)	8-98031-665-0	01	1	1012-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1012-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	1012-	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	1012-	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C)	8-98038-417-2	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> (C)	8-98128-704-1	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	1012-	●	●
82	03.463 BUSHING; ENG CONT LVR 4JJ1-TCC ENG(RDU)	8-97581-053-0	01	1	1012-	●	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	1012-	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH)	8-98093-897-0	01	1	1012-	●
124	03.463 NUT; LEVER 4JJ1-TCC ENG(RDU) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1012-	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1012-	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1012-	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	1012-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	1012-	●	●
242	03.483 NUT; ACCEL PEDAL 4HG1 ENG(RJH) (B) M18	8-97853-233-0	01	1	1012-	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●
243	03.425 SENSOR; ACCEL 4JJ1-TCC ENG(RDU)	8-98131-263-0	01	1	1012-	●	●
528	03.463 NUT; ACCEL SENSOR 4JJ1-TCC ENG(RDU) 12.183 M5	8-94169-022-0	02	1	1012-	●	●

262 773 170

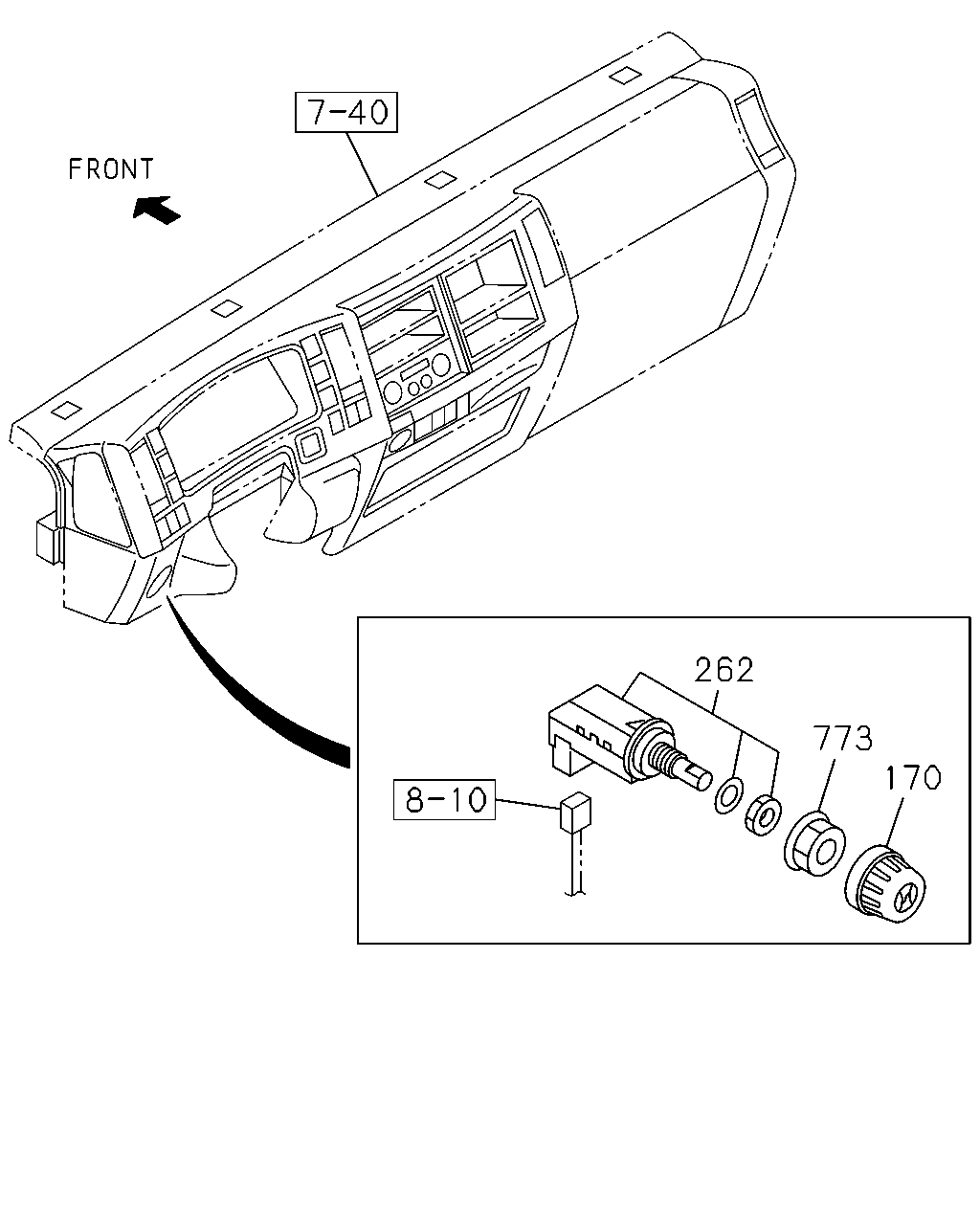

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	03.480 KNOB 4JJ1-TCC ENG(RDU)	8-98013-420-0	01	1	1012-	●	●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1-TCC ENG(RDU)	8-98013-418-0	01	1	1012-	●	●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1-TCC ENG(RDU)	8-97352-127-0	01	1	1012-	●	●

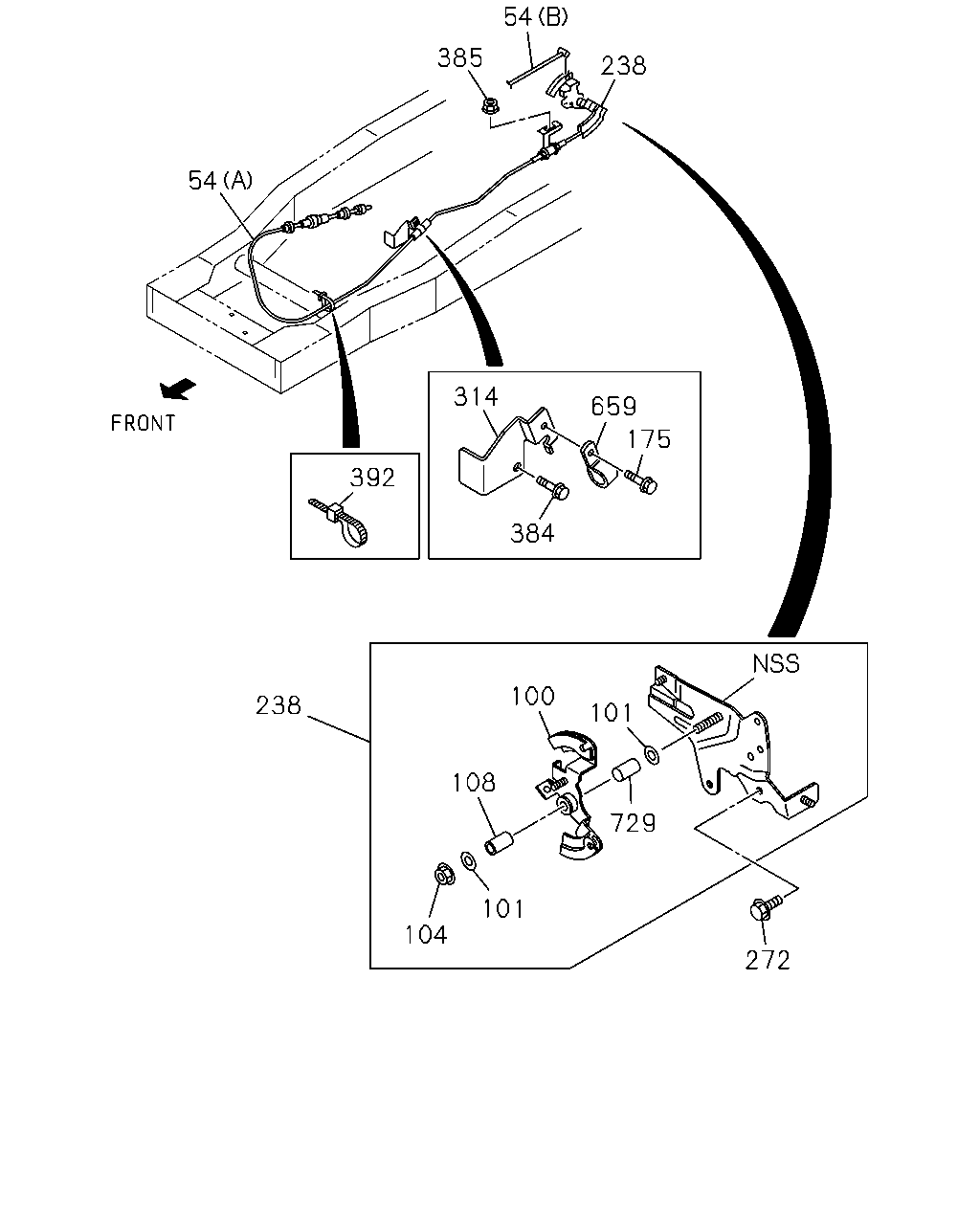

54 385 238 54 314 659 175 392 384 100 238 101 108 729 101 104 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	1012-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A)	8-98099-701-5	01	1	1012-	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH)	8-97118-737-0	01	1	1012-	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	1012-	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH)	8-97120-004-0	01	1	1012-	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4HG1 ENG(RJH) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
238	03.463 LEVER; ACCEL CONT 4HG1 ENG(RJH)	8-97118-729-0	01	1	1012-	●
272	03.454 BOLT; LEVER 4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1 ENG(RJH)	8-98120-574-1	01	1	1012-	●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1012	●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1 ENG(RJH) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
385	03.481 NUT; CLIP 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) 02.559 L=250	5-09707-030-1	01	1	1012-	●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) 04.785 ID=16 L=28	0-95235-552-0	02	1	1012-	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH)	8-97118-760-0	01	1	1012-	●

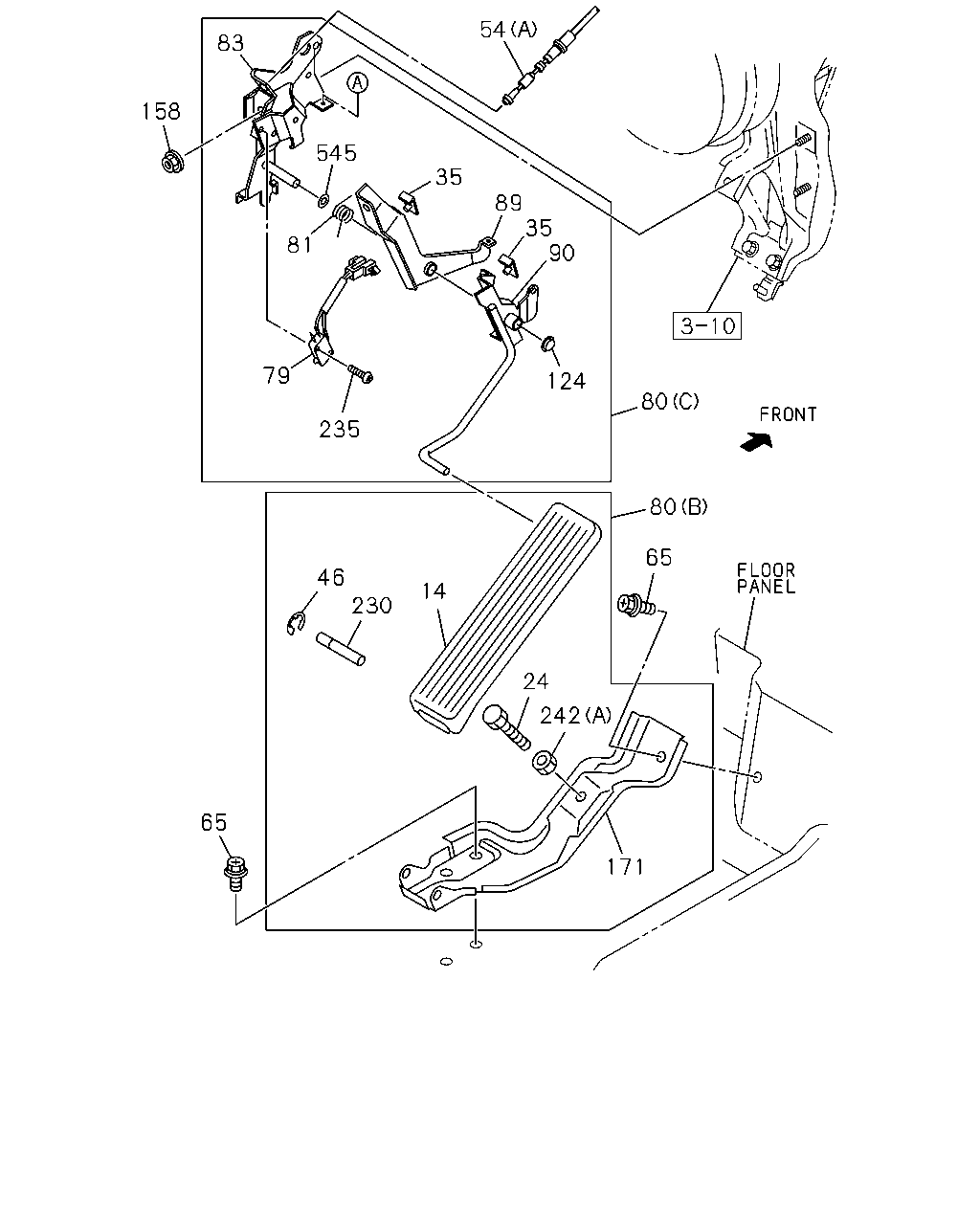

54 83 158 545 35 89 35 90 81 79 124 80 235 80 65 46 14 230 24 242 65 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1012-	●	●
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	1012-	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH)	8-97302-305-0	01	1	1012-	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1012-	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	1012-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A)	8-98099-701-5	01	1	1012-	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	1012-	●	●
79	03.451 SWITCH; ACCEL PEDAL 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.636	8-97855-192-0	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	1012-	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C)	8-98038-417-2	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> (C)	8-98128-704-1	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	1012-	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH)	8-98031-665-0	01	1	1012-	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	1012-	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH)	8-98093-897-0	01	1	1012-	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH)	8-97857-617-4	01	1	1012-	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH)	8-98093-899-1	01	1	1012-	●
124	03.463 NUT; LEVER 4JJ1-TCC ENG(RDU) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1012-	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1012-	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1012-	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	1012-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	1012-	●	●
235	03.452 SCREW; PEDAL TO SW 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.425 M3X16 TAPPING	0-71340-316-0	02	1	1012-	●
242	03.483 NUT; ACCEL PEDAL 4HG1 ENG(RJH) (B) M18	8-97853-233-0	01	1	1012-	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●
545	03.463 WASHER; NYLON 4HG1 ENG(RJH) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	1012-	●

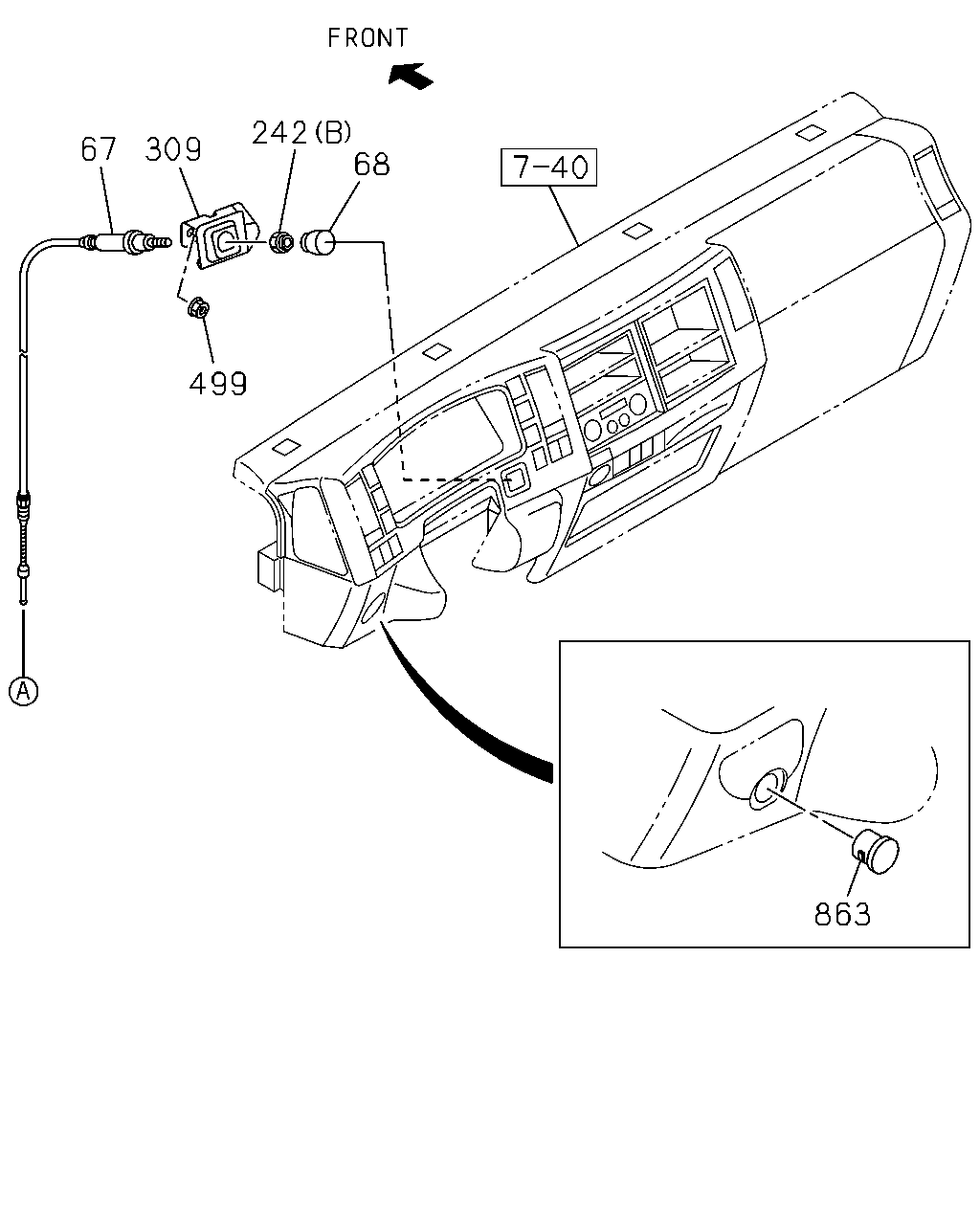

242 68 67 309 499 863

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH)	8-98124-109-3	01	1	1012-	●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH)	8-97853-765-1	01	1	1012-	●
242	03.483 NUT; ACCEL PEDAL 4HG1 ENG(RJH) (B) M18	8-97853-233-0	01	1	1012-	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●
309	03.483 BRACKET; IDLE CONT CABLE 4HG1 ENG(RJH)	8-98124-979-1	01	1	1012-	●
499	03.483 NUT; IDLE CONT CABLE 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
863	03.463 COVER; SENSOR 4HG1 ENG(RJH) GRAY	8-97408-816-0	01	1	1012-	●
