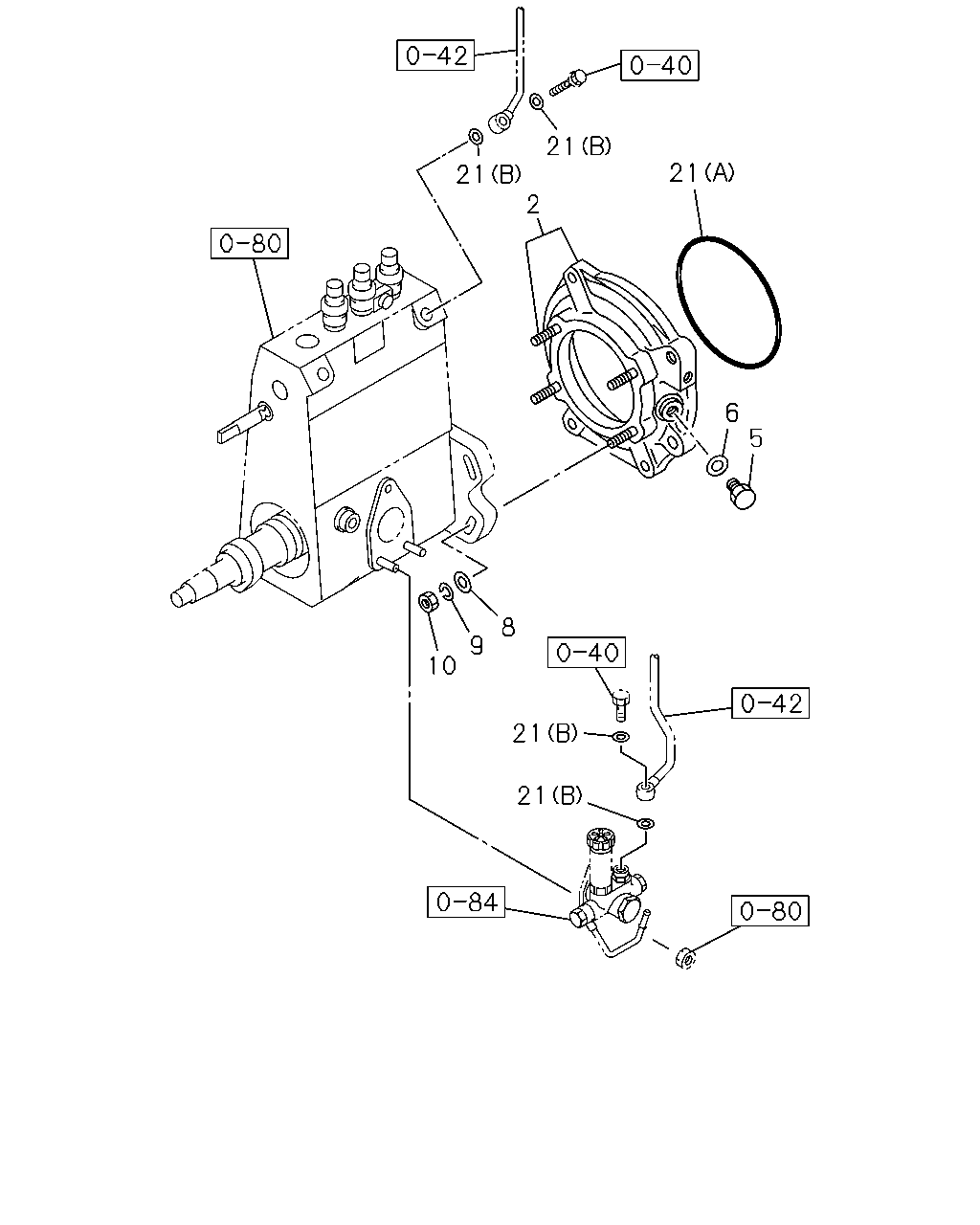

0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#79237) — 8 parça

21 21 2 21 6 5 8 9 10 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97123-609-0	01	1	1012-
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	1012-
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	1012-
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	1012-
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	1012-
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	1012-
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	1012-
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	1012-
