◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#7923) — 129 parça

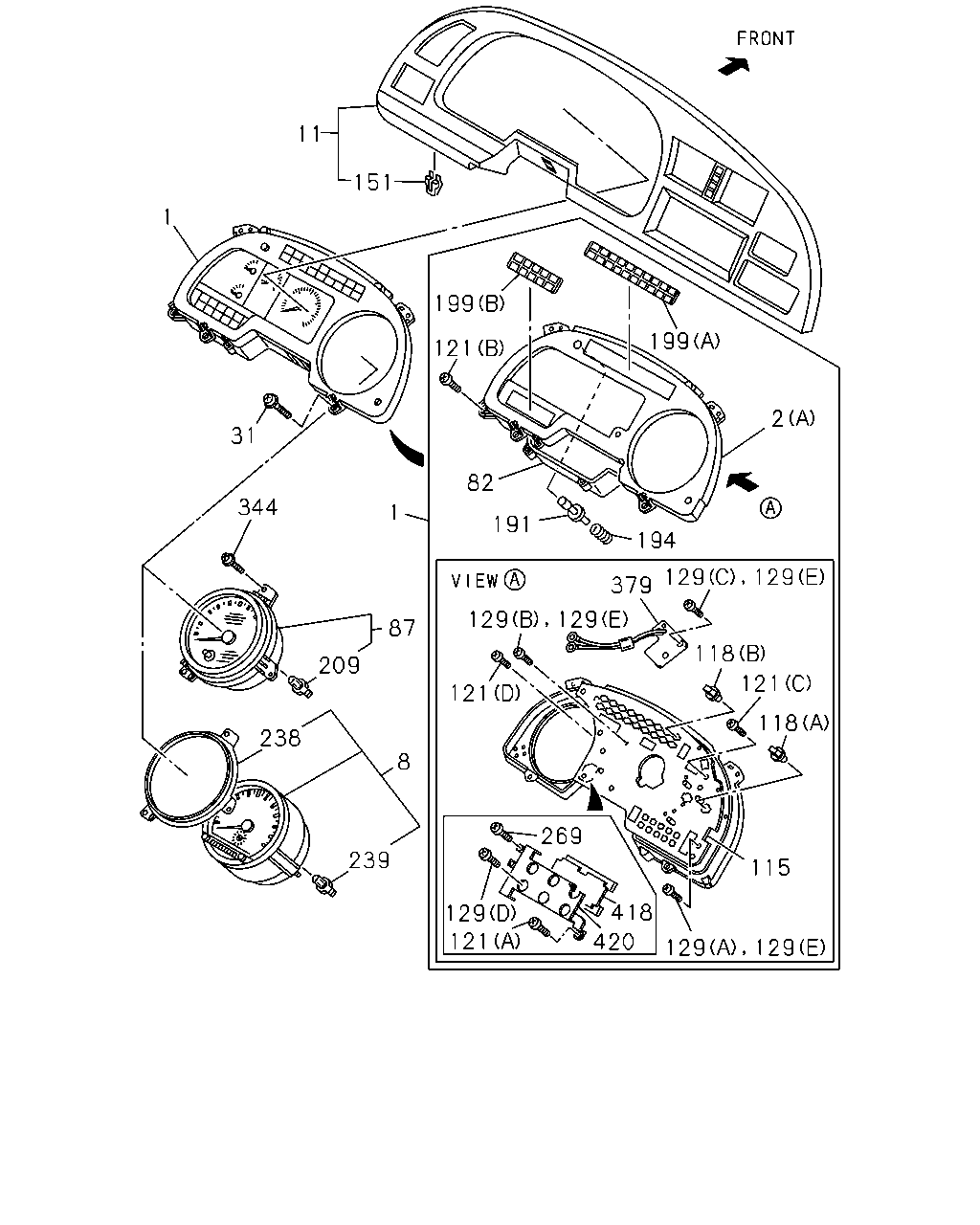

çizim 26953
11 151 1 199 199 121 2 31 82 344 1 191 194 129 129 379 129 129 87 118 209 121 121 118 238 8 269 239 115 418 129 121 420 129 129
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER 1-83115-121-1 01 1 9905-9910 ●
1 METER COMPL; CLUSTER
EXC. FIRE FIGHTING TRUCK(RA9) 		1-83115-121-1 01 1 9905-9910 ●
1 METER COMPL; CLUSTER 1-83115-680-0 01 1 9911-0301 ●
1 METER COMPL; CLUSTER
EXC. FIRE FIGHTING TRUCK(RA9) 		1-83115-680-0 01 1 9911-0301 ●
1 METER COMPL; CLUSTER 1-83115-680-0 01 1 0302- ● ●
1 METER COMPL; CLUSTER
EXC. FIRE FIGHTING TRUCK(RA9) 		1-83115-680-0 01 1 0302- ●
1 METER COMPL; CLUSTER
FIRE FIGHTING TRUCK(RA9) 		1-83115-150-1 01 1 9905-9910 ●
1 METER COMPL; CLUSTER
FIRE FIGHTING TRUCK(RA9) 		1-83115-683-0 01 1 9911- ●
2 PANEL; CLUSTER
(B) 		1-83119-651-0 01 1 9905-0301 ●
2 PANEL; CLUSTER
EXC. FIRE FIGHTING TRUCK(RA9) (B) 		1-83119-651-0 01 1 9905-0301 ●
2 PANEL; CLUSTER
(B) 		1-83119-651-0 01 1 0302- ● ●
2 PANEL; CLUSTER
EXC. FIRE FIGHTING TRUCK(RA9) (B) 		1-83119-651-0 01 1 0302- ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 9905-0301 ● ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 0302- ● ● ●
2 PANEL; CLUSTER
FIRE FIGHTING TRUCK(RA9) (B) 		1-83119-652-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER 1-83120-857-0 01 1 9909-0301 ● ●
8 TACHOGRAPH; CLUSTER METER 1-83120-857-0 01 1 0302- ● ● ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 9905-0301 ● ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 0302- ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9905-0301 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0302-0604 ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ● ●
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 9905-0301 ● ●
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 0302- ● ● ●
87 SPEEDOMETER 1-83120-850-0 01 1 9905-9908 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-387-0 01 1 9905-9907 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-387-0 01 1 9908-0301 ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. FIRE FIGHTING TRUCK(RA9) 		1-83189-387-0 01 1 9908-0301 ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-387-0 01 1 0302- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. FIRE FIGHTING TRUCK(RA9) 		1-83189-387-0 01 1 0302- ●
115 CIRCUIT; PRINTED,CLUSTER METER
FIRE FIGHTING TRUCK(RA9) 		1-83189-410-0 01 1 9908- ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 03 1 9905-0301 ●
118 BULB; CLUSTER METER
EXC. FIRE FIGHTING TRUCK(RA9) (A) 24V 3W GREEN SOCKET 		1-82194-061-0 03 1 9905-0301 ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 03 1 0302- ● ●
118 BULB; CLUSTER METER
EXC. FIRE FIGHTING TRUCK(RA9) (A) 24V 3W GREEN SOCKET 		1-82194-061-0 03 1 0302- ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 20 1 9905-0301 ●
118 BULB; CLUSTER METER
EXC. FIRE FIGHTING TRUCK(RA9) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 20 1 9905-0301 ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 20 1 0302- ● ●
118 BULB; CLUSTER METER
EXC. FIRE FIGHTING TRUCK(RA9) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 20 1 0302- ●
118 BULB; CLUSTER METER
FIRE FIGHTING TRUCK(RA9) (A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9905- ●
118 BULB; CLUSTER METER
FIRE FIGHTING TRUCK(RA9) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 19 1 9905- ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 9905-0301 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 0302- ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) 		8-97092-908-0 01 1 9905-9907 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 9908-0301 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 0302- ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(D) M3 TAPPING 		1-83119-084-0 01 1 9911-0301 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(D) M3 TAPPING 		1-83119-084-0 01 1 0302- ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
FIRE FIGHTING TRUCK(RA9) (C) M3 TAPPING 		1-83119-677-0 03 1 9905- ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-052-0 05 1 9905-9907 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(E) M3 TAPPING 		1-83119-657-0 09 1 9908-0301 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(E) M3 TAPPING 		1-83119-657-0 09 1 0302- ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-438-0 02 1 9905-9907 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(D) M3 TAPPING 		1-83119-675-0 06 1 9908-0301 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(D) M3 TAPPING 		1-83119-675-0 06 1 0302- ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(C) 		1-83119-701-0 02 1 9905-9907 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(D) 		1-83119-702-0 06 1 9905-9907 ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9905-0301 ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0302- ● ● ●
191 KNOB; BULB CHECK 1-83119-672-0 01 1 9905-0301 ● ●
191 KNOB; BULB CHECK 1-83119-672-0 01 1 0302- ● ● ●
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 9905-0301 ● ●
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 0302- ● ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-699-0 01 1 9905-0301 ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-699-0 01 1 0302- ● ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-700-0 01 1 9905-0301 ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-700-0 01 1 0302- ● ● ●
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET 		1-82194-061-0 01 1 9905-9908 ● ●
238 PANEL; TACHOGRAPH 1-83129-311-0 01 1 9909-0301 ● ●
238 PANEL; TACHOGRAPH 1-83129-311-0 01 1 0302- ● ● ●
239 BULB; TACHOGRAPH
24V 1.4W 		5-82194-034-0 03 1 9909-0301 ● ●
239 BULB; TACHOGRAPH
24V 1.4W 		5-82194-034-0 03 1 0302- ● ● ●
269 SCREW; METER CLUSTER
M3 		1-83119-273-0 02 1 9905-0301 ● ●
269 SCREW; METER CLUSTER
M3 		1-83119-273-0 02 1 0302- ● ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9905-0301 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0302-0604 ● ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ● ●
379 CIRCUIT; DROP 1-83189-369-0 01 1 9905-0301 ● ●
379 CIRCUIT; DROP 1-83189-369-0 01 1 0302- ● ● ●
418 CIRCUIT; CONTROL,METER 1-83189-389-0 01 1 9905-9910 ● ●
418 CIRCUIT; CONTROL,METER 1-83189-401-0 01 1 9911-0301 ● ●
418 CIRCUIT; CONTROL,METER 1-83189-401-0 01 1 0302- ● ● ●
420 HEAT SINK; METER 1-83119-679-0 01 1 9905-0301 ● ●
420 HEAT SINK; METER 1-83119-679-0 01 1 0302- ● ● ●
çizim 26974
52 48 49 307 58 50 51 56 58
BalonParca AdiParca NoAdetTipApplied Date A B C
48 SENSOR; BOOST 1-81531-011-0 01 1 9905-0301 ● ●
48 SENSOR; BOOST 1-81531-011-0 01 1 0302- ● ● ●
49 BRACKET; SENSOR 1-47478-380-0 01 1 9905-0301 ● ●
49 BRACKET; SENSOR 1-47478-380-0 01 1 0302- ● ● ●
50 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9905-0301 ● ●
50 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0302-0512 ● ● ●
50 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
51 NUT; FIX
M8 FLANGE 		0-91150-108-0 02 1 9905-0301 ● ●
51 NUT; FIX
M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ● ● ●
51 NUT; FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
52 BOLT; SENSOR
M6X16 FLANGE 		0-28680-616-0 02 1 9905-0301 ● ●
52 BOLT; SENSOR
M6X16 FLANGE 		0-28680-616-0 02 1 0302-0512 ● ● ●
52 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ● ●
56 HOSE; NIPPLE TO SENSOR
L=330 SERVICED BY L=3000 		0-04740-300-0 01 1 0302- ●
56 HOSE; NIPPLE TO SENSOR
L=330 SERVICED BY L=3000 		0-04740-300-0 01 1 9905-0102 ● ●
56 HOSE; NIPPLE TO SENSOR
L=300 SERVICED BY L=3000 		0-04740-300-0 01 1 0103- ● ●
58 CLIP; HOSE
ID=7.8 		8-94246-958-0 02 1 9905-0301 ● ●
58 CLIP; HOSE
ID=7.8 		8-94246-958-0 02 1 0302- ● ● ●
307 NUT
M6 FLANGE 		0-91150-106-0 02 1 9905-0301 ● ●
307 NUT
M6 FLANGE 		0-91150-106-0 02 1 0302-0602 ● ● ●
307 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ●

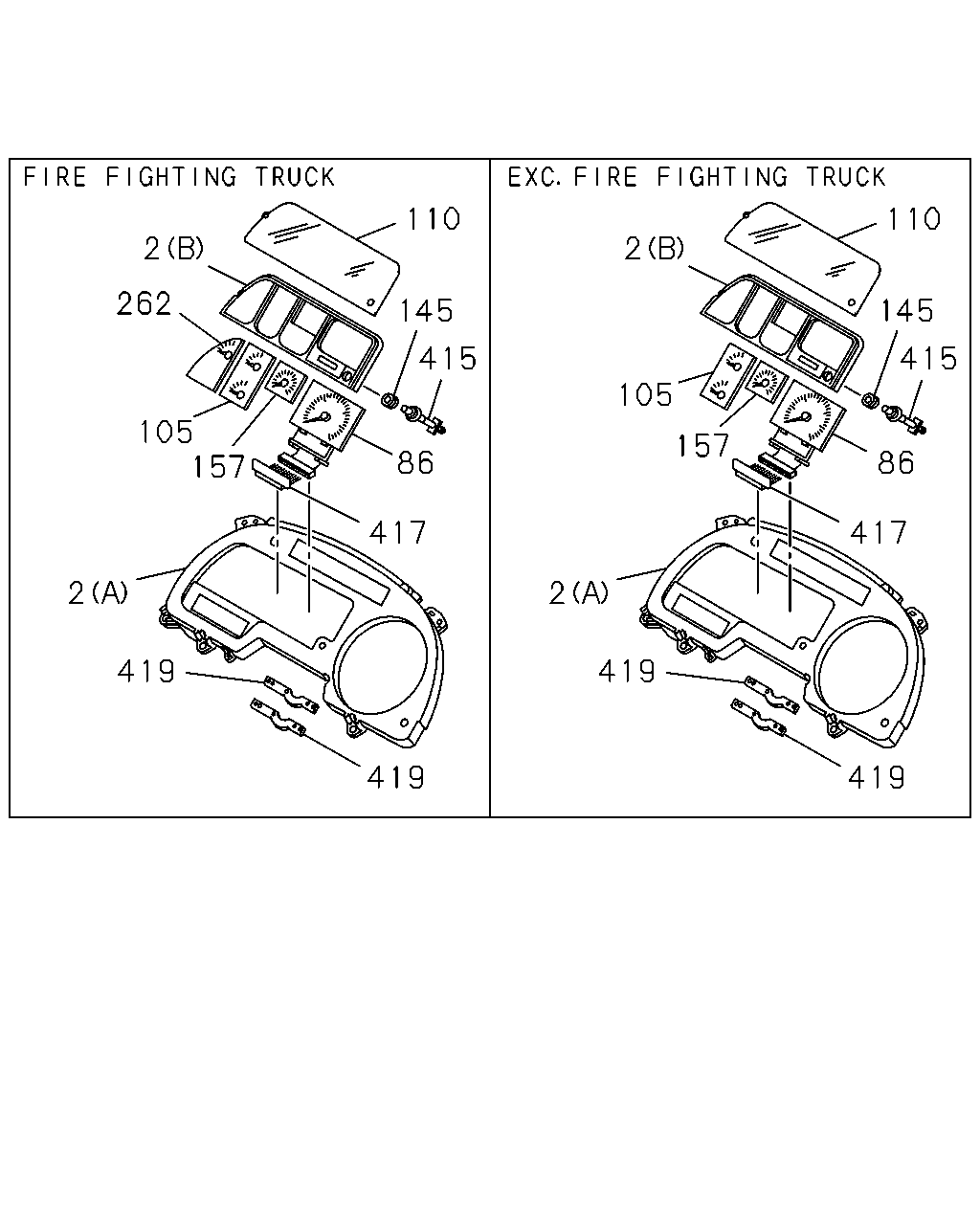

çizim 27067
110 110 2 2 262 145 145 415 415 105 105 157 157 86 86 417 417 2 2 419 419 419 419
BalonParca AdiParca NoAdetTipApplied Date A B C
2 PANEL; CLUSTER
(B) 		1-83119-651-0 01 1 9905-0301 ●
2 PANEL; CLUSTER
EXC. FIRE FIGHTING TRUCK(RA9) (B) 		1-83119-651-0 01 1 9905-0301 ●
2 PANEL; CLUSTER
(B) 		1-83119-651-0 01 1 0302- ● ●
2 PANEL; CLUSTER
EXC. FIRE FIGHTING TRUCK(RA9) (B) 		1-83119-651-0 01 1 0302- ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 9905-0301 ● ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 0302- ● ● ●
2 PANEL; CLUSTER
FIRE FIGHTING TRUCK(RA9) (B) 		1-83119-652-0 01 1 9905- ●
86 TACHOMETER; CLUSTER METER 1-83120-883-0 01 1 9905-0301 ● ●
86 TACHOMETER; CLUSTER METER 1-83120-883-0 01 1 0302- ● ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 9905-0301 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 0302- ● ● ●
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 9905-0301 ● ●
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 0302- ● ● ●
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 9905-0301 ● ●
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 0302- ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-217-0 01 1 9905-0301 ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-217-0 01 1 0302- ● ● ●
262 METER; OIL THERMO
FIRE FIGHTING TRUCK(RA9) 		1-83150-222-0 01 1 9905- ●
415 KNOB; TRIP,METER 1-83119-674-0 01 1 9905-0301 ● ●
415 KNOB; TRIP,METER 1-83119-674-0 01 1 0302- ● ● ●
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 9905-0301 ● ●
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 0302- ● ● ●
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 9905-0301 ● ●
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 0302- ● ● ●
