◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#79220) — 101 parça

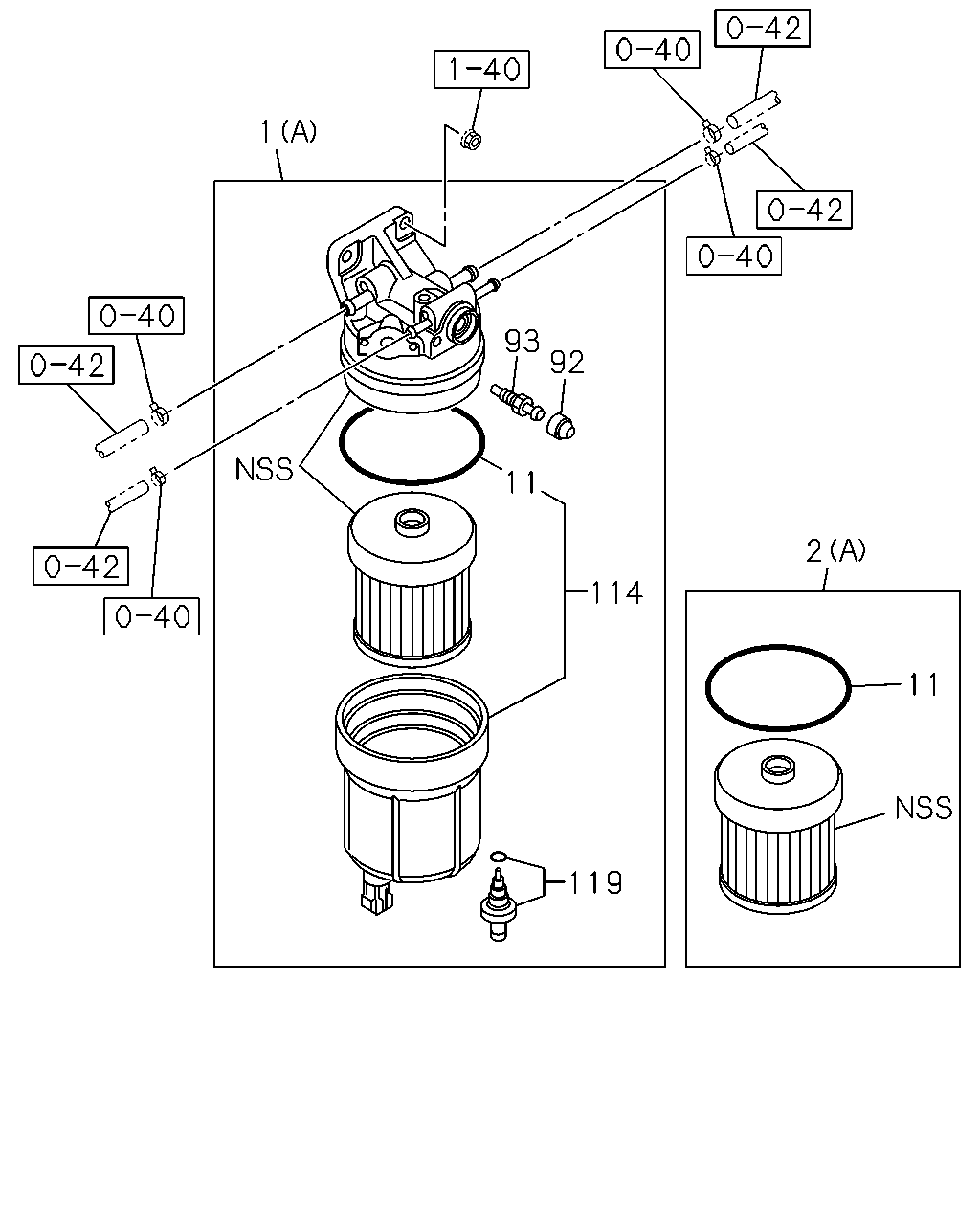

çizim 63468
1 93 92 11 2 114 11 119
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
(C) 		8-97171-451-2 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) 		8-97172-549-1 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) (D) 		8-97916-993-2 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1012-1112 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) BEST VALUE PARTS 		5-87610-041-0 01 1 1012- ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 1012-1112 ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201- ●
92 03.417 CAP; FUEL FILTER 8-97172-548-0 01 1 1012- ●
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 1012- ●
93 03.890 CONNECTOR; FUEL FILTER 8-97172-546-1 01 1 1012- ●
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1012- ●
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1012- ●
119 03.890 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 1012- ●

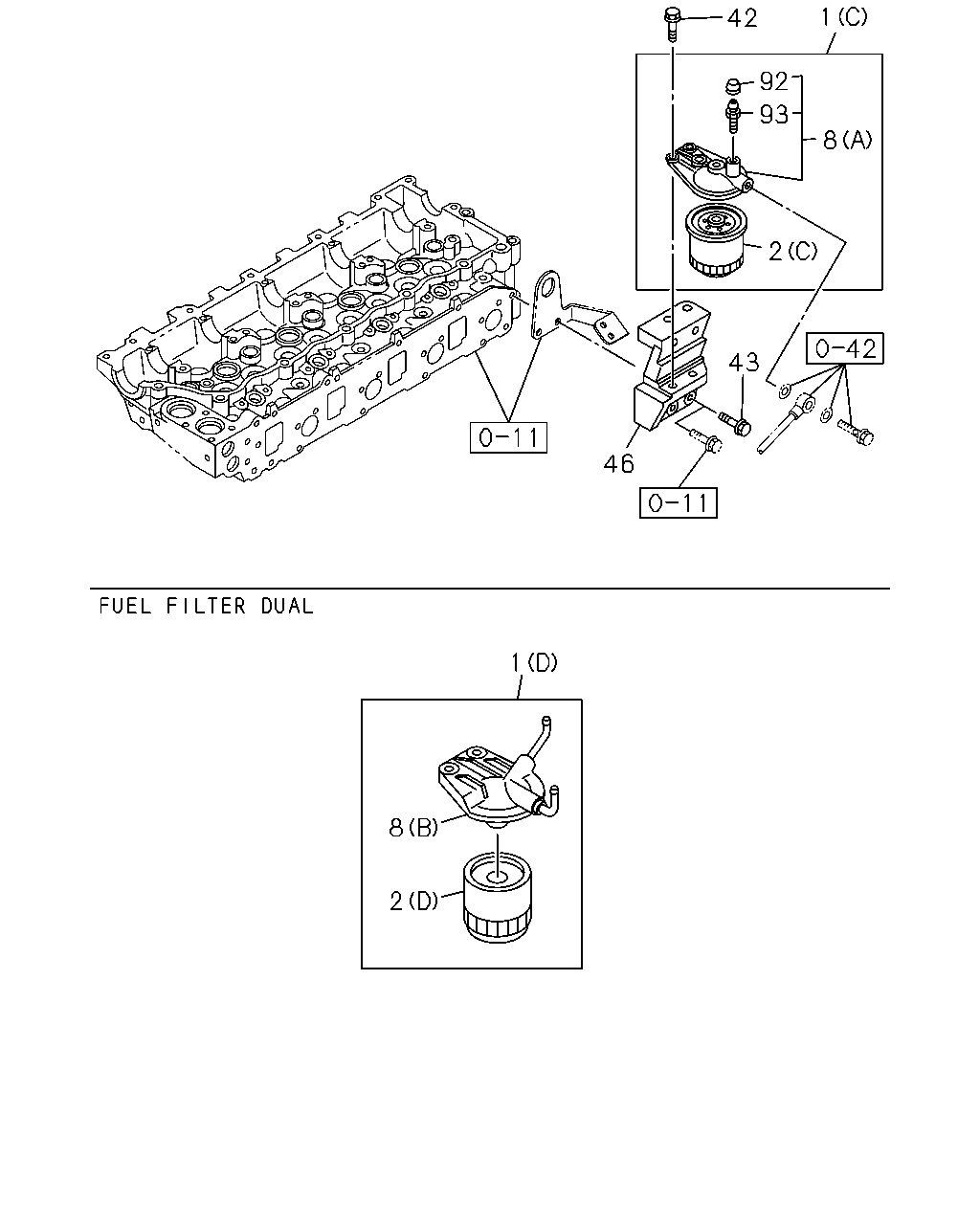

çizim 63514
1 42 92 93 8 2 43 46 1 8 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
(C) 		8-97171-451-2 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) 		8-97172-549-1 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) (D) 		8-97916-993-2 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1012-1112 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) BEST VALUE PARTS 		5-87610-041-0 01 1 1012- ●
8 03.890 COVER; FUEL FILTER
(A) 		8-97172-543-1 01 1 1012- ●
8 03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B) (B) 		8-97917-558-0 01 1 1012- ●
42 03.890 BOLT; FUEL FILTER
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1012- ●
43 03.890 BOLT; BRKT
00.029 M12X28 FLANGE 		0-28181-228-0 02 1 1012- ●
46 03.890 BRACKET 8-97061-452-0 01 1 1012- ●
92 03.417 CAP; FUEL FILTER 8-97172-548-0 01 1 1012- ●
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 1012- ●
93 03.890 CONNECTOR; FUEL FILTER 8-97172-546-1 01 1 1012- ●
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1012- ●

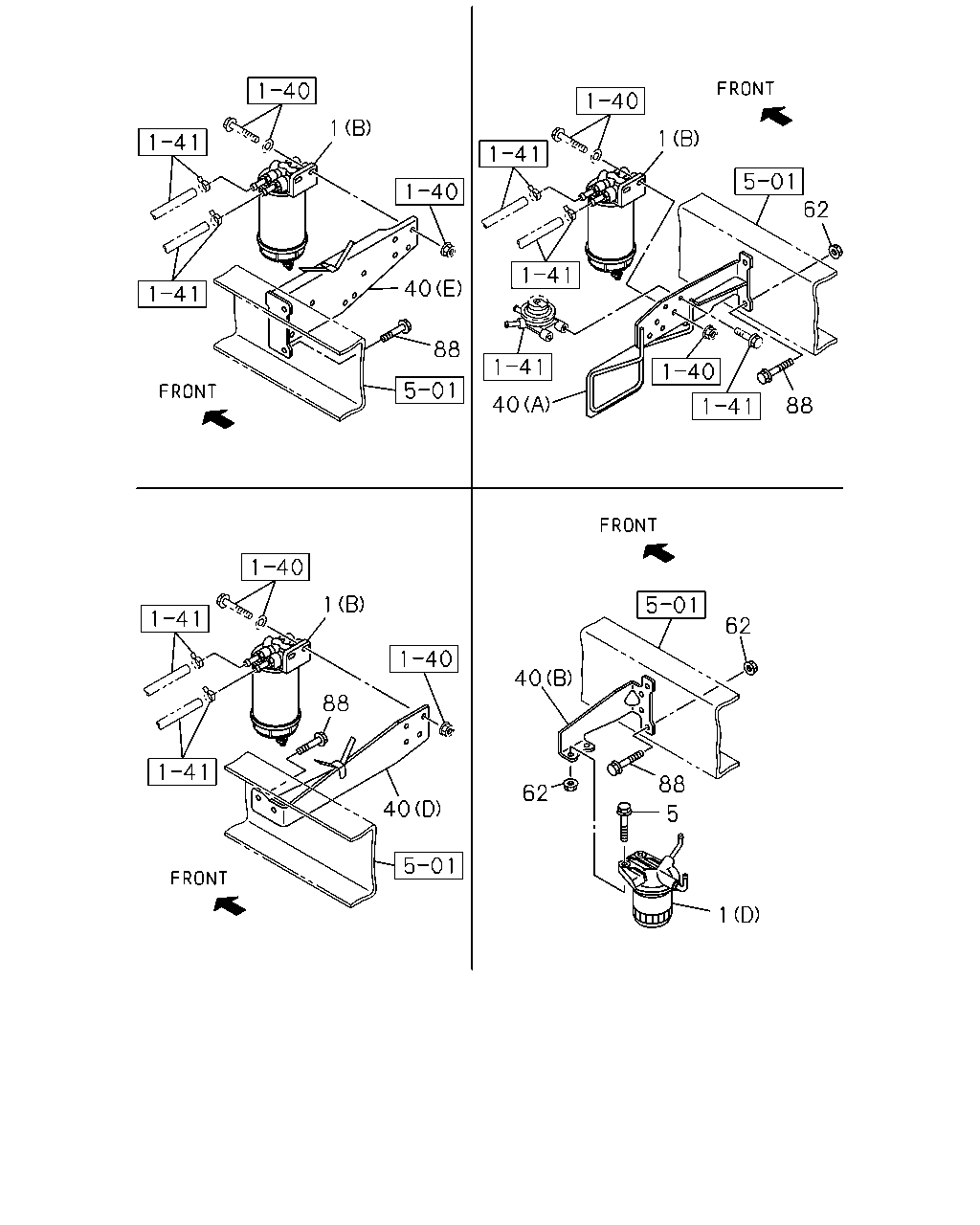

çizim 63817
1 1 62 40 88 40 88 1 62 40 88 88 62 40 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
(C) 		8-97171-451-2 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1012- ●
5 03.890 BOLT; FUEL FILTER
FUEL FILTER DUAL(S6B) 03.613 M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) FRAME-KICK UP<7EW> (D) 		8-98107-352-2 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> EXC. POOR QUALITY DIESEL FUEL(KF0),FUEL FILTER DUAL(S6B) (D) 		8-98107-352-2 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME-KICK UP<7EW> (E) 		8-98107-351-2 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0), FRAME-KICK UP<7EW> (E) 		8-98107-351-2 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME-KICK UP<7EW> (A) 		8-98107-354-3 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (B) 		8-98110-556-1 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0), FRAME-KICK UP<7EW> (C) 		8-98121-710-0 01 1 1012- ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0),FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
EXC. POOR QUALITY DIESEL FUEL(KF0),FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> EXC. POOR QUALITY DIESEL FUEL(KF0),FUEL FILTER DUAL(S6B) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 3300MM(33W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1012- ●

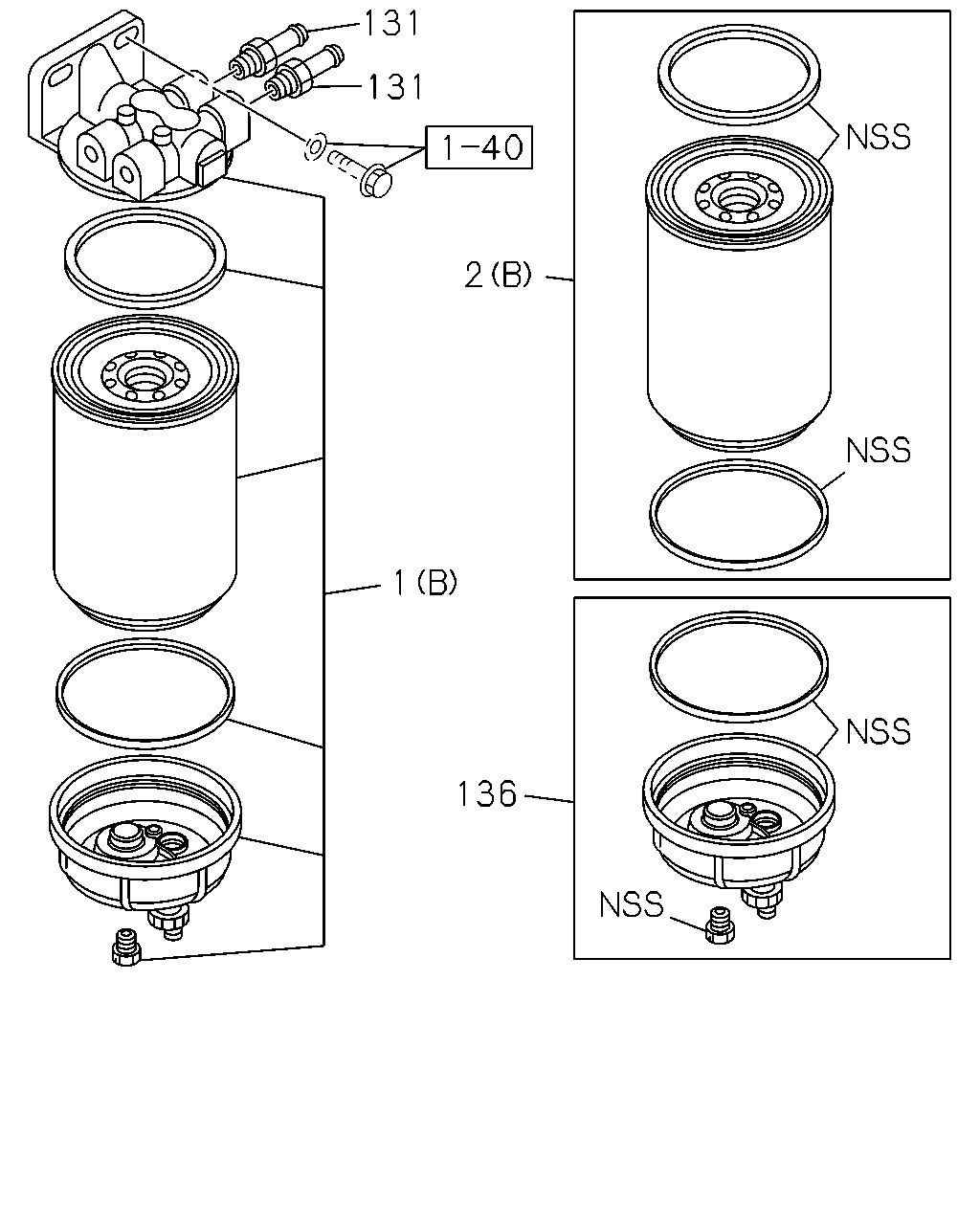

çizim 63846
131 131 2 1 136
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
(C) 		8-97171-451-2 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) 		8-97172-549-1 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) (D) 		8-97916-993-2 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1012- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1012-1112 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) BEST VALUE PARTS 		5-87610-041-0 01 1 1012- ●
131 03.890 PIPE; FILTER
03.163 		5-15411-223-1 02 1 1012- ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1012- ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 1012-1408 ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98279-324-0 01 1 1409- ●

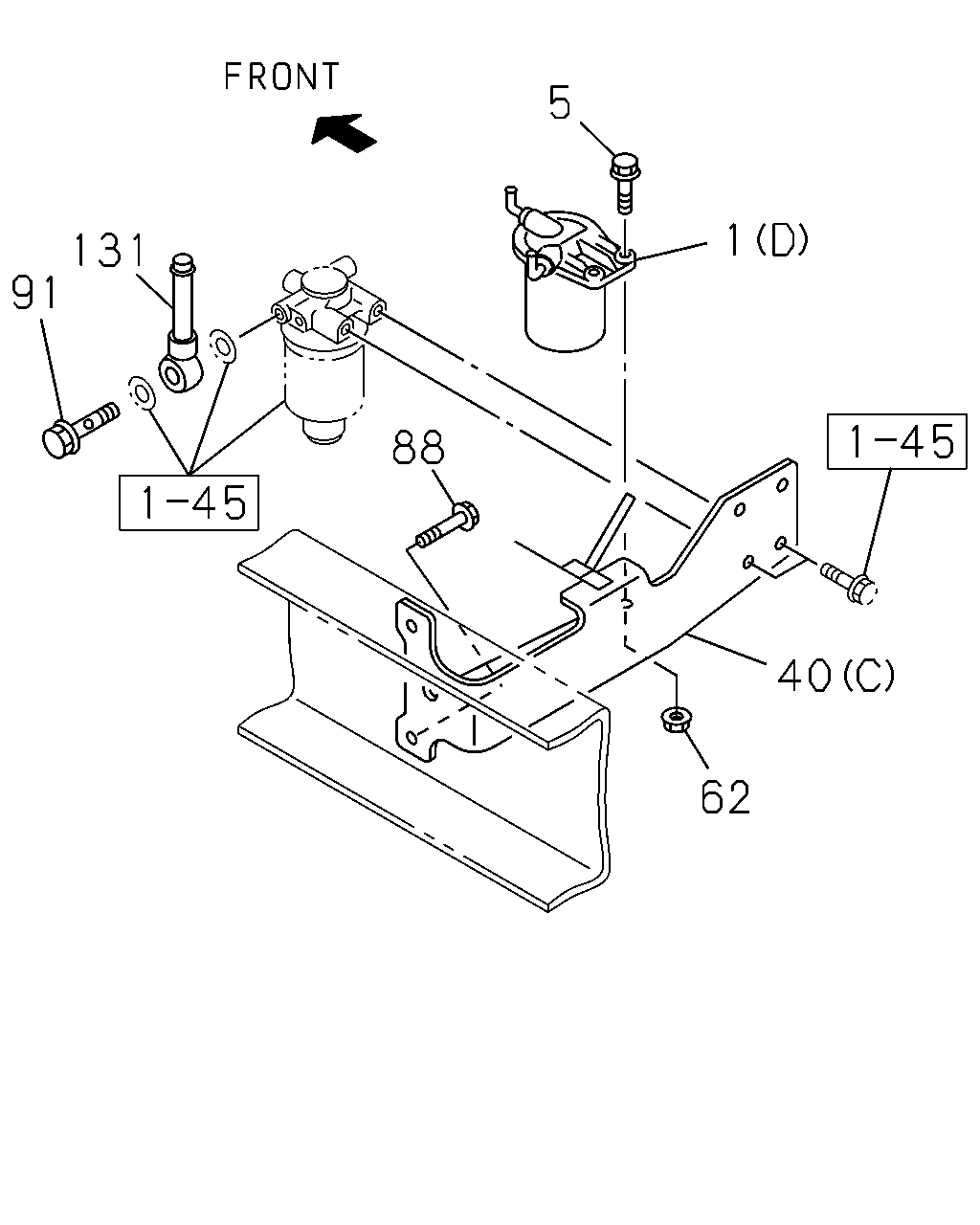

çizim 191005
5 1 131 91 88 40 62
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
(C) 		8-97171-451-2 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1012- ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1012- ●
5 03.890 BOLT; FUEL FILTER
FUEL FILTER DUAL(S6B) 03.613 M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) FRAME-KICK UP<7EW> (D) 		8-98107-352-2 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> EXC. POOR QUALITY DIESEL FUEL(KF0),FUEL FILTER DUAL(S6B) (D) 		8-98107-352-2 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME-KICK UP<7EW> (E) 		8-98107-351-2 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0), FRAME-KICK UP<7EW> (E) 		8-98107-351-2 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME-KICK UP<7EW> (A) 		8-98107-354-3 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (B) 		8-98110-556-1 01 1 1012- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0), FRAME-KICK UP<7EW> (C) 		8-98121-710-0 01 1 1012- ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0),FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
EXC. POOR QUALITY DIESEL FUEL(KF0),FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> EXC. POOR QUALITY DIESEL FUEL(KF0),FUEL FILTER DUAL(S6B) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 3300MM(33W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1012- ●
91 03.890 BOLT; FUEL FILTER
03.162 M14X29 EYE-BOLT 		9-09906-325-1 02 1 1012- ●
131 03.890 PIPE; FILTER
03.163 		5-15411-223-1 02 1 1012- ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
