◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#79219) — 145 parça

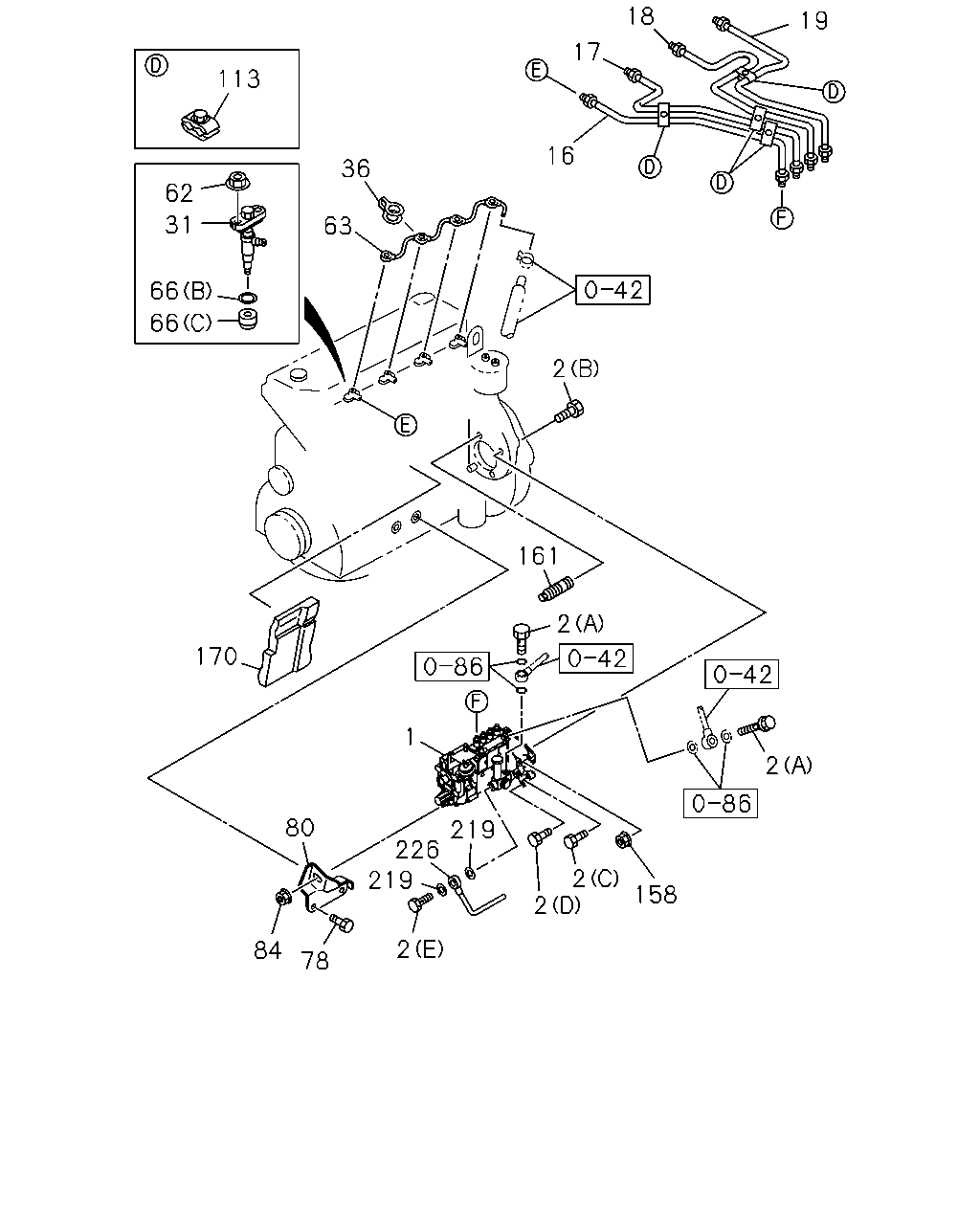

çizim 63350
18 19 17 113 16 36 62 31 63 66 66 2 161 2 170 1 2 219 80 226 2 2 219 158 2 84 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
02.277 (B) M10X70 FLANGE 		0-28151-070-0 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
00.206 (C) M12X70 FLANGE 		0-28151-270-0 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
(D) M12X90 FLANGE 		0-28151-290-0 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
03.162 (A) M14X27 FLANGE 		1-09675-086-0 02 1 1012- ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1012-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1012-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1012-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1012-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
31 03.332 NOZZLE ASM; INJ 8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 1012- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 1012-1312 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-98246-930-0 04 1 1401- ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-98077-165-0 04 1 1012-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-98181-540-0 04 1 1104- ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1012- ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1012- ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 1012- ●
113 03.162 CLIP; INJ PIPE 8-97213-050-0 04 1 1012- ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1012- ●
170 03.332 INSULATOR; INJ PUMP 8-97130-296-2 01 1 1012- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1012- ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 1012- ●

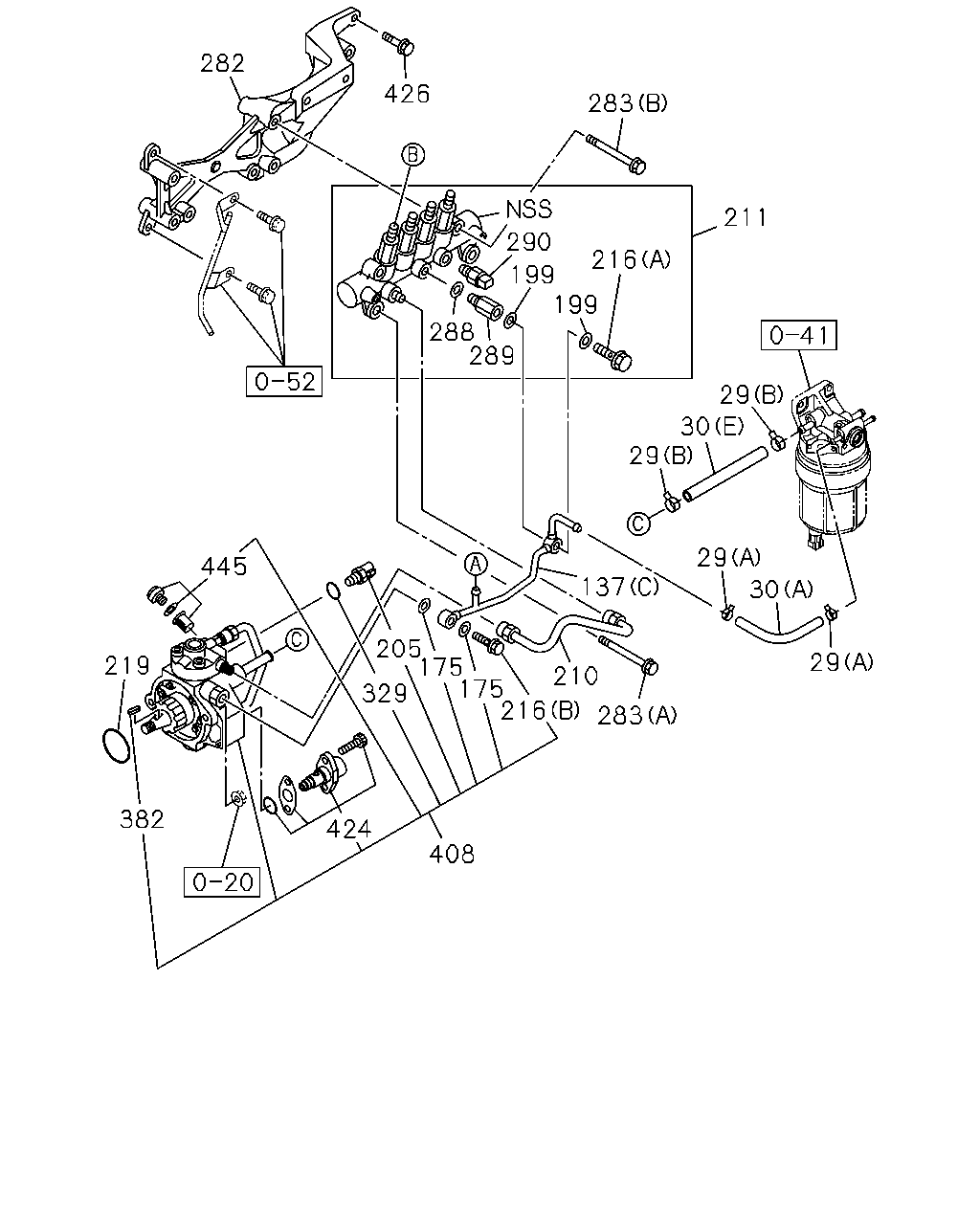

çizim 63396
282 426 283 290 199 288 289 199 216 211 29 30 29 29 30 29 137 210 283 216 175 175 205 329 424 408 382 219 445
BalonParca AdiParca NoAdetTipApplied Date A B
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1012- ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 1012- ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=110 		8-97377-894-0 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 1012-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1012-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1012-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1012- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1012- ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1012- ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 1012- ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1012- ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1012- ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1012- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1012- ●
282 03.163 BRACKET; COMMON RAIL 8-98147-694-0 01 1 1012- ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1012- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1012- ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1012- ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1012- ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1012- ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1012-1104 ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1012-1104 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1105- ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 1012- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1012- ●
426 03.330 BOLT; BRACKET
04.686 M8X60 FLANGE 		0-28050-860-0 01 1 1012- ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1012- ●
çizim 191003
31 32 34 58 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 03.332 NOZZLE ASM; INJ 8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 1012- ●
32 03.332 HOLDER ASM; NOZZLE 8-94311-966-2 04 1 1012- ●
33 03.332 NOZZLE; INJ 8-97119-809-0 04 1 1012- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 1012- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 1012- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 8-94329-555-0 04 1 1012- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 1012- ●
46 03.330 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 1012- ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.10 		8-97027-432-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.20 		8-97027-433-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.30 		8-97027-434-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.40 		8-97027-435-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.50 		8-97027-436-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.52 		8-97027-437-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.54 		8-97027-438-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.56 		8-97027-439-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.58 		8-97027-440-0 AR 1 1012- ●
146 03.332 SPACER; NOZZLE 8-94344-439-0 04 1 1012- ●

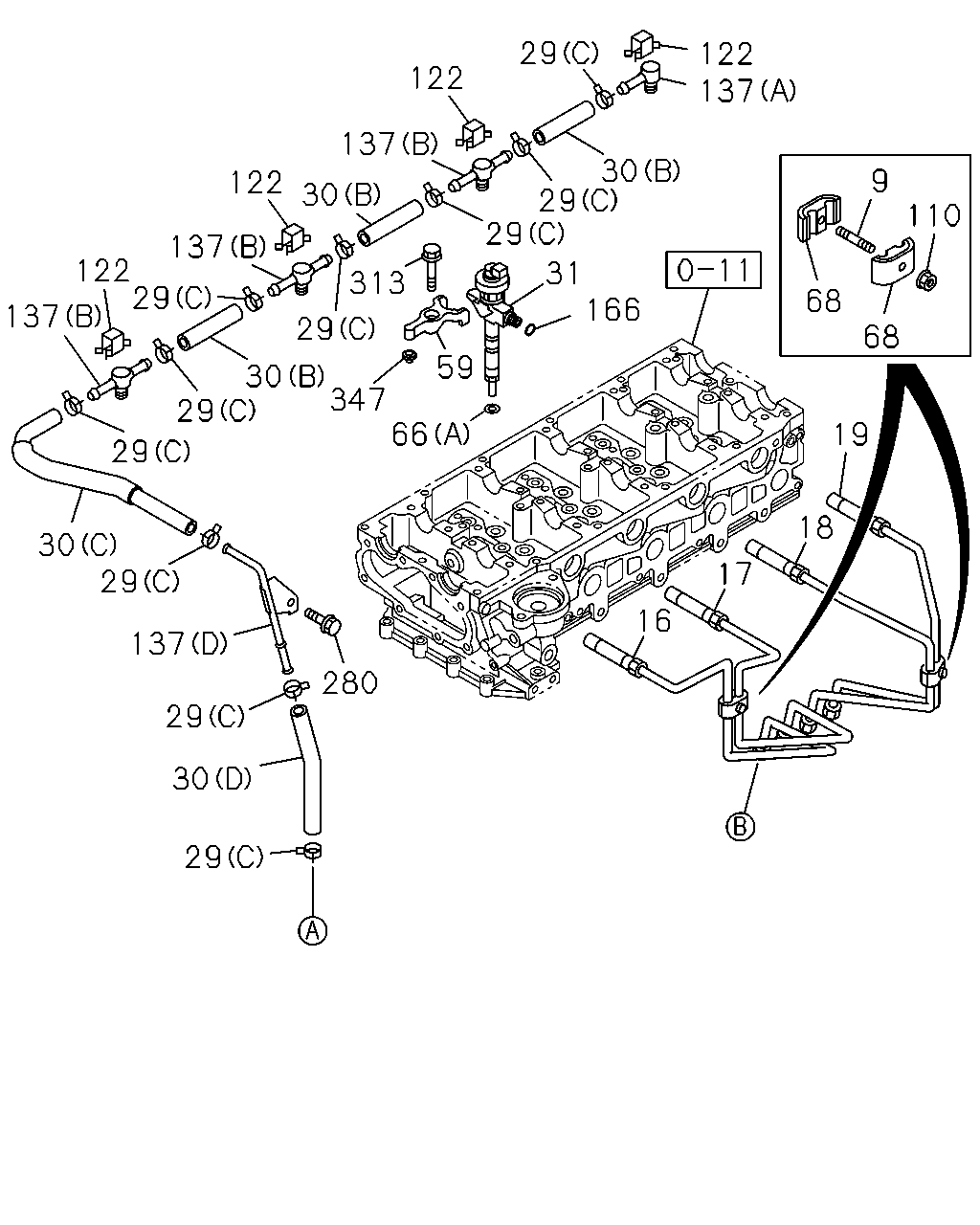

çizim 191004
29 122 137 122 137 30 29 29 9 122 30 110 137 122 29 31 166 313 68 137 29 68 59 30 347 29 66 19 29 18 30 29 17 16 137 280 29 30 29
BalonParca AdiParca NoAdetTipApplied Date A B
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 1012-1201 ●
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 02 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1012-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1012-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1012-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1012-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1012- ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 1012- ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=110 		8-97377-894-0 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 1012-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
31 03.332 NOZZLE ASM; INJ 8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 1012- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-98077-165-0 04 1 1012-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-98181-540-0 04 1 1104- ●
68 03.162 CLIP; INJ PIPE 8-97213-481-0 04 1 1012-1201 ●
68 03.162 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1012- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1012-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1012-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1012- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1012- ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1012- ●
280 03.330 BOLT; CLIP,FUEL HOSE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 1012- ●
347 03.332 PIN 8-97383-286-0 04 1 1012-1012 ●
347 03.332 PIN 8-98165-035-0 04 1 1012- ●
