0-33 — FAN AND FAN BELT (#79216) — 78 parça

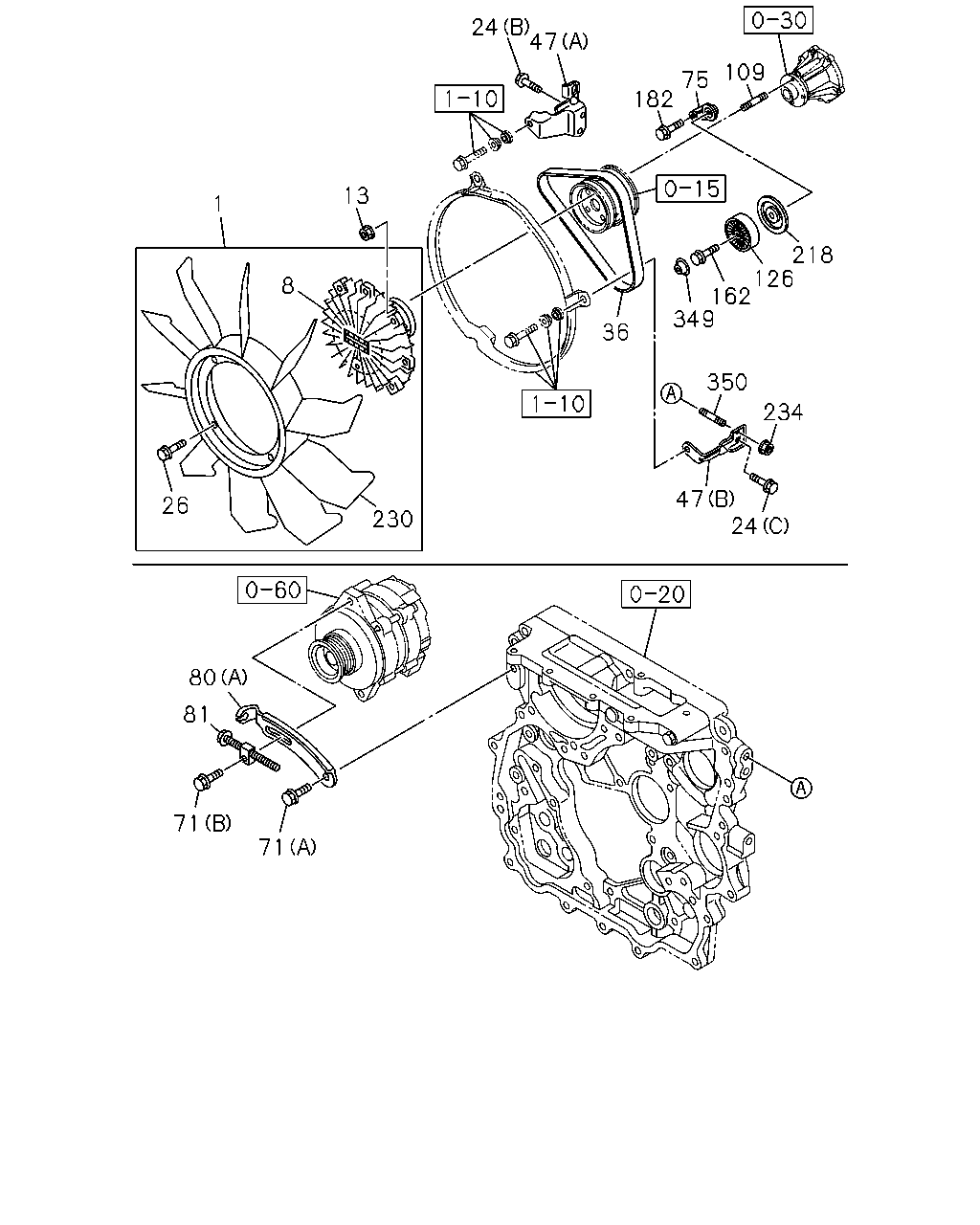

çizim 60868
24 47 109 75 182 13 1 218 126 162 349 8 36 350 234 47 24 26 230 80 81 71 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 1012- ●
1 01.064 FAN; COOLING
OD=450 		8-97382-603-1 01 1 1012- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 1012- ●
8 01.064 CLUTCH; COOLING FAN 8-98024-684-0 01 1 1012- ●
13 01.062 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 1012- ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 1012- ●
24 01.062 BOLT; FAN
SGL CAB(NM**S*) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1012-1409 ●
24 01.062 BOLT; FAN
08.900 (A) M8X18 FLANGE 		0-28080-818-0 04 1 1012- ●
24 01.062 BOLT; FAN
03.417 (B) M10X20 FLANGE 		0-28151-020-0 02 1 1012- ●
24 01.062 BOLT; FAN
SGL CAB(NM**S*) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
24 01.062 BOLT; FAN
DBL CAB(NM**W*) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 1012- ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 1012- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 1012- ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 1012- ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1006 		8-97362-926-0 01 1 1012- ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) BEST VALUE PARTS 		5-87610-101-0 01 1 1012- ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS 		5-87610-100-0 01 1 1012- ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 1012- ●
47 01.060 BRACKET; FAN
SGL CAB(NM**S*) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> (B) 		8-97381-549-1 01 1 1012- ●
47 01.060 BRACKET; FAN
DBL CAB(NM**W*) (B) 		8-97381-549-1 01 1 1012- ●
47 01.060 BRACKET; FAN
(A) 		8-98064-373-0 01 1 1012-1502 ●
47 01.060 BRACKET; FAN
(A) 		8-98203-027-1 01 1 1503- ●
71 02.317 BOLT; ADJ PLATE,GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X40 W/WASHER 		8-97011-792-4 01 1 1012- ●
71 02.317 BOLT; ADJ PLATE,GEN
03.403 (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X50 FLANGE 		8-98050-130-0 01 1 1012- ●
75 01.062 BRACKET; IDLE PULLEY
GENERATOR 24V80A(7YN) 		8-97381-570-1 01 1 1012- ●
80 02.317 PLATE; ADJ
(B) 		8-97164-089-2 01 1 1012- ●
80 02.317 PLATE; ADJ
02.274 (A) 		8-98039-816-1 01 1 1012- ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 1012- ●
81 02.317 PIECE; SLIDING 8-97132-048-0 01 1 1012- ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 1012- ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1012- ●
126 01.062 PULLEY; IDLE
GENERATOR 24V80A(7YN) 00.659 		8-97371-903-1 01 1 1012- ●
162 01.062 BOLT; FAN CLU
GENERATOR 24V80A(7YN) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 1012- ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1012- ●
182 01.062 BOLT; BRKT
GENERATOR 24V80A(7YN) 09.173 M8X45 FLANGE 		0-28050-845-0 02 1 1012- ●
218 01.062 COVER; IDLE PULLEY
GENERATOR 24V80A(7YN) 		8-98045-582-0 01 1 1012- ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 1012- ●
230 01.055 FAN; COOLING 8-97330-207-0 01 1 1012- ●
234 01.060 NUT; FAN BRKT
06.164 M8 FLANGE 		5-09440-010-0 01 1 1012- ●
349 01.252 CAP; IDLE PULLEY
GENERATOR 24V80A(7YN) 00.724 		8-97386-240-0 01 1 1012- ●
350 02.317 STUD; FAN BRKT
01.428 M8X18 L=30 		0-41010-818-0 01 1 1012- ●

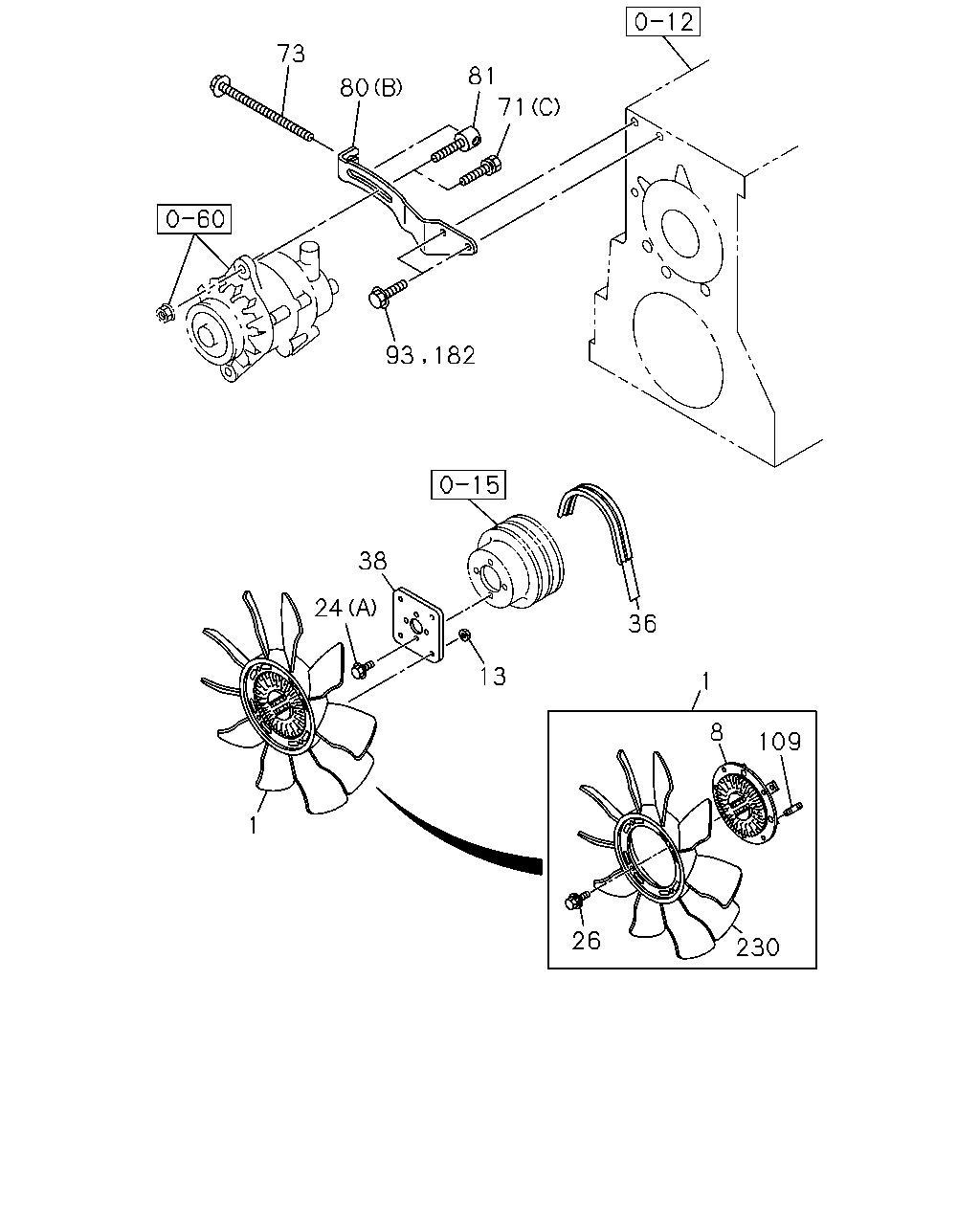

çizim 61113
73 81 80 71 38 24 36 13 1 8 109 1 26 230 93 182
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 1012- ●
1 01.064 FAN; COOLING
OD=450 		8-97382-603-1 01 1 1012- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 1012- ●
8 01.064 CLUTCH; COOLING FAN 8-98024-684-0 01 1 1012- ●
13 01.062 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 1012- ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 1012- ●
24 01.062 BOLT; FAN
SGL CAB(NM**S*) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1012-1409 ●
24 01.062 BOLT; FAN
08.900 (A) M8X18 FLANGE 		0-28080-818-0 04 1 1012- ●
24 01.062 BOLT; FAN
03.417 (B) M10X20 FLANGE 		0-28151-020-0 02 1 1012- ●
24 01.062 BOLT; FAN
SGL CAB(NM**S*) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
24 01.062 BOLT; FAN
DBL CAB(NM**W*) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 1012- ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 1012- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 1012- ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 1012- ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1006 		8-97362-926-0 01 1 1012- ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) BEST VALUE PARTS 		5-87610-101-0 01 1 1012- ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS 		5-87610-100-0 01 1 1012- ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 1012- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 1012- ●
71 02.317 BOLT; ADJ PLATE,GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X40 W/WASHER 		8-97011-792-4 01 1 1012- ●
71 02.317 BOLT; ADJ PLATE,GEN
03.403 (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X50 FLANGE 		8-98050-130-0 01 1 1012- ●
73 02.277 BOLT; GEN TO ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X130 FLANGE 		8-97172-720-1 01 1 1012- ●
80 02.317 PLATE; ADJ
(B) 		8-97164-089-2 01 1 1012- ●
80 02.317 PLATE; ADJ
02.274 (A) 		8-98039-816-1 01 1 1012- ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 1012- ●
81 02.317 PIECE; SLIDING 8-97132-048-0 01 1 1012- ●
93 02.317 BOLT; ADJ PLATE BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1012-1106 ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 1012- ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1012- ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1012- ●
182 01.062 BOLT; BRKT
GENERATOR 24V80A(7YN) 09.173 M8X45 FLANGE 		0-28050-845-0 02 1 1012- ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 1012- ●
230 01.055 FAN; COOLING 8-97330-207-0 01 1 1012- ●
