Isuzu WW
▶
TRUCKS
▶
NMR
▶
51283 - NMR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#79215) — 14 parça
Tümü
A - 4JJ1-TCC ENG
B - 4HG1 ENG
◀

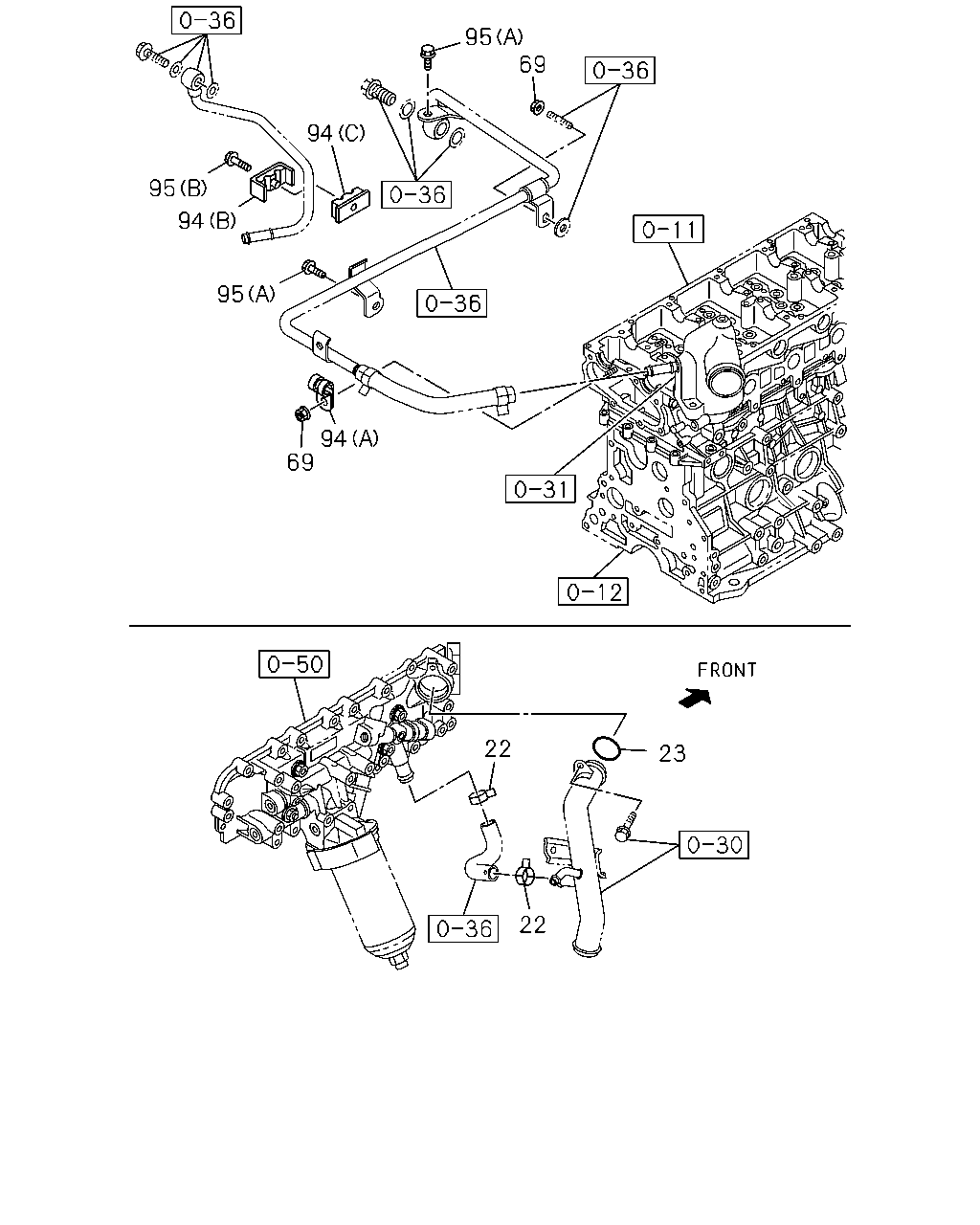

[032A] WATER PIPE AND FIX PARTS;4JJ1 (8 parça)
[032A] SUCTION PIPE;4HK1 (6 parça)
▶
95
69
94
95
94
95
94
69
22
23
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
01.153 CLIP; WATER HOSE
03.278 ID=22
8-97359-141-0
02
1
1012-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
0-95690-338-0
01
1
1012-
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE
0-91180-206-0
02
1
1012-
●
94
01.153 CLIP; WATER PIPE
04.047 (A) ID=12 L=20
1-09700-911-1
01
1
1012-
●
94
01.153 CLIP; WATER PIPE
01.531 (B) ID=7 & 9 L=25
1-09701-228-3
01
1
1012-
●
94
01.153 CLIP; WATER PIPE
01.531 (C) ID=7 & 9 L=25
1-09701-229-2
01
1
1012-
●
95
01.240 BOLT; CLIP
03.162 (A) M6X12 FLANGE
0-28050-612-0
02
1
1012-
●
95
01.240 BOLT; CLIP
03.162 (B) M6X35 FLANGE
0-28650-635-0
01
1
1012-
●
148
2
148
10
10
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
01.097 HOSE; WATER,BY-PASS
8-97209-948-0
01
1
1012-
●
10
01.153 PIPE; SUCTION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)
8-98212-009-0
01
1
1203-
●
10
01.153 PIPE; SUCTION
(A)
8-98166-992-0
01
1
1012-1202
●
10
01.153 PIPE; SUCTION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)
8-98166-992-0
01
1
1203-
●
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
1012-
●
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
1012-
●
