◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#79214) — 41 parça

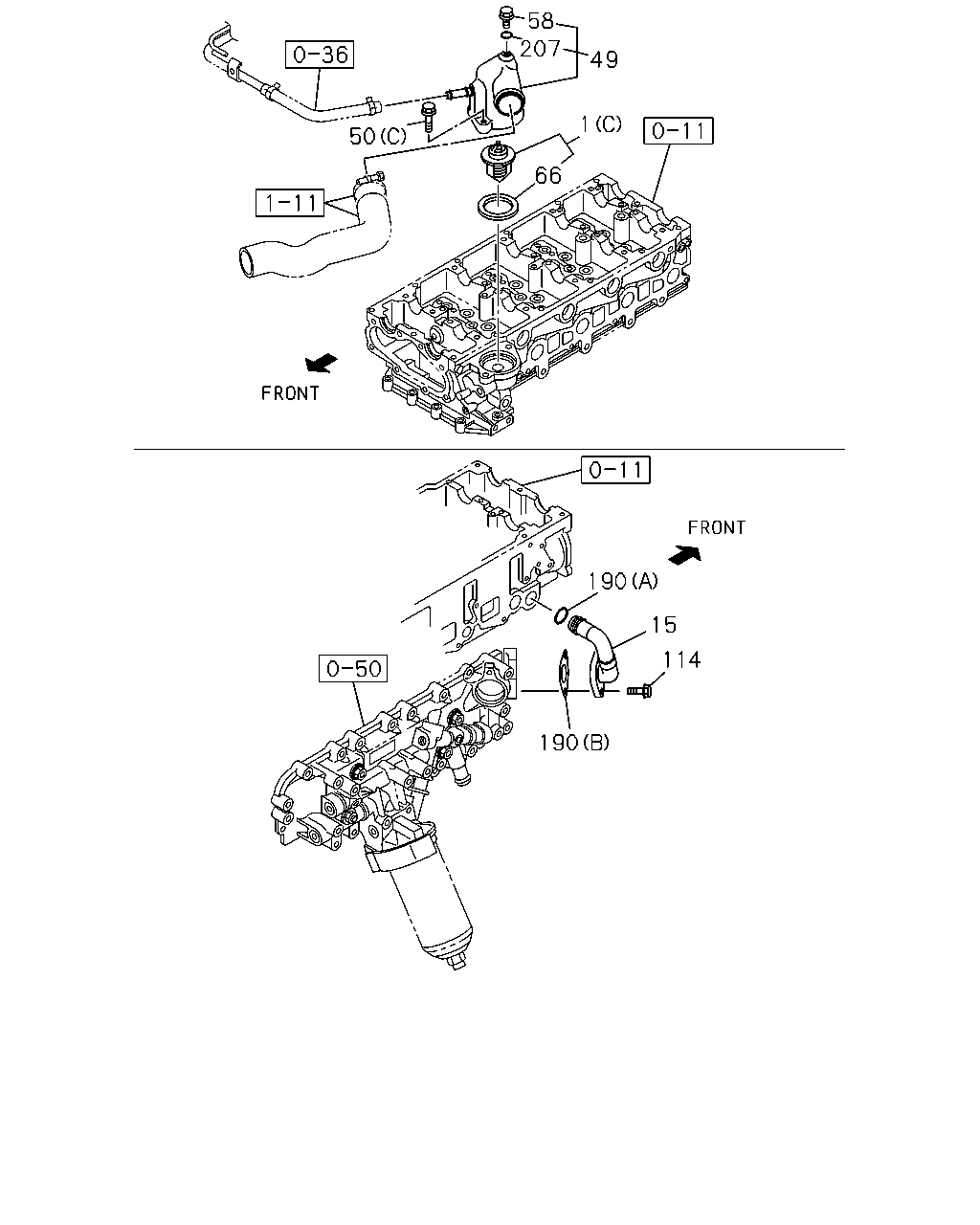

çizim 42639
58 207 49 1 50 66 190 15 114 190
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 85 CELSIUS 		8-97300-787-3 01 1 1012- ●
1 01.246 THERMOSTAT
(B) 82 CELSIUS 		8-97300-789-3 01 1 1012- ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 85 CELSIUS 		8-97300-792-2 01 1 1012- ●
1 01.246 THERMOSTAT
(C) 85 CELSIUS 		8-98017-027-2 01 1 1012- ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 1012- ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-1 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-98028-252-1 01 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
03.403 (C) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1012- ●
58 00.073 PLUG; WATER OUTLET PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1012-1501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1012-1501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 1012- ●
114 01.097 BOLT; BYPASS PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		0-95690-226-0 01 1 1012- ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98009-322-0 01 1 1012- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ● ●
çizim 43188
50 50 49 1 66 15 66 1 50 207 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 85 CELSIUS 		8-97300-787-3 01 1 1012- ●
1 01.246 THERMOSTAT
(B) 82 CELSIUS 		8-97300-789-3 01 1 1012- ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 85 CELSIUS 		8-97300-792-2 01 1 1012- ●
1 01.246 THERMOSTAT
(C) 85 CELSIUS 		8-98017-027-2 01 1 1012- ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 1012- ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-1 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-98028-252-1 01 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
03.403 (C) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1012- ●
58 00.073 PLUG; WATER OUTLET PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1012-1501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1012-1501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 1012- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ● ●
