◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#7921) — 405 parça
çizim 26728
513 530 178 178 178 178 178 503
BalonParca AdiParca NoAdetTipApplied Date A B C
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0302- ●
178 GROMMET; HARNESS
(E) ID=24 OD=30 T=20 		1-09332-096-0 01 1 0302- ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9905-0301 ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0302- ● ● ●
178 GROMMET; HARNESS
(C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9905-0301 ● ●
178 GROMMET; HARNESS
(C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0302- ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 9905- ● ●
503 CONNECTOR 1-82690-668-0 01 1 9905-0301 ● ●
503 CONNECTOR 1-82690-668-0 01 1 0302- ● ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 04 1 9905-0101 ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-1 02 1 0102-0301 ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-1 02 1 0302- ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0102-0301 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0302- ● ● ●

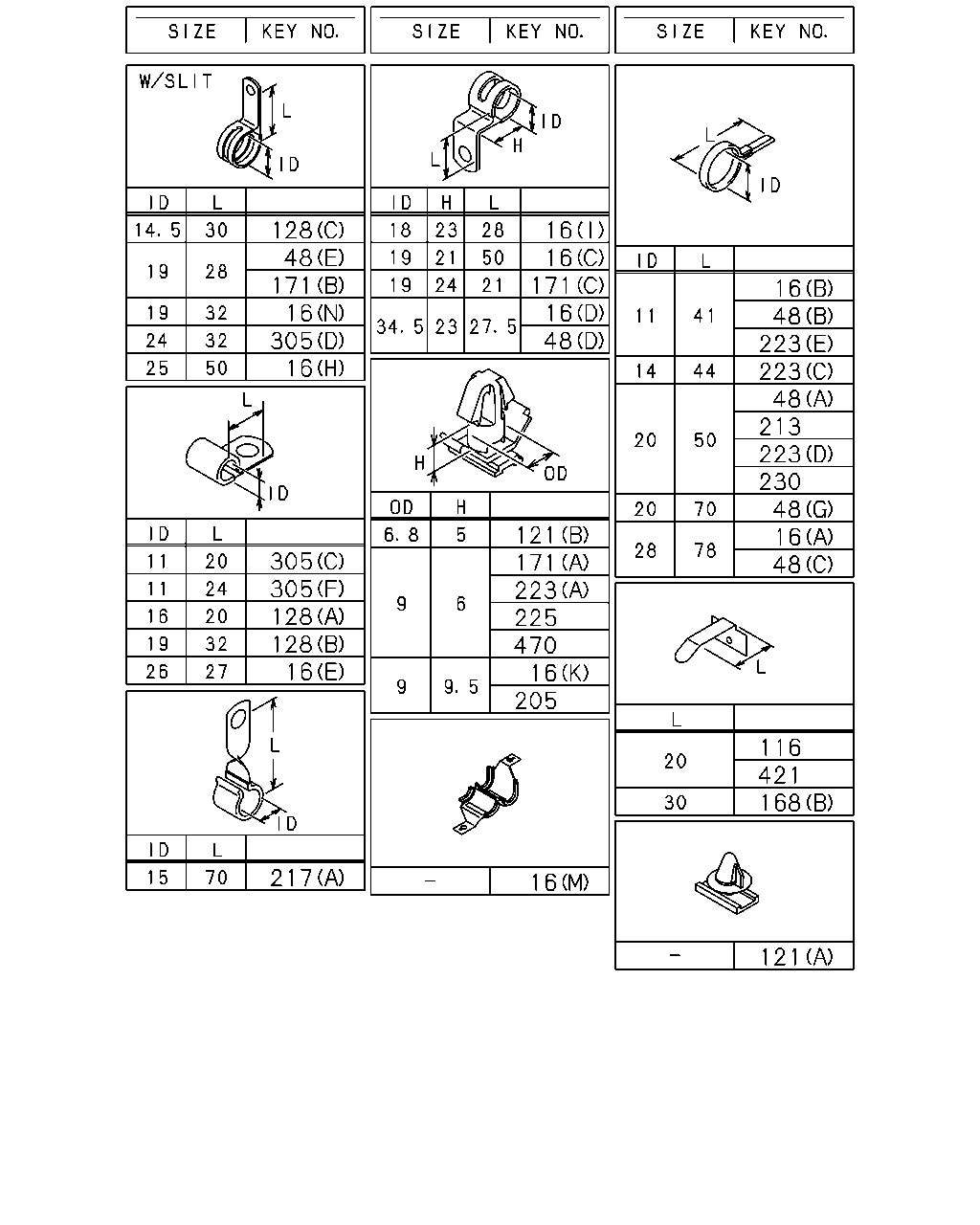

çizim 26772
128 48 171 16 305 16 16 16 171 16 48 16 48 223 223 48 213 223 230 48 16 48 121 171 223 225 470 16 205 305 305 128 128 16 116 421 168 217 16 121
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
(M) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0302- ●
16 CLIP; HARNESS
(K) OD=9 H=9.5 		1-09709-179-0 01 1 0302- ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 9905- ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9905-0301 ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0302- ● ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 02 1 9905-0301 ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 02 1 0302- ● ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0302- ● ● ●
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 9905-9907 ● ●
16 CLIP; HARNESS
(I) ID=18 H=23 L=28 		1-09700-860-0 01 1 9908-0301 ● ●
16 CLIP; HARNESS
(I) ID=18 H=23 L=28 		1-09700-860-0 01 1 0302- ● ● ●
16 CLIP; HARNESS
(E) ID=26 L=27 		1-09701-006-0 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(E) ID=26 L=27 		1-09701-006-0 01 1 0302- ● ● ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 0302- ● ● ●
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 0302- ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0302- ● ● ●
16 CLIP; HARNESS
(N) ID=19 L=32 		9-09525-866-0 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(N) ID=19 L=32 		9-09525-866-0 01 1 0302-0606 ● ● ●
16 CLIP; HARNESS
(N) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (L) L=55 		8-94432-655-0 06 1 9905-0301 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (L) L=55 		8-94432-655-0 06 1 0302- ●
16 CLIP; HARNESS
(L) L=55 		8-94432-655-0 06 1 0302- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 06 1 9905-0301 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 06 1 0302- ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 06 1 0302- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0302-0303 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0302-0303 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 11 1 0302-0303 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 0304- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9905- ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 05 1 9905- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9905- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 9905- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 9905-0303 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0304- ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 04 1 9905-0301 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 04 1 0302- ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9905-0301 ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 0302- ● ● ●
48 CLIP; FRAME HARNESS
(F) L=300 		1-09707-001-1 01 1 9905-0301 ● ●
48 CLIP; FRAME HARNESS
(F) L=300 		1-09707-001-1 01 1 0302- ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9905-0301 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0302-0606 ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 9905- ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9905-0301 ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0302- ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9905-0303 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0304- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0304- ●
48 CLIP; FRAME HARNESS
WB 4200MM(42W) (A) ID=20 L=50 		9-09917-430-0 14 1 9905- ●
48 CLIP; FRAME HARNESS
WB 4800MM(48W) (A) ID=20 L=50 		9-09917-430-0 17 1 9905- ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (A) ID=20 L=50 		9-09917-430-0 21 1 9905- ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 		1-09987-246-2 03 1 0201- ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 9905-0112 ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0201-0301 ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 05 1 0201-0301 ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 		1-09987-246-2 05 1 0201-0301 ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0302- ● ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 05 1 0302- ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 		1-09987-246-2 05 1 0302- ●
121 CLIP; FACIA HARNESS
(B) OD=6.8 H=5 		8-97082-051-0 02 1 9905- ●
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> (A) OD=7 H=1.2 		8-94364-750-0 02 1 9905- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9905-0301 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0302-0606 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9905-0011 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-0301 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0302- ● ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 05 1 9905-0301 ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 05 1 0302- ● ● ●
168 CLIP; DASH HARNESS
POWER WINDOW<A30> (B) L=30 		1-09987-265-0 01 1 0102-0301 ●
168 CLIP; DASH HARNESS
POWER WINDOW<A30> (B) L=30 		1-09987-265-0 01 1 0302- ●
168 CLIP; DASH HARNESS
(B) L=30 		1-09987-265-0 01 1 0302- ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=24 H=21 		1-09700-109-1 01 1 9905-0301 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=24 H=21 		1-09700-109-1 01 1 0302- ● ● ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 9905-0301 ● ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0302- ● ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 9905-0301 ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 0302-0606 ● ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ● ●
205 CLIP; BACK LAMP HARNESS
OD=9 H=9.5 		1-09709-179-0 01 1 0302- ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9905-0301 ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0302- ● ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9905-0209 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9905-0301 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0302- ● ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 05 1 9905- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9905-0301 ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0302- ● ● ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 9905-0301 ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0302- ● ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9905-0301 ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 0302- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9905-0301 ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0302- ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 9905-9909 ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 9910-0301 ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 0302- ● ●
225 CLIP; AIR TANK HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9905-0301 ● ●
225 CLIP; AIR TANK HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0302- ● ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9905-0301 ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0302- ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 9905-0301 ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L) EXC. FIRE FIGHTING TRUCK(RA9) (B) ID=18 L=44 		8-94225-185-0 03 1 9905-0301 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0302- ● ●
305 CLIP; ENG HARNESS
EXC. FIRE FIGHTING TRUCK(RA9) (B) ID=18 L=44 		8-94225-185-0 03 1 0302- ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 9905-0301 ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L) EXC. FIRE FIGHTING TRUCK(RA9) (C) ID=11 L=20 		9-09525-035-0 01 1 9905-0301 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 0302-0606 ● ●
305 CLIP; ENG HARNESS
EXC. FIRE FIGHTING TRUCK(RA9) (C) ID=11 L=20 		9-09525-035-0 01 1 0302-0606 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		0-95235-035-0 01 1 0607- ● ●
305 CLIP; ENG HARNESS
EXC. FIRE FIGHTING TRUCK(RA9) (C) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 03 1 9905-0301 ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 03 1 0302- ● ● ●
305 CLIP; ENG HARNESS
(E) L=300 		1-09707-001-1 01 1 9905-0001 ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0002-0301 ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0302- ● ● ●
305 CLIP; ENG HARNESS
(F) ID=11 L=24 		9-09525-045-0 01 1 9905-0301 ● ●
305 CLIP; ENG HARNESS
(F) ID=11 L=24 		9-09525-045-0 01 1 0302-0606 ● ● ●
305 CLIP; ENG HARNESS
(F) ID=11 L=24 		0-95235-045-0 01 1 0607- ● ● ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) FIRE FIGHTING TRUCK(RA9) (B) ID=18 L=44 		8-94225-185-0 02 1 9905-0301 ●
305 CLIP; ENG HARNESS
FIRE FIGHTING TRUCK(RA9) (B) ID=18 L=44 		8-94225-185-0 02 1 0302- ●
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 05 1 9905-9905 ● ●
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 04 1 9906-0101 ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9905-0301 ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0302- ● ● ●
çizim 26835
304 139 139 38 516 38 242 304 313 38 38 38 38 242 242 133 38 239 38 239 88 38 239 173 239 133
BalonParca AdiParca NoAdetTipApplied Date A B C
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (I) M10X16 FLANGE 		0-28181-016-0 01 1 0302-0303 ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28781-020-0 01 1 9905-0301 ●
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (E) M10X20 FLANGE 		0-28781-020-0 01 1 9905-0301 ●
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (E) M10X20 FLANGE 		0-28781-020-0 01 1 0302-0303 ● ●
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (E) M10X20 FLANGE 		0-28781-020-0 01 1 0304-0512 ● ● ●
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (E) M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 05 1 9905-0301 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 05 1 0302-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 05 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9905-9907 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9908-0301 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9908-0301 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512 ● ● ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9905-9907 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 9905-9907 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 03 1 9908-0301 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0302-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 9905-0301 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0302-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9905-9907 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9905-9907 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-9909 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-9909 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-0301 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-0301 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0302- ● ● ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) (F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0302- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0302- ●
38 BOLT; CLIP,HARNESS
(H) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9905-0301 ● ●
38 BOLT; CLIP,HARNESS
(H) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0302-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(H) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ● ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9905-0301 ● ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0302- ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9905-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-0301 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0302- ● ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0302-0512 ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0302-0512 ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9905-0512 ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9905-0301 ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0302- ● ● ●
239 BOLT; GRAND
(B) M5X8 		0-20800-508-0 01 1 9905-0301 ● ●
239 BOLT; GRAND
(B) M5X8 		0-20800-508-0 01 1 0302- ● ● ●
239 BOLT; GRAND
(C) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9905-0301 ● ●
239 BOLT; GRAND
(C) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0302- ● ● ●
239 BOLT; GRAND
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9905-9907 ● ●
239 BOLT; GRAND
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0301 ● ●
239 BOLT; GRAND
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0302- ● ● ●
242 BOLT; BRKT,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9905-0301 ● ●
242 BOLT; BRKT,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0302-0512 ● ● ●
242 BOLT; BRKT,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ●
242 BOLT; BRKT,HARNESS
(B) M10X45 FLANGE 		0-28181-045-0 01 1 9905-0301 ● ●
242 BOLT; BRKT,HARNESS
(B) M10X45 FLANGE 		0-28181-045-0 01 1 0302-0512 ● ● ●
242 BOLT; BRKT,HARNESS
(B) M10X45 FLANGE 		0-28151-045-0 01 1 0601- ● ● ●
242 BOLT; BRKT,HARNESS
(C) M10X75 FLANGE 		8-94399-669-1 01 1 9905-0301 ● ●
242 BOLT; BRKT,HARNESS
(C) M10X75 FLANGE 		8-94399-669-1 01 1 0302- ● ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X12 FLANGE 		0-28080-812-0 03 1 9905-0301 ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L) EXC. FIRE FIGHTING TRUCK(RA9) (A) M8X12 FLANGE 		0-28080-812-0 03 1 9905-0301 ●
304 BOLT; ENG HARNESS CLIP
(A) M8X12 FLANGE 		0-28080-812-0 03 1 0302-0512 ● ●
304 BOLT; ENG HARNESS CLIP
EXC. FIRE FIGHTING TRUCK(RA9) (A) M8X12 FLANGE 		0-28080-812-0 03 1 0302-0512 ●
304 BOLT; ENG HARNESS CLIP
(A) M8X12 FLANGE 		0-28050-812-0 03 1 0601- ● ●
304 BOLT; ENG HARNESS CLIP
EXC. FIRE FIGHTING TRUCK(RA9) (A) M8X12 FLANGE 		0-28050-812-0 03 1 0601- ●
304 BOLT; ENG HARNESS CLIP
(B) M8X16 FLANGE 		0-28080-816-0 04 1 9905-0301 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X16 FLANGE 		0-28080-816-0 04 1 0302-0512 ● ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCN ENG(82L) FIRE FIGHTING TRUCK(RA9) (A) M8X12 FLANGE 		0-28080-812-0 01 1 9905-0301 ●
304 BOLT; ENG HARNESS CLIP
FIRE FIGHTING TRUCK(RA9) (A) M8X12 FLANGE 		0-28080-812-0 01 1 0302-0512 ●
304 BOLT; ENG HARNESS CLIP
FIRE FIGHTING TRUCK(RA9) (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9905-0301 ●
313 BOLT; BRKT
MLD6Q M/T(X5J) PARKING BRK DRUM 10"(B1T) M8X16 FLANGE 		0-28080-816-0 01 1 9905-0301 ●
313 BOLT; BRKT
MLD6Q M/T(X5J) M8X16 FLANGE 		0-28080-816-0 01 1 0302-0512 ● ●
313 BOLT; BRKT
MLD6Q M/T(X5J) PARKING BRK DRUM 10"(B1T) M8X16 FLANGE 		0-28080-816-0 01 1 0302-0512 ●
313 BOLT; BRKT
MLD6Q M/T(X5J) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
313 BOLT; BRKT
MLD6Q M/T(X5J) PARKING BRK DRUM 10"(B1T) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-0301 ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302- ● ● ●
çizim 26896
255 210 423 520 184 133 209 524 219 294
BalonParca AdiParca NoAdetTipApplied Date A B C
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9905-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-0301 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0302- ● ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 9908-0301 ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 0302- ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9905-0301 ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0302-0603 ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ● ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9908-0301 ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0302- ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-0301 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 06 1 9905-9907 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 07 1 9908-0301 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 07 1 0302-0602 ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 07 1 0603- ● ● ●
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0302-0604 ●
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0605- ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-0301 ●
294 NUT
MLD6Q M/T(X5J) PARKING BRK DRUM 10"(B1T) M8 FLANGE 		0-91150-108-0 01 1 9905-0301 ●
294 NUT
MLD6Q M/T(X5J) M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ●
294 NUT
MLD6Q M/T(X5J) PARKING BRK DRUM 10"(B1T) M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ●
294 NUT
MLD6Q M/T(X5J) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
294 NUT
MLD6Q M/T(X5J) PARKING BRK DRUM 10"(B1T) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 9905-0301 ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ● ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9908-9909 ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9908-9909 ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9908-0301 ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0302- ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9905-0301 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0302-0602 ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ●

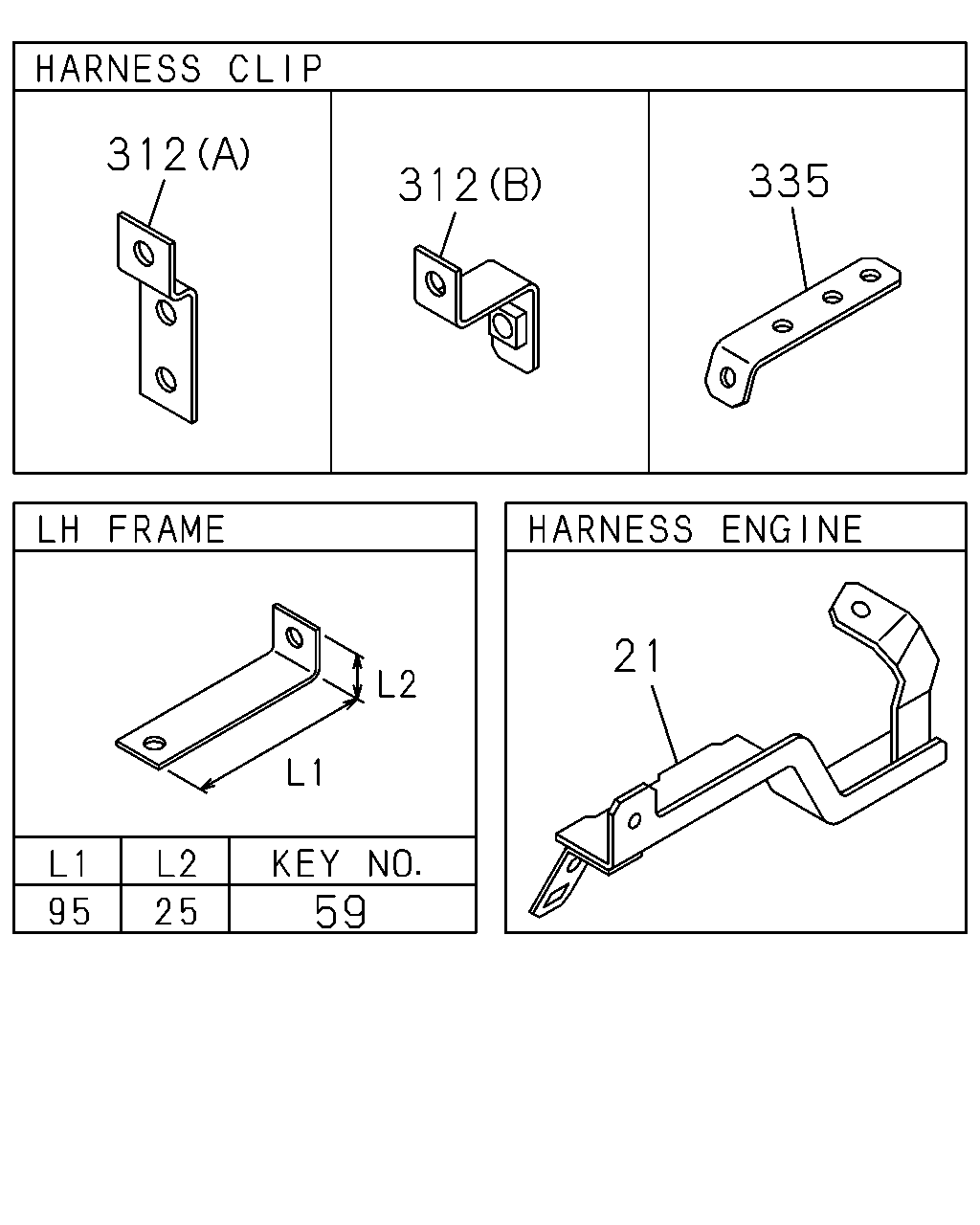

çizim 27002
312 335 312 21 59
BalonParca AdiParca NoAdetTipApplied Date A B C
21 BRACKET; ENG HARNESS 8-94391-071-3 01 1 9905-0301 ● ●
21 BRACKET; ENG HARNESS 8-94391-071-3 01 1 0302- ● ● ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9905-0301 ● ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0302- ● ● ●
312 BRACKET; CLIP HARNESS
(A) 		1-82699-588-0 01 1 9905-0301 ●
312 BRACKET; CLIP HARNESS
MLD6Q M/T(X5J) PARKING BRK DRUM 10"(B1T) (A) 		1-82699-588-0 01 1 9905-0301 ●
312 BRACKET; CLIP HARNESS
MLD6Q M/T(X5J) (A) 		1-82699-588-0 01 1 0302-0302 ● ●
312 BRACKET; CLIP HARNESS
MLD6Q M/T(X5J) PARKING BRK DRUM 10"(B1T) (A) 		1-82699-588-0 01 1 0302-0302 ●
312 BRACKET; CLIP HARNESS
MLD6Q M/T(X5J) (B) 		1-47478-981-0 01 1 0303- ● ●
312 BRACKET; CLIP HARNESS
MLD6Q M/T(X5J) PARKING BRK DRUM 10"(B1T) (B) 		1-47478-981-0 01 1 0303- ●
335 BRACKET; CONNECTOR
L=100 		1-82699-517-0 01 1 9905-9910 ● ●
335 BRACKET; CONNECTOR
L=112 		1-82698-167-0 01 1 9911-0301 ● ●
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0302- ● ● ●

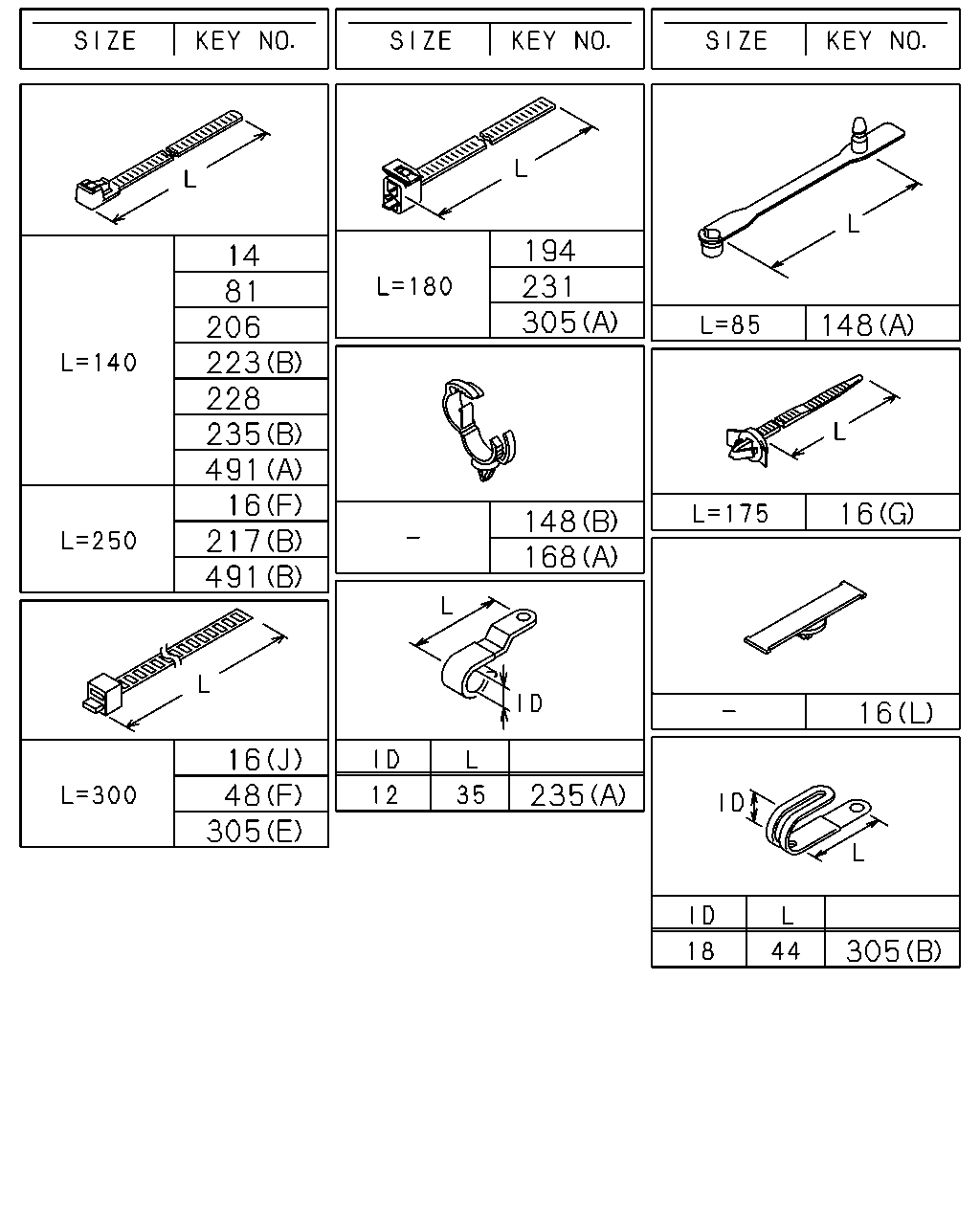

çizim 27072
194 231 305 14 81 206 223 228 235 491 16 217 491 148 16 148 168 16 16 48 305 235 305
BalonParca AdiParca NoAdetTipApplied Date A B C
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 01 1 9905-0301 ● ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L) L=140 		5-09707-031-1 01 1 0302- ● ●
14 CLIP; BAND,HARNESS
6HK1-TCN ENG(82L) FIRE FIGHTING TRUCK(RA9) L=140 		5-09707-031-1 01 1 0302- ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L) EXC. FIRE FIGHTING TRUCK(RA9) L=140 		5-09707-031-1 01 1 0302- ●
16 CLIP; HARNESS
(M) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0302- ●
16 CLIP; HARNESS
(K) OD=9 H=9.5 		1-09709-179-0 01 1 0302- ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 9905- ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9905-0301 ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0302- ● ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 02 1 9905-0301 ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 02 1 0302- ● ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0302- ● ● ●
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 9905-9907 ● ●
16 CLIP; HARNESS
(I) ID=18 H=23 L=28 		1-09700-860-0 01 1 9908-0301 ● ●
16 CLIP; HARNESS
(I) ID=18 H=23 L=28 		1-09700-860-0 01 1 0302- ● ● ●
16 CLIP; HARNESS
(E) ID=26 L=27 		1-09701-006-0 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(E) ID=26 L=27 		1-09701-006-0 01 1 0302- ● ● ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 0302- ● ● ●
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 0302- ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0302- ● ● ●
16 CLIP; HARNESS
(N) ID=19 L=32 		9-09525-866-0 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(N) ID=19 L=32 		9-09525-866-0 01 1 0302-0606 ● ● ●
16 CLIP; HARNESS
(N) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (L) L=55 		8-94432-655-0 06 1 9905-0301 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (L) L=55 		8-94432-655-0 06 1 0302- ●
16 CLIP; HARNESS
(L) L=55 		8-94432-655-0 06 1 0302- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 06 1 9905-0301 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 06 1 0302- ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 06 1 0302- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0302-0303 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0302-0303 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 11 1 0302-0303 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 0304- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9905- ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 05 1 9905- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9905- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 9905- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 9905-0303 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0304- ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 04 1 9905-0301 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 04 1 0302- ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9905-0301 ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 0302- ● ● ●
48 CLIP; FRAME HARNESS
(F) L=300 		1-09707-001-1 01 1 9905-0301 ● ●
48 CLIP; FRAME HARNESS
(F) L=300 		1-09707-001-1 01 1 0302- ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9905-0301 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0302-0606 ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 9905- ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9905-0301 ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0302- ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9905-0303 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0304- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0304- ●
48 CLIP; FRAME HARNESS
WB 4200MM(42W) (A) ID=20 L=50 		9-09917-430-0 14 1 9905- ●
48 CLIP; FRAME HARNESS
WB 4800MM(48W) (A) ID=20 L=50 		9-09917-430-0 17 1 9905- ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (A) ID=20 L=50 		9-09917-430-0 21 1 9905- ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9905-0301 ● ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0302- ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9905-0301 ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0302- ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9905-0301 ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0302- ● ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 05 1 9905-0301 ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 05 1 0302- ● ● ●
168 CLIP; DASH HARNESS
POWER WINDOW<A30> (B) L=30 		1-09987-265-0 01 1 0102-0301 ●
168 CLIP; DASH HARNESS
POWER WINDOW<A30> (B) L=30 		1-09987-265-0 01 1 0302- ●
168 CLIP; DASH HARNESS
(B) L=30 		1-09987-265-0 01 1 0302- ●
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 9905-0301 ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 0302- ● ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9905-0301 ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0302- ● ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9905-0209 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9905-0301 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0302- ● ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 05 1 9905- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9905-0301 ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0302- ● ● ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 9905-0301 ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0302- ● ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9905-0301 ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 0302- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9905-0301 ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0302- ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 9905-9909 ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 9910-0301 ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 0302- ● ●
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 9905-0301 ● ●
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 0302- ● ● ●
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 9905-0301 ● ●
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0302- ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=12 L=35 		5-09700-206-0 01 1 9905-0301 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6Q M/T(X5J) (A) ID=12 L=35 		5-09700-206-0 01 1 9905-0301 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6Q M/T(X5J) (A) ID=12 L=35 		5-09700-206-0 01 1 0302- ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=140 		5-09707-031-1 01 1 9905-0301 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=140 		5-09707-031-1 01 1 0302- ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 9905-0301 ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L) EXC. FIRE FIGHTING TRUCK(RA9) (B) ID=18 L=44 		8-94225-185-0 03 1 9905-0301 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0302- ● ●
305 CLIP; ENG HARNESS
EXC. FIRE FIGHTING TRUCK(RA9) (B) ID=18 L=44 		8-94225-185-0 03 1 0302- ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 9905-0301 ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L) EXC. FIRE FIGHTING TRUCK(RA9) (C) ID=11 L=20 		9-09525-035-0 01 1 9905-0301 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 0302-0606 ● ●
305 CLIP; ENG HARNESS
EXC. FIRE FIGHTING TRUCK(RA9) (C) ID=11 L=20 		9-09525-035-0 01 1 0302-0606 ●
305 CLIP; ENG HARNESS
(C) ID=11 L=20 		0-95235-035-0 01 1 0607- ● ●
305 CLIP; ENG HARNESS
EXC. FIRE FIGHTING TRUCK(RA9) (C) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 03 1 9905-0301 ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 03 1 0302- ● ● ●
305 CLIP; ENG HARNESS
(E) L=300 		1-09707-001-1 01 1 9905-0001 ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0002-0301 ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0302- ● ● ●
305 CLIP; ENG HARNESS
(F) ID=11 L=24 		9-09525-045-0 01 1 9905-0301 ● ●
305 CLIP; ENG HARNESS
(F) ID=11 L=24 		9-09525-045-0 01 1 0302-0606 ● ● ●
305 CLIP; ENG HARNESS
(F) ID=11 L=24 		0-95235-045-0 01 1 0607- ● ● ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) FIRE FIGHTING TRUCK(RA9) (B) ID=18 L=44 		8-94225-185-0 02 1 9905-0301 ●
305 CLIP; ENG HARNESS
FIRE FIGHTING TRUCK(RA9) (B) ID=18 L=44 		8-94225-185-0 02 1 0302- ●
491 CLIP; BAND,HTR HOSE & HARNESS
FIRE FIGHTING TRUCK(RA9) (A) L=140 		5-09707-031-1 02 1 9905-9908 ●
491 CLIP; BAND,HTR HOSE & HARNESS
FIRE FIGHTING TRUCK(RA9) (A) L=140 		5-09707-031-1 01 1 9909- ●
491 CLIP; BAND,HTR HOSE & HARNESS
FIRE FIGHTING TRUCK(RA9) (B) L=250 		5-09707-030-1 03 1 9909-9909 ●
491 CLIP; BAND,HTR HOSE & HARNESS
FIRE FIGHTING TRUCK(RA9) (B) L=250 		5-09707-030-1 02 1 9910- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
