0-22 — ENGINE MOUNTING (#79209) — 50 parça

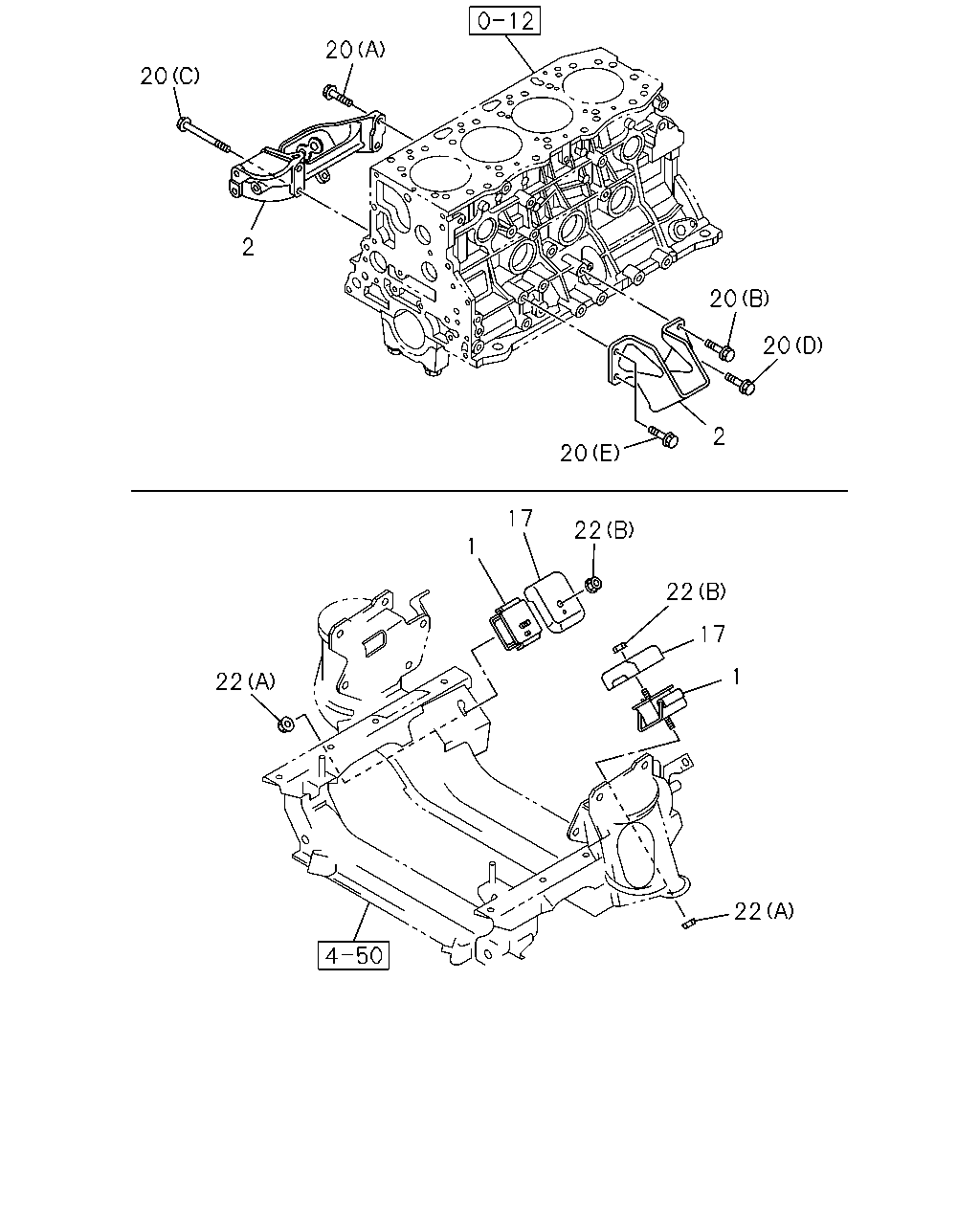

çizim 38697
20 20 2 20 20 2 20 17 22 1 22 17 1 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-000-0 01 1 1012- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-001-0 01 1 1012- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 1012- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 1012- ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1012- ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1012- ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1012- ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 1012- ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 1012- ●
20 00.029 BOLT; ENG FOOT
(F) M10X20 FLANGE 		0-28161-020-0 08 1 1012- ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1012- ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1012- ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1012- ●
20 00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 1012- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(A) M12 FLANGE 		8-98046-987-0 02 1 1012- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (C) M10 FLANGE 		0-91180-210-0 04 1 1012- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (B) M12 FLANGE 		0-91180-112-0 02 1 1012- ● ●

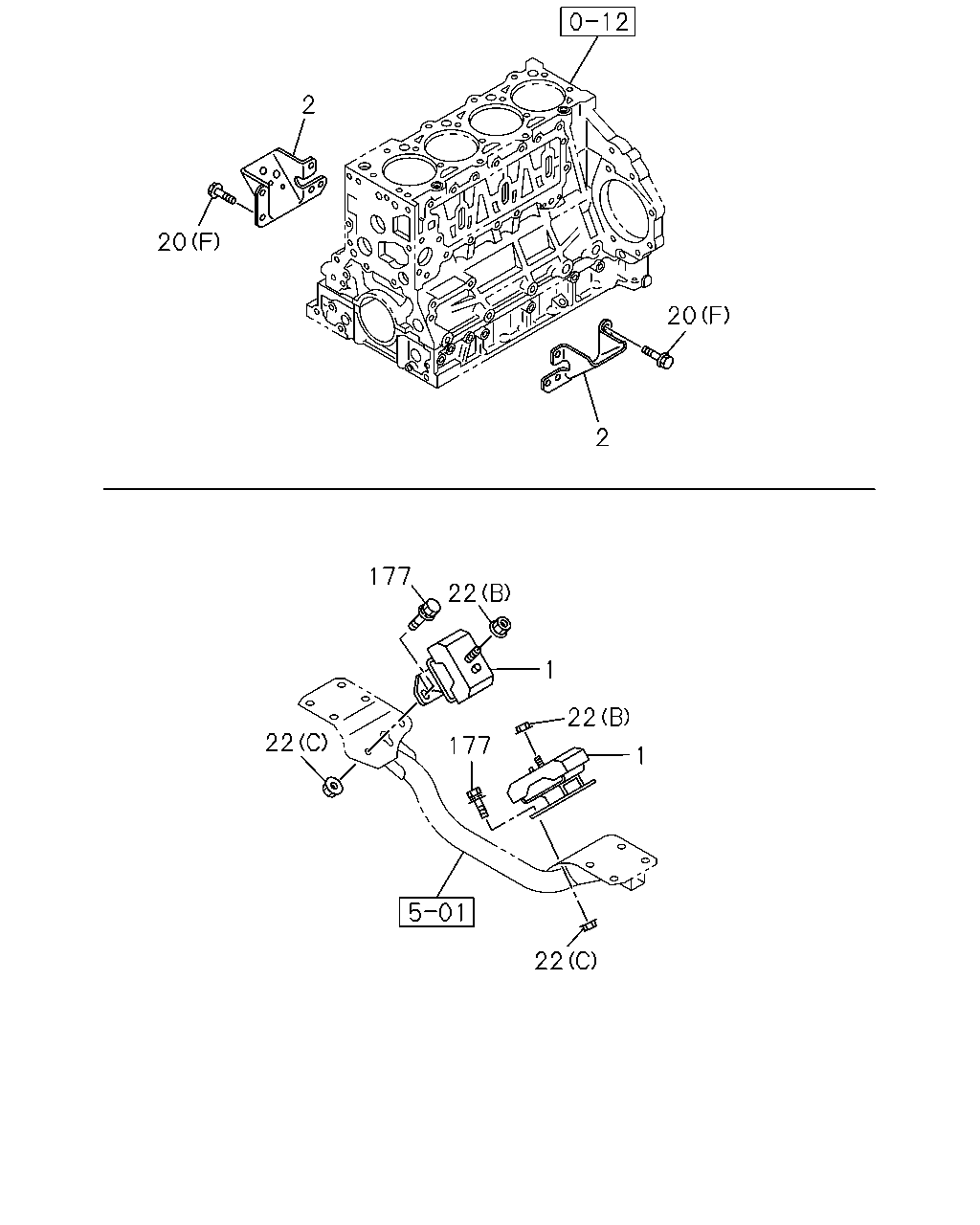

çizim 39080
2 20 20 2 177 22 1 22 22 177 1 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-000-0 01 1 1012- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-001-0 01 1 1012- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 1012- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 1012- ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1012- ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1012- ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1012- ●
20 00.029 BOLT; ENG FOOT
(F) M10X20 FLANGE 		0-28161-020-0 08 1 1012- ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1012- ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1012- ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1012- ●
20 00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 1012- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(A) M12 FLANGE 		8-98046-987-0 02 1 1012- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (C) M10 FLANGE 		0-91180-210-0 04 1 1012- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (B) M12 FLANGE 		0-91180-112-0 02 1 1012- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1012- ●

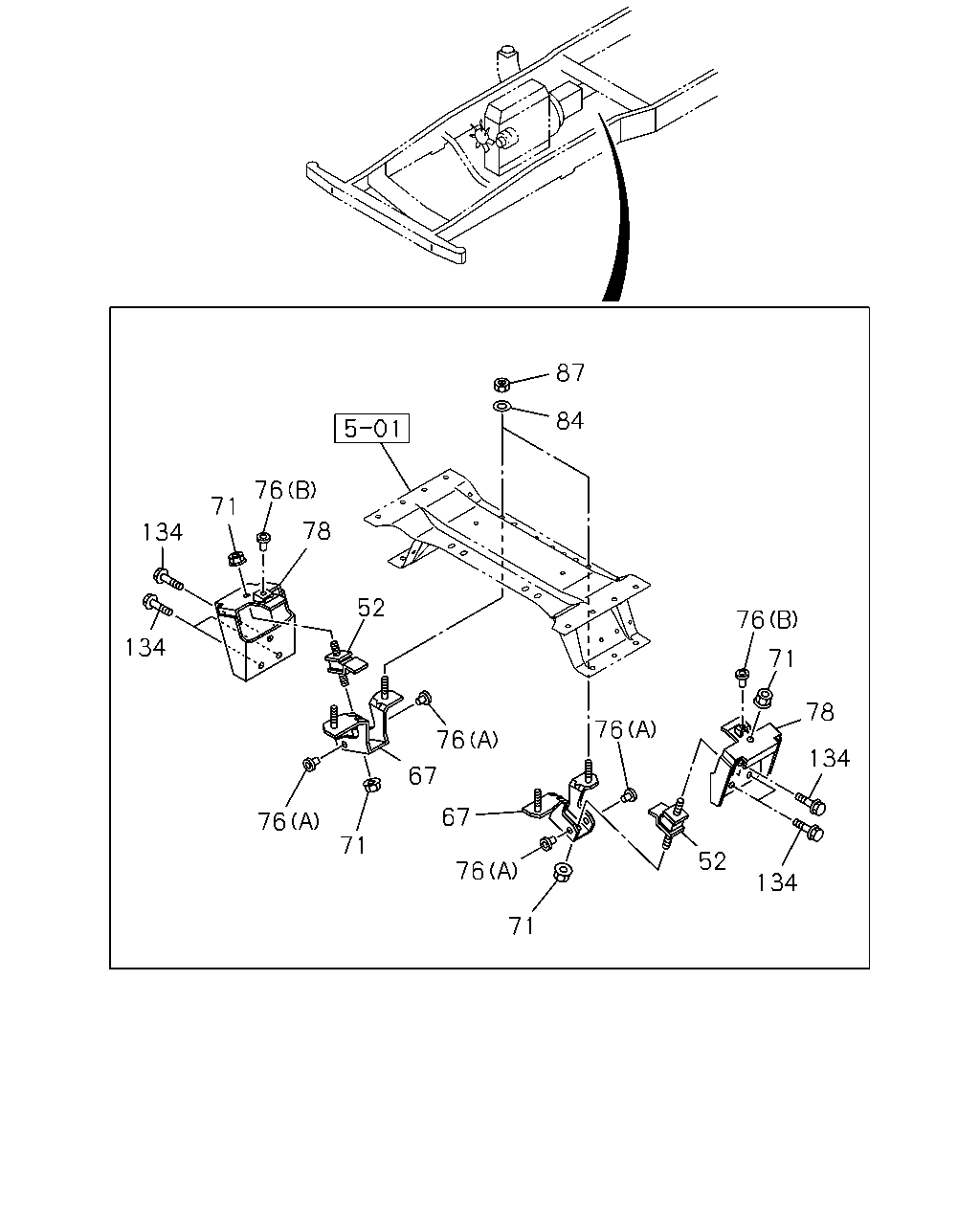

çizim 39258
87 84 76 71 78 134 52 76 134 71 78 76 76 134 67 67 76 71 52 76 134 71
BalonParca AdiParca NoAdetTipApplied Date A B
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1012- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97354-876-1 01 1 1012- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97354-877-1 01 1 1012- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97255-776-1 01 1 1012- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97255-778-1 01 1 1012- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1012- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1012- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1012- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-98053-902-1 02 1 1012- ●
78 00.029 BRACKET; ENG MTG,RR
FRAME-KICK UP<7EW> 		8-98092-719-0 01 1 1012- ●
78 00.029 BRACKET; ENG MTG,RR
FRAME-KICK UP<7EW> 		8-98092-720-0 01 1 1012- ●
78 00.029 BRACKET; ENG MTG,RR
EXC. FRAME-KICK UP<7EW> 		8-97255-756-1 02 1 1012- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1012- ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 1012- ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1012- ● ●
