0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#79208) — 100 parça

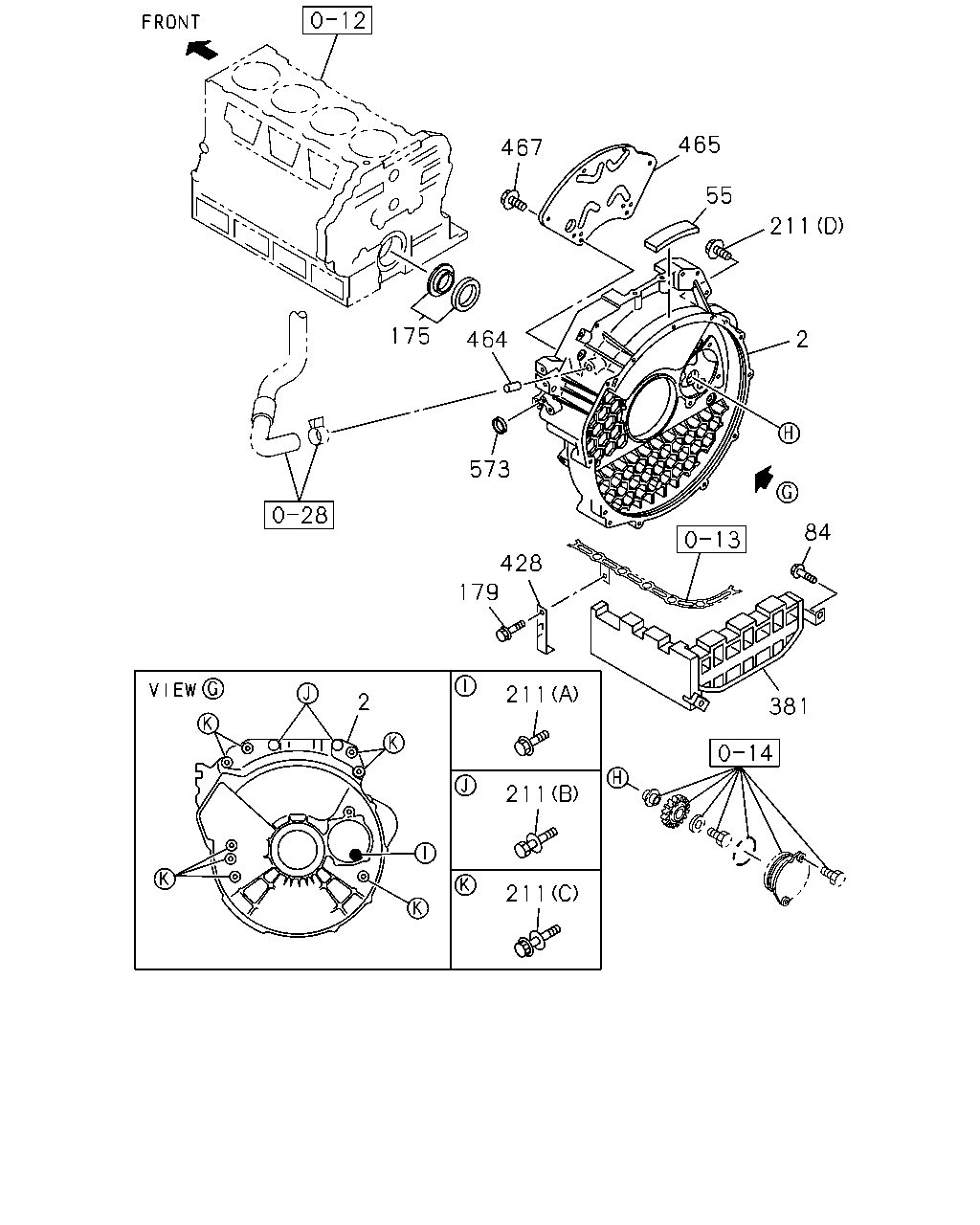

465 467 55 211 175 2 464 573 84 428 179 211 2 381 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	1012-	●
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	1012-1310		●
2	00.683 HOUSING; FLYWHEEL	8-98252-203-0	01	1	1311-		●
55	00.206 COVER; NOISE SHIELD	8-97215-618-0	01	1	1012-	●
84	00.206 BOLT; SPACER 03.162 M12X20 FLANGE	0-28151-220-0	02	1	1012-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	1012-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1012-		●
179	00.206 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
211	00.669 BOLT; HSG 00.029 (D) M10X40 FLANGE	0-28751-040-0	01	1	1012-	●
211	00.669 BOLT; HSG (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	1012-	●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	1012-1102	●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	1012-	●
211	00.669 BOLT; HSG 09.003 (F) M12X35 FLANGE	0-28651-235-0	06	1	1012-		●
211	00.669 BOLT; HSG 00.683 (G) M12X25	5-09000-227-0	03	1	1012-		●
211	00.669 BOLT; HSG 00.862 (E) M10X43	9-09606-535-0	01	1	1012-		●
381	00.685 SPACER; FLYWHEEL HSG 01.428	8-97224-867-2	01	1	1012-	●
428	00.206 BRACKET; SPACER	8-97215-647-0	01	1	1012-	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	1012-	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	1012-	●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	1012-	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	1012-	●

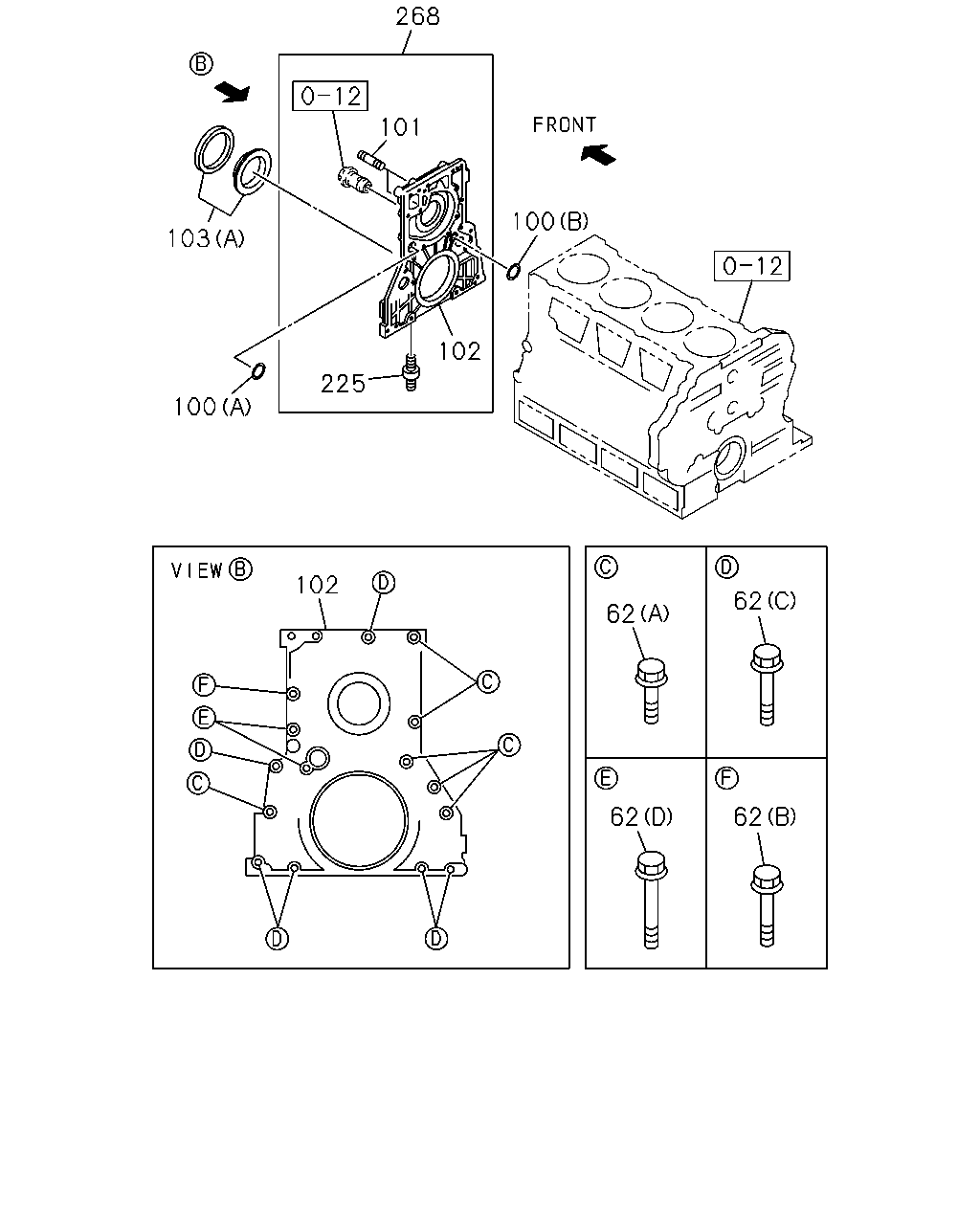

268 101 100 102 225 102 62 62 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	1012-	●
62	00.206 BOLT; COVER 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
62	00.206 BOLT; COVER 01.060 (C) M8X35 FLANGE	0-28650-835-0	06	1	1012-	●
62	00.206 BOLT; COVER 01.097 (D) M8X65 FLANGE	1-09044-072-1	02	1	1012-	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	1012-	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	1012-	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	0-41010-818-0	01	1	1012-	●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	1012-	●
102	00.137 RETAINER; FRT	8-98081-351-1	01	1	1012-	●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	1012-	●
268	00.206 COVER; FRT	8-98079-080-1	01	1	1012-	●

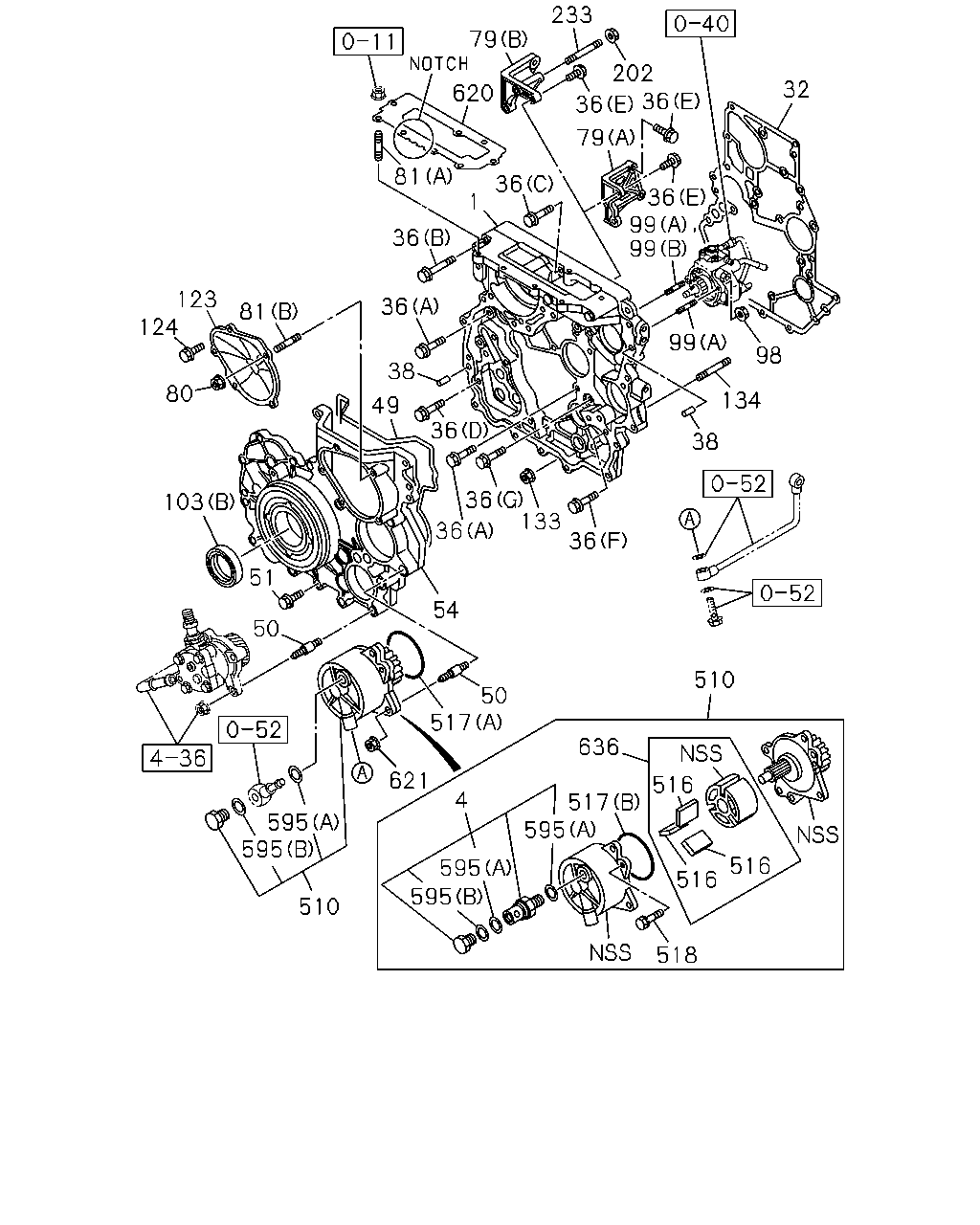

79 233 620 81 36 81 123 124 80 103 51 50 595 595 510 621 517 4 595 595 595 518 516 516 516 517 636 50 510 54 36 133 36 36 38 134 98 99 99 99 1 36 36 32 79 36 36 202 36 38 49 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.206 CASE; TIMING GEAR	8-97945-261-2	01	1	1012-1203		●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1204-		●
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	1012-		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	1012-		●
36	00.206 BOLT; GEAR CASE SGL CAB(NM*S) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> 04.338 (A) M8X20 FLANGE	0-28050-820-0	13	1	1012-1409		●
36	00.206 BOLT; GEAR CASE 02.343 (G) M8X16 FLANGE	0-28050-816-0	01	1	1012-		●
36	00.206 BOLT; GEAR CASE SGL CAB(NM*S) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	1012-		●
36	00.206 BOLT; GEAR CASE DBL CAB(NM*W) 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	1012-		●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	1012-		●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	1012-		●
36	00.206 BOLT; GEAR CASE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	1012-		●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	1012-		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	1012-		●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	1012-		●
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	1012-		●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	1012-		●
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1012-1405		●
54	00.206 COVER; GEAR CASE	8-98253-700-1	01	1	1406-		●
79	00.219 BRACKET; GEAR CASE COVER (A)	8-97370-390-2	01	1	1012-1203		●
79	00.219 BRACKET; GEAR CASE COVER (B)	8-98107-106-0	01	1	1204-		●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	1012-		●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	1012-		●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	1012-		●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-		●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	01	1	1012-1203		●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	02	1	1204-		●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	1012-1203		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=109 OD=137	8-97329-780-0	01	1	1012-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98158-110-0	01	1	1012-		●
123	00.206 COVER; TIMING,LWR	8-98158-145-0	01	1	1012-		●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	1012-		●
133	00.206 NUT; TIMING GEAR CASE 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-		●
134	00.669 STUD; TIMING GEAR CASE 02.510 M8X20 L=32	0-41010-820-0	02	1	1012-		●
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1204-		●
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-98017-063-0	01	1	1204-		●
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1012-1311		●
510	04.895 PUMP ASM; VACUUM	8-98251-764-0	01	1	1312-		●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	1012-		●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	1012-1311		●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98251-769-0	01	1	1312-		●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A)	9-09566-271-0	01	1	1012-		●
518	04.895 BOLT; VAC PUMP	8-98049-523-0	03	1	1012-		●
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	1012-		●
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	1012-		●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	1012-		●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	1012-		●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	1012-		●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	1012-		●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	1012-		●

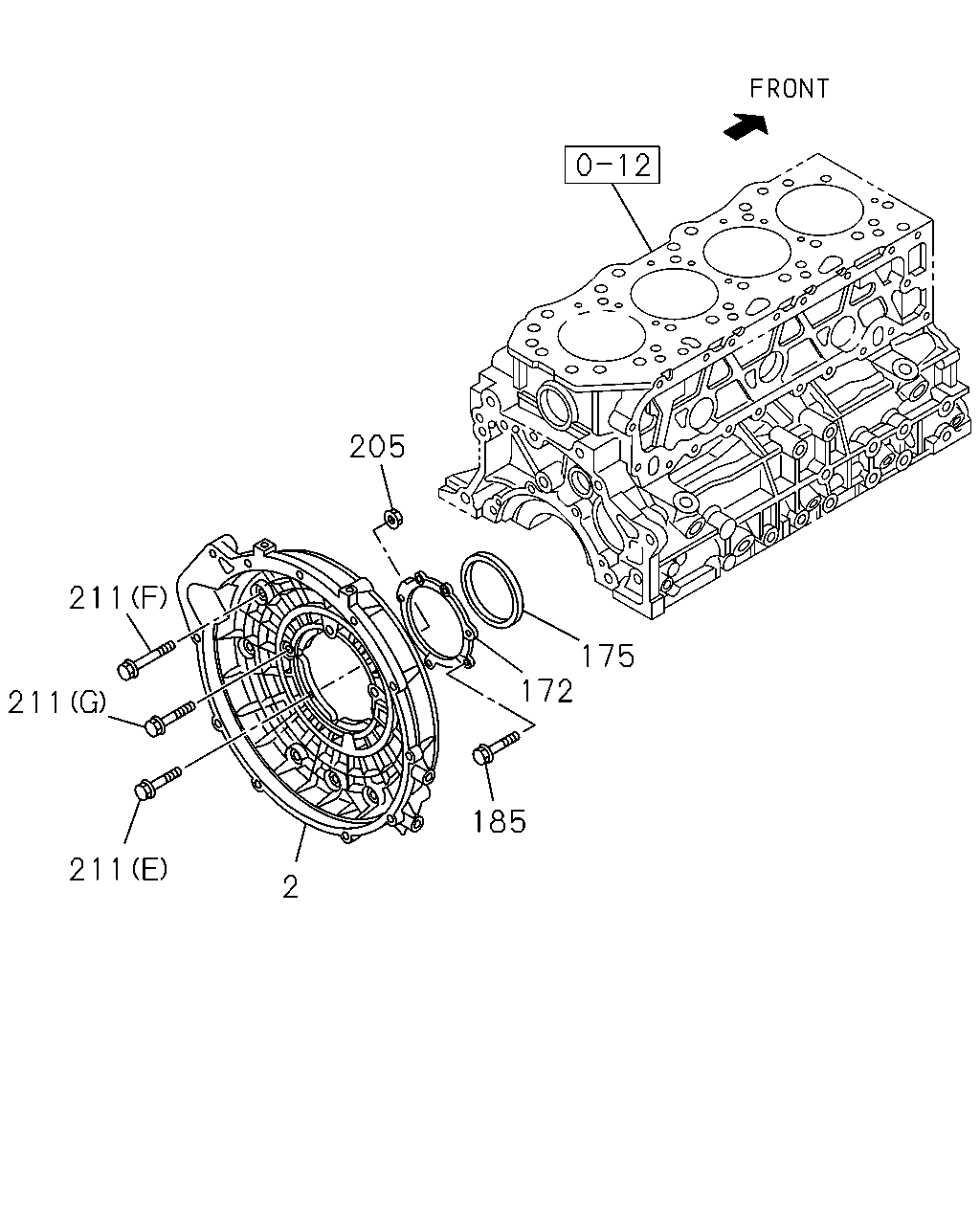

205 211 175 172 211 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	1012-	●
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	1012-1310		●
2	00.683 HOUSING; FLYWHEEL	8-98252-203-0	01	1	1311-		●
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	1012-1012		●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1101-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	1012-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1012-		●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1012-		●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	1012-		●
211	00.669 BOLT; HSG 00.029 (D) M10X40 FLANGE	0-28751-040-0	01	1	1012-	●
211	00.669 BOLT; HSG (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	1012-	●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	1012-1102	●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	1012-	●
211	00.669 BOLT; HSG 09.003 (F) M12X35 FLANGE	0-28651-235-0	06	1	1012-		●
211	00.669 BOLT; HSG 00.683 (G) M12X25	5-09000-227-0	03	1	1012-		●
211	00.669 BOLT; HSG 00.862 (E) M10X43	9-09606-535-0	01	1	1012-		●
