0-14 — CAMSHAFT AND VALVE (#79206) — 155 parça

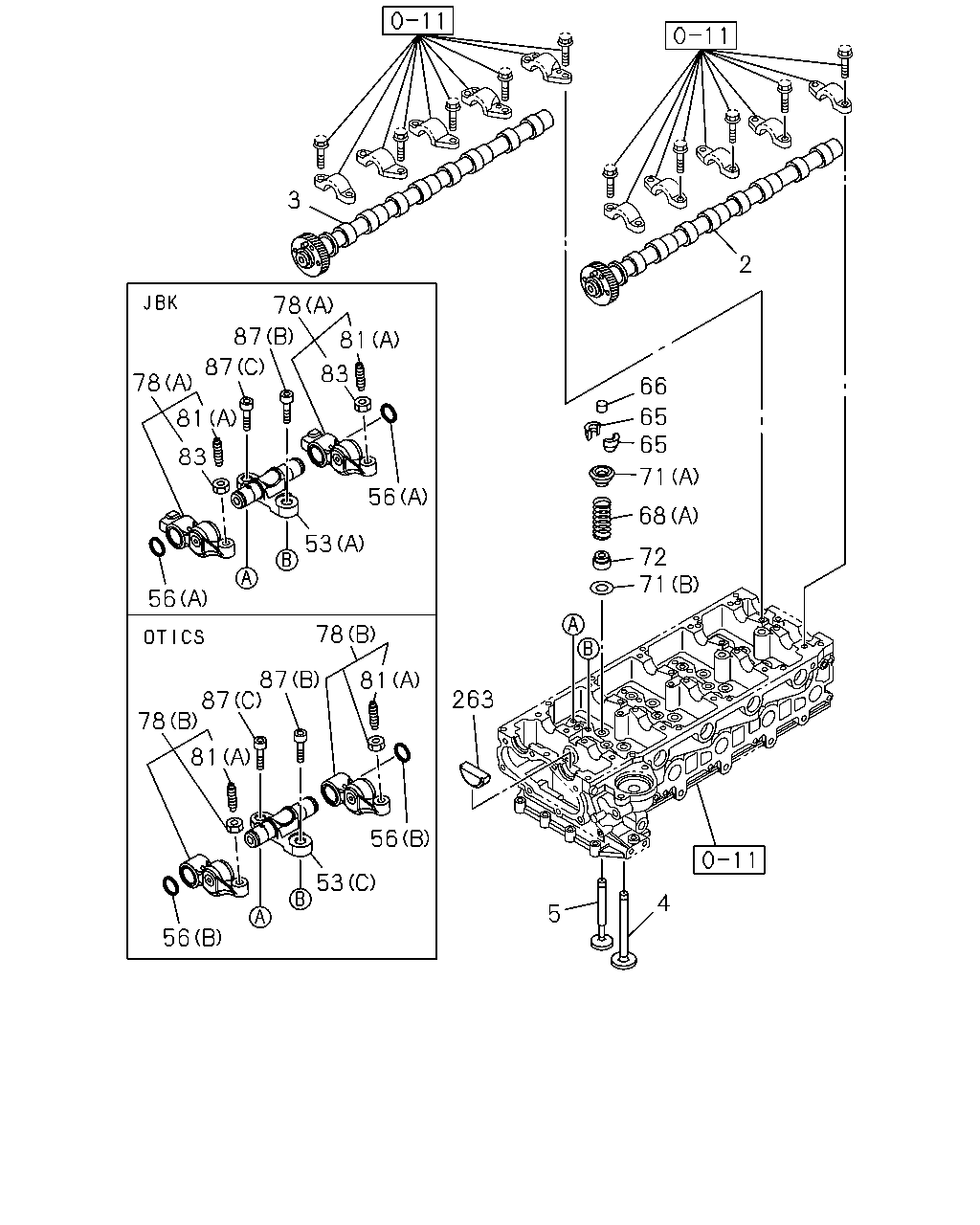

3 2 78 87 81 87 83 78 66 65 65 81 83 71 56 68 53 72 71 56 78 87 87 78 81 263 81 56 53 4 5 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.519 CAMSHAFT; INL	8-98003-129-4	01	1	1012-	●
3	00.519 CAMSHAFT; EXH	8-98003-130-4	01	1	1012-	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	1012-		●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1012-	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	1012-		●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1012-	●
53	00.353 SHAFT; ROCKER ARM (B) JBK	8-97074-617-1	01	1	1012-		●
53	00.353 SHAFT; ROCKER ARM (B) KEIHIN SEIMITSU	8-97174-567-0	01	1	1012-		●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1012-	●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1012-	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1012-	●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1012-	●
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	1012-	●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1012-	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	1012-		●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1012-	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	1012-		●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1012-	●
68	00.303 SPRING; VLV (B) ID=28.5	8-97023-559-0	08	1	1012-		●
68	00.303 SPRING; VLV (A) INLET H=49 NATURAL	8-97311-669-0	08	1	1012-	●
68	00.303 SPRING; VLV (A) EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1012-	●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	1012-		●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	1012-		●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1012-	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1012-	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	1012-		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97328-647-0	16	1	1012-	●
78	00.333 ARM; ROCKER (D) JBK	8-97014-258-2	04	1	1012-		●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	1012-		●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	1012-		●
78	00.333 ARM; ROCKER (D) KEIHIN SEIMITSU	8-97174-565-0	04	1	1012-		●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-4	16	1	1012-	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1012-	●
81	00.429 SCREW; ADJ,ROCKER ARM (B)	8-94367-526-2	16	1	1012-		●
81	00.429 SCREW; ADJ,ROCKER ARM (A) JBK M8 L=22	8-98025-497-0	16	1	1012-	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) OTICS M8 L=22	8-98029-893-0	16	1	1012-	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1012-		●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1012-	●
87	00.349 BOLT; ROCKER SHAFT 03.162 (A) M8X35 FLANGE	0-28050-835-0	04	1	1012-		●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1012-	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	1012-	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98101-472-0	04	1	1012-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98216-269-0	04	1	1205-	●

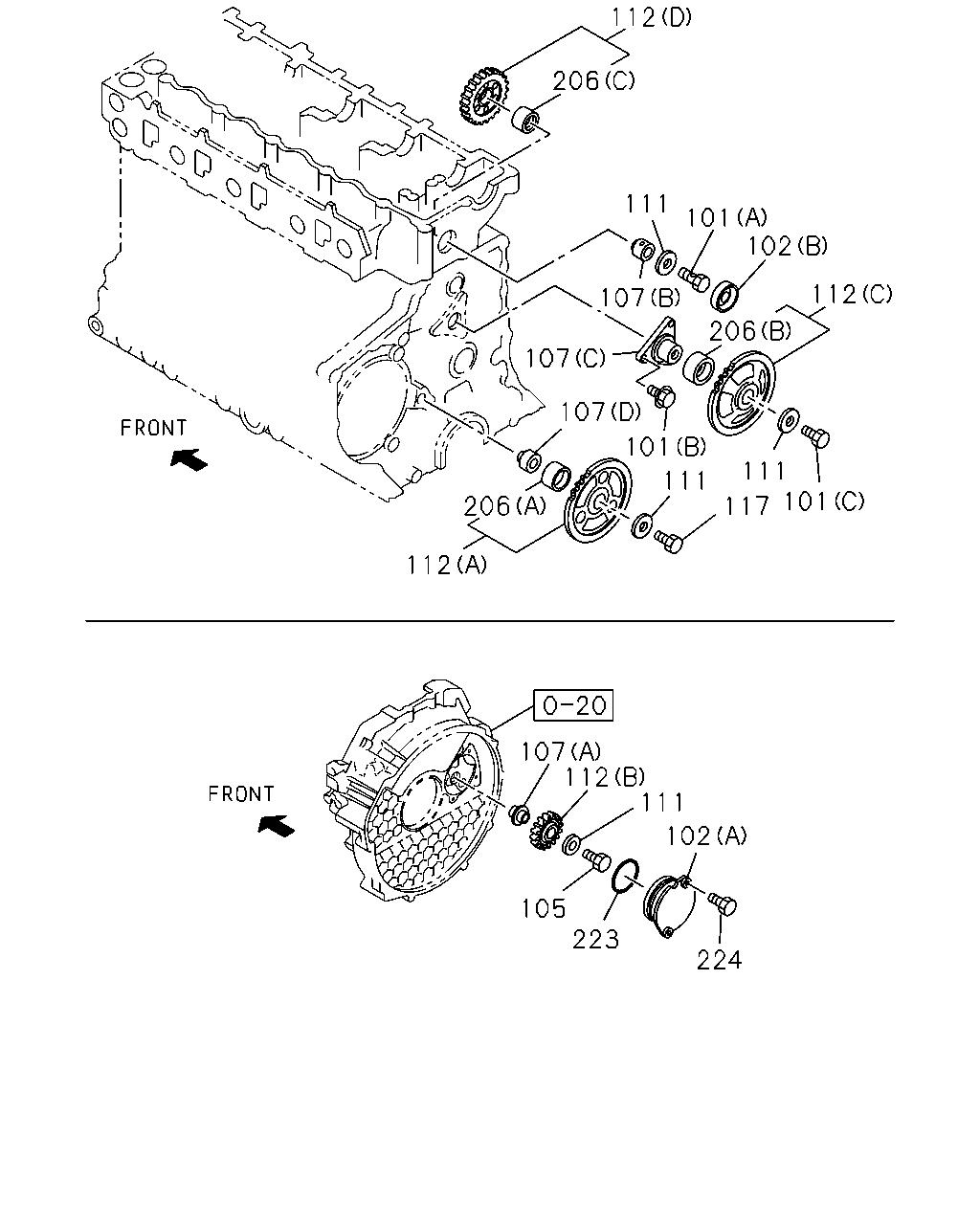

112 206 111 101 102 112 107 206 107 107 101 111 101 111 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1012-		●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1012-		●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1012-1310		●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-		●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1012-		●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1012-		●
105	00.724 BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1012-		●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	1012-		●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	1012-		●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	1012-		●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1012-		●
107	00.724 SHAFT; IDLE GEAR (E)	8-97312-315-2	01	1	1012-	●
107	00.724 SHAFT; IDLE GEAR (F)	8-97312-322-1	01	1	1012-	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1012-		●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	1012-		●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	1012-		●
112	00.724 GEAR; IDLE (B) Z=34	8-97120-005-1	01	1	1012-		●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	1012-		●
112	00.724 GEAR; IDLE (E) Z=80	8-97381-516-1	01	1	1012-1311	●
112	00.724 GEAR; IDLE (E) Z=80	8-98232-105-1	01	1	1312-	●
112	00.724 GEAR; IDLE (F) Z=34	8-97381-518-0	01	1	1012-	●
112	00.724 GEAR; IDLE (G) Z=35	8-97381-520-3	01	1	1012-	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1012-		●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	1012-		●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1012-		●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1012-		●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1012-		●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-		●

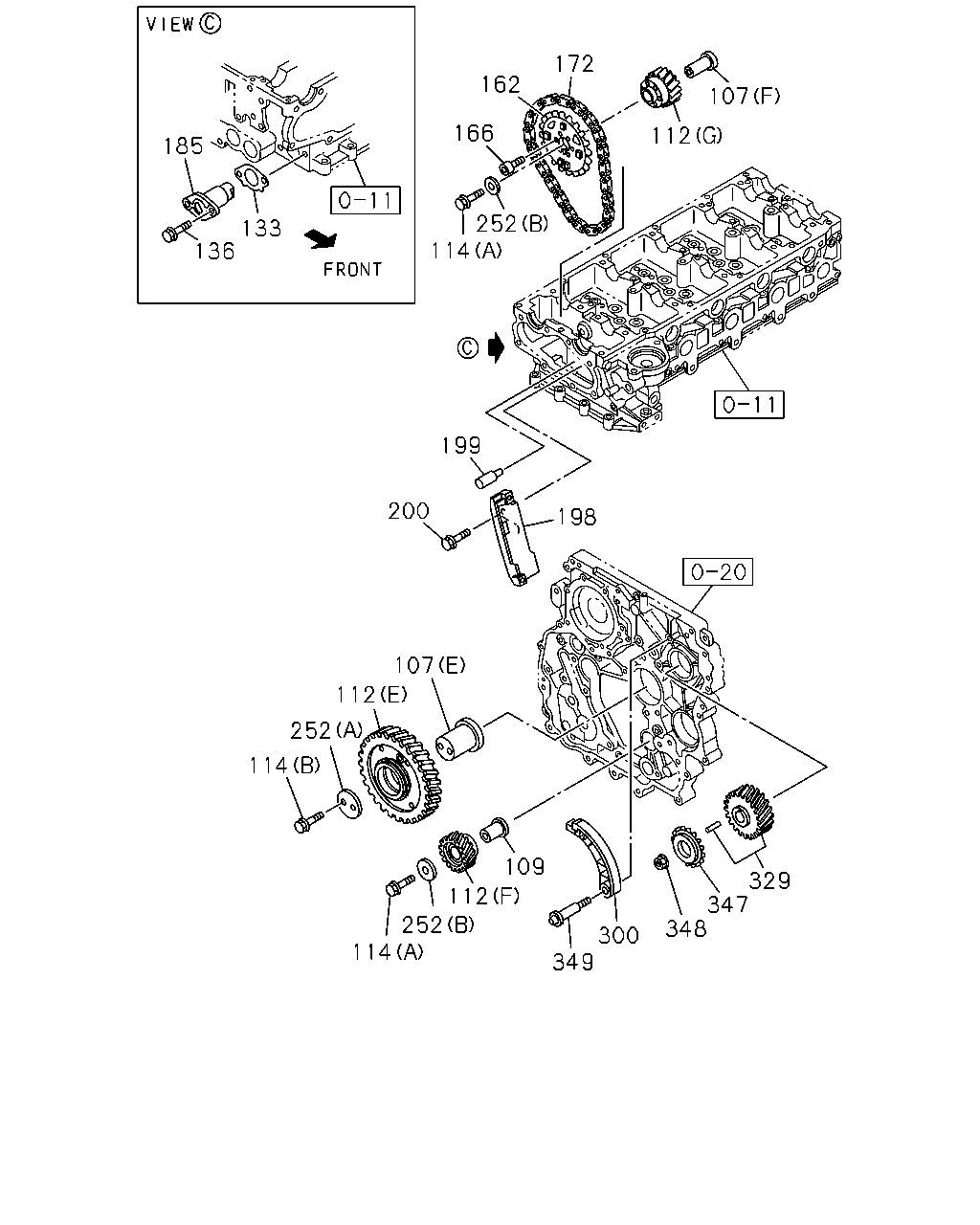

185 133 136 114 166 162 172 112 107 252 199 200 198 107 112 252 114 114 349 112 252 109 300 329 347 348

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	1012-		●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	1012-		●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	1012-		●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1012-		●
107	00.724 SHAFT; IDLE GEAR (E)	8-97312-315-2	01	1	1012-	●
107	00.724 SHAFT; IDLE GEAR (F)	8-97312-322-1	01	1	1012-	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1012-	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	1012-		●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	1012-		●
112	00.724 GEAR; IDLE (B) Z=34	8-97120-005-1	01	1	1012-		●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	1012-		●
112	00.724 GEAR; IDLE (E) Z=80	8-97381-516-1	01	1	1012-1311	●
112	00.724 GEAR; IDLE (E) Z=80	8-98232-105-1	01	1	1312-	●
112	00.724 GEAR; IDLE (F) Z=34	8-97381-518-0	01	1	1012-	●
112	00.724 GEAR; IDLE (G) Z=35	8-97381-520-3	01	1	1012-	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1012-	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	1012-	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-336-0	01	1	1012-	●
136	00.724 BOLT; TENSIONER 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1012-	●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	1012-1109	●
162	00.736 SPROCKET; IDLE	8-98193-179-0	01	1	1110-	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1012-	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	1012-	●
185	00.724 TENSIONER; CHAIN	8-98039-754-1	01	1	1012-	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1012-	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1012-	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1012-	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1012-	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	1012-	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	1012-	●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	1012-	●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	1012-1207	●
347	00.429 SPROCKET; I/PUMP	8-98210-266-0	01	1	1208-	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1012-	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1012-	●

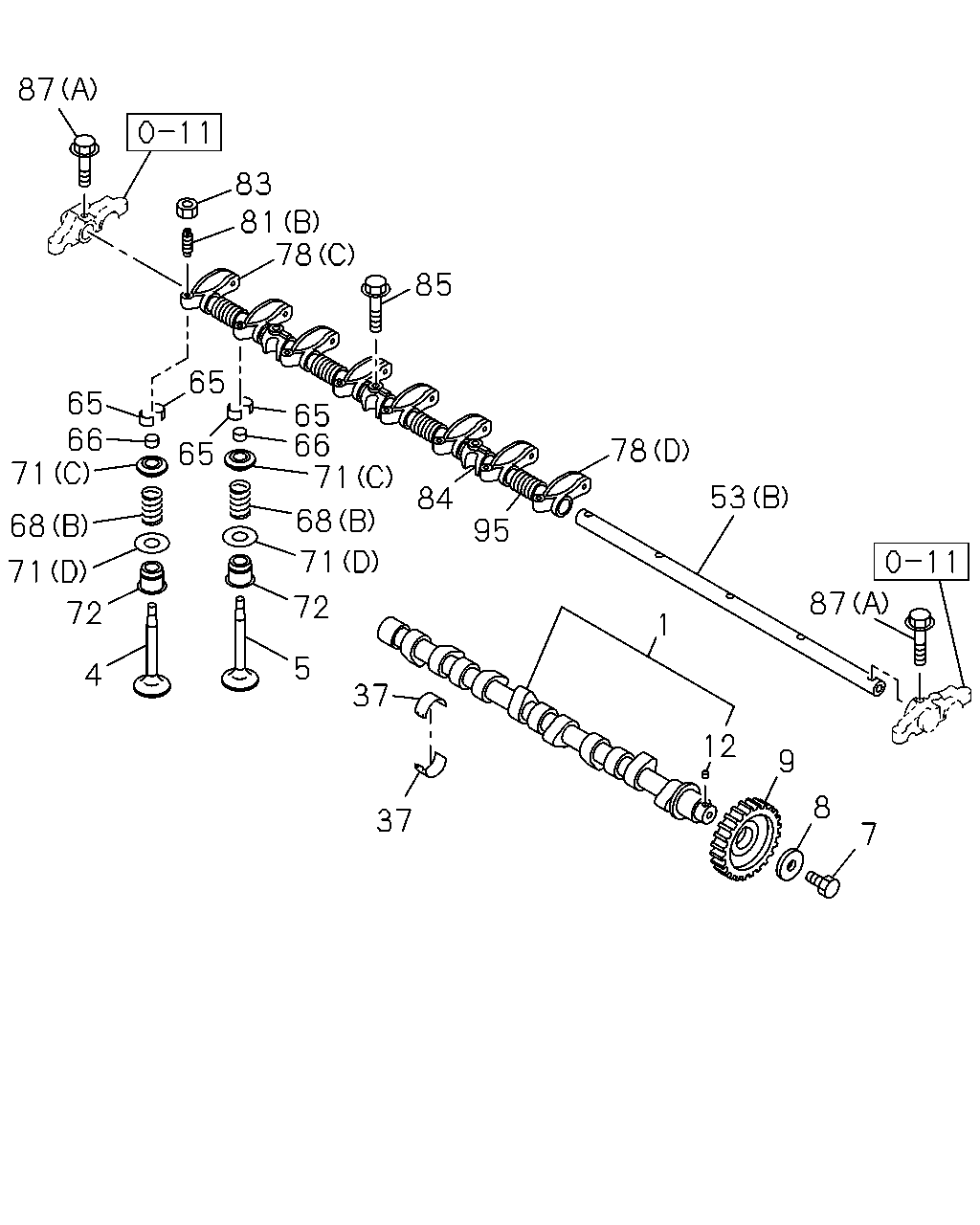

87 83 81 78 85 65 65 66 71 65 66 71 78 65 53 84 68 68 95 71 71 87 72 72 1 5 4 37 12 9 8 37 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-97077-829-0	01	1	1012-		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	1012-		●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1012-	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	1012-		●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1012-	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1012-		●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1012-		●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	1012-		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	1012-		●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	1012-		●
53	00.353 SHAFT; ROCKER ARM (B) JBK	8-97074-617-1	01	1	1012-		●
53	00.353 SHAFT; ROCKER ARM (B) KEIHIN SEIMITSU	8-97174-567-0	01	1	1012-		●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1012-	●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1012-	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1012-	●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1012-	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	1012-		●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1012-	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	1012-		●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1012-	●
68	00.303 SPRING; VLV (B) ID=28.5	8-97023-559-0	08	1	1012-		●
68	00.303 SPRING; VLV (A) INLET H=49 NATURAL	8-97311-669-0	08	1	1012-	●
68	00.303 SPRING; VLV (A) EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1012-	●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	1012-		●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	1012-		●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1012-	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1012-	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	1012-		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97328-647-0	16	1	1012-	●
78	00.333 ARM; ROCKER (D) JBK	8-97014-258-2	04	1	1012-		●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	1012-		●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	1012-		●
78	00.333 ARM; ROCKER (D) KEIHIN SEIMITSU	8-97174-565-0	04	1	1012-		●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-4	16	1	1012-	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1012-	●
81	00.429 SCREW; ADJ,ROCKER ARM (B)	8-94367-526-2	16	1	1012-		●
81	00.429 SCREW; ADJ,ROCKER ARM (A) JBK M8 L=22	8-98025-497-0	16	1	1012-	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) OTICS M8 L=22	8-98029-893-0	16	1	1012-	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1012-		●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1012-	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	1012-		●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	1012-		●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	1012-		●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	1012-		●
87	00.349 BOLT; ROCKER SHAFT 03.162 (A) M8X35 FLANGE	0-28050-835-0	04	1	1012-		●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1012-	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	1012-	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	1012-		●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	1012-		●
