◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#79202) — 40 parça

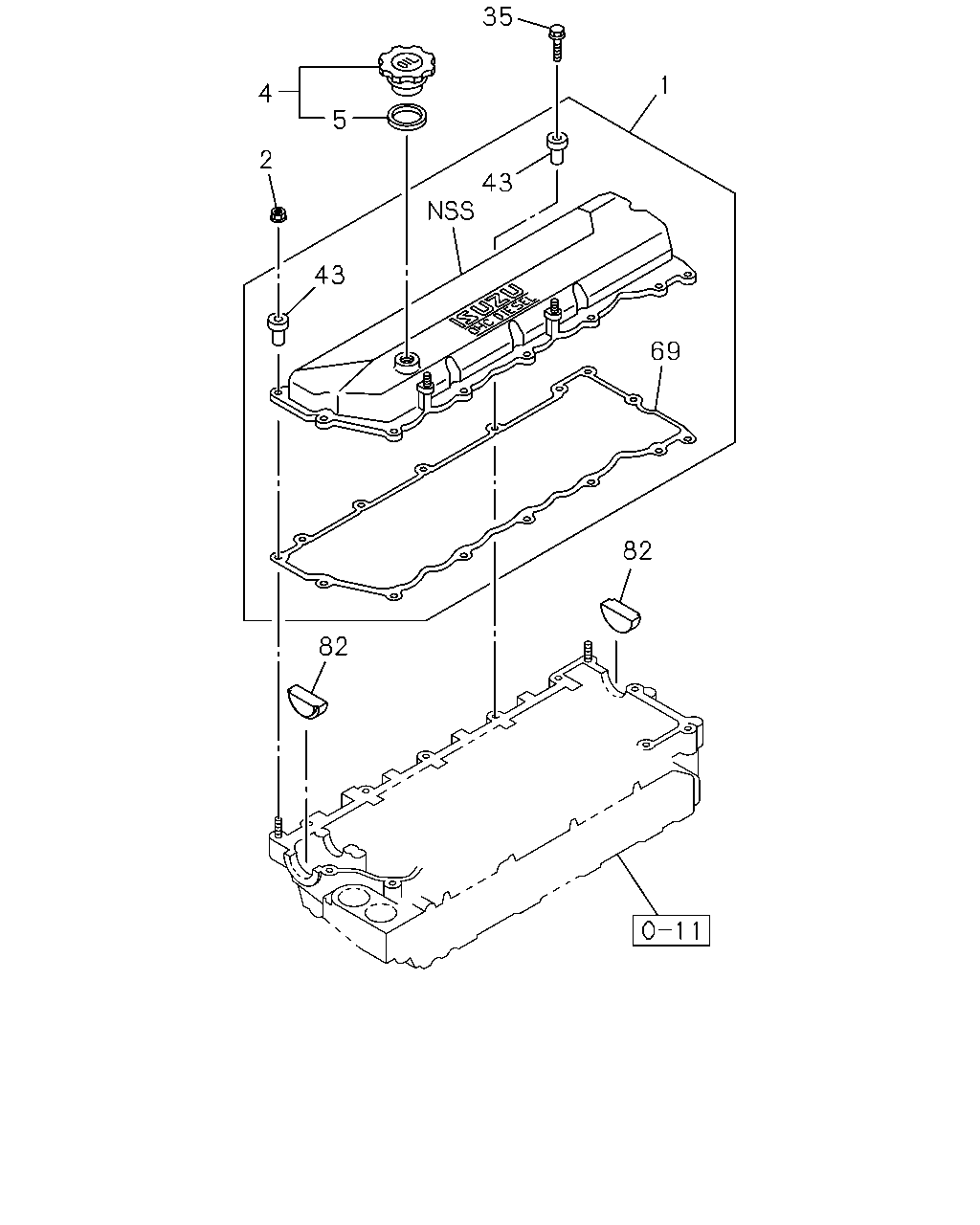

çizim 15010
35 1 4 5 2 43 43 69 82 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.386 COVER; CYL HD 8-98171-615-0 01 1 1012- ●
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 1012-1305 ●
1 00.386 COVER; CYL HD 8-98226-103-0 01 1 1306-1505 ●
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 1506- ●
2 00.413 NUT; COVER,HD
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
2 00.413 NUT; COVER,HD
01.540 M6 FLANGE 		0-91180-206-0 01 1 1012- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1012- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1012- ● ●
35 00.293 BOLT; NOISE SHIELD COVER
03.403 M8X30 FLANGE 		0-28650-830-0 13 1 1012- ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 1012- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97105-690-2 01 1 1012- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 1012- ●
82 00.386 PLUG; CYL HD COVER 8-98163-813-0 02 1 1012- ●

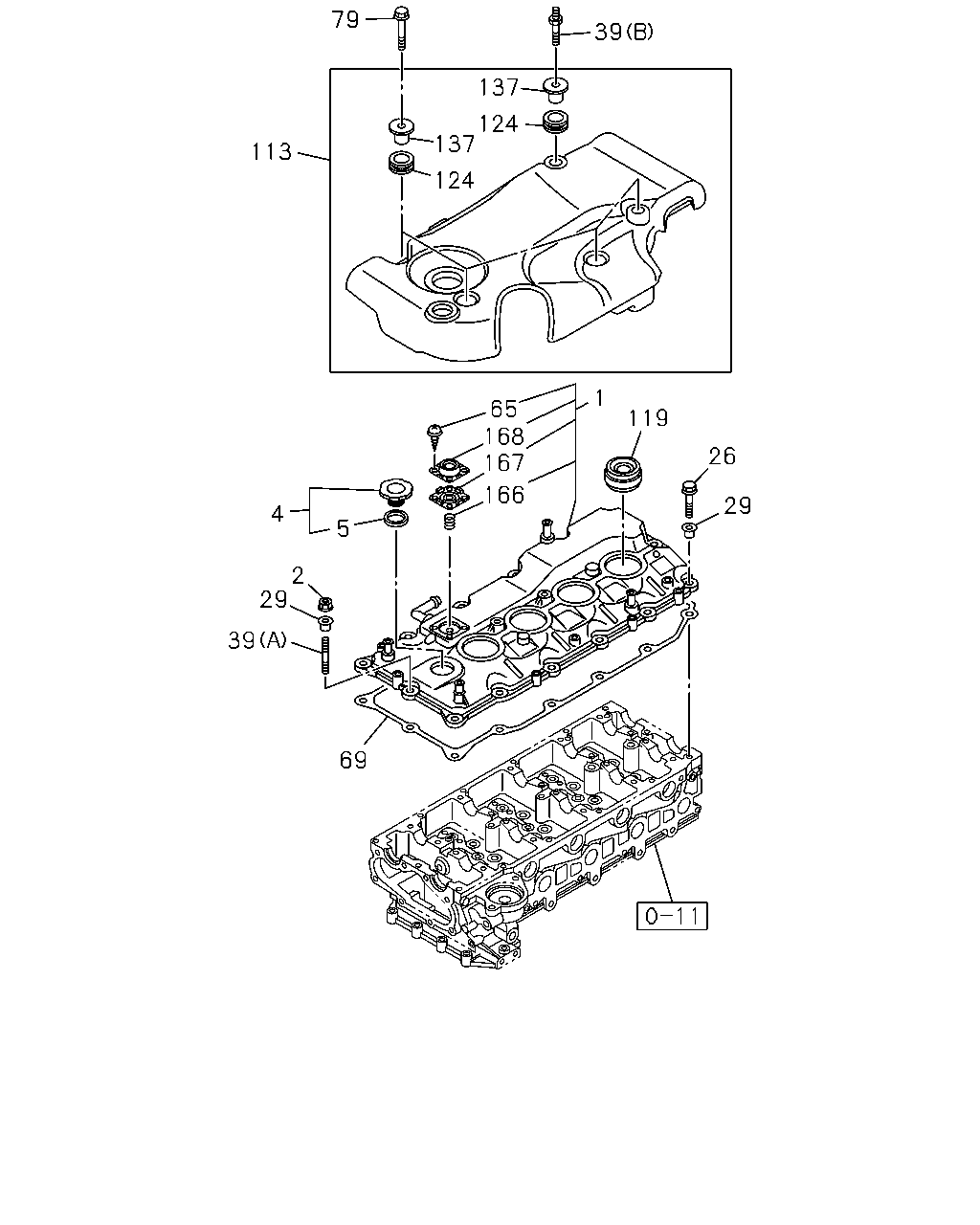

çizim 15059
79 39 137 124 137 113 124 1 65 168 167 119 26 166 29 4 5 2 29 39 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.386 COVER; CYL HD 8-98171-615-0 01 1 1012- ●
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 1012-1305 ●
1 00.386 COVER; CYL HD 8-98226-103-0 01 1 1306-1505 ●
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 1506- ●
2 00.413 NUT; COVER,HD
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
2 00.413 NUT; COVER,HD
01.540 M6 FLANGE 		0-91180-206-0 01 1 1012- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1012- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1012- ● ●
26 08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE 		0-28650-630-0 13 1 1012- ●
29 00.413 RUBBER; MTG,HD COVER 8-97381-524-0 14 1 1012-1408 ●
29 00.413 RUBBER; MTG,HD COVER
00.206 		8-97168-200-1 14 1 1409- ●
39 00.413 STUD; COVER,HD
03.403 (B) M8X11,M8X25 L=45 		8-97220-552-2 01 1 1012- ●
39 00.413 STUD; COVER,HD
(A) M6X30 L=38 		8-97372-795-0 01 1 1012- ●
65 00.413 SCREW; ADAPTER
M5X10 W/LK WASHER 		8-97366-592-0 04 1 1012- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97105-690-2 01 1 1012- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 1012- ●
79 00.293 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1012- ●
113 00.386 COVER; CYL HEAD COVER 8-98039-090-4 01 1 1012-1104 ●
113 00.386 COVER; CYL HEAD COVER 8-98158-904-1 01 1 1105- ●
119 00.386 COVER; SEAL,NOZZLE 8-98037-543-0 04 1 1012- ●
124 00.413 RUBBER; MTG,COVER 8-98036-119-0 05 1 1012- ●
137 00.413 BUSHING; MTG RUBBER,COVER 8-98036-120-0 05 1 1012- ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 1012- ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 1012-1305 ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98226-101-0 01 1 1306-1505 ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 1506- ●
168 00.283 COVER; VENTILATOR
00.269 		8-97365-992-0 01 1 1012- ●
