8-10 — WIRING HARNESS AND FUSE (#7920) — 224 parça

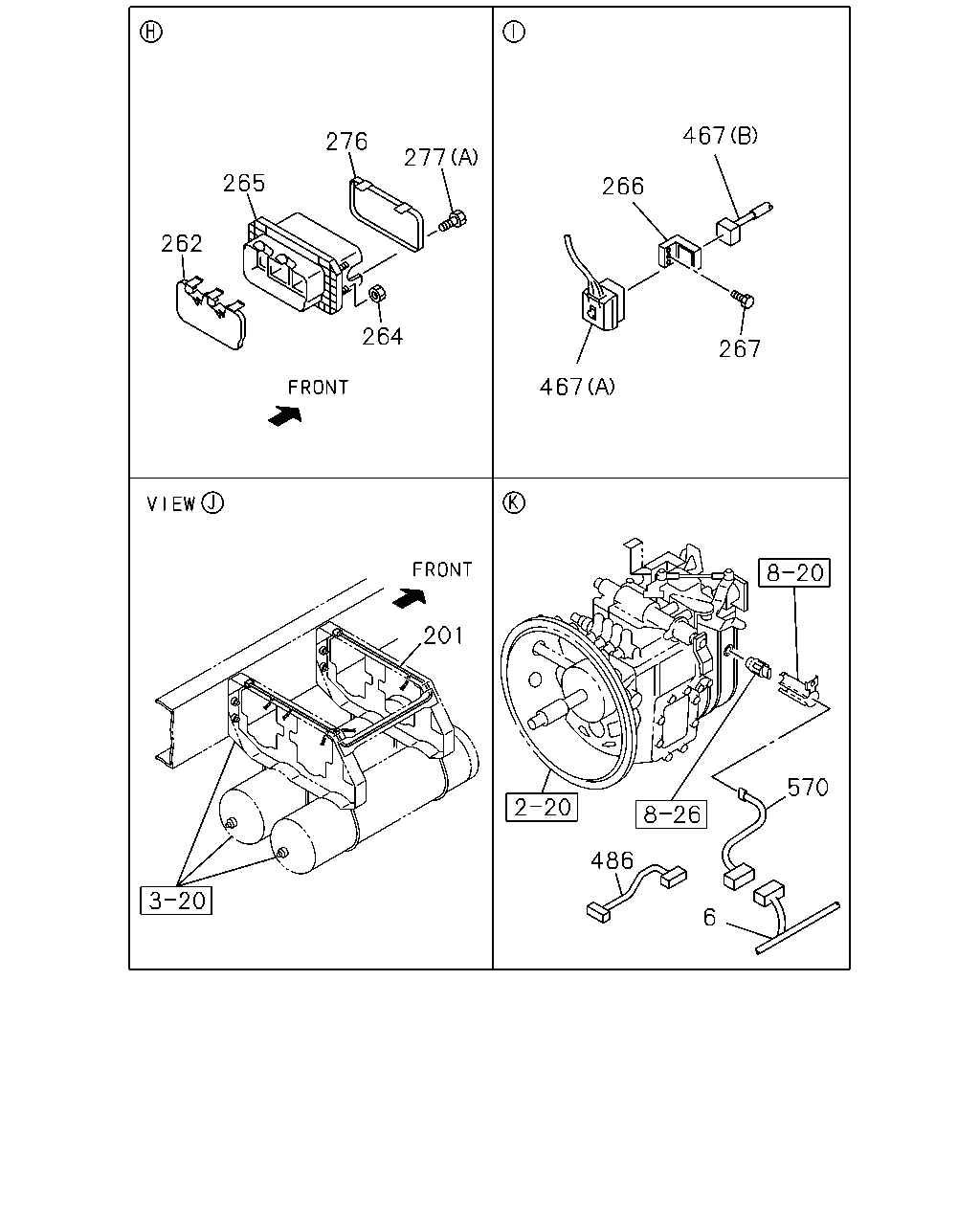

çizim 26703
467 276 277 265 266 262 264 267 467 201 570 486 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME 1-82675-885-1 01 1 0302-0401 ●
6 HARNESS; FRAME 1-82677-435-0 01 1 0402- ●
6 HARNESS; FRAME 1-82671-960-3 01 1 9905-0401 ●
6 HARNESS; FRAME 1-82677-432-0 01 1 0402- ●
6 HARNESS; FRAME
FIRE FIGHTING TRUCK(RA9) 		1-82671-962-3 01 1 9905-0401 ●
6 HARNESS; FRAME
FIRE FIGHTING TRUCK(RA9) 		1-82677-434-0 01 1 0402- ●
6 HARNESS; FRAME
EXC. FIRE FIGHTING TRUCK(RA9) 		1-82671-961-3 01 1 9905-0401 ●
6 HARNESS; FRAME
EXC. FIRE FIGHTING TRUCK(RA9) 		1-82677-433-0 01 1 0402- ●
201 HARNESS; AIR TANK 1-82672-312-1 01 1 9905- ●
201 HARNESS; AIR TANK 1-82672-313-1 01 1 9905-0301 ●
201 HARNESS; AIR TANK 1-82672-313-1 01 1 0302- ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 9905-0301 ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0302- ● ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9905-0301 ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0302- ● ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 9905-0301 ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0302- ● ● ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 9905-0301 ● ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0302- ● ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 9905-0301 ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0302- ● ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 9905-0301 ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0302- ● ● ●
277 BOLT; BOX ASM FIX
(B) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0302- ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9905-0301 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0302-0512 ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 9905- ● ●
467 HARNESS; FACIA
(B) 		1-82661-280-2 01 1 0302- ●
467 HARNESS; FACIA
(B) 		1-82628-255-1 01 1 9905-9908 ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82628-255-1 01 1 9905-9908 ●
467 HARNESS; FACIA
(B) 		1-82629-110-0 01 1 9909-0010 ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82629-110-0 01 1 9909-0010 ●
467 HARNESS; FACIA
(B) 		1-82660-014-2 01 1 0011- ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82660-014-2 01 1 0011- ●
467 HARNESS; FACIA
(A) 		1-82628-253-0 01 1 9905-9908 ● ●
467 HARNESS; FACIA
(A) 		1-82629-077-0 01 1 9909-0301 ● ●
467 HARNESS; FACIA
(A) 		1-82629-077-0 01 1 0302- ● ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82628-254-1 01 1 9905-9908 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-109-0 01 1 9909-0003 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-661-0 01 1 0004-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82660-013-2 01 1 0011- ●
486 HARNESS; ALL SPEED ACCEL
TRANS SIDE PTO WO/LVR(SH5) 		1-82672-655-0 01 1 9906-9907 ●
486 HARNESS; ALL SPEED ACCEL
TRANS FRT PTO(RC2) 		1-82672-655-0 01 1 9906-9907 ●
486 HARNESS; ALL SPEED ACCEL
TRANS SIDE PTO WO/LVR(SH5) 		1-82672-655-0 01 1 9908-0112 ● ●
486 HARNESS; ALL SPEED ACCEL
TRANS FRT PTO(RC2) 		1-82672-655-0 01 1 9908-0112 ●
486 HARNESS; ALL SPEED ACCEL
TRANS SIDE PTO WO/LVR(SH5) 		1-82675-898-0 01 1 0201-0301 ● ●
486 HARNESS; ALL SPEED ACCEL
TRANS FRT PTO(RC2) 		1-82675-898-0 01 1 0201-0301 ●
486 HARNESS; ALL SPEED ACCEL
TRANS SIDE PTO WO/LVR(SH5) 		1-82675-898-0 01 1 0302- ● ●
486 HARNESS; ALL SPEED ACCEL
TRANS FRT PTO(RC2) 		1-82675-898-0 01 1 0302- ●
486 HARNESS; ALL SPEED ACCEL 1-82675-898-0 01 1 0302- ●
570 HARNESS; SPEED SENSOR 1-82670-012-0 01 1 9905-0301 ●
570 HARNESS; SPEED SENSOR
MLD6Q M/T(X5J) 		1-82670-012-0 01 1 9905-0301 ●
570 HARNESS; SPEED SENSOR
MLD6Q M/T(X5J) 		1-82670-012-0 01 1 0302-0401 ● ● ●
570 HARNESS; SPEED SENSOR
MBJ5T M/T(Y2K) 		1-82670-078-0 01 1 9905-0401 ●

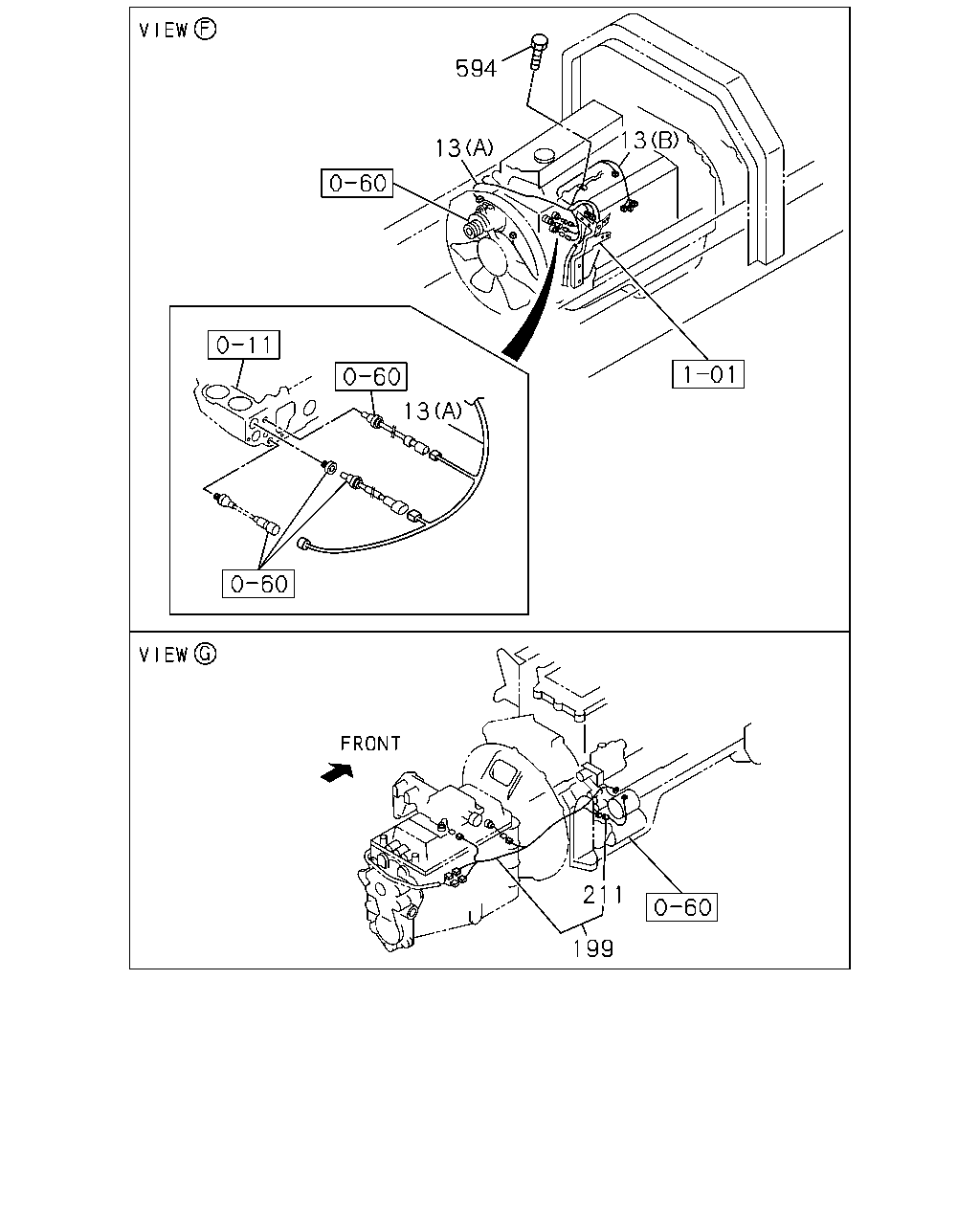

çizim 26951
594 13 13 13 211 199
BalonParca AdiParca NoAdetTipApplied Date A B C
13 HARNESS; ENG
(A) 		1-82641-019-2 01 1 9905-0301 ● ●
13 HARNESS; ENG
(A) 		1-82641-019-2 01 1 0302- ● ● ●
13 HARNESS; ENG
FIRE FIGHTING TRUCK(RA9) (B) 		1-82641-057-4 01 1 9905- ●
13 HARNESS; ENG
(B) 		1-82640-950-5 01 1 9905-0301 ●
13 HARNESS; ENG
EXC. FIRE FIGHTING TRUCK(RA9) (B) 		1-82640-950-5 01 1 9905-0301 ●
13 HARNESS; ENG
(B) 		1-82640-950-7 01 1 0302- ● ●
13 HARNESS; ENG
EXC. FIRE FIGHTING TRUCK(RA9) (B) 		1-82640-950-7 01 1 0302- ●
199 HARNESS; STARTER 1-82641-044-0 01 1 9905-0301 ●
199 HARNESS; STARTER
MLD6Q M/T(X5J) 		1-82641-044-0 01 1 9905-0301 ●
199 HARNESS; STARTER
MLD6Q M/T(X5J) 		1-82641-044-1 01 1 0302- ● ● ●
199 HARNESS; STARTER
MBJ5T M/T(Y2K) TRANS FRT PTO(RC2) 		1-82641-045-1 01 1 9905- ●
199 HARNESS; STARTER
MBJ5T M/T(Y2K) EXC. TRANS FRT PTO(RC2) 		1-82640-667-2 01 1 9905- ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 9905-0301 ● ●
211 WIRE; FUSIBLE LINK,STARTER
MLD6Q M/T(X5J) WHITE 		1-82659-124-0 01 1 0302- ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0302- ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 9905-0301 ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0302-0604 ● ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0605- ● ● ●

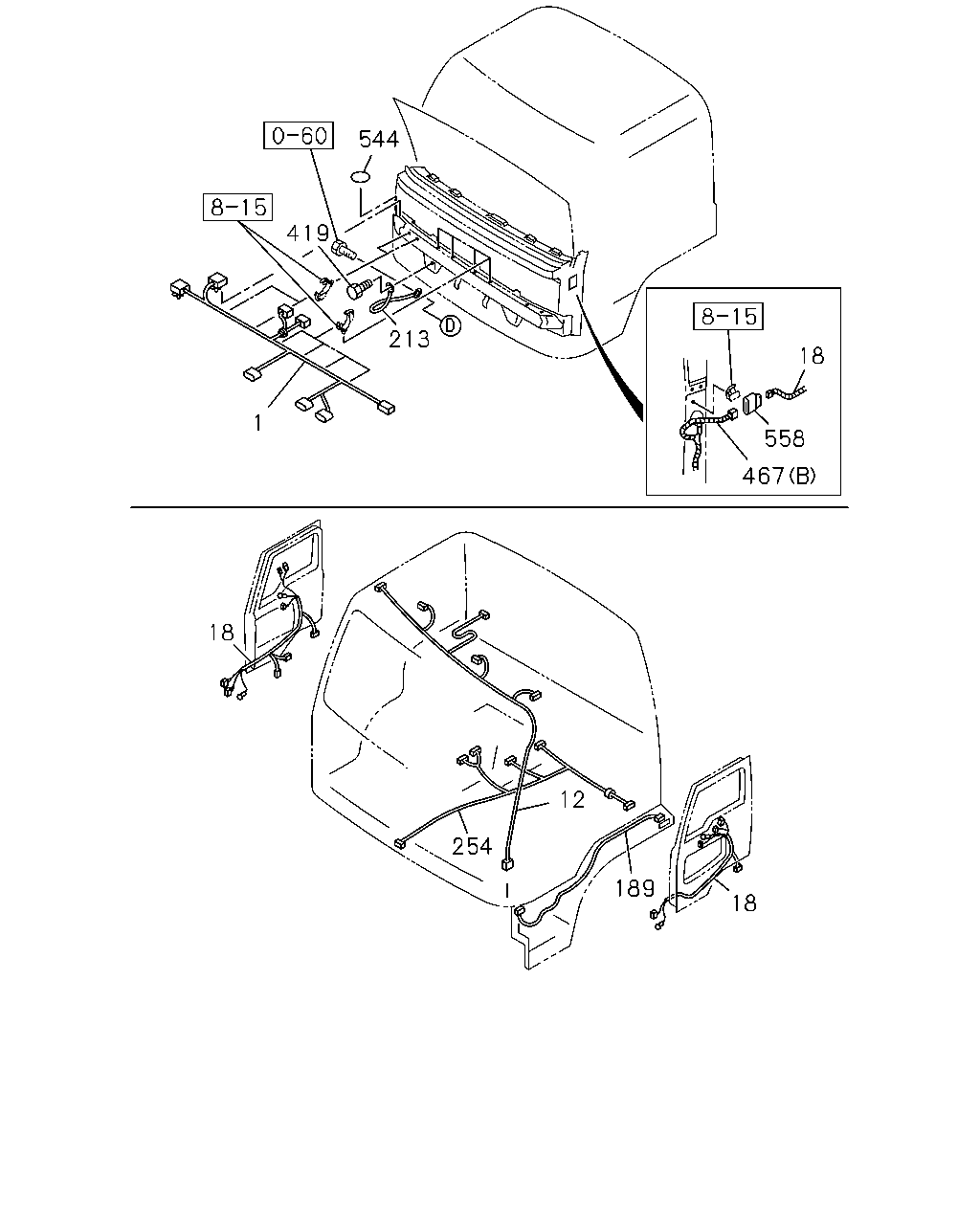

çizim 27066
544 419 213 18 1 558 467 18 12 254 189 18
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB 1-82628-262-1 01 1 9905- ●
1 HARNESS; CAB
EXC. POWER WINDOW<A30> 		1-82628-262-1 01 1 9905- ●
1 HARNESS; CAB
POWER WINDOW<A30> 		1-82628-256-1 01 1 9905-0301 ●
1 HARNESS; CAB
POWER WINDOW<A30> 		1-82628-256-1 01 1 0302- ●
1 HARNESS; CAB 1-82628-256-1 01 1 0302- ●
12 HARNESS; ROOF 1-82625-713-3 01 1 9905-0301 ●
12 HARNESS; ROOF
LOW ROOF<6XQ> 		1-82625-713-3 01 1 9905-0301 ●
12 HARNESS; ROOF 1-82625-713-4 01 1 0302- ● ●
12 HARNESS; ROOF
LOW ROOF<6XQ> 		1-82625-713-4 01 1 0302- ●
12 HARNESS; ROOF
HIGH ROOF<S2F> 		1-82625-714-6 01 1 9905- ●
18 HARNESS; DOOR 1-82628-581-0 02 1 9905- ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-583-0 01 1 9905-0301 ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-583-0 01 1 0302- ●
18 HARNESS; DOOR 1-82628-583-0 01 1 0302- ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-585-0 01 1 9905-0301 ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-585-0 01 1 0302- ●
18 HARNESS; DOOR 1-82628-585-0 01 1 0302- ●
189 HARNESS; EXT 1-82625-673-2 02 1 9905-0301 ●
189 HARNESS; EXT 1-82625-673-2 02 1 0302- ● ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 9905-0301 ● ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 0302- ● ● ●
254 HARNESS; CAB FLOOR 1-82628-388-0 01 1 9905-0301 ● ●
254 HARNESS; CAB FLOOR 1-82628-388-1 01 1 0302- ● ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9905-0301 ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0302- ● ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9908-0004 ● ●
467 HARNESS; FACIA
(B) 		1-82661-280-2 01 1 0302- ●
467 HARNESS; FACIA
(B) 		1-82628-255-1 01 1 9905-9908 ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82628-255-1 01 1 9905-9908 ●
467 HARNESS; FACIA
(B) 		1-82629-110-0 01 1 9909-0010 ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82629-110-0 01 1 9909-0010 ●
467 HARNESS; FACIA
(B) 		1-82660-014-2 01 1 0011- ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82660-014-2 01 1 0011- ●
467 HARNESS; FACIA
(A) 		1-82628-253-0 01 1 9905-9908 ● ●
467 HARNESS; FACIA
(A) 		1-82629-077-0 01 1 9909-0301 ● ●
467 HARNESS; FACIA
(A) 		1-82629-077-0 01 1 0302- ● ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82628-254-1 01 1 9905-9908 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-109-0 01 1 9909-0003 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-661-0 01 1 0004-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82660-013-2 01 1 0011- ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9905-0301 ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 0302- ● ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 9905- ●
558 CONNECTOR; HARNESS
EXC. POWER WINDOW<A30> 		1-82690-666-0 02 1 9905- ●
çizim 99535
10 27 27 41 5 4 467 5 4 62 62 467 431
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOX ASM; FUSE,HARNESS
(B) 15AX13 		1-82510-475-0 01 1 9905-0301 ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX13 		1-82510-475-0 01 1 0302- ● ● ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-486-0 01 1 9905-0301 ● ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-486-0 01 1 0302- ● ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 13 1 9905-0301 ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 13 1 0302- ● ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 14 1 9905-0301 ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 14 1 0302- ● ● ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 9905-0301 ● ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0302- ● ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 9905-0301 ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0302- ● ● ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 9905-0301 ● ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 0302- ● ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9905-0301 ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0302- ● ● ●
62 DIODE; HARNESS
(B) BLACK 10P 		1-82699-703-0 02 1 9905-0301 ● ●
62 DIODE; HARNESS
(B) BLACK 10P 		1-82699-703-0 02 1 0302- ● ● ●
62 DIODE; HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 01 1 9905-9908 ● ●
62 DIODE; HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 03 1 9909-0301 ● ●
62 DIODE; HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 03 1 0302- ● ● ●
431 CONNECTOR; JOINT
BROWN 10P 		1-82699-601-0 01 1 0302- ● ● ●
467 HARNESS; FACIA
(B) 		1-82661-280-2 01 1 0302- ●
467 HARNESS; FACIA
(B) 		1-82628-255-1 01 1 9905-9908 ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82628-255-1 01 1 9905-9908 ●
467 HARNESS; FACIA
(B) 		1-82629-110-0 01 1 9909-0010 ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82629-110-0 01 1 9909-0010 ●
467 HARNESS; FACIA
(B) 		1-82660-014-2 01 1 0011- ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82660-014-2 01 1 0011- ●
467 HARNESS; FACIA
(A) 		1-82628-253-0 01 1 9905-9908 ● ●
467 HARNESS; FACIA
(A) 		1-82629-077-0 01 1 9909-0301 ● ●
467 HARNESS; FACIA
(A) 		1-82629-077-0 01 1 0302- ● ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82628-254-1 01 1 9905-9908 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-109-0 01 1 9909-0003 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-661-0 01 1 0004-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82660-013-2 01 1 0011- ●
çizim 99537
307 277 277 307 280 280
BalonParca AdiParca NoAdetTipApplied Date A B C
277 BOLT; BOX ASM FIX
(B) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0302- ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9905-0301 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0302-0512 ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 9905- ● ●
280 NUT; BOX ASM FIX
M8 		9-09110-408-0 02 1 9905-0301 ● ●
280 NUT; BOX ASM FIX
M8 		9-09110-408-0 02 1 0302-0512 ● ● ●
280 NUT; BOX ASM FIX
M8 		0-91110-508-0 02 1 0601- ● ● ●
307 BOX; ENG HARNESS
(A) 		1-82698-119-0 01 1 0302- ●
307 BOX; ENG HARNESS
(A) 		1-82698-070-1 01 1 9905- ● ●
307 BOX; ENG HARNESS
(B) 		1-82698-138-0 01 1 9905-0301 ● ●
307 BOX; ENG HARNESS
(B) 		1-82698-138-0 01 1 0302- ● ● ●

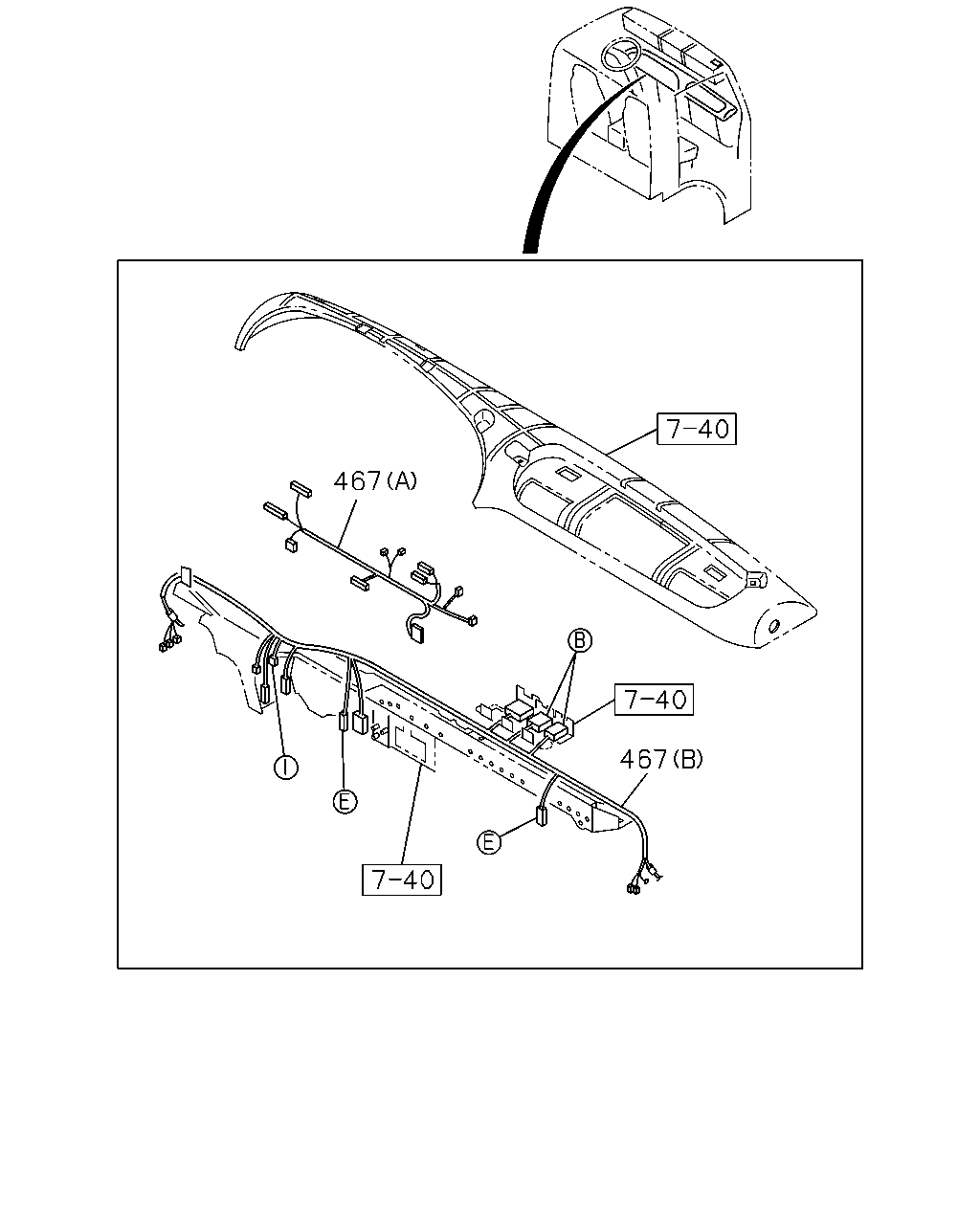

çizim 99597
467 467
BalonParca AdiParca NoAdetTipApplied Date A B C
467 HARNESS; FACIA
(B) 		1-82661-280-2 01 1 0302- ●
467 HARNESS; FACIA
(B) 		1-82628-255-1 01 1 9905-9908 ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82628-255-1 01 1 9905-9908 ●
467 HARNESS; FACIA
(B) 		1-82629-110-0 01 1 9909-0010 ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82629-110-0 01 1 9909-0010 ●
467 HARNESS; FACIA
(B) 		1-82660-014-2 01 1 0011- ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82660-014-2 01 1 0011- ●
467 HARNESS; FACIA
(A) 		1-82628-253-0 01 1 9905-9908 ● ●
467 HARNESS; FACIA
(A) 		1-82629-077-0 01 1 9909-0301 ● ●
467 HARNESS; FACIA
(A) 		1-82629-077-0 01 1 0302- ● ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82628-254-1 01 1 9905-9908 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-109-0 01 1 9909-0003 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-661-0 01 1 0004-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82660-013-2 01 1 0011- ●

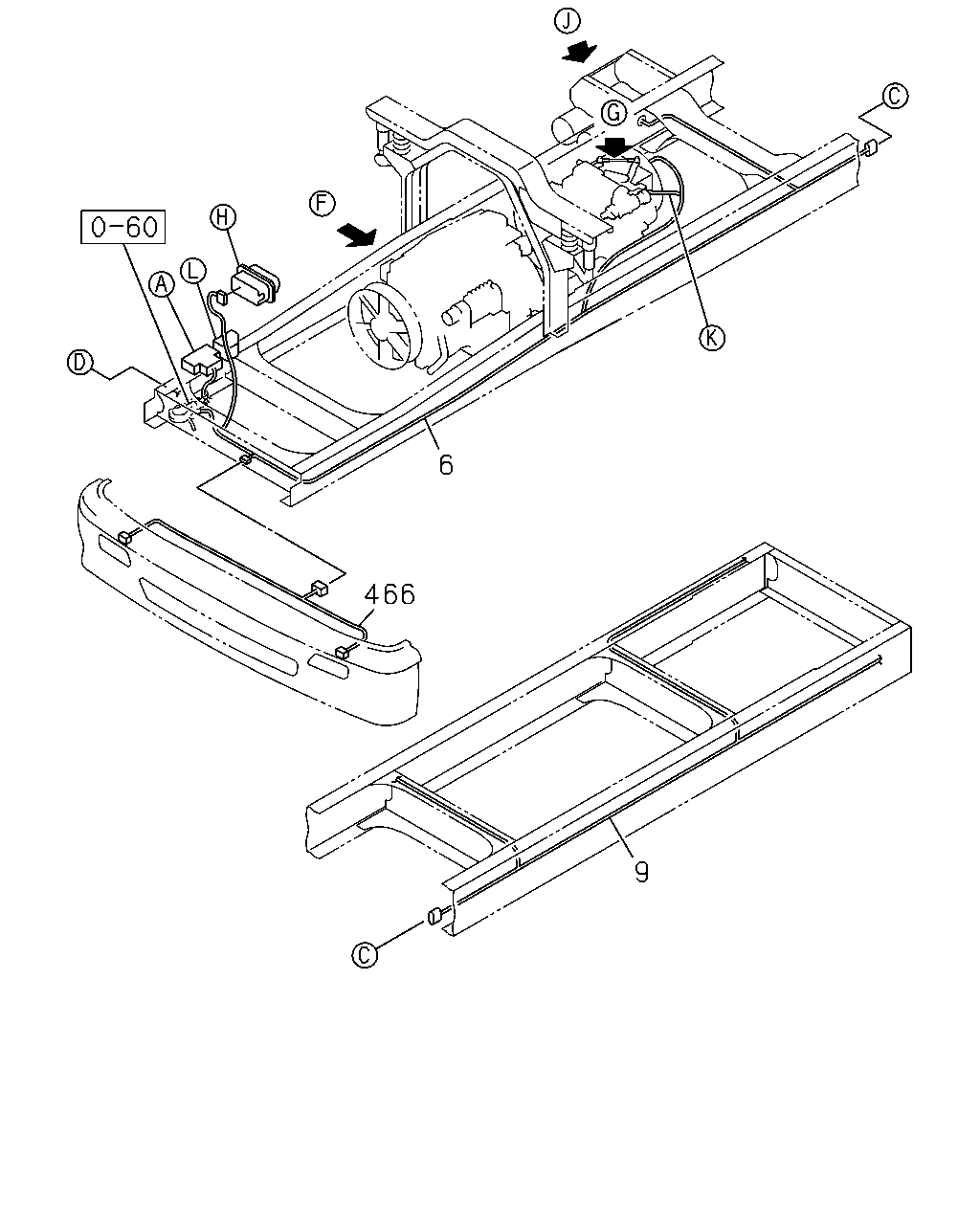

çizim 99599
6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME 1-82675-885-1 01 1 0302-0401 ●
6 HARNESS; FRAME 1-82677-435-0 01 1 0402- ●
6 HARNESS; FRAME 1-82671-960-3 01 1 9905-0401 ●
6 HARNESS; FRAME 1-82677-432-0 01 1 0402- ●
6 HARNESS; FRAME
FIRE FIGHTING TRUCK(RA9) 		1-82671-962-3 01 1 9905-0401 ●
6 HARNESS; FRAME
FIRE FIGHTING TRUCK(RA9) 		1-82677-434-0 01 1 0402- ●
6 HARNESS; FRAME
EXC. FIRE FIGHTING TRUCK(RA9) 		1-82671-961-3 01 1 9905-0401 ●
6 HARNESS; FRAME
EXC. FIRE FIGHTING TRUCK(RA9) 		1-82677-433-0 01 1 0402- ●
9 HARNESS; FRAME,RR 1-82675-883-0 01 1 0302-0304 ●
9 HARNESS; FRAME,RR 1-82677-247-0 01 1 0305- ●
9 HARNESS; FRAME,RR 1-82639-023-0 01 1 9905- ●
9 HARNESS; FRAME,RR
WB 4200MM(42W) 		1-82639-024-0 01 1 9905- ●
9 HARNESS; FRAME,RR
WB 4800MM(48W) 		1-82639-025-0 01 1 9905- ●
9 HARNESS; FRAME,RR
WB 5500MM(55W) 		1-82639-026-0 01 1 9905- ●
466 HARNESS; BUMPER
PTO CONT AIR LINK TYPE<SEC> 		1-82675-032-0 01 1 0109- ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 9905-0108 ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0109-0301 ●
466 HARNESS; BUMPER
EXC. PTO CONT AIR LINK TYPE<SEC> 		1-82638-758-1 01 1 0109-0301 ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0302- ● ●
466 HARNESS; BUMPER
EXC. PTO CONT AIR LINK TYPE<SEC> 		1-82638-758-1 01 1 0302- ●

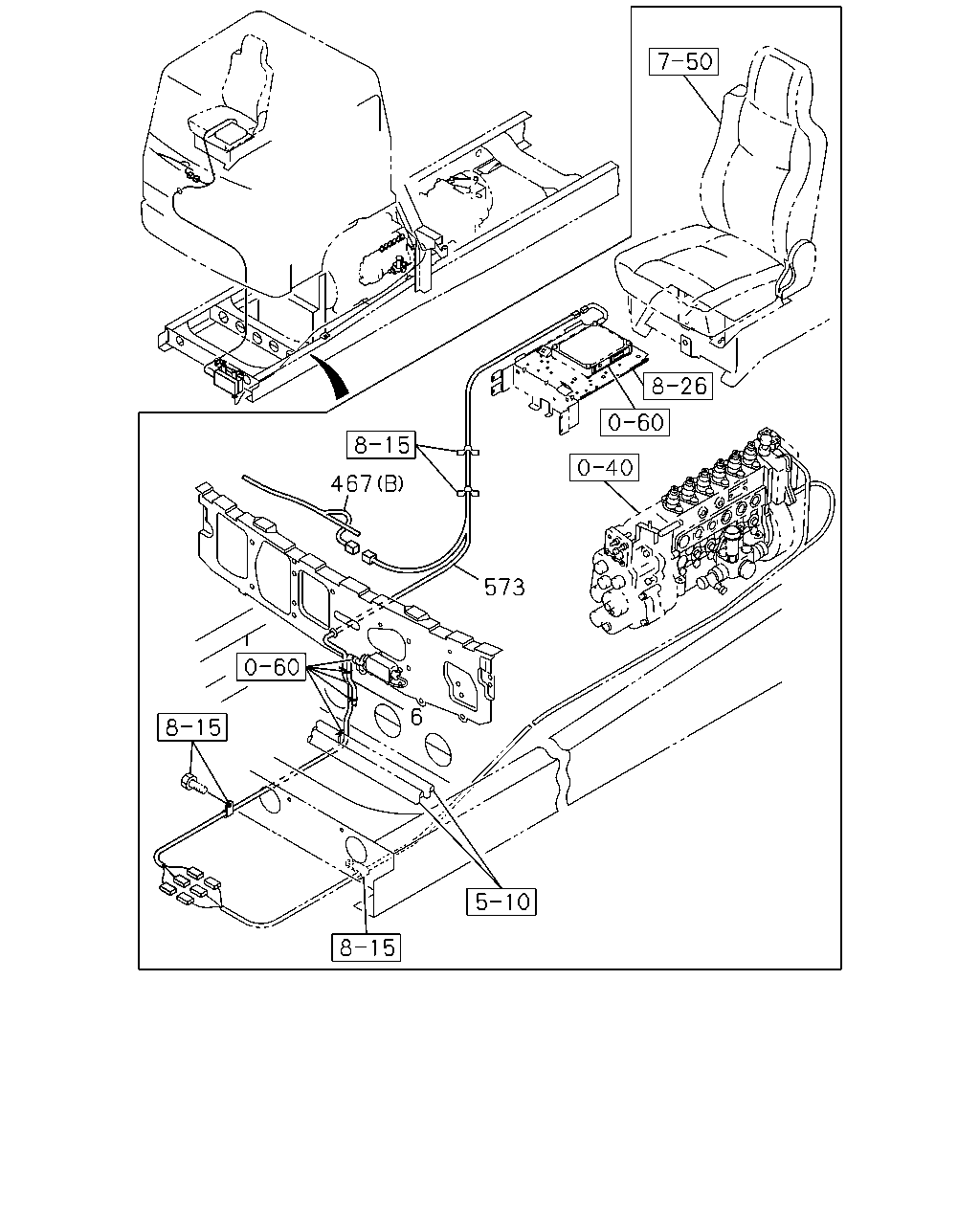

çizim 99602
467 573 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME 1-82675-885-1 01 1 0302-0401 ●
6 HARNESS; FRAME 1-82677-435-0 01 1 0402- ●
6 HARNESS; FRAME 1-82671-960-3 01 1 9905-0401 ●
6 HARNESS; FRAME 1-82677-432-0 01 1 0402- ●
6 HARNESS; FRAME
FIRE FIGHTING TRUCK(RA9) 		1-82671-962-3 01 1 9905-0401 ●
6 HARNESS; FRAME
FIRE FIGHTING TRUCK(RA9) 		1-82677-434-0 01 1 0402- ●
6 HARNESS; FRAME
EXC. FIRE FIGHTING TRUCK(RA9) 		1-82671-961-3 01 1 9905-0401 ●
6 HARNESS; FRAME
EXC. FIRE FIGHTING TRUCK(RA9) 		1-82677-433-0 01 1 0402- ●
467 HARNESS; FACIA
(B) 		1-82661-280-2 01 1 0302- ●
467 HARNESS; FACIA
(B) 		1-82628-255-1 01 1 9905-9908 ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82628-255-1 01 1 9905-9908 ●
467 HARNESS; FACIA
(B) 		1-82629-110-0 01 1 9909-0010 ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82629-110-0 01 1 9909-0010 ●
467 HARNESS; FACIA
(B) 		1-82660-014-2 01 1 0011- ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82660-014-2 01 1 0011- ●
467 HARNESS; FACIA
(A) 		1-82628-253-0 01 1 9905-9908 ● ●
467 HARNESS; FACIA
(A) 		1-82629-077-0 01 1 9909-0301 ● ●
467 HARNESS; FACIA
(A) 		1-82629-077-0 01 1 0302- ● ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82628-254-1 01 1 9905-9908 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-109-0 01 1 9909-0003 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-661-0 01 1 0004-0010 ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82660-013-2 01 1 0011- ●
573 HARNESS; CONTROL UNIT 1-82628-257-2 01 1 9905-0010 ● ●
573 HARNESS; CONTROL UNIT 1-82660-015-0 01 1 0011-0301 ● ●
573 HARNESS; CONTROL UNIT 1-82660-015-1 01 1 0302- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
