9-01 — TOOLS (#79195) — 81 parça

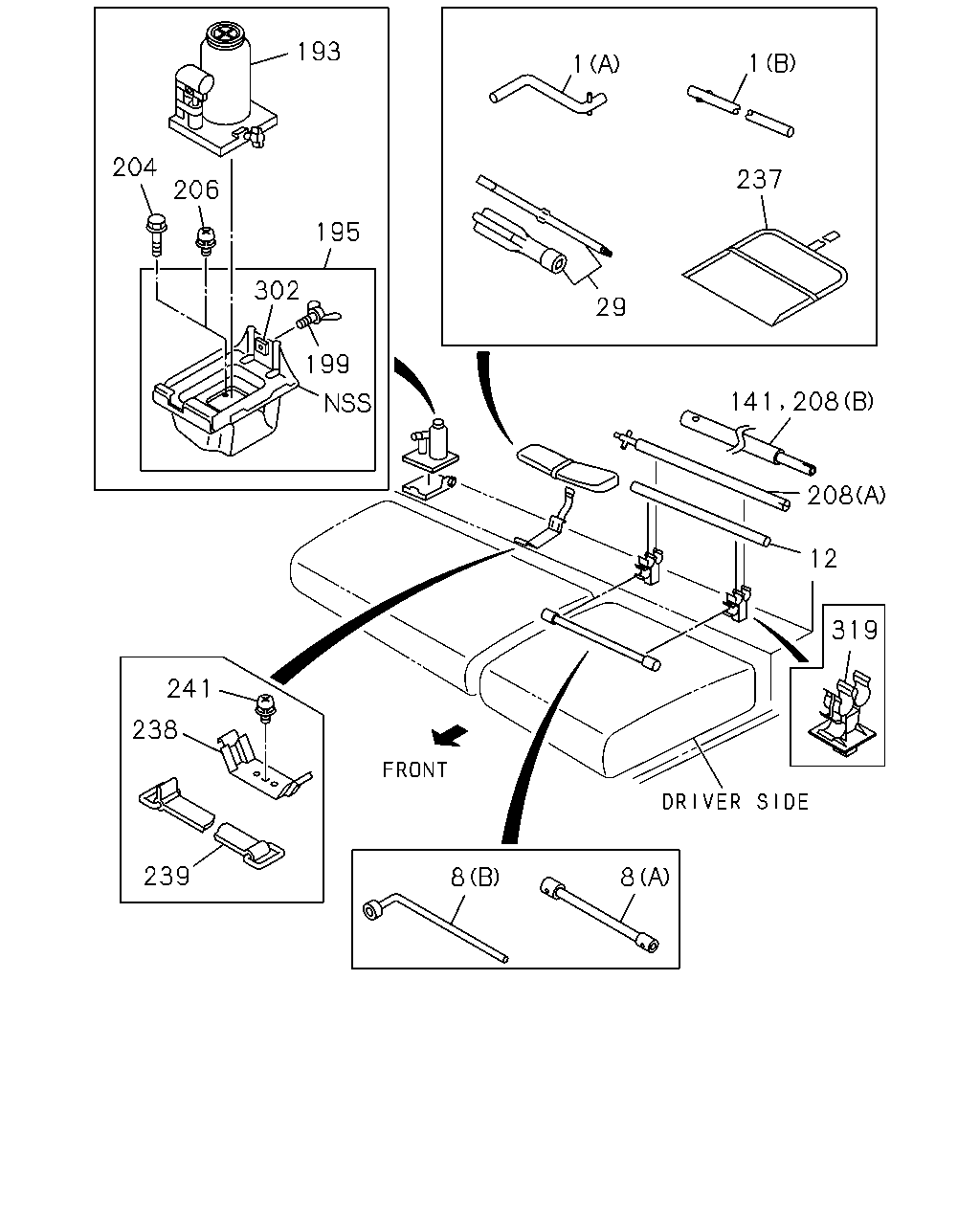

çizim 14495
193 1 1 204 237 206 195 302 29 199 208 12 319 241 238 239 8 8 141 208
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) (A) 		8-97218-985-0 01 1 1012- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 1012- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1012- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 08.821 (B) L=280 		1-85515-007-0 01 1 1012-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280 		1-85515-007-0 01 1 1012-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1012-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 1012-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1109- ●
8 08.821 WRENCH; WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (A) B=35X17 L=300 		8-94341-283-1 01 1 1101- ●
8 08.821 WRENCH; WHEEL
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) (A) B=41X19 L=330 		8-94386-490-1 01 1 1012- ●
8 08.821 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 1012- ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DI SC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 6.5R-15-10DISC 5.50FX15-30(CVY),FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13-98(22V) (B) B=23 L=300 		9-85113-935-0 01 1 1012-1012 ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 1012-1012 ●
8 08.821 WRENCH; WHEEL
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15- 25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) B=23 L=300 		9-85113-935-0 01 1 1101-1101 ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 1101-1101 ●
8 08.821 WRENCH; WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) B=23 L=300 		9-85113-935-0 01 1 1101- ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 1101- ●
8 08.821 WRENCH; WHEEL
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP),FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13-98(22V) (A) B=35X17 L=300 		8-94341-283-1 01 1 1012-1012 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1012-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1012-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1012- ● ● ● ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		1-85515-005-1 01 1 1012-1108 ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		8-98181-249-0 01 1 1109- ●
193 08.820 JACK ASM
SUSPENSION - RR UNDER SLUNG<V4U> 4TON 		8-98090-823-0 01 1 1012-1111 ●
193 08.820 JACK ASM
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 4TON 		8-98090-823-0 01 1 1112-1311 ●
193 08.820 JACK ASM
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 4TON 		8-98239-828-0 01 1 1312- ●
193 08.820 JACK ASM
SINGLE RR TIRE(6TD) 5TON 		8-98114-047-0 01 1 1012-1111 ●
193 08.820 JACK ASM
5TON 		8-98114-047-0 01 1 1012-1111 ●
193 08.820 JACK ASM
SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 5TON 		8-98114-047-0 01 1 1112- ●
193 08.820 JACK ASM
5TON 		8-98114-047-0 01 1 1112- ●
193 08.820 JACK ASM
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 4TON 		8-98012-285-0 01 1 1012- ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 1012- ● ●
195 08.820 BRACKET; JACK
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) 		8-97589-376-2 01 1 1012- ●
195 08.820 BRACKET; JACK
SINGLE RR TIRE(6TD) 		8-97589-376-2 01 1 1012- ●
195 08.820 BRACKET; JACK
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-98033-737-2 01 1 1012- ●
195 08.820 BRACKET; JACK 8-98033-737-2 01 1 1012- ●
195 08.820 BRACKET; JACK 8-94273-287-7 01 1 1012- ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 1012- ●
199 08.820 BOLT; JACK
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SINGLE RR TIRE(6TD) M8X30 WING 		8-98005-536-0 01 1 1012- ●
199 08.820 BOLT; JACK
SINGLE RR TIRE(6TD) M8X30 WING 		8-98005-536-0 01 1 1012- ●
199 08.820 BOLT; JACK
EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) M8X50 WING 		8-98005-537-0 01 1 1012- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 1012- ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1012- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 1012- ●
204 08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 1012- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-97217-800-0 01 1 1012-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-97217-800-0 01 1 1012-1108 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 1012-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=580 		1-85515-005-1 01 1 1012-1108 ●
208 08.820 HANDLE; JACK
SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 1012-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 1012-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1109- ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1012- ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1012- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1012- ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1012- ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1012- ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 1012- ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1012- ● ● ● ●

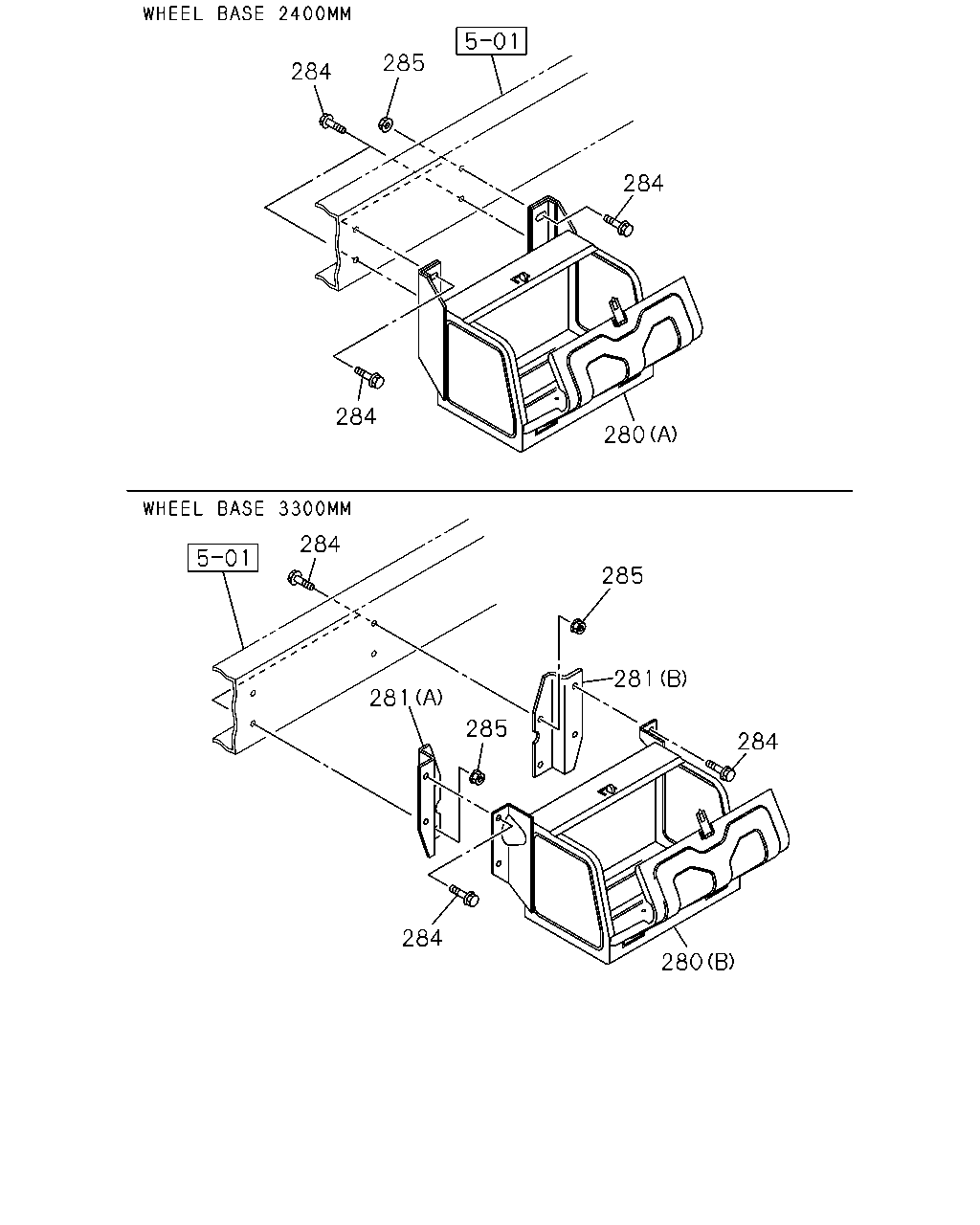

çizim 14604
285 284 284 284 280 284 285 281 281 285 284 284 280
BalonParca AdiParca NoAdetTipApplied Date A B C D
280 08.821 BOX; TOOL
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> (A) 		8-98054-885-0 01 1 1012- ● ●
280 08.821 BOX; TOOL
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-97384-079-0 01 1 1012- ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1012- ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1012- ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1012- ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1012- ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1012- ● ●
çizim 190918
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C D
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1012- ● ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1012- ● ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1012- ● ●
