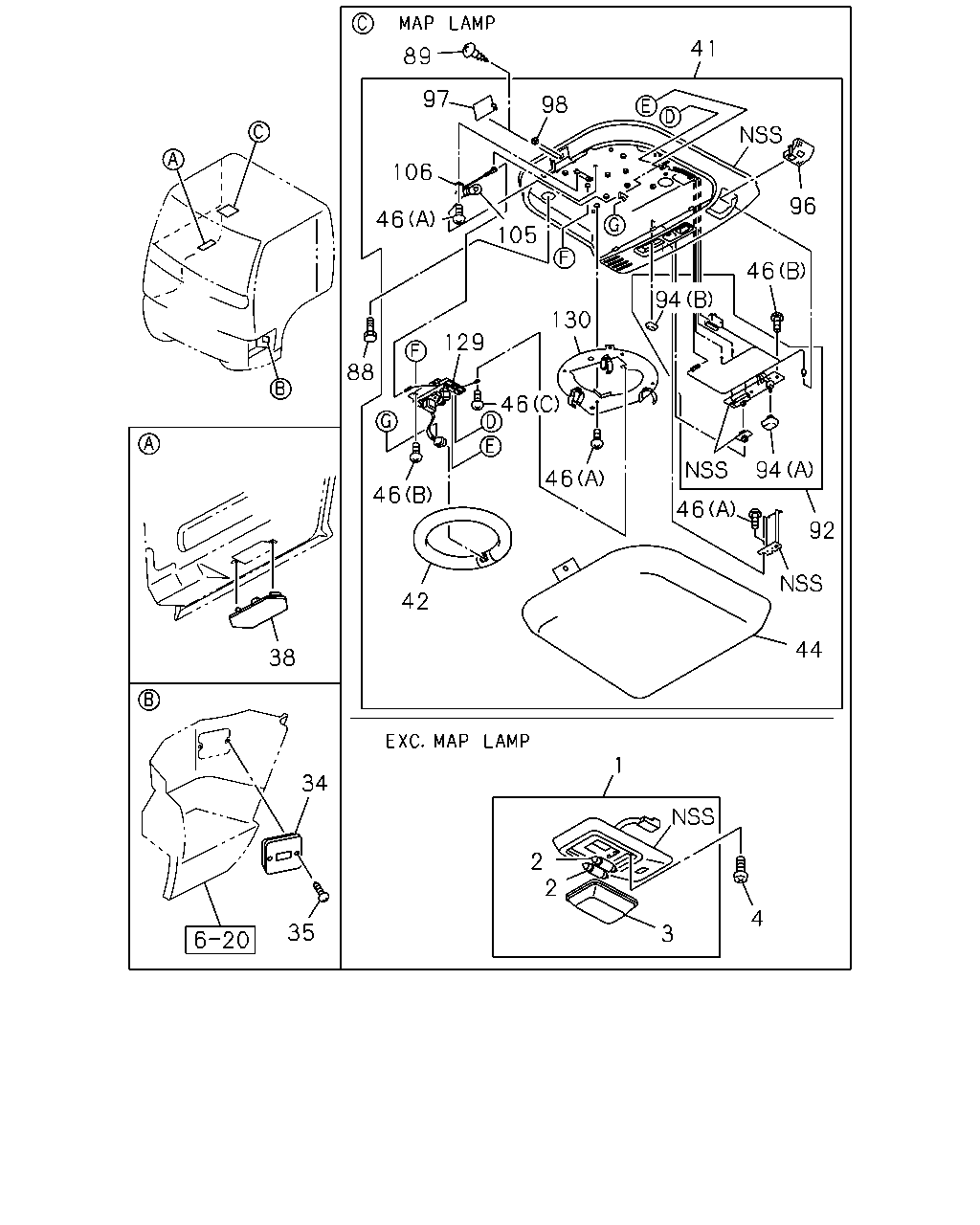

8-05 — INTERIOR LAMP (#7919) — 44 parça

41 89 97 98 106 96 46 105 46 94 130 129 88 46 94 46 46 46 92 42 44 38 1 34 2 2 4 35 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; ROOM	1-82140-050-1	01	1	9905-0301	●
1	LAMP ASM; ROOM EXC. MAP LAMP<C85>	1-82140-050-1	01	1	9905-0301		●
1	LAMP ASM; ROOM	1-82140-050-1	01	1	0302-	●		●
1	LAMP ASM; ROOM EXC. MAP LAMP<C85>	1-82140-050-1	01	1	0302-		●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9905-0301	●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W	1-82195-001-0	02	1	9905-0301		●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	0302-	●		●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W	1-82195-001-0	02	1	0302-		●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	9905-0301	●
3	LENS; ROOM LAMP EXC. MAP LAMP<C85>	1-82145-020-0	01	1	9905-0301		●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	0302-	●		●
3	LENS; ROOM LAMP EXC. MAP LAMP<C85>	1-82145-020-0	01	1	0302-		●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9905-0301	●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	9-07066-520-0	03	1	9905-0301		●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	0302-0603	●		●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	9-07066-520-0	03	1	0302-0603		●
4	SCREW; ROOM LAMP M5X20 TAPPING	0-71040-520-0	03	1	0604-	●		●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	0-71040-520-0	03	1	0604-		●
34	COVER; STEP LAMP	1-79998-925-0	02	1	9905-0301	●	●
34	COVER; STEP LAMP	1-79998-925-0	02	1	0302-	●	●	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	9905-0301	●	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	0302-0604	●	●	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74360-420-0	04	1	0605-	●	●	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	9905-0301	●	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	0302-	●	●	●
41	LAMP ASM; FLUORESCENT MAP LAMP<C85>	1-86830-315-2	01	1	9905-		●
42	LAMP; FLUORESCENT MAP LAMP<C85>	1-86830-094-1	01	1	9905-		●
44	LENS; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-092-0	01	1	9905-		●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (A) M5X10 TAPPING	1-86830-095-0	08	1	9905-		●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (B) M4X12	1-86830-202-0	07	1	9905-		●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (C) M3X6 TAPPING	1-86830-336-0	01	1	9905-		●
88	BOLT; LAMP MAP LAMP<C85> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9905-		●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	9-07076-510-0	01	1	9905-0603		●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	0-71240-510-0	01	1	0604-		●
92	SWITCH ASM; FLUORESCENT MAP LAMP<C85>	1-86830-341-0	01	1	9905-		●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (A)	1-86830-312-0	01	1	9905-		●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (B)	1-86830-313-0	01	1	9905-		●
96	CAP; SPOT LAMP MAP LAMP<C85>	1-86830-337-0	01	1	9905-		●
97	CAP; LENS FIX MAP LAMP<C85>	1-86830-311-0	01	1	9905-		●
98	GROMMET; SCREW,LENS FIX MAP LAMP<C85>	1-86830-102-0	01	1	9905-		●
105	BULB; FLUORESCENT LAMP MAP LAMP<C85> 28V 20W	1-86830-200-0	01	1	9905-		●
106	SOCKET; BULB MAP LAMP<C85>	1-86830-201-0	01	1	9905-		●
129	INVERTER ASM; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-338-0	01	1	9905-		●
130	PLATE ASM; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-339-0	01	1	9905-		●
