Isuzu WW
▶
TRUCKS
▶
NLR
▶
51282 - NLR/NMR 55,85(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#79181) — 59 parça
Tümü
A - NMR6SE
B - NMR6SN
C - NMR6WE
D - NMR6WN
◀

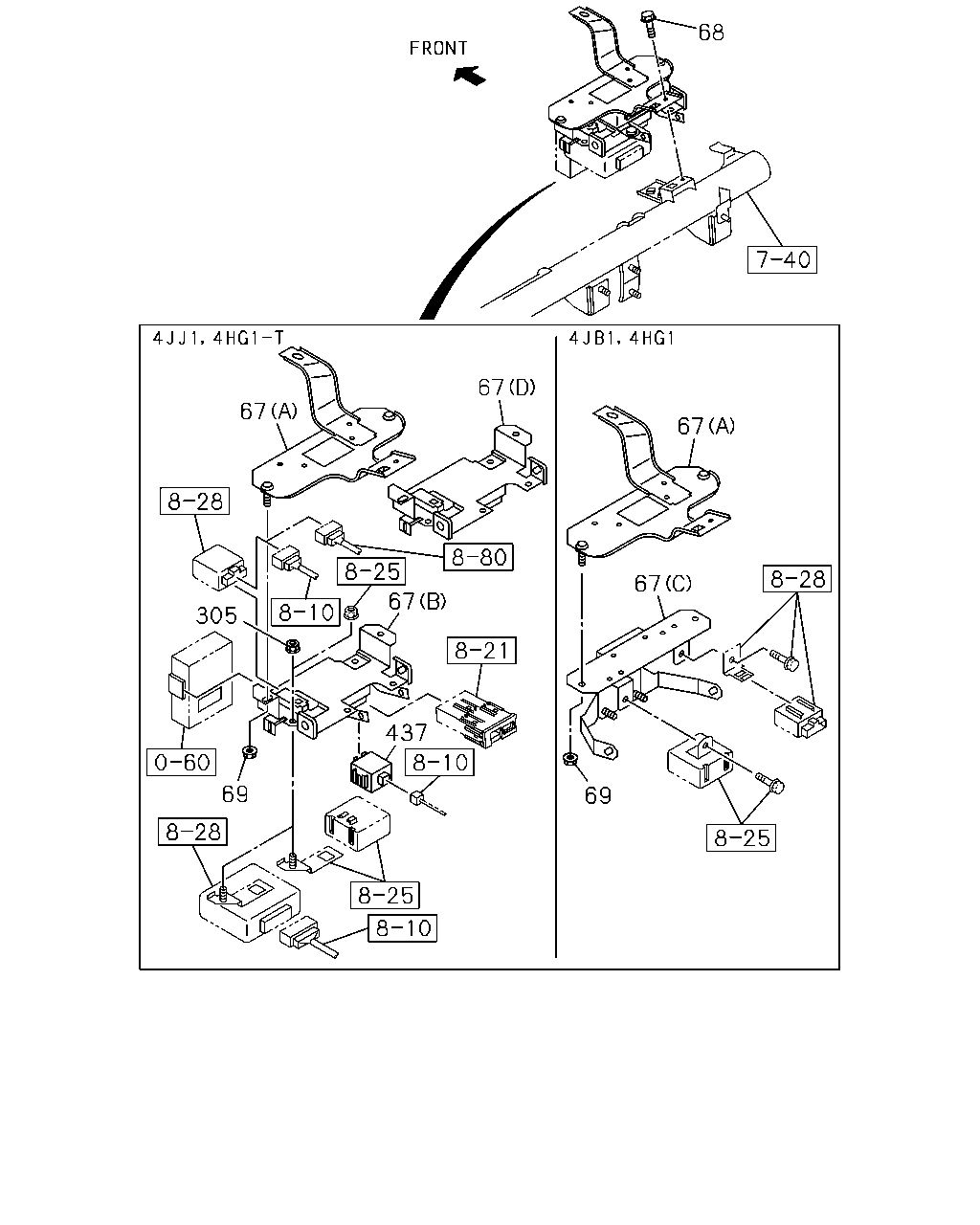

[826A] NO.1 (24 parça)

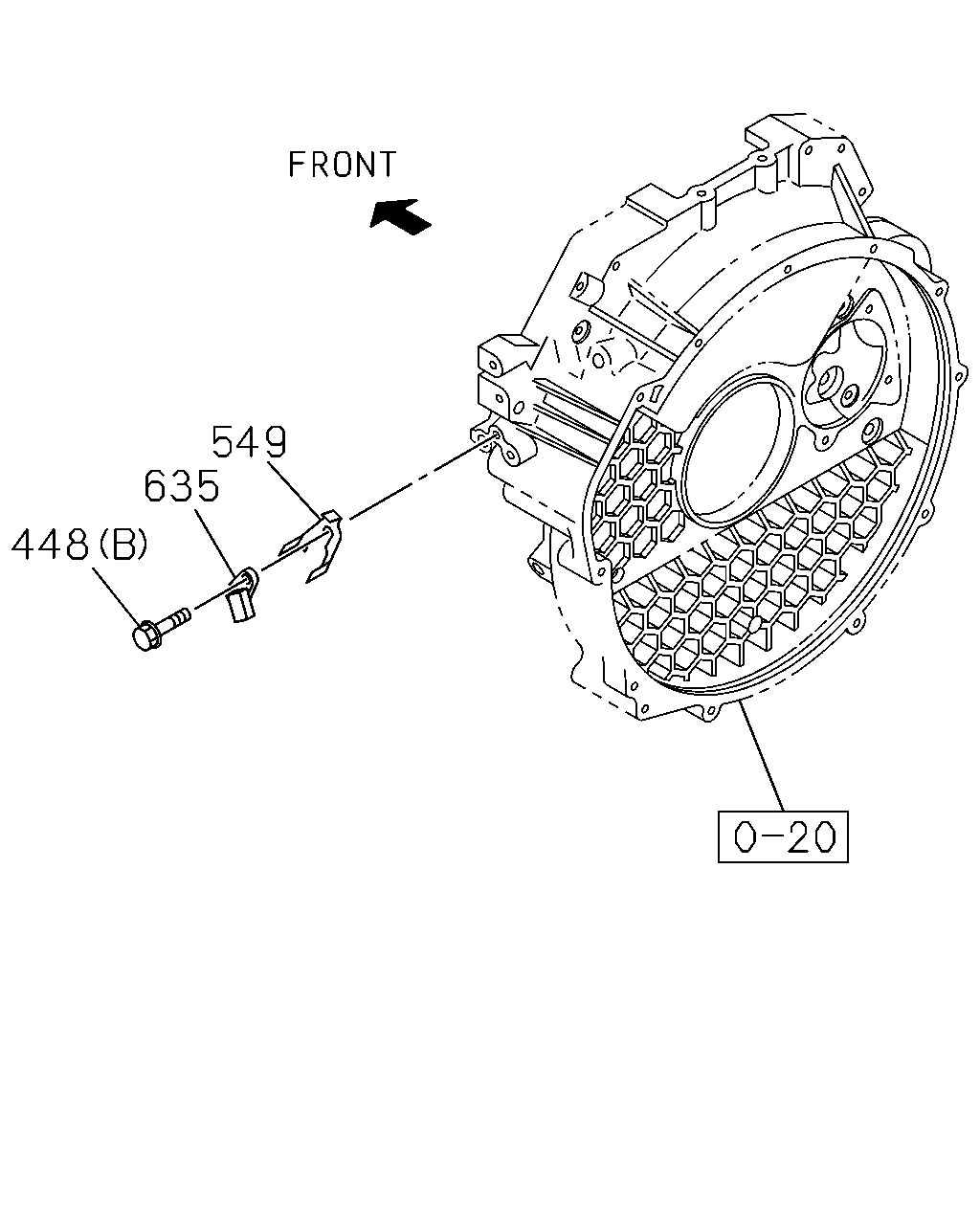

[826A] NO.3 (8 parça)

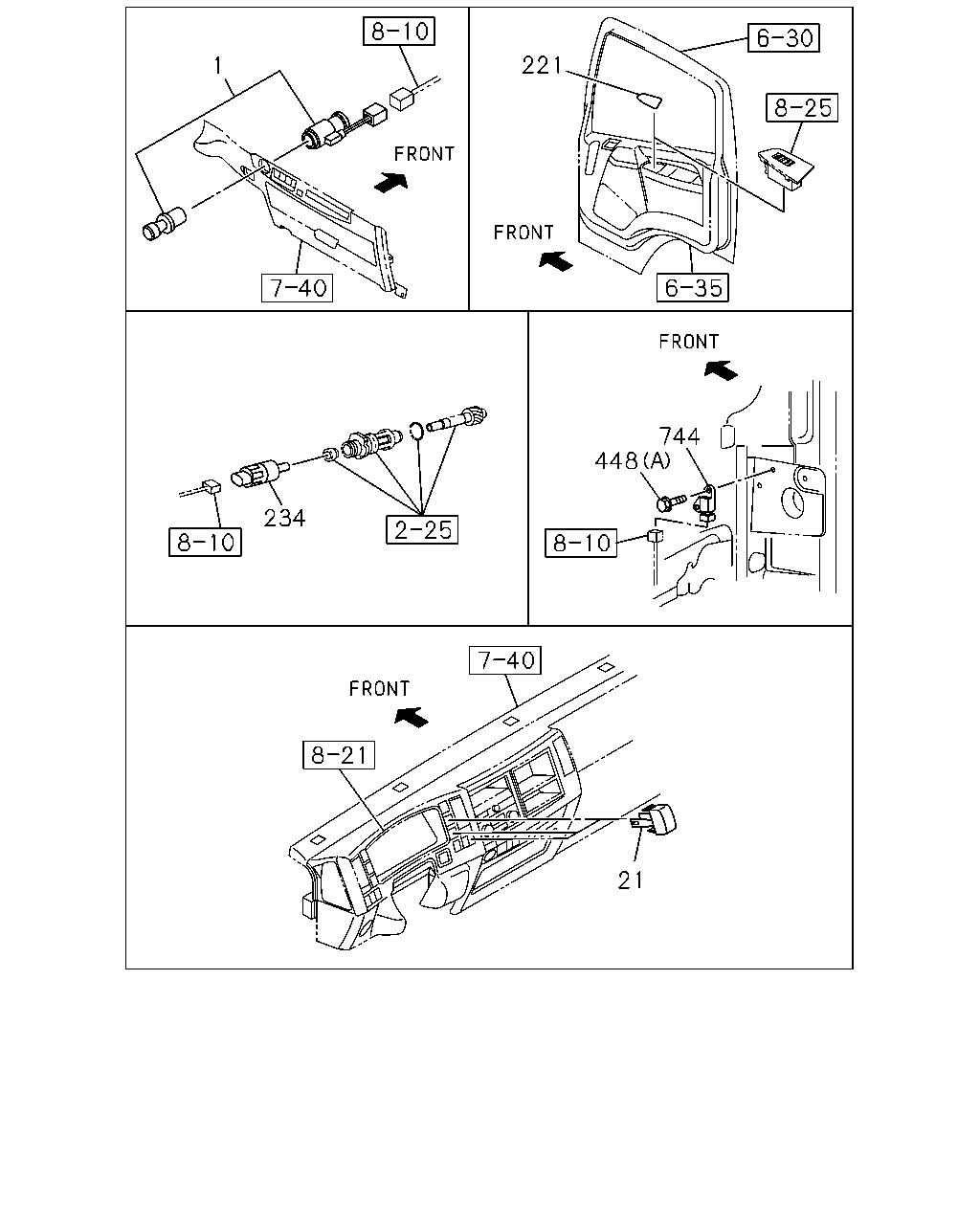

[826A] NO.2 (27 parça)
▶
68
67
67
69
437
67
67
67
305
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
67
03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TACHOGRAPH DIGITAL<EBB> (D)
8-98203-057-0
01
1
1112-1207
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D)
8-98203-057-0
01
1
1112-1207
●
●
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TACHOGRAPH DIGITAL<EBB> (D)
8-98217-377-0
01
1
1208-1212
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D)
8-98217-377-0
01
1
1208-1212
●
●
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TACHOGRAPH DIGITAL<EBB> (D)
8-98237-555-0
01
1
1301-1404
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D)
8-98237-555-0
01
1
1301-1404
●
●
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TACHOGRAPH DIGITAL<EBB> (D)
8-98217-377-0
01
1
1405-
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D)
8-98217-377-0
01
1
1405-
●
●
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)
8-98022-206-2
01
1
1012-1111
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (B)
8-98022-206-2
01
1
1012-1111
●
●
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TACHOGRAPH DIGITAL<EBB> (B)
8-98022-206-2
01
1
1112-1207
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TACHOGRAPH DIGITAL<EBB> (B)
8-98217-376-0
01
1
1208-1212
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TACHOGRAPH DIGITAL<EBB> (B)
8-98237-554-0
01
1
1301-1404
●
67
03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TACHOGRAPH DIGITAL<EBB> (B)
8-98217-376-0
01
1
1405-
●
67
03.887 BRACKET; CONT UNIT
4HG1-T ENG(RDP) (B)
8-98172-518-0
01
1
1012-
●
67
03.887 BRACKET; CONT UNIT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (C)
8-98072-631-4
01
1
1012-
●
67
03.887 BRACKET; CONT UNIT
4JB1 ENG(RLF) (C)
8-98072-631-4
01
1
1012-
●
67
03.887 BRACKET; CONT UNIT
(A)
8-98077-645-1
01
1
1012-
●
●
●
●
67
03.887 BRACKET; CONT UNIT
4HG1 ENG(RJH) (C)
8-98110-224-1
01
1
1012-
●
68
02.500 BOLT; BRKT
00.206 M6X12 FLANGE
0-28450-612-0
01
1
1012-
●
●
●
●
69
02.458 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
1012-
●
●
●
●
305
08.915 NUT; CONT UNIT
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE
0-91180-106-0
01
1
1012-
●
437
10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. VOLTAGE 12V<TRQ> KOITO
8-97359-129-0
01
1
1012-
●
●
437
10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO
8-97359-129-0
01
1
1012-
●
549
635
448
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
448
02.500 BOLT; SENSOR
4HG1-T ENG(RDP) 09.242 (B) M6X16 FLANGE
0-28050-616-0
01
1
1012-
●
448
02.500 BOLT; SENSOR
4HG1 ENG(RJH) 09.242 (B) M6X16 FLANGE
0-28050-616-0
01
1
1012-
●
448
02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER
8-97105-796-1
02
1
1012-1406
●
448
02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER
8-97105-796-1
02
1
1407-
●
●
549
02.510 SHEET
4HG1-T ENG(RDP) 09.743
8-97161-633-2
01
1
1012-
●
549
02.510 SHEET
4HG1 ENG(RJH) 09.743
8-97161-633-2
01
1
1012-
●
635
09.750 SENSOR; TACHOMETER
4HG1-T ENG(RDP) YAZAKI
8-97214-325-0
01
1
1012-
●
635
09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) CALSONIC KANSEI
8-97163-104-0
01
1
1012-
●
221
1
744
448
234
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
09.709 LIGHTER; CIGAR
VOLTAGE 12V<TRQ>
8-97314-003-0
01
1
1012-
●
●
1
09.709 LIGHTER; CIGAR
EXC. VOLTAGE 12V<TRQ>
8-98142-962-0
01
1
1012-
●
●
1
09.709 LIGHTER; CIGAR
8-98142-962-0
01
1
1012-
●
●
21
09.744 COVER; HOLE
16.081
8-98025-954-1
02
1
1012-1511
●
●
●
●
21
09.744 COVER; HOLE
16.081
8-98025-954-1
01
1
1512-
●
●
●
●
21
09.744 COVER; HOLE
EXC. CHILE EQUIPMENT(KE1) 16.081
8-98025-954-1
01
1
1512-
●
●
21
09.744 COVER; HOLE
16.081
8-98025-954-1
01
1
1512-
●
●
●
21
09.744 COVER; HOLE
EXC. AUTO CRUISE CONT<K30> 16.081
8-98025-954-1
01
1
1512-
●
21
09.744 COVER; HOLE
16.081
8-98025-954-1
01
1
1512-
●
●
21
09.744 COVER; HOLE
EXC. CHILE EQUIPMENT(KE1) 16.081
8-98025-954-1
01
1
1012-1511
●
●
21
09.744 COVER; HOLE
16.081
8-98025-954-1
01
1
1012-1511
●
●
221
16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-915-2
01
1
1012-
●
●
221
16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31>
8-98029-915-2
01
1
1012-
●
●
221
16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-916-2
01
1
1012-
●
●
221
16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31>
8-98029-916-2
01
1
1012-
●
●
234
03.682 SENSOR; VEHICLE SPD
VOLTAGE 12V<TRQ> 4 PULSE PPS RESIN WHITE
8-97377-920-0
01
1
1012-
●
●
234
03.682 SENSOR; VEHICLE SPD
EXC. VOLTAGE 12V<TRQ> 25 PULSE ALUMINUM
8-97328-058-1
01
1
1012-1406
●
●
234
03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1012-1406
●
●
234
03.682 SENSOR; VEHICLE SPD
EXC. VOLTAGE 12V<TRQ> 25 PULSE ALUMINUM
8-97328-058-1
01
1
1407-
●
234
03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, VOLTAGE 12V<TRQ> 25 PULSE ALUMINUM
8-97328-058-1
01
1
1407-
●
234
03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1407-
●
●
448
02.500 BOLT; SENSOR
4HG1-T ENG(RDP) 09.242 (B) M6X16 FLANGE
0-28050-616-0
01
1
1012-
●
448
02.500 BOLT; SENSOR
4HG1 ENG(RJH) 09.242 (B) M6X16 FLANGE
0-28050-616-0
01
1
1012-
●
448
02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER
8-97105-796-1
02
1
1012-1406
●
448
02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER
8-97105-796-1
02
1
1407-
●
●
744
03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5>
8-97386-841-2
01
1
1012-1406
●
744
03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5>
8-97386-841-2
01
1
1407-
●
●
