8-03 — LAMP; REAR AND REAR SIDE (#7918) — 137 parça

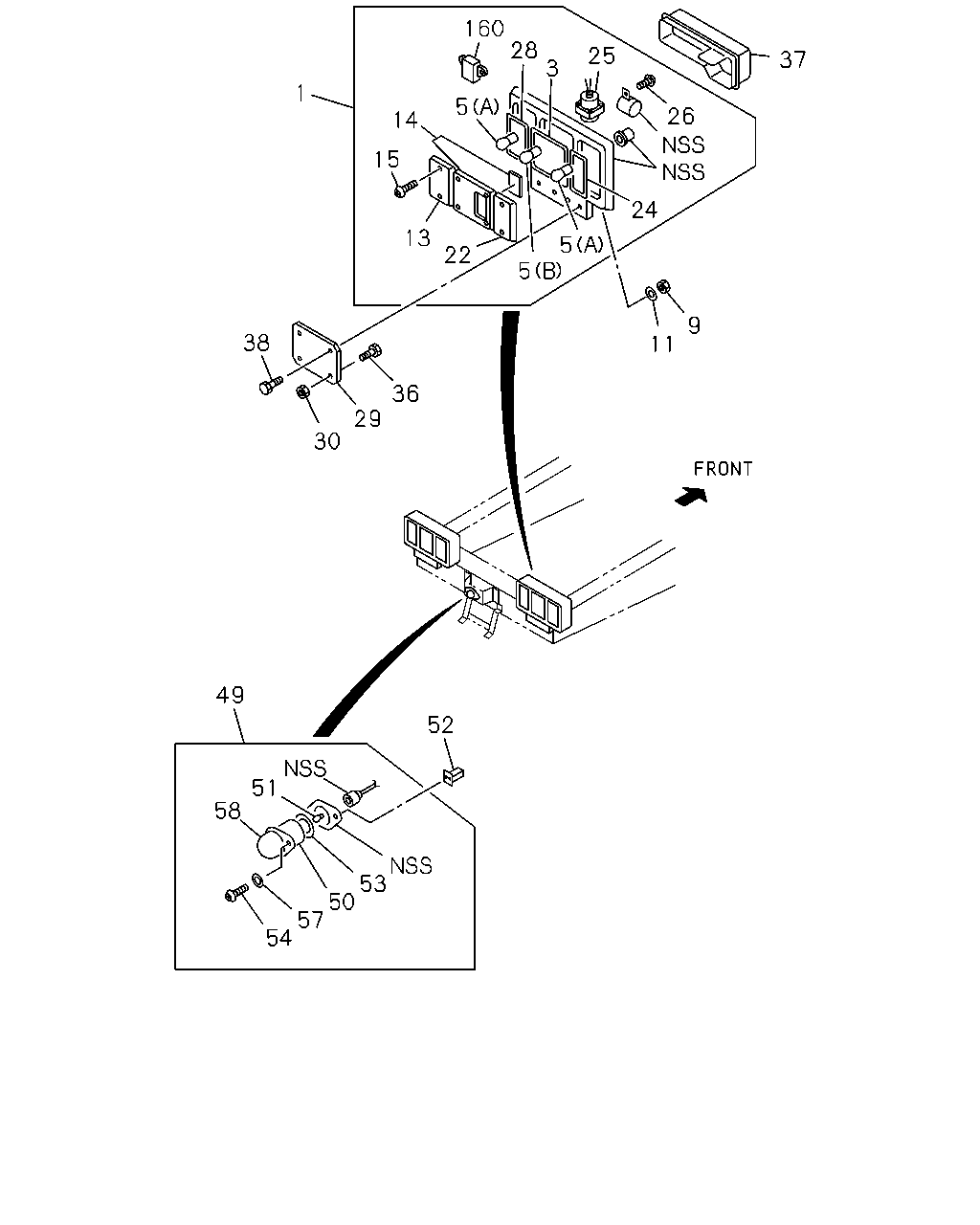

160 28 3 25 37 1 5 26 14 15 24 13 5 5 22 9 38 11 36 29 30 49 52 51 58 53 50 57 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; RR COMB	1-82230-159-2	01	1	0302-	●
1	LAMP ASM; RR COMB	1-82230-160-2	01	1	0302-	●
1	LAMP ASM; RR COMB	1-82230-133-2	01	1	9905-		●
1	LAMP ASM; RR COMB INDICATOR TAIL & STOP LAMP<YD6>	1-82230-133-2	01	1	9905-			●
1	LAMP ASM; RR COMB	1-82230-132-2	01	1	9905-		●
1	LAMP ASM; RR COMB REVERSING WARNING BUZZER<YM9>	1-82230-132-2	01	1	9905-			●
1	LAMP ASM; RR COMB EXC. INDICATOR TAIL & STOP LAMP<YD6>	1-82230-135-2	01	1	9905-			●
1	LAMP ASM; RR COMB EXC. REVERSING WARNING BUZZER<YM9>	1-82230-134-2	01	1	9905-			●
3	GASKET; RR COMB LAMP	1-82236-003-0	04	1	0302-	●
3	GASKET; RR COMB LAMP	8-94257-505-0	01	1	9905-		●	●
3	GASKET; RR COMB LAMP	8-94257-505-0	01	1	9905-		●	●
5	BULB; RR COMB LAMP (B) 24V 21W	1-82194-036-0	02	1	0302-	●
5	BULB; RR COMB LAMP (A) 24V 21/5W	1-82194-038-0	02	1	0302-	●
5	BULB; RR COMB LAMP (A) 24V 21W	8-94125-956-0	02	1	9905-		●	●
5	BULB; RR COMB LAMP (A) 24V 21W	8-94125-956-0	02	1	9905-		●	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	8-94125-957-0	01	1	9905-		●	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	8-94125-957-0	01	1	9905-		●	●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91150-108-0	02	1	0302-0602	●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91180-108-0	02	1	0603-	●
9	NUT; LAMP,RR COMB M6	9-09110-406-0	04	1	9905-0512		●	●
9	NUT; LAMP,RR COMB M6	0-91110-506-0	04	1	0601-		●	●
11	WASHER; PL,LAMP,RR COMB ID=6.4 OD=18	9-09160-706-0	04	1	9905-0605		●	●
11	WASHER; PL,LAMP,RR COMB ID=6.4 OD=18	0-91610-706-0	04	1	0606-		●	●
13	LENS; TURN SIGNAL	1-82235-016-0	02	1	0302-	●
13	LENS; TURN SIGNAL	1-82235-015-0	01	1	9905-		●	●
13	LENS; TURN SIGNAL	1-82235-014-0	01	1	9905-		●	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94257-511-0	01	1	9905-		●	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94257-510-0	01	1	9905-		●	●
15	SCREW; RR COMB LAMP	1-82239-019-0	16	1	0302-	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9905-		●	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9905-		●	●
22	LENS; BACKUP,RR COMB LAMP	8-94257-512-0	01	1	9905-		●	●
22	LENS; BACKUP,RR COMB LAMP	8-94257-512-0	01	1	9905-		●	●
24	GASKET; BACK,LAMP	8-94257-506-0	01	1	9905-		●	●
24	GASKET; BACK,LAMP	8-94257-506-0	01	1	9905-		●	●
25	HORN ASM; BACK	8-94257-518-0	01	1	9905-		●
25	HORN ASM; BACK REVERSING WARNING BUZZER<YM9>	8-94257-518-0	01	1	9905-			●
26	SCREW; BACK HORN M4X14 TAPPING	9-07076-414-0	02	1	9905-		●
26	SCREW; BACK HORN REVERSING WARNING BUZZER<YM9> M4X14 TAPPING	9-07076-414-0	02	1	9905-			●
26	SCREW; BACK HORN EXC. INDICATOR TAIL & STOP LAMP<YD6> M4X12 TAPPING	9-07076-412-0	01	1	9905-			●
26	SCREW; BACK HORN	1-82239-031-0	02	1	9905-		●
26	SCREW; BACK HORN INDICATOR TAIL & STOP LAMP<YD6>	1-82239-031-0	02	1	9905-			●
26	SCREW; BACK HORN EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING	9-07076-410-0	01	1	9905-			●
28	GASKET; TURN,LAMP	8-94257-507-0	01	1	9905-		●	●
28	GASKET; TURN,LAMP	8-94257-507-0	01	1	9905-		●	●
29	BRACKET; LAMP,RR COMB	1-82237-050-1	02	1	9905-		●	●
30	NUT; BRKT,RR COMB M8 FLANGE	0-91150-108-0	02	1	9905-0602		●	●
30	NUT; BRKT,RR COMB M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
36	BOLT; BRKT,RR COMB M8X25 FLANGE	0-28680-825-0	02	1	9905-0512		●	●
36	BOLT; BRKT,RR COMB M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
37	COVER; RR COMB LAMP	1-82239-008-0	01	1	9905-		●	●
37	COVER; RR COMB LAMP	1-82239-007-0	01	1	9905-		●	●
38	BOLT; LAMP,RR COMB M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0302-0303	●
38	BOLT; LAMP,RR COMB M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0304-0512	●
38	BOLT; LAMP,RR COMB M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-	●
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER	0-50140-630-0	04	1	9905-0512		●	●
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	0601-		●	●
49	LAMP; LICENSE PLATE 24V 10W	1-82120-024-0	01	1	9905-0301		●	●
49	LAMP; LICENSE PLATE 24V 10W	1-82120-024-1	01	1	0302-	●	●	●
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	9905-0301		●	●
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	0302-	●	●	●
51	BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	9905-0301		●	●
51	BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	0302-	●	●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	9905-0301		●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0302-	●	●	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	9905-0301		●	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0302-	●	●	●
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	9905-0301		●	●
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	0302-	●	●	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	9905-0301		●	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0302-	●	●	●
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	9905-0301		●	●
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	0302-	●	●	●
160	INDICATOR; RR COMB LAMP	1-82550-195-0	01	1	9905-		●
160	INDICATOR; RR COMB LAMP INDICATOR TAIL & STOP LAMP<YD6>	1-82550-195-0	01	1	9905-			●

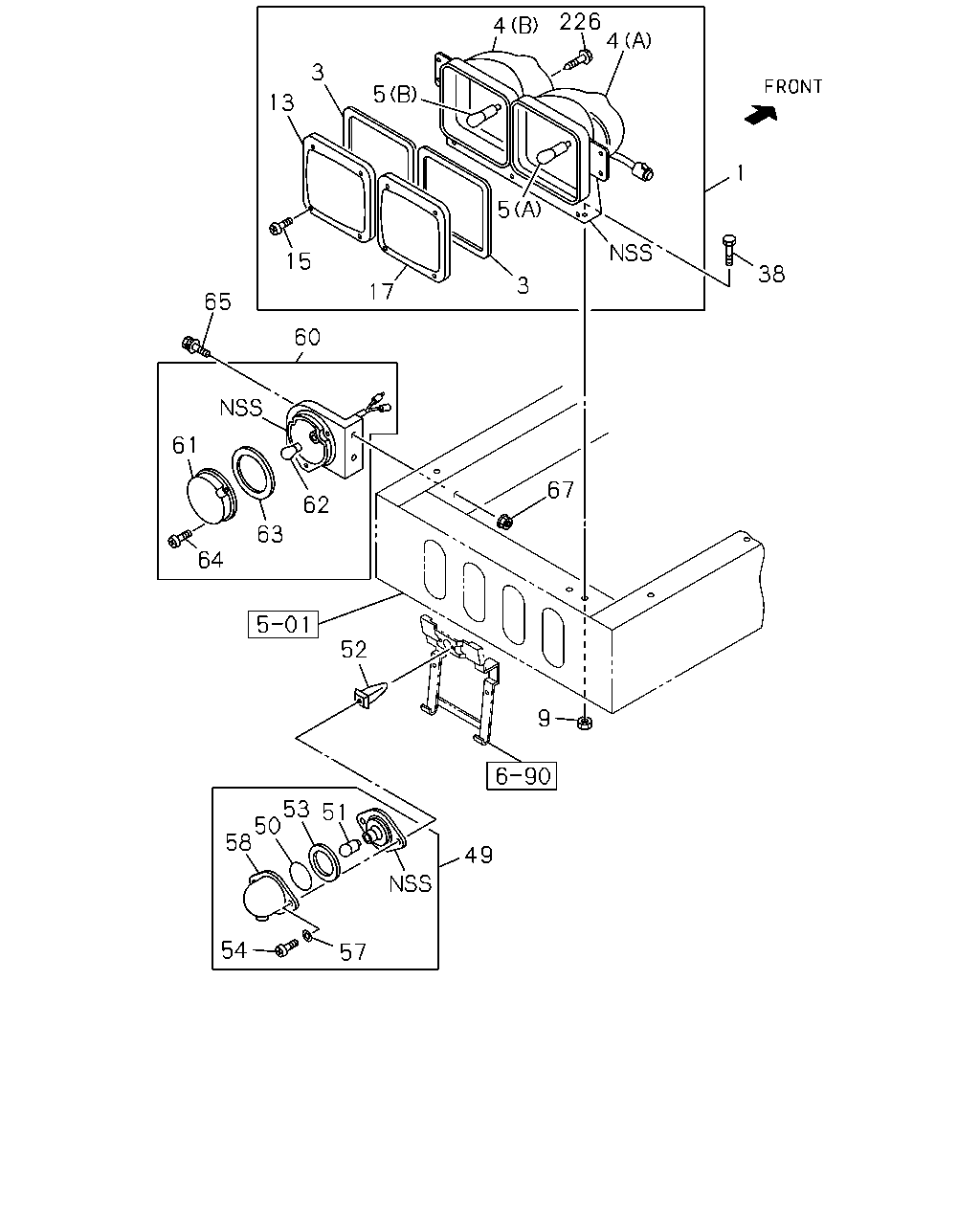

226 4 4 3 5 13 1 5 15 38 3 17 65 60 61 67 62 63 64 52 9 53 50 58 51 49 54 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; RR COMB	1-82230-159-2	01	1	0302-	●
1	LAMP ASM; RR COMB	1-82230-160-2	01	1	0302-	●
1	LAMP ASM; RR COMB	1-82230-133-2	01	1	9905-		●
1	LAMP ASM; RR COMB INDICATOR TAIL & STOP LAMP<YD6>	1-82230-133-2	01	1	9905-			●
1	LAMP ASM; RR COMB	1-82230-132-2	01	1	9905-		●
1	LAMP ASM; RR COMB REVERSING WARNING BUZZER<YM9>	1-82230-132-2	01	1	9905-			●
1	LAMP ASM; RR COMB EXC. INDICATOR TAIL & STOP LAMP<YD6>	1-82230-135-2	01	1	9905-			●
1	LAMP ASM; RR COMB EXC. REVERSING WARNING BUZZER<YM9>	1-82230-134-2	01	1	9905-			●
3	GASKET; RR COMB LAMP	1-82236-003-0	04	1	0302-	●
3	GASKET; RR COMB LAMP	8-94257-505-0	01	1	9905-		●	●
3	GASKET; RR COMB LAMP	8-94257-505-0	01	1	9905-		●	●
4	COVER; RR,RR COMB LAMP (A)	1-82239-033-0	02	1	0302-	●
4	COVER; RR,RR COMB LAMP (B)	1-82239-034-0	02	1	0302-	●
5	BULB; RR COMB LAMP (B) 24V 21W	1-82194-036-0	02	1	0302-	●
5	BULB; RR COMB LAMP (A) 24V 21/5W	1-82194-038-0	02	1	0302-	●
5	BULB; RR COMB LAMP (A) 24V 21W	8-94125-956-0	02	1	9905-		●	●
5	BULB; RR COMB LAMP (A) 24V 21W	8-94125-956-0	02	1	9905-		●	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	8-94125-957-0	01	1	9905-		●	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	8-94125-957-0	01	1	9905-		●	●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91150-108-0	02	1	0302-0602	●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91180-108-0	02	1	0603-	●
9	NUT; LAMP,RR COMB M6	9-09110-406-0	04	1	9905-0512		●	●
9	NUT; LAMP,RR COMB M6	0-91110-506-0	04	1	0601-		●	●
13	LENS; TURN SIGNAL	1-82235-016-0	02	1	0302-	●
13	LENS; TURN SIGNAL	1-82235-015-0	01	1	9905-		●	●
13	LENS; TURN SIGNAL	1-82235-014-0	01	1	9905-		●	●
15	SCREW; RR COMB LAMP	1-82239-019-0	16	1	0302-	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9905-		●	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9905-		●	●
17	LENS; STOP,RR COMB LAMP	1-82235-002-0	02	1	0302-	●
38	BOLT; LAMP,RR COMB M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0302-0303	●
38	BOLT; LAMP,RR COMB M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0304-0512	●
38	BOLT; LAMP,RR COMB M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-	●
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER	0-50140-630-0	04	1	9905-0512		●	●
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	0601-		●	●
49	LAMP; LICENSE PLATE 24V 10W	1-82120-024-0	01	1	9905-0301		●	●
49	LAMP; LICENSE PLATE 24V 10W	1-82120-024-1	01	1	0302-	●	●	●
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	9905-0301		●	●
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	0302-	●	●	●
51	BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	9905-0301		●	●
51	BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	0302-	●	●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	9905-0301		●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0302-	●	●	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	9905-0301		●	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0302-	●	●	●
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	9905-0301		●	●
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	0302-	●	●	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	9905-0301		●	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0302-	●	●	●
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	9905-0301		●	●
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	0302-	●	●	●
60	LAMP; BACKUP	1-82130-023-1	01	1	0302-	●
61	LENS; BACKUP LAMP	1-82135-003-0	01	1	0302-	●
62	BULB; BACKUP LAMP 24V 21W	1-82194-036-0	01	1	0302-	●
63	GASKET; BACKUP LAMP	1-82136-002-0	01	1	0302-	●
64	SCREW; BACKUP LAMP	1-82139-002-0	03	1	0302-	●
65	BOLT; LAMP,BACKUP M10X30 FLANGE	0-28681-030-0	02	1	0302-0512	●
65	BOLT; LAMP,BACKUP M10X30 FLANGE	0-28651-030-0	02	1	0601-0601	●
65	BOLT; LAMP,BACKUP M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0602-	●
67	NUT; FLANGE M10 FLANGE	0-91150-210-0	02	1	0302-0602	●
67	NUT; FLANGE M10 FLANGE	0-91180-210-0	02	1	0603-	●
226	SCREW; PROTECTOR	1-82239-032-0	08	1	0302-	●
