Sayfa 8-03 - Isuzu EPC

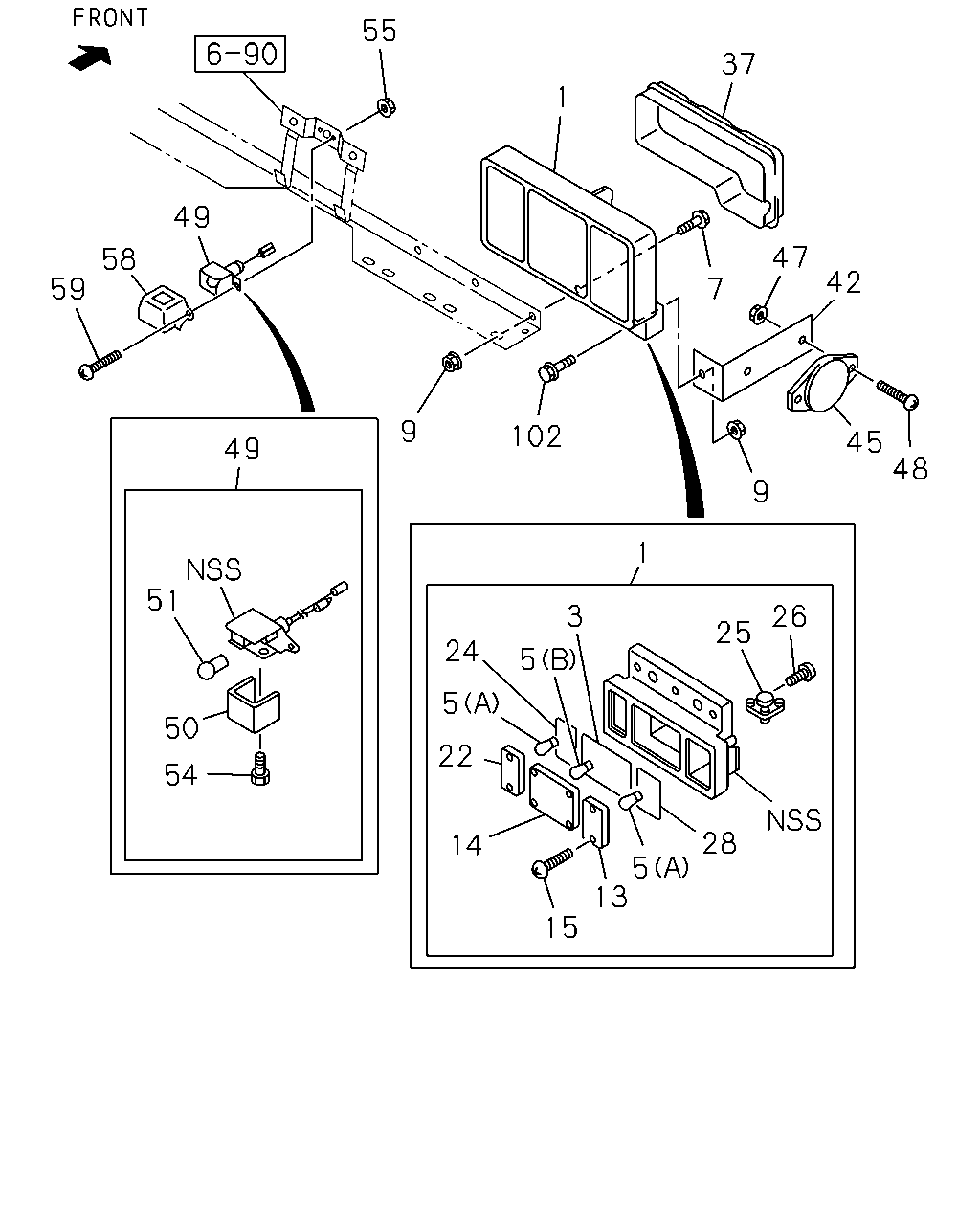

8-03 — LAMP; REAR AND REAR SIDE (#79175) — 196 parça

55 37 1 49 47 58 42 59 7 9 102 45 48 49 9 1 51 3 26 25 24 5 5 50 22 54 28 14 5 13 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) BACK BUZZER<YM9> EXC. VOLTAGE 12V<TRQ>	8-98002-166-0	01	1	1012-	●	●
1	02.679 LAMP ASM; RR COMB TURKEY EQUIPMENT(B11) BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>	8-98002-166-0	01	1	1012-	●
1	02.679 LAMP ASM; RR COMB DUMP CHASSIS(V4D) BACK BUZZER<YM9> EXC. VOLTAGE 12V<TRQ>	8-98002-166-0	01	1	1012-		●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) BACK BUZZER<YM9>	8-98002-166-0	01	1	1012-			●	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) EXC. VOLTAGE 12V<TRQ>	8-98002-165-0	01	1	1012-	●	●
1	02.679 LAMP ASM; RR COMB TURKEY EQUIPMENT(B11) EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>	8-98002-165-0	01	1	1012-	●
1	02.679 LAMP ASM; RR COMB DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ>	8-98002-165-0	01	1	1012-		●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6)	8-98002-165-0	01	1	1012-			●	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) EXC. VOLTAGE 12V<TRQ>,BACK BUZZER<YM9>	8-98002-164-0	01	1	1012-	●	●
1	02.679 LAMP ASM; RR COMB TURKEY EQUIPMENT(B11) EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,BACK BUZZER<YM9>	8-98002-164-0	01	1	1012-	●
1	02.679 LAMP ASM; RR COMB DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ>,BACK BUZZER<YM9>	8-98002-164-0	01	1	1012-		●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) EXC. BACK BUZZER<YM9>	8-98002-164-0	01	1	1012-			●	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) VOLTAGE 12V<TRQ>	8-97213-352-0	01	1	1012-	●	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) VOLTAGE 12V<TRQ> BACK BUZZER<YM9>	8-98002-162-0	01	1	1012-	●	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) VOLTAGE 12V<TRQ> EXC. BACK BUZZER<YM9>	8-97213-351-0	01	1	1012-	●	●
1	02.679 LAMP ASM; RR COMB VOLTAGE 12V<TRQ> BACK BUZZER<YM9> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6)	8-98072-020-0	01	1	1012-	●
1	02.679 LAMP ASM; RR COMB VOLTAGE 12V<TRQ> BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6)	8-98072-020-0	01	1	1012-		●
1	02.679 LAMP ASM; RR COMB VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6)	8-98072-025-0	01	1	1012-	●
1	02.679 LAMP ASM; RR COMB VOLTAGE 12V<TRQ> EXC. RR BODY FLAT BED(RS6)	8-98072-025-0	01	1	1012-		●
1	02.679 LAMP ASM; RR COMB VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6),BACK BUZZER<YM9>	8-98072-024-0	01	1	1012-	●
1	02.679 LAMP ASM; RR COMB VOLTAGE 12V<TRQ> EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9>	8-98072-024-0	01	1	1012-		●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6),VOLTAGE 12V<TRQ>	8-98034-328-0	01	1	1012-	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D)	8-98034-328-0	01	1	1012-		●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6)	8-98034-328-0	01	1	1012-			●	●
1	02.679 LAMP ASM; RR COMB EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6),VOLTAGE 12V<TRQ>	8-98034-325-0	01	1	1012-	●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D)	8-98034-325-0	01	1	1012-		●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6)	8-98034-325-0	01	1	1012-			●	●
1	02.679 LAMP ASM; RR COMB EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6),VOLTAGE 12V<TRQ>,BACK BUZZER<YM9>	8-98034-324-0	01	1	1012-	●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D),BACK BUZZER<YM9>	8-98034-324-0	01	1	1012-		●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9>	8-98034-324-0	01	1	1012-			●	●
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	01	1	1012-	●	●	●	●
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	01	1	1012-	●	●	●	●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) VOLTAGE 12V<TRQ> (A) 12V 21W	8-94124-074-0	02	1	1012-	●
5	08.991 BULB; RR COMB LAMP VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6) (A) 12V 21W	8-94124-074-0	02	1	1012-	●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) VOLTAGE 12V<TRQ> (A) 12V 21W	8-94124-074-0	02	1	1012-	●
5	08.991 BULB; RR COMB LAMP VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6) (A) 12V 21W	8-94124-074-0	02	1	1012-	●
5	08.991 BULB; RR COMB LAMP VOLTAGE 12V<TRQ> (A) 12V 21W	8-94124-074-0	02	1	1012-		●
5	08.991 BULB; RR COMB LAMP VOLTAGE 12V<TRQ> (A) 12V 21W	8-94124-074-0	02	1	1012-		●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) VOLTAGE 12V<TRQ> (B) 12V 21/5W	8-94125-959-0	01	1	1012-	●
5	08.991 BULB; RR COMB LAMP VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6) (B) 12V 21/5W	8-94125-959-0	01	1	1012-	●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) VOLTAGE 12V<TRQ> (B) 12V 21/5W	8-94125-959-0	01	1	1012-	●
5	08.991 BULB; RR COMB LAMP VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6) (B) 12V 21/5W	8-94125-959-0	01	1	1012-	●
5	08.991 BULB; RR COMB LAMP VOLTAGE 12V<TRQ> (B) 12V 21/5W	8-94125-959-0	01	1	1012-		●
5	08.991 BULB; RR COMB LAMP VOLTAGE 12V<TRQ> (B) 12V 21/5W	8-94125-959-0	01	1	1012-		●
5	08.991 BULB; RR COMB LAMP EXC. VOLTAGE 12V<TRQ> (A) 24V 21W	1-82194-108-0	02	1	1012-	●
5	08.991 BULB; RR COMB LAMP EXC. VOLTAGE 12V<TRQ> (A) 24V 21W	1-82194-108-0	02	1	1012-	●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) EXC. VOLTAGE 12V<TRQ> (A) 24V 21W	1-82194-108-0	02	1	1012-		●
5	08.991 BULB; RR COMB LAMP DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ> (A) 24V 21W	1-82194-108-0	02	1	1012-		●
5	08.991 BULB; RR COMB LAMP EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D) (A) 24V 21W	1-82194-108-0	02	1	1012-		●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) EXC. VOLTAGE 12V<TRQ> (A) 24V 21W	1-82194-108-0	02	1	1012-		●
5	08.991 BULB; RR COMB LAMP DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ> (A) 24V 21W	1-82194-108-0	02	1	1012-		●
5	08.991 BULB; RR COMB LAMP EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D) (A) 24V 21W	1-82194-108-0	02	1	1012-		●
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	1012-			●	●
5	08.991 BULB; RR COMB LAMP EXC. VOLTAGE 12V<TRQ> (B) 24V 21/5W	1-82194-109-0	01	1	1012-	●
5	08.991 BULB; RR COMB LAMP EXC. VOLTAGE 12V<TRQ> (B) 24V 21/5W	1-82194-109-0	01	1	1012-	●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) EXC. VOLTAGE 12V<TRQ> (B) 24V 21/5W	1-82194-109-0	01	1	1012-		●
5	08.991 BULB; RR COMB LAMP DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ> (B) 24V 21/5W	1-82194-109-0	01	1	1012-		●
5	08.991 BULB; RR COMB LAMP EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D) (B) 24V 21/5W	1-82194-109-0	01	1	1012-		●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) EXC. VOLTAGE 12V<TRQ> (B) 24V 21/5W	1-82194-109-0	01	1	1012-		●
5	08.991 BULB; RR COMB LAMP DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ> (B) 24V 21/5W	1-82194-109-0	01	1	1012-		●
5	08.991 BULB; RR COMB LAMP EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D) (B) 24V 21/5W	1-82194-109-0	01	1	1012-		●
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	1012-			●	●
7	02.664 SCREW; RR COMB LAMP RR BODY FLAT BED(RS6) M6X20	8-94402-623-0	06	1	1012-	●	●	●	●
7	02.664 SCREW; RR COMB LAMP TURKEY EQUIPMENT(B11) EXC. RR BODY FLAT BED(RS6) M6X20	8-94402-623-0	06	1	1012-	●
7	02.664 SCREW; RR COMB LAMP DUMP CHASSIS(V4D) M6X20	8-94402-623-0	06	1	1012-		●
7	02.664 SCREW; RR COMB LAMP EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6) M6X20	8-94402-623-0	04	1	1012-	●
7	02.664 SCREW; RR COMB LAMP EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) M6X20	8-94402-623-0	04	1	1012-		●
7	02.664 SCREW; RR COMB LAMP EXC. RR BODY FLAT BED(RS6) M6X20	8-94402-623-0	04	1	1012-			●	●
9	02.689 NUT; LAMP,RR COMB TURKEY EQUIPMENT(B11) EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE	5-09440-004-0	06	1	1012-	●
9	02.689 NUT; LAMP,RR COMB DUMP CHASSIS(V4D) EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE	5-09440-004-0	06	1	1012-		●
9	02.689 NUT; LAMP,RR COMB EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6) 07.829 M6 FLANGE	5-09440-004-0	04	1	1012-	●
9	02.689 NUT; LAMP,RR COMB EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 07.829 M6 FLANGE	5-09440-004-0	04	1	1012-		●
9	02.689 NUT; LAMP,RR COMB EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE	5-09440-004-0	04	1	1012-			●	●
9	02.689 NUT; LAMP,RR COMB WHEEL BASE 3300MM(33W) SAUDI ARABIA EQUIPMENT(GH3) EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE	5-09440-004-0	02	1	1012-		●
9	02.689 NUT; LAMP,RR COMB SAUDI ARABIA EQUIPMENT(GH3) EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE	5-09440-004-0	02	1	1012-				●
13	02.682 LENS; TURN SIGNAL RR BODY FLAT BED(RS6)	8-94174-638-0	01	1	1012-	●	●
13	02.682 LENS; TURN SIGNAL VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6)	8-94174-638-0	01	1	1012-	●
13	02.682 LENS; TURN SIGNAL EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>	8-94174-638-0	01	1	1012-	●
13	02.682 LENS; TURN SIGNAL DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ>	8-94174-638-0	01	1	1012-		●
13	02.682 LENS; TURN SIGNAL EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D)	8-94174-638-0	01	1	1012-		●
13	02.682 LENS; TURN SIGNAL VOLTAGE 12V<TRQ> EXC. RR BODY FLAT BED(RS6)	8-94174-638-0	01	1	1012-		●
13	02.682 LENS; TURN SIGNAL	8-94174-638-0	01	1	1012-			●	●
13	02.682 LENS; TURN SIGNAL RR BODY FLAT BED(RS6)	8-94174-639-0	01	1	1012-	●	●
13	02.682 LENS; TURN SIGNAL VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6)	8-94174-639-0	01	1	1012-	●
13	02.682 LENS; TURN SIGNAL EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>	8-94174-639-0	01	1	1012-	●
13	02.682 LENS; TURN SIGNAL DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ>	8-94174-639-0	01	1	1012-		●
13	02.682 LENS; TURN SIGNAL EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D)	8-94174-639-0	01	1	1012-		●
13	02.682 LENS; TURN SIGNAL VOLTAGE 12V<TRQ> EXC. RR BODY FLAT BED(RS6)	8-94174-639-0	01	1	1012-		●
13	02.682 LENS; TURN SIGNAL	8-94174-639-0	01	1	1012-			●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP RR BODY FLAT BED(RS6)	8-94178-624-0	01	1	1012-	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6)	8-94178-624-0	01	1	1012-	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>	8-94178-624-0	01	1	1012-	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ>	8-94178-624-0	01	1	1012-		●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D)	8-94178-624-0	01	1	1012-		●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP VOLTAGE 12V<TRQ> EXC. RR BODY FLAT BED(RS6)	8-94178-624-0	01	1	1012-		●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1012-			●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP RR BODY FLAT BED(RS6)	8-94178-625-0	01	1	1012-	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6)	8-94178-625-0	01	1	1012-	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>	8-94178-625-0	01	1	1012-	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ>	8-94178-625-0	01	1	1012-		●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D)	8-94178-625-0	01	1	1012-		●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP VOLTAGE 12V<TRQ> EXC. RR BODY FLAT BED(RS6)	8-94178-625-0	01	1	1012-		●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1012-			●	●
15	02.664 SCREW; RR COMB LAMP 08.977 M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1012-	●	●	●	●
15	02.664 SCREW; RR COMB LAMP 08.977 M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1012-	●	●	●	●
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1012-	●	●	●	●
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1012-	●	●	●	●
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	01	1	1012-	●	●	●	●
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	01	1	1012-	●	●	●	●
25	02.810 HORN ASM; BACK RR BODY FLAT BED(RS6) BACK BUZZER<YM9>	8-94257-518-0	01	1	1012-	●	●
25	02.810 HORN ASM; BACK BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>	8-94257-518-0	01	1	1012-	●
25	02.810 HORN ASM; BACK DUMP CHASSIS(V4D) BACK BUZZER<YM9> EXC. VOLTAGE 12V<TRQ>	8-94257-518-0	01	1	1012-		●
25	02.810 HORN ASM; BACK BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D)	8-94257-518-0	01	1	1012-		●
25	02.810 HORN ASM; BACK BACK BUZZER<YM9>	8-94257-518-0	01	1	1012-			●	●
26	02.812 SCREW; BACK HORN RR BODY FLAT BED(RS6) 09.655 M4X14 TAPPING	9-07076-414-0	01	1	1012-	●	●
26	02.812 SCREW; BACK HORN VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6) 09.655 M4X14 TAPPING	9-07076-414-0	01	1	1012-	●
26	02.812 SCREW; BACK HORN EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ> 09.655 M4X14 TAPPING	9-07076-414-0	01	1	1012-	●
26	02.812 SCREW; BACK HORN DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ> 09.655 M4X14 TAPPING	9-07076-414-0	01	1	1012-		●
26	02.812 SCREW; BACK HORN EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D) 09.655 M4X14 TAPPING	9-07076-414-0	01	1	1012-		●
26	02.812 SCREW; BACK HORN VOLTAGE 12V<TRQ> EXC. RR BODY FLAT BED(RS6) 09.655 M4X14 TAPPING	9-07076-414-0	01	1	1012-		●
26	02.812 SCREW; BACK HORN 09.655 M4X14 TAPPING	9-07076-414-0	01	1	1012-			●	●
26	02.812 SCREW; BACK HORN RR BODY FLAT BED(RS6) BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	1012-	●	●
26	02.812 SCREW; BACK HORN VOLTAGE 12V<TRQ> BACK BUZZER<YM9> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6) 02.688 M4X12 TAPPING	9-07076-412-0	02	1	1012-	●
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	1012-	●
26	02.812 SCREW; BACK HORN DUMP CHASSIS(V4D) BACK BUZZER<YM9> EXC. VOLTAGE 12V<TRQ> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	1012-		●
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D) 02.688 M4X12 TAPPING	9-07076-412-0	02	1	1012-		●
26	02.812 SCREW; BACK HORN VOLTAGE 12V<TRQ> BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6) 02.688 M4X12 TAPPING	9-07076-412-0	02	1	1012-		●
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	1012-			●	●
26	02.812 SCREW; BACK HORN RR BODY FLAT BED(RS6) EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	1012-	●	●
26	02.812 SCREW; BACK HORN VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6),BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	1012-	●
26	02.812 SCREW; BACK HORN EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	1012-	●
26	02.812 SCREW; BACK HORN DUMP CHASSIS(V4D) EXC. VOLTAGE 12V<TRQ>,BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	1012-		●
26	02.812 SCREW; BACK HORN EXC. RR BODY FLAT BED(RS6),VOLTAGE 12V<TRQ>,DUMP CHASSIS(V4D),BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	1012-		●
26	02.812 SCREW; BACK HORN VOLTAGE 12V<TRQ> EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	1012-		●
26	02.812 SCREW; BACK HORN EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	1012-			●	●
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	01	1	1012-	●	●	●	●
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	01	1	1012-	●	●	●	●
37	02.680 COVER; RR COMB LAMP	8-94128-858-4	01	1	1012-	●	●	●	●
37	02.680 COVER; RR COMB LAMP	8-94129-274-4	01	1	1012-	●	●	●	●
42	02.679 BRACKET; REFLECTOR WHEEL BASE 3300MM(33W) SAUDI ARABIA EQUIPMENT(GH3) EXC. RR BODY FLAT BED(RS6)	8-98033-660-0	02	1	1012-		●
42	02.679 BRACKET; REFLECTOR SAUDI ARABIA EQUIPMENT(GH3) EXC. RR BODY FLAT BED(RS6)	8-98033-660-0	02	1	1012-				●
45	02.682 REFLECTOR; REFLEX,SIDE GATE,MIDD WHEEL BASE 3300MM(33W) SAUDI ARABIA EQUIPMENT(GH3)	1-82290-011-1	02	1	1012-		●
45	02.682 REFLECTOR; REFLEX,SIDE GATE,MIDD SAUDI ARABIA EQUIPMENT(GH3)	1-82290-011-1	02	1	1012-				●
47	02.689 NUT; REFLECTOR WHEEL BASE 3300MM(33W) SAUDI ARABIA EQUIPMENT(GH3) EXC. RR BODY FLAT BED(RS6) 09.744 M5 FLANGE	5-09440-003-0	04	1	1012-		●
47	02.689 NUT; REFLECTOR SAUDI ARABIA EQUIPMENT(GH3) EXC. RR BODY FLAT BED(RS6) 09.744 M5 FLANGE	5-09440-003-0	04	1	1012-				●
48	02.664 SCREW; REFLECTOR WHEEL BASE 3300MM(33W) SAUDI ARABIA EQUIPMENT(GH3) RR BODY FLAT BED(RS6) 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1012-		●
48	02.664 SCREW; REFLECTOR SAUDI ARABIA EQUIPMENT(GH3) RR BODY FLAT BED(RS6) 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1012-				●
48	02.664 SCREW; REFLECTOR WHEEL BASE 3300MM(33W) SAUDI ARABIA EQUIPMENT(GH3) EXC. RR BODY FLAT BED(RS6) 14.550 M5X20	9-93490-520-0	04	1	1012-		●
48	02.664 SCREW; REFLECTOR SAUDI ARABIA EQUIPMENT(GH3) EXC. RR BODY FLAT BED(RS6) 14.550 M5X20	9-93490-520-0	04	1	1012-				●
49	02.700 LAMP; LICENSE PLATE TURKEY EQUIPMENT(B11) VOLTAGE 12V<TRQ> 12V 5W	8-97105-382-0	02	1	1302-1509	●
49	02.700 LAMP; LICENSE PLATE TURKEY EQUIPMENT(B11) VOLTAGE 12V<TRQ> 12V 5W	8-98329-429-0	02	1	1510-	●
49	02.700 LAMP; LICENSE PLATE TURKEY EQUIPMENT(B11) EXC. VOLTAGE 12V<TRQ> 24V 5W	8-97105-380-0	02	1	1012-1509	●
49	02.700 LAMP; LICENSE PLATE TURKEY EQUIPMENT(B11) EXC. VOLTAGE 12V<TRQ> 24V 5W	8-98329-430-0	02	1	1510-	●
49	02.700 LAMP; LICENSE PLATE VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11) 12V 10W	5-82120-020-0	01	1	1012-	●
49	02.700 LAMP; LICENSE PLATE VOLTAGE 12V<TRQ> 12V 10W	5-82120-020-0	01	1	1012-		●
49	02.700 LAMP; LICENSE PLATE EXC. TURKEY EQUIPMENT(B11),VOLTAGE 12V<TRQ> 24V 10W	8-98029-477-0	01	1	1012-	●
49	02.700 LAMP; LICENSE PLATE EXC. VOLTAGE 12V<TRQ> 24V 10W	8-98029-477-0	01	1	1012-		●
49	02.700 LAMP; LICENSE PLATE 24V 10W	8-98029-477-0	01	1	1012-			●	●
50	02.709 LENS; LICENSE PLATE LAMP TURKEY EQUIPMENT(B11) EXC. VOLTAGE 12V<TRQ>	8-97108-212-0	02	1	1012-1301	●
50	02.709 LENS; LICENSE PLATE LAMP TURKEY EQUIPMENT(B11)	8-97108-212-0	02	1	1302-	●
50	02.709 LENS; LICENSE PLATE LAMP EXC. TURKEY EQUIPMENT(B11)	5-82125-004-0	01	1	1012-	●
50	02.709 LENS; LICENSE PLATE LAMP	5-82125-004-0	01	1	1012-		●	●	●
51	08.991 BULB; LICENSE PLATE LAMP TURKEY EQUIPMENT(B11) VOLTAGE 12V<TRQ> 12V 5W	8-94124-075-0	02	1	1302-	●
51	08.991 BULB; LICENSE PLATE LAMP TURKEY EQUIPMENT(B11) EXC. VOLTAGE 12V<TRQ> 24V 5W	1-82194-039-0	02	1	1012-	●
51	08.991 BULB; LICENSE PLATE LAMP VOLTAGE 12V<TRQ> EXC. TURKEY EQUIPMENT(B11) 12V 10W	8-94126-494-0	01	1	1012-	●
51	08.991 BULB; LICENSE PLATE LAMP VOLTAGE 12V<TRQ> 12V 10W	8-94126-494-0	01	1	1012-		●
51	08.991 BULB; LICENSE PLATE LAMP EXC. TURKEY EQUIPMENT(B11),VOLTAGE 12V<TRQ> 24V 10W	1-82194-037-0	01	1	1012-	●
51	08.991 BULB; LICENSE PLATE LAMP EXC. VOLTAGE 12V<TRQ> 24V 10W	1-82194-037-0	01	1	1012-		●
51	08.991 BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	1012-			●	●
54	02.708 SCREW; LICENSE PLATE LAMP TURKEY EQUIPMENT(B11) EXC. VOLTAGE 12V<TRQ> 02.709 M4X8	8-94419-312-0	02	1	1012-1301	●
54	02.708 SCREW; LICENSE PLATE LAMP TURKEY EQUIPMENT(B11) 02.709 M4X8	8-94419-312-0	02	1	1302-	●
54	02.708 SCREW; LICENSE PLATE LAMP EXC. TURKEY EQUIPMENT(B11) 02.709 M4X8	8-94419-312-0	01	1	1012-	●
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8	8-94419-312-0	01	1	1012-		●	●	●
55	02.708 NUT; LICENSE PLATE LAMP TURKEY EQUIPMENT(B11) 03.444 M5 FLANGE	8-94153-039-0	04	1	1012-	●
55	02.708 NUT; LICENSE PLATE LAMP EXC. TURKEY EQUIPMENT(B11) 03.444 M5 FLANGE	8-94153-039-0	02	1	1012-	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	1012-		●	●	●
58	02.705 COVER; LICENSE PLATE LAMP TURKEY EQUIPMENT(B11)	8-97076-590-1	02	1	1012-	●
58	02.705 COVER; LICENSE PLATE LAMP EXC. TURKEY EQUIPMENT(B11)	8-97076-590-1	01	1	1012-	●
58	02.705 COVER; LICENSE PLATE LAMP	8-97076-590-1	01	1	1012-		●	●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY TURKEY EQUIPMENT(B11) 14.550 M5X20	9-93490-520-0	04	1	1012-	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. TURKEY EQUIPMENT(B11) 14.550 M5X20	9-93490-520-0	02	1	1012-	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY 14.550 M5X20	9-93490-520-0	02	1	1012-		●	●	●
102	02.705 BOLT; BRKT WHEEL BASE 3300MM(33W) SAUDI ARABIA EQUIPMENT(GH3) EXC. RR BODY FLAT BED(RS6) 02.664 M6X20	8-94402-623-0	02	1	1012-		●
102	02.705 BOLT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EXC. RR BODY FLAT BED(RS6) 02.664 M6X20	8-94402-623-0	02	1	1012-				●

150 148 214 148 149 114 195 200 197 199 201 196 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
114	02.679 BRACKET; RR FOG LAMP RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ>	8-97108-583-0	01	1	1012-	●
148	02.679 LAMP ASM; RR FOG RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ>	8-97181-002-0	01	1	1012-	●
149	02.689 SCREW; BRKT TO LAMP BODY RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ>	8-94336-372-0	02	1	1012-	●
150	02.664 NUT; RR FOG LAMP RR FOG LAMP<T79> 07.829 M6 FLANGE	5-09440-004-0	01	1	1012-	●
195	02.679 LAMP UNIT; RR FOG RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ>	8-94336-322-0	01	1	1012-	●
196	02.679 LENS; RR FOG LAMP RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ>	8-94336-325-0	01	1	1012-	●
197	02.679 GASKET; RR FOG LAMP RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ>	8-94336-324-0	01	1	1012-	●
198	02.688 SCREW; LENS TO BODY RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ>	0-71190-416-0	02	1	1012-	●
199	02.689 WASHER; LENS,RR FOG LAMP RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ>	8-94336-326-0	02	1	1012-	●
200	02.679 PLATE; SET,RR FOG LAMP RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ>	8-94336-323-0	01	1	1012-	●
201	08.991 BULB; RR FOG LAMP RR FOG LAMP<T79> EXC. VOLTAGE 12V<TRQ> 24V 21W	1-82194-036-0	01	1	1012-	●
214	02.679 BOLT; RR FOG LAMP RR FOG LAMP<T79> 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
