◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#7917) — 105 parça

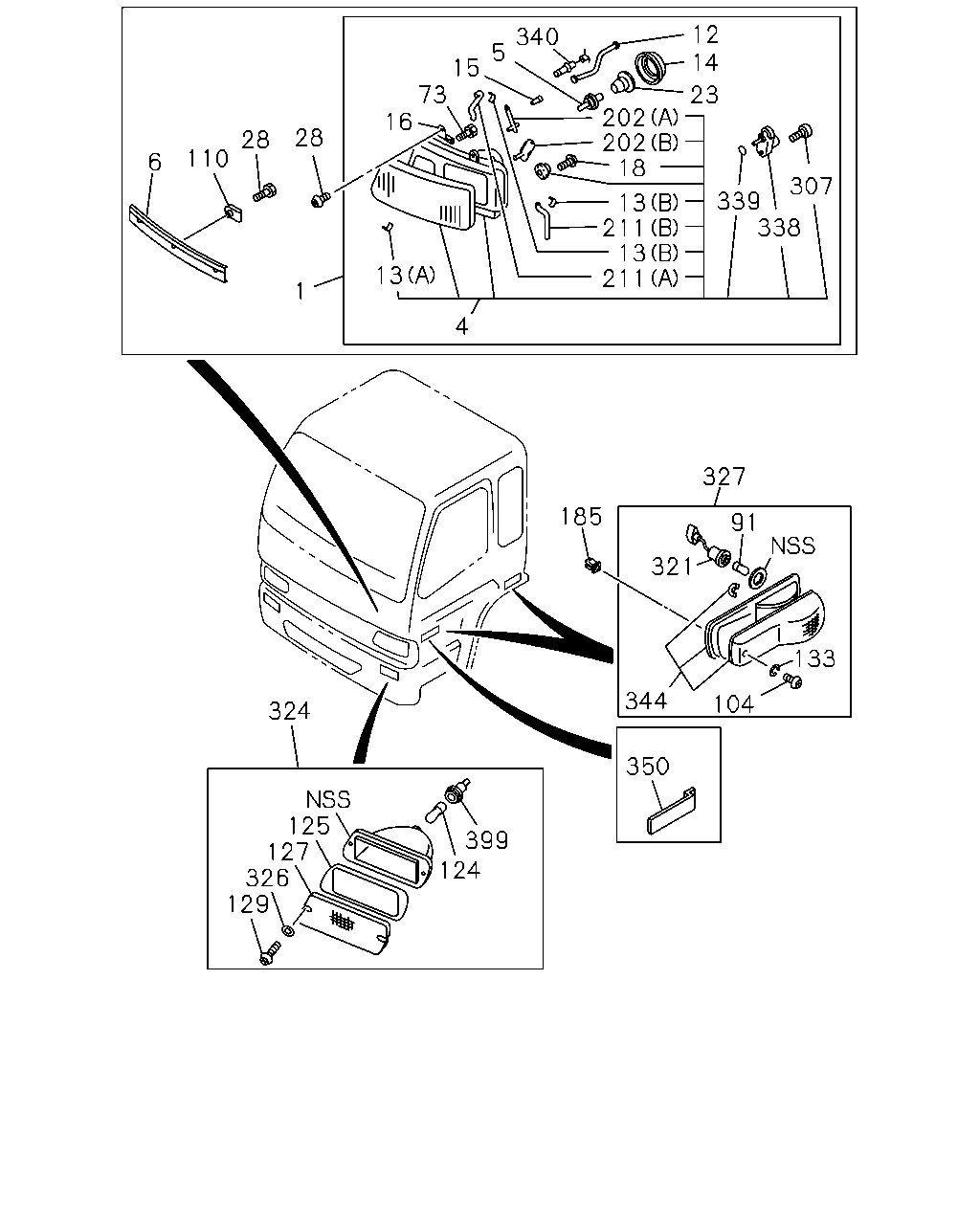

çizim 99540
12 14 340 5 15 73 16 23 202 202 18 28 28 110 6 307 339 338 13 211 13 211 13 1 4 327 185 91 321 133 344 104 324 350 125 127 326 129 399 124
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD 1-86830-176-4 01 1 9905-0210 ● ●
1 LAMP ASM; HEAD 1-82110-440-0 01 1 0211-0301 ● ●
1 LAMP ASM; HEAD 1-82110-440-0 01 1 0302- ● ● ●
1 LAMP ASM; HEAD 1-86830-175-4 01 1 9905-0210 ● ●
1 LAMP ASM; HEAD 1-82110-439-0 01 1 0211-0301 ● ●
1 LAMP ASM; HEAD 1-82110-439-0 01 1 0302- ● ● ●
4 HEADLAMP UNIT 1-86830-198-1 01 1 9905-0210 ● ●
4 HEADLAMP UNIT 1-82119-205-0 01 1 0211-0301 ● ●
4 HEADLAMP UNIT 1-82119-205-0 01 1 0302- ● ● ●
4 HEADLAMP UNIT 1-86830-197-1 01 1 9905-0210 ● ●
4 HEADLAMP UNIT 1-82119-204-0 01 1 0211-0301 ● ●
4 HEADLAMP UNIT 1-82119-204-0 01 1 0302- ● ● ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 9905-0301 ● ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0302- ● ● ●
6 RIM; HEADLAMP 1-86830-006-5 01 1 9905-0301 ● ●
6 RIM; HEADLAMP 1-86830-005-5 01 1 9905-0301 ● ●
6 RIM; HEADLAMP 1-86830-006-5 01 1 0302- ● ● ●
6 RIM; HEADLAMP 1-86830-005-5 01 1 0302- ● ● ●
12 HARNESS; HEADLAMP 1-86830-145-0 02 1 9905-0301 ● ●
12 HARNESS; HEADLAMP 1-86830-145-0 02 1 0302- ● ● ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 9905-0301 ● ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 0302- ● ● ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 9905-0301 ● ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 0302- ● ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 9905-0301 ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0302- ● ● ●
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 9905-0301 ● ●
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 0302- ● ● ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 9905-0301 ● ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 0302- ● ● ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 9905-0301 ● ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 0302- ● ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 9905-0301 ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0302- ● ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 9905-0301 ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0302- ● ● ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9905-0301 ● ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0302- ● ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 9905-0301 ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0302- ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9905-0301 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0302- ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9905-0301 ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0302- ● ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 9905-0301 ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 0302- ● ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 9905-0301 ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0302- ● ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 9905-0301 ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0302- ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 9905-0301 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0302- ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 9905-0301 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0302- ● ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 9905-0301 ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0302- ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9905-0206 ● ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9905-0301 ● ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0302- ● ● ●
202 GEAR UNIT; HEADLAMP
(A) 		1-86830-139-0 02 1 9905-0301 ● ●
202 GEAR UNIT; HEADLAMP
(A) 		1-86830-139-0 02 1 0302- ● ● ●
202 GEAR UNIT; HEADLAMP
(B) 		1-86830-140-0 02 1 9905-0301 ● ●
202 GEAR UNIT; HEADLAMP
(B) 		1-86830-140-0 02 1 0302- ● ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-142-0 01 1 9905-9911 ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 9912-0105 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-144-0 01 1 9905-9911 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 9912-0301 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0302- ● ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-141-0 01 1 9905-9911 ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 9912-0105 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-143-0 01 1 9905-9911 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 9912-0301 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0302- ● ● ●
307 SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING 		1-82119-067-0 02 1 0211-0301 ● ●
307 SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING 		1-82119-067-0 02 1 0302- ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9905-0301 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0302- ● ● ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 9905-0301 ● ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0302- ● ● ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 9905-0301 ● ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0302- ● ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 9905-0301 ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0302- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 9905-0301 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0302- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 9905-0301 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0302- ● ● ●
338 LEVELING; HEADLAMP 1-86830-138-0 02 1 0211-0301 ● ●
338 LEVELING; HEADLAMP 1-86830-138-0 02 1 0302- ● ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 0211-0301 ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 0302- ● ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 9905-0301 ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0302- ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9905-0301 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0302- ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9905-0301 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0302- ● ● ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9905-0209 ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210-0301 ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0302- ● ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9905-0209 ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210-0301 ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0302- ● ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 9905-0301 ● ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0302- ● ● ●
