Sayfa 7-20 - Isuzu EPC

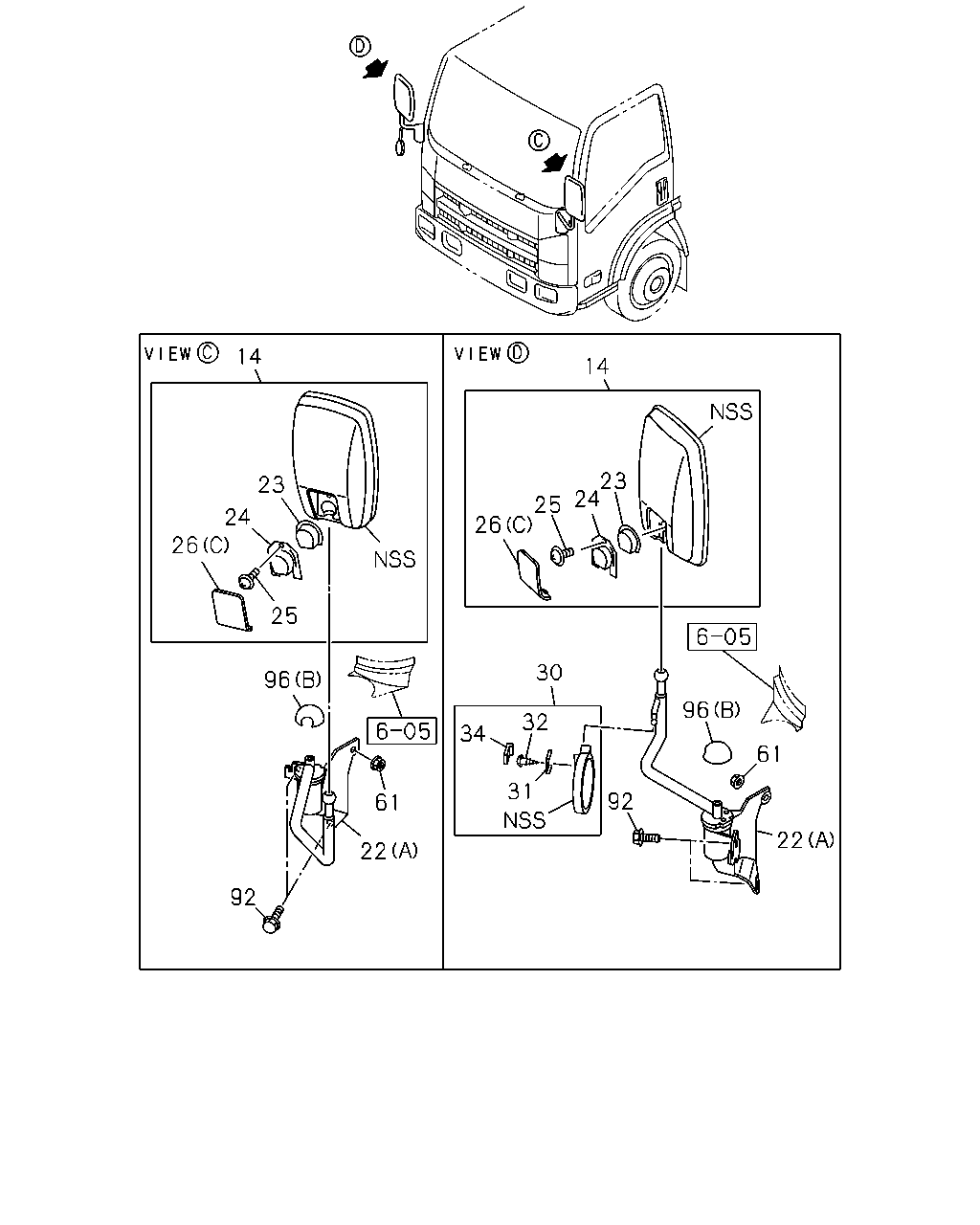

7-20 — MIRROR AND MIRROR STAY (#79166) — 108 parça

96 312 152 87 88 69 69 88 88 64 307 88 72 88 69 71 22 7 26 51 26 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98055-991-1	01	1	1012-	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-991-1	01	1	1012-		●	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98055-992-1	01	1	1012-	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-992-1	01	1	1012-		●	●
7	16.068 MIRROR ASM; DOOR SAUDI ARABIA EQUIPMENT(GH3) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98043-056-2	01	1	1012-1112		●	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SAUDI ARABIA EQUIPMENT(GH3)	8-98043-056-2	01	1	1201-		●	●
7	16.068 MIRROR ASM; DOOR SAUDI ARABIA EQUIPMENT(GH3) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98043-172-2	01	1	1012-1112		●	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SAUDI ARABIA EQUIPMENT(GH3)	8-98043-172-2	01	1	1201-		●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> (A)	8-98070-506-0	01	1	1012-	●			●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> (A)	8-98070-504-0	01	1	1012-	●			●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-98070-503-0	01	1	1012-	●			●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (A)	8-98070-503-0	01	1	1012-		●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (A)	8-98070-510-0	01	1	1012-	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> EXC. UNDER MIRROR<RR9> (A)	8-98070-508-0	01	1	1012-	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (B)	8-98067-510-0	01	1	1012-1204	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (B)	8-98158-846-0	01	1	1205-	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (B)	8-98067-511-0	01	1	1012-1204	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (B)	8-98158-847-0	01	1	1205-	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98067-512-0	01	1	1012-1202	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98158-848-0	01	1	1203-	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98067-513-0	01	1	1012-1202	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98158-849-0	01	1	1203-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1012-	●			●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1012-	●			●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1012-		●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1012-		●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1012-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1012-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1012-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1012-	●	●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.323 M8X23	8-97310-216-1	08	1	1012-	●	●	●
64	16.069 SEAL; MIRROR BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1012-1310	●	●
64	16.069 SEAL; MIRROR BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1311-	●	●
64	16.069 SEAL; MIRROR BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 (A) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1012-	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK	1-76798-019-0	02	1	1012-	●	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (C) OD=52 BLACK	1-76798-041-0	02	1	1012-	●	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT	8-98059-913-0	02	1	1012-1404	●	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT	1-09984-134-0	02	1	1405-	●	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT	8-98059-914-0	10	1	1012-	●	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-793-2	01	1	1012-	●	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-794-2	01	1	1012-	●	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-796-0	01	1	1012-	●	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-797-0	01	1	1012-	●	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98080-418-0	02	1	1012-	●	●	●
87	16.069 SPACER DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-789-0	02	1	1012-	●	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1012-	●	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1012-	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98027-552-2	02	1	1012-	●	●	●	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1012-	●	●	●
152	16.069 SHEET; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-786-0	02	1	1012-	●	●	●
307	16.069 STAY; MIRROR SUPPORT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-784-2	01	1	1012-	●	●	●
307	16.069 STAY; MIRROR SUPPORT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-785-2	01	1	1012-	●	●	●
312	16.081 TAPE DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98164-812-0	02	1	1012-	●	●	●

14 14 23 24 23 25 26 24 26 25 30 96 96 32 34 61 31 92 61 22 22 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-542-3	01	1	1012-	●			●
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-542-3	01	1	1012-	●			●
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>	8-94262-542-3	01	1	1012-		●	●
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>	8-94262-542-3	01	1	1012-		●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> (A)	8-98070-506-0	01	1	1012-	●			●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> (A)	8-98070-504-0	01	1	1012-	●			●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-98070-503-0	01	1	1012-	●			●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (A)	8-98070-503-0	01	1	1012-		●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (A)	8-98070-510-0	01	1	1012-	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> EXC. UNDER MIRROR<RR9> (A)	8-98070-508-0	01	1	1012-	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (B)	8-98067-510-0	01	1	1012-1204	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (B)	8-98158-846-0	01	1	1205-	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (B)	8-98067-511-0	01	1	1012-1204	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (B)	8-98158-847-0	01	1	1205-	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98067-512-0	01	1	1012-1202	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98158-848-0	01	1	1203-	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98067-513-0	01	1	1012-1202	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98158-849-0	01	1	1203-	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0	8-94262-545-0	01	1	1012-	●			●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0	8-94262-545-0	01	1	1012-	●			●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> T=2.0	8-94262-545-0	01	1	1012-		●	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> T=2.0	8-94262-545-0	01	1	1012-		●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=1.6	8-94262-546-1	01	1	1012-	●			●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=1.6	8-94262-546-1	01	1	1012-	●			●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> T=1.6	8-94262-546-1	01	1	1012-		●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> T=1.6	8-94262-546-1	01	1	1012-		●	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30	8-94279-365-0	01	1	1012-	●			●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30	8-94279-365-0	01	1	1012-	●			●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> M6X30	8-94279-365-0	01	1	1012-		●	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> M6X30	8-94279-365-0	01	1	1012-		●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1012-	●			●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1012-	●			●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1012-		●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1012-		●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1012-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1012-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1012-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1012-	●	●	●
30	16.068 MIRROR; UNDER O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-625-2	01	1	1012-	●	●	●	●
31	16.069 PLATE; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-631-0	01	1	1012-	●	●	●	●
32	16.069 SCREW; UNDER MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	1012-	●	●	●	●
34	16.069 CAP; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-629-0	01	1	1012-	●	●	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1012-	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98027-552-2	02	1	1012-	●	●	●	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1012-	●	●	●

2 1 64 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.068 MIRROR; ROOM WINDOW RR<8LF> DARK GRAY	8-98097-534-1	01	1	1012-	●	●
1	16.068 MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1012-			●	●
2	16.069 SCREW; MIRROR TO BODY WINDOW RR<8LF> 16.070 M6X26	8-98033-674-0	02	1	1012-	●	●
2	16.069 SCREW; MIRROR TO BODY 16.070 M6X26	8-98033-674-0	02	1	1012-			●	●
64	16.069 SEAL; MIRROR BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1012-1310	●	●
64	16.069 SEAL; MIRROR BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1311-	●	●
64	16.069 SEAL; MIRROR BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 (A) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1012-	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK	1-76798-019-0	02	1	1012-	●	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (C) OD=52 BLACK	1-76798-041-0	02	1	1012-	●	●	●
