6-80 — BACK PANEL (#79160) — 58 parça

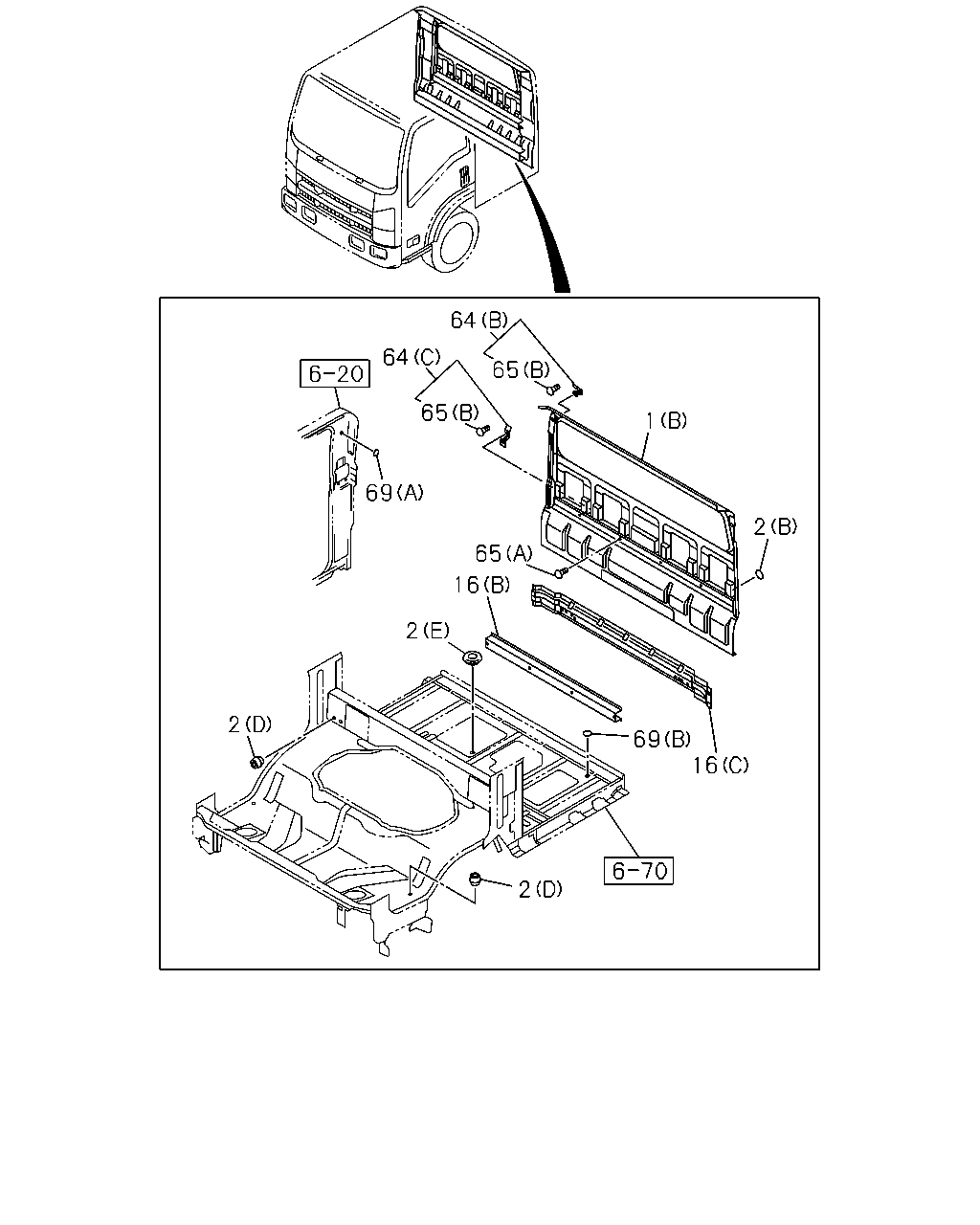

çizim 131813
64 64 65 65 1 69 2 65 16 2 2 69 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A) 		8-97584-303-4 01 1 1012- ● ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> (A) 		8-97584-300-3 01 1 1012- ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1012- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1012- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. WINDOW RR<8LF> (A) 		8-98313-204-0 01 1 1505- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 1012-1504 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> (A) 		8-97584-607-3 01 1 1505- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 1012- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1012- ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1012- ● ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) 16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1109 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7) 16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1109 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) 16.588 (A) M6X12 		8-98013-112-0 04 1 1110- ● ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) EXC. DUMP CHASSIS(V4D) 16.588 (A) M6X12 		8-98013-112-0 04 1 1110- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1012- ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 03 1 1012- ● ●
69 16.587 SEAL; LOCATION HOLE
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.592 (A) OD=36 WHITE 		1-76778-007-0 02 1 1012- ● ●
69 16.587 SEAL; LOCATION HOLE
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1012- ● ●

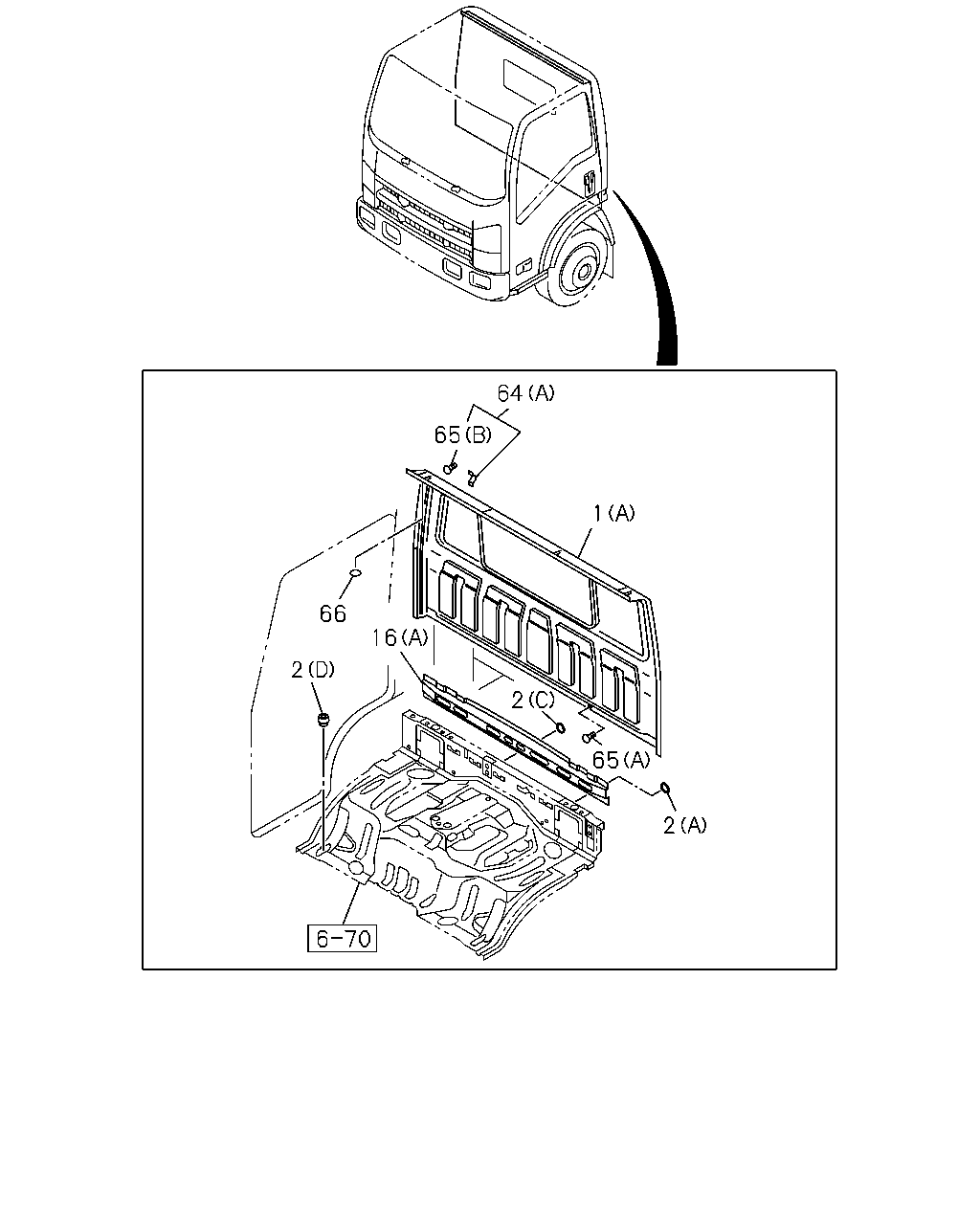

çizim 132289
64 65 1 66 16 2 2 65 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A) 		8-97584-303-4 01 1 1012- ● ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> (A) 		8-97584-300-3 01 1 1012- ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1012- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1012- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. WINDOW RR<8LF> (A) 		8-98313-204-0 01 1 1505- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 1012-1504 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> (A) 		8-97584-607-3 01 1 1505- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 1012- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1012- ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1012- ● ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) 16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1109 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7) 16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1109 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) 16.588 (A) M6X12 		8-98013-112-0 04 1 1110- ● ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) EXC. DUMP CHASSIS(V4D) 16.588 (A) M6X12 		8-98013-112-0 04 1 1110- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1012- ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 03 1 1012- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1012-1310 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1311- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1012-1310 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1311- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 1012- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1012- ● ●
