◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#7916) — 115 parça

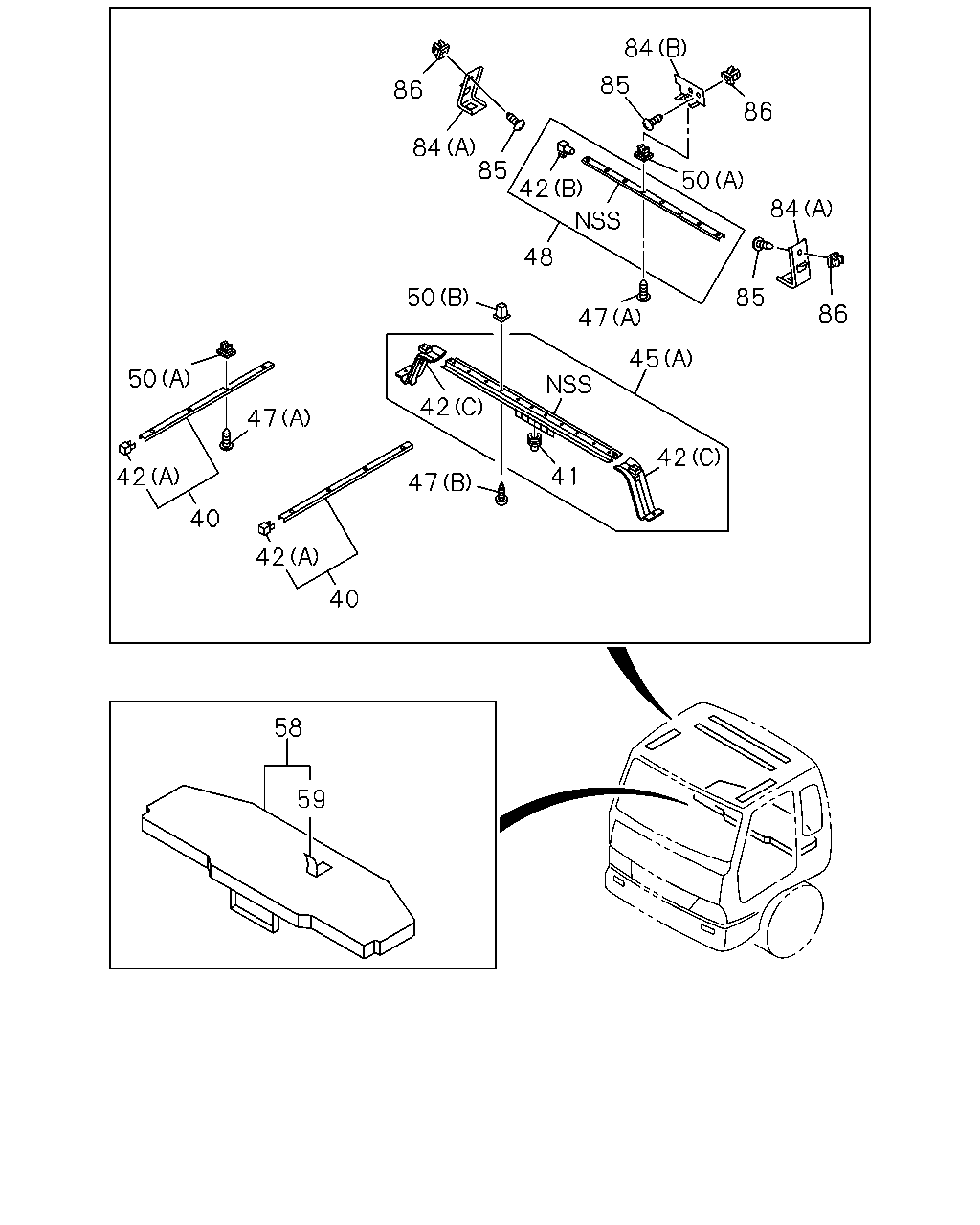

çizim 26492
84 85 86 86 84 85 50 42 84 48 50 85 86 47 45 50 42 47 42 41 42 47 40 42 40 58 59
BalonParca AdiParca NoAdetTipApplied Date A B C
40 RAIL; CURTAIN,SIDE 1-73996-380-1 01 1 9905-0301 ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> 		1-73996-380-1 01 1 9905-0301 ●
40 RAIL; CURTAIN,SIDE 1-73996-380-1 01 1 0302- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> 		1-73996-380-1 01 1 0302- ●
40 RAIL; CURTAIN,SIDE 1-73996-379-0 01 1 9905-0301 ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> 		1-73996-379-0 01 1 9905-0301 ●
40 RAIL; CURTAIN,SIDE 1-73996-379-0 01 1 0302- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> 		1-73996-379-0 01 1 0302- ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> 		1-73996-378-1 02 1 9905- ●
41 HOOK; CURTAIN RAIL
HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 9905- ●
42 STOPPER; CURTAIN RAIL
(D) 		1-73907-625-0 02 1 9905-0301 ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (D) 		1-73907-625-0 02 1 9905-0301 ●
42 STOPPER; CURTAIN RAIL
(D) 		1-73907-625-0 02 1 0302- ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (D) 		1-73907-625-0 02 1 0302- ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 9905-0301 ● ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 0302- ● ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 9905-0301 ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 0302- ● ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73996-402-0 02 1 9905- ●
45 RAIL; CURTAIN,FRT
(B) 		1-73996-419-1 01 1 9905-0301 ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> (B) 		1-73996-419-1 01 1 9905-0301 ●
45 RAIL; CURTAIN,FRT
(B) 		1-73996-419-1 01 1 0302- ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> (B) 		1-73996-419-1 01 1 0302- ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> (A) 		1-73996-370-1 01 1 9905- ●
47 SCREW; CURTAIN RAIL
(B) M5X20 		5-09981-059-0 17 1 9905-0301 ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (B) M5X20 		5-09981-059-0 17 1 9905-0301 ●
47 SCREW; CURTAIN RAIL
(B) M5X20 		5-09981-059-0 17 1 0302- ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (B) M5X20 		5-09981-059-0 17 1 0302- ●
47 SCREW; CURTAIN RAIL
(A) M5X25 		5-09981-093-0 07 1 9905-0301 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X25 		5-09981-093-0 07 1 0302- ● ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X20 		5-09981-059-0 19 1 9905- ●
48 RAIL; CURTAIN,BACK 1-73996-385-1 01 1 9905-0301 ● ●
48 RAIL; CURTAIN,BACK 1-73996-385-1 01 1 0302- ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 9905-0301 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=13 M5 		1-09983-159-0 07 1 9905-0301 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0302- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0302- ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9905-0301 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9905-0301 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0302- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0302- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=13 M5 		1-09983-159-0 15 1 9905- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 9905- ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-436-0 01 1 9905-0003 ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-522-1 01 1 0004- ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-448-0 01 1 9905-0003 ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-669-1 01 1 0004- ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 9905-0301 ● ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0302- ● ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9905-0301 ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0302- ● ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 9905-0301 ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0302- ● ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9905-0301 ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0302- ● ● ●

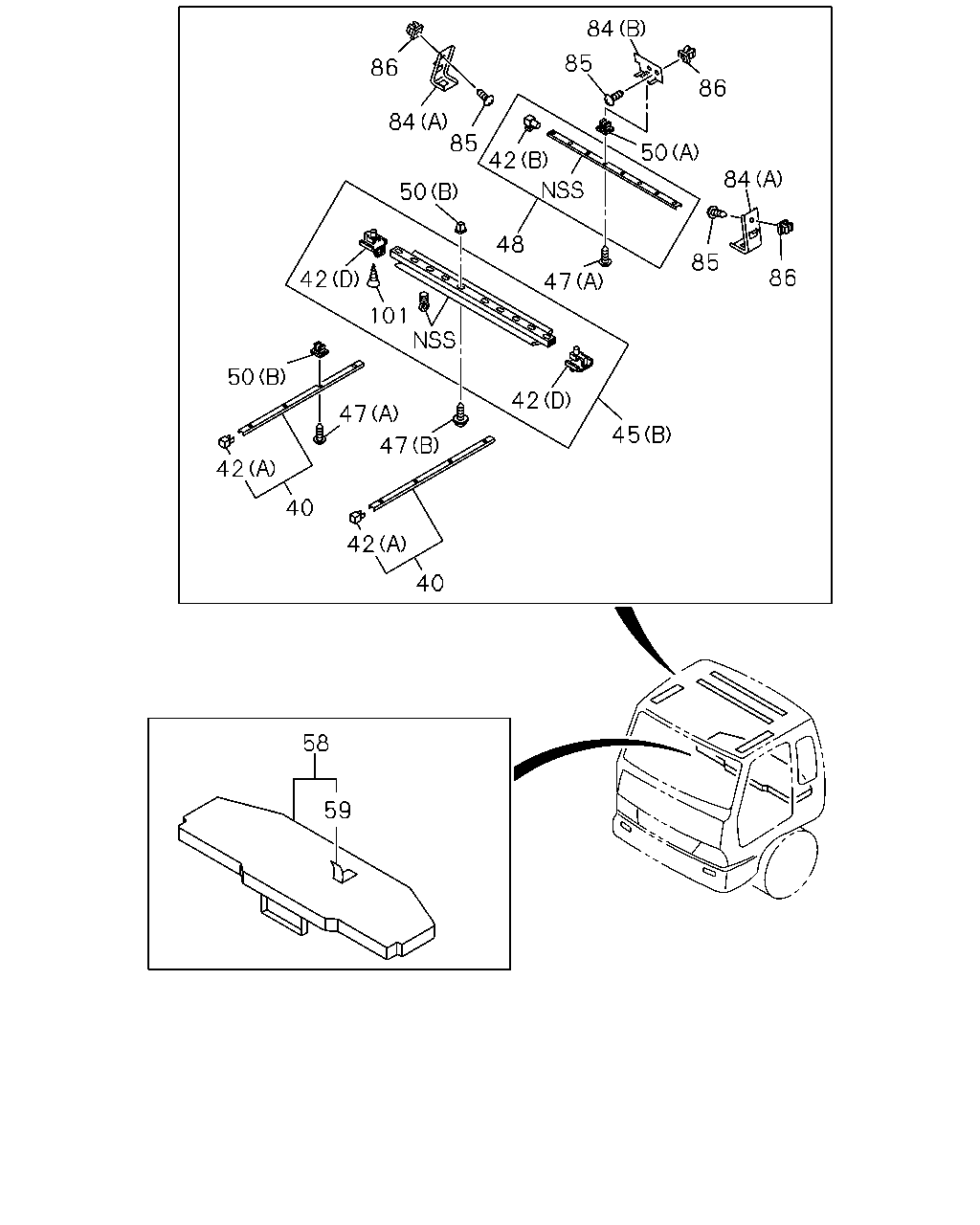

çizim 26771
84 85 86 86 84 85 50 42 84 50 48 85 86 42 47 101 50 42 47 45 47 42 40 42 40 58 59
BalonParca AdiParca NoAdetTipApplied Date A B C
40 RAIL; CURTAIN,SIDE 1-73996-380-1 01 1 9905-0301 ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> 		1-73996-380-1 01 1 9905-0301 ●
40 RAIL; CURTAIN,SIDE 1-73996-380-1 01 1 0302- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> 		1-73996-380-1 01 1 0302- ●
40 RAIL; CURTAIN,SIDE 1-73996-379-0 01 1 9905-0301 ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> 		1-73996-379-0 01 1 9905-0301 ●
40 RAIL; CURTAIN,SIDE 1-73996-379-0 01 1 0302- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> 		1-73996-379-0 01 1 0302- ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> 		1-73996-378-1 02 1 9905- ●
42 STOPPER; CURTAIN RAIL
(D) 		1-73907-625-0 02 1 9905-0301 ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (D) 		1-73907-625-0 02 1 9905-0301 ●
42 STOPPER; CURTAIN RAIL
(D) 		1-73907-625-0 02 1 0302- ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (D) 		1-73907-625-0 02 1 0302- ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 9905-0301 ● ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 0302- ● ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 9905-0301 ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 0302- ● ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73996-402-0 02 1 9905- ●
45 RAIL; CURTAIN,FRT
(B) 		1-73996-419-1 01 1 9905-0301 ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> (B) 		1-73996-419-1 01 1 9905-0301 ●
45 RAIL; CURTAIN,FRT
(B) 		1-73996-419-1 01 1 0302- ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> (B) 		1-73996-419-1 01 1 0302- ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> (A) 		1-73996-370-1 01 1 9905- ●
47 SCREW; CURTAIN RAIL
(B) M5X20 		5-09981-059-0 17 1 9905-0301 ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (B) M5X20 		5-09981-059-0 17 1 9905-0301 ●
47 SCREW; CURTAIN RAIL
(B) M5X20 		5-09981-059-0 17 1 0302- ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (B) M5X20 		5-09981-059-0 17 1 0302- ●
47 SCREW; CURTAIN RAIL
(A) M5X25 		5-09981-093-0 07 1 9905-0301 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X25 		5-09981-093-0 07 1 0302- ● ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X20 		5-09981-059-0 19 1 9905- ●
48 RAIL; CURTAIN,BACK 1-73996-385-1 01 1 9905-0301 ● ●
48 RAIL; CURTAIN,BACK 1-73996-385-1 01 1 0302- ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 9905-0301 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=13 M5 		1-09983-159-0 07 1 9905-0301 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0302- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0302- ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9905-0301 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9905-0301 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0302- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0302- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=13 M5 		1-09983-159-0 15 1 9905- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 9905- ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-436-0 01 1 9905-0003 ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-522-1 01 1 0004- ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-448-0 01 1 9905-0003 ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-669-1 01 1 0004- ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 9905-0301 ● ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0302- ● ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9905-0301 ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0302- ● ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 9905-0301 ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0302- ● ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9905-0301 ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0302- ● ● ●
101 SCREW; STOPPER 1-73907-400-0 02 1 9905-0301 ●
101 SCREW; STOPPER
LOW ROOF<6XQ> 		1-73907-400-0 02 1 9905-0301 ●
101 SCREW; STOPPER 1-73907-400-0 02 1 0302- ● ●
101 SCREW; STOPPER
LOW ROOF<6XQ> 		1-73907-400-0 02 1 0302- ●
çizim 99536
44 44
BalonParca AdiParca NoAdetTipApplied Date A B C
44 CURTAIN ASM; CABIN CENTER
HIGH ROOF<S2F> 		1-73908-208-1 01 1 9905- ●
44 CURTAIN ASM; CABIN CENTER
HIGH ROOF<S2F> 		1-73908-207-1 01 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
