6-47 — MUD GUARD AND INSULATOR (#79149) — 109 parça

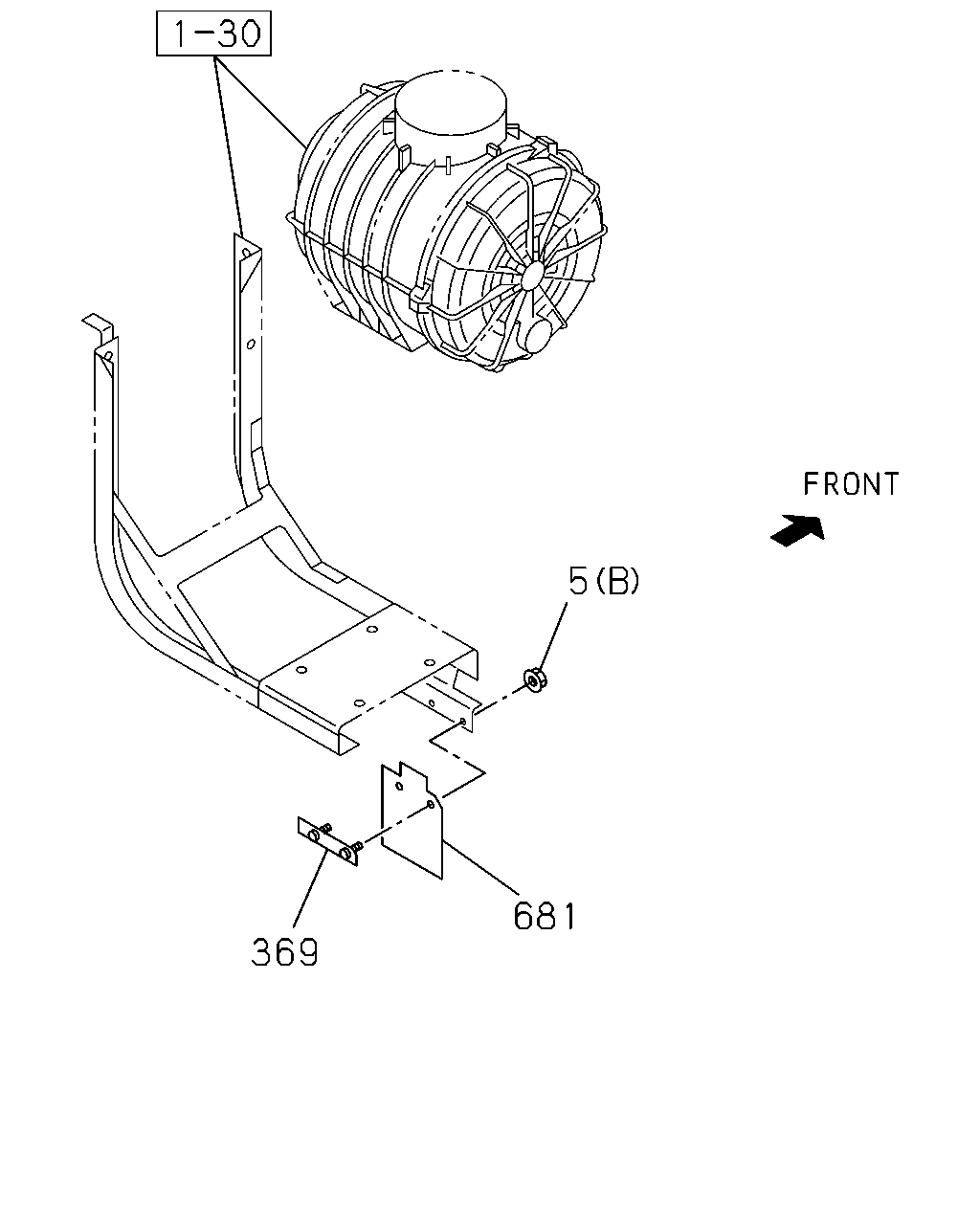

5 681 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	1012-1209	●	●	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1210-	●	●	●	●
5	08.155 NUT; FLAP RUBBER 4JJ1-TCC ENG(RDU) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1012-				●
369	08.155 PLATE 4JJ1-TCC ENG(RDU)	8-98061-674-0	01	1	1012-				●
681	03.402 FLAP; AIR CLEANER 4JJ1-TCC ENG(RDU)	8-98061-671-0	01	1	1012-				●

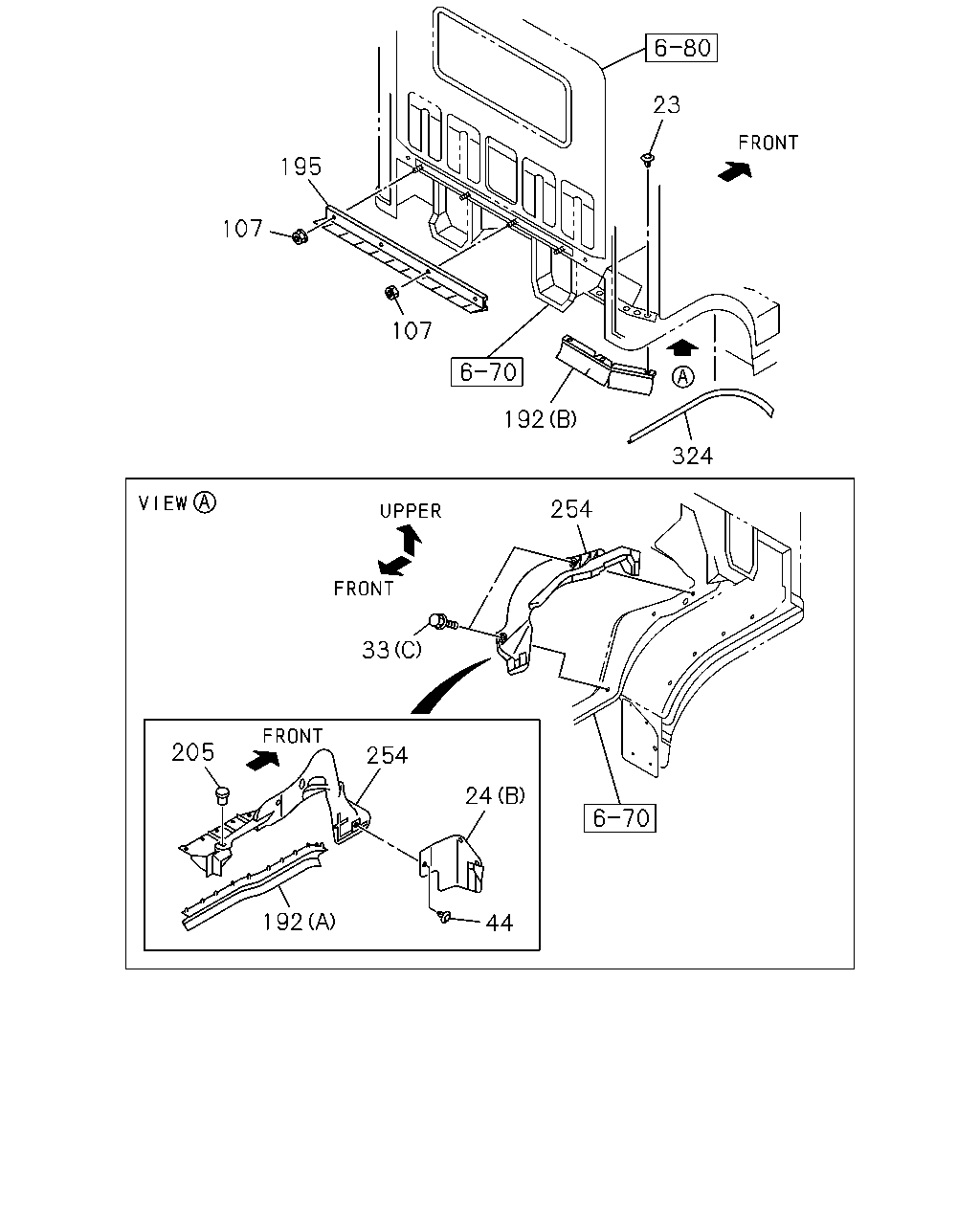

23 195 107 107 192 324 254 33 205 254 24 192 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1012-	●	●	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1012-	●	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	1012-	●	●	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1012-1209	●	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1012-	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1012-	●	●	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	1012-	●	●	●	●
107	08.214 NUT; HEAT PROTECTOR RR BODY FLAT BED(RS6) 03.417 M6 FLANGE	8-94279-514-0	04	1	1012-	●
107	08.214 NUT; HEAT PROTECTOR RR BODY FLAT BED(RS6) EXC. DUMP CHASSIS(V4D) 03.417 M6 FLANGE	8-94279-514-0	04	1	1012-		●
107	08.214 NUT; HEAT PROTECTOR DUMP CHASSIS(V4D) 03.417 M6 FLANGE	8-94279-514-0	04	1	1012-		●
107	08.214 NUT; HEAT PROTECTOR 03.417 M6 FLANGE	8-94279-514-0	03	1	1012-			●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1012-	●	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1012-	●	●	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-785-2	02	1	1012-1106	●	●	●	●
192	08.153 SEAL; MUD COVER (B)	8-98192-388-0	02	1	1107-	●	●	●	●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6)	8-98077-647-0	01	1	1012-	●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6) EXC. DUMP CHASSIS(V4D)	8-98077-647-0	01	1	1012-		●
195	03.602 PROTECTOR; HEAT DUMP CHASSIS(V4D)	8-98077-647-0	01	1	1012-		●
195	03.602 PROTECTOR; HEAT	8-94462-569-1	01	1	1012-			●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1012-	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98115-263-0	01	1	1012-	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98115-264-0	01	1	1012-	●	●	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1012-	●	●	●	●

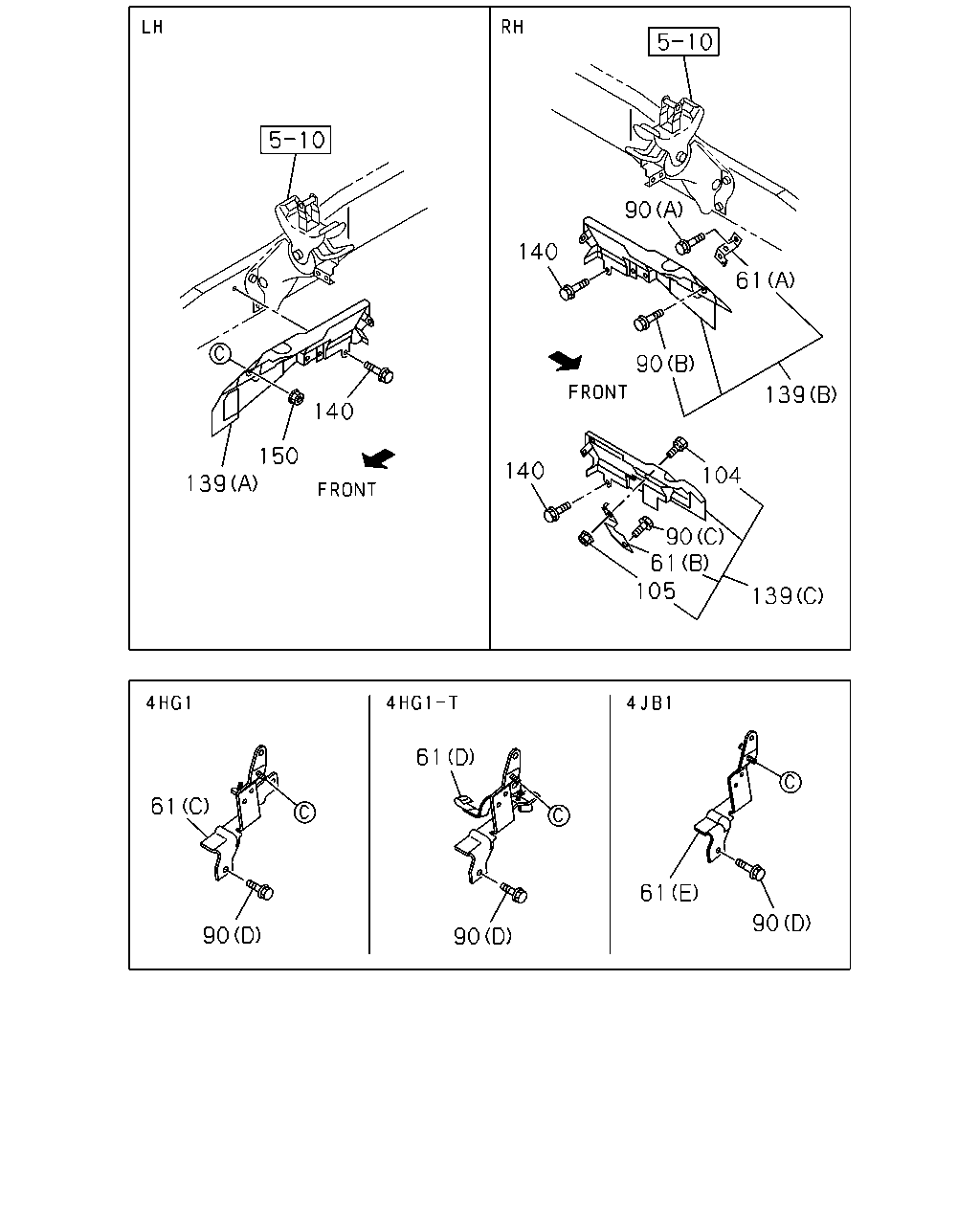

90 61 140 90 139 140 104 90 61 105 139 140 150 139 61 90 61 90 61 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
61	08.155 BRACKET; COVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98033-140-0	01	1	1012-	●
61	08.155 BRACKET; COVER 4JJ1-TCC ENG(RDU) (A)	8-98033-140-0	01	1	1012-		●	●	●
61	08.155 BRACKET; COVER 4HG1-T ENG(RDP) (D)	8-98171-761-0	01	1	1012-	●
61	08.155 BRACKET; COVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98106-611-0	01	1	1012-	●
61	08.155 BRACKET; COVER 4HG1 ENG(RJH),4JB1 ENG(RLF) (B)	8-98106-611-0	01	1	1012-		●
61	08.155 BRACKET; COVER 4JB1 ENG(RLF) 03.417 (E)	8-98072-277-1	01	1	1012-	●	●
61	08.155 BRACKET; COVER 4HG1 ENG(RJH) (C)	8-98122-541-2	01	1	1012-		●
90	08.153 BOLT; COVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.155 (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1012-	●
90	08.153 BOLT; COVER 4JJ1-TCC ENG(RDU) 08.155 (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1012-		●	●	●
90	08.153 BOLT; COVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●
90	08.153 BOLT; COVER 4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-		●	●	●
90	08.153 BOLT; COVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
90	08.153 BOLT; COVER 4HG1 ENG(RJH),4JB1 ENG(RLF) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
90	08.153 BOLT; COVER 4HG1-T ENG(RDP),4JB1 ENG(RLF) 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
90	08.153 BOLT; COVER 4HG1 ENG(RJH),4JB1 ENG(RLF) 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	1012-		●
104	08.214 BOLT; BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) 08.155 M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1012-	●
104	08.214 BOLT; BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF) 08.155 M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1012-		●
105	08.155 NUT; BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
105	08.155 NUT; BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97385-590-3	01	1	1012-	●
139	08.153 PANEL; SIDE 4JJ1-TCC ENG(RDU) (A)	8-97385-590-3	01	1	1012-		●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98053-670-1	01	1	1012-	●
139	08.153 PANEL; SIDE 4JJ1-TCC ENG(RDU) (B)	8-98053-670-1	01	1	1012-		●	●	●
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A)	8-98171-049-0	01	1	1012-	●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4JB1 ENG(RLF) (A)	8-98171-049-0	01	1	1012-		●
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) (C)	8-98173-018-0	01	1	1012-	●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4JB1 ENG(RLF) (C)	8-98173-018-0	01	1	1012-		●
139	08.153 PANEL; SIDE 4JJ1-TCC ENG(RDU) (A)	8-98039-734-2	01	1	1012-			●	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	02	1	1012-	●	●	●	●
150	08.155 NUT; SIDE PANEL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1012-	●	●	●	●

238 3 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) (B) H=450 B=230	8-97324-878-0	02	1	1012-	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) (B) H=450 B=230	8-97324-878-0	02	1	1012-			●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) (B) H=330 B=380	8-97324-879-0	02	1	1012-	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1012-	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1012-		●		●
3	08.153 GUARD; MUD,RR (A)	8-98004-030-4	01	1	1012-	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-98055-620-2	01	1	1012-	●	●	●	●
32	08.155 NUT; MUD GUARD RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) 08.212 M6 FLANGE	8-97065-431-0	08	1	1012-	●
32	08.155 NUT; MUD GUARD RR BODY FLAT BED(RS6) 08.212 M6 FLANGE	8-97065-431-0	08	1	1012-			●
32	08.155 NUT; MUD GUARD RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD) 08.212 M6 FLANGE	8-97065-431-0	06	1	1012-	●
32	08.155 NUT; MUD GUARD RR BODY FLAT BED(RS6) 08.212 M6 FLANGE	8-97065-431-0	06	1	1012-		●		●
238	08.153 SCREW; MUD GUARD RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) 17.208 M6X16 FLANGE	8-98098-459-0	08	1	1012-	●
238	08.153 SCREW; MUD GUARD RR BODY FLAT BED(RS6) 17.208 M6X16 FLANGE	8-98098-459-0	08	1	1012-			●
238	08.153 SCREW; MUD GUARD RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD) 17.208 M6X16 FLANGE	8-98098-459-0	06	1	1012-	●
238	08.153 SCREW; MUD GUARD RR BODY FLAT BED(RS6) 17.208 M6X16 FLANGE	8-98098-459-0	06	1	1012-		●		●

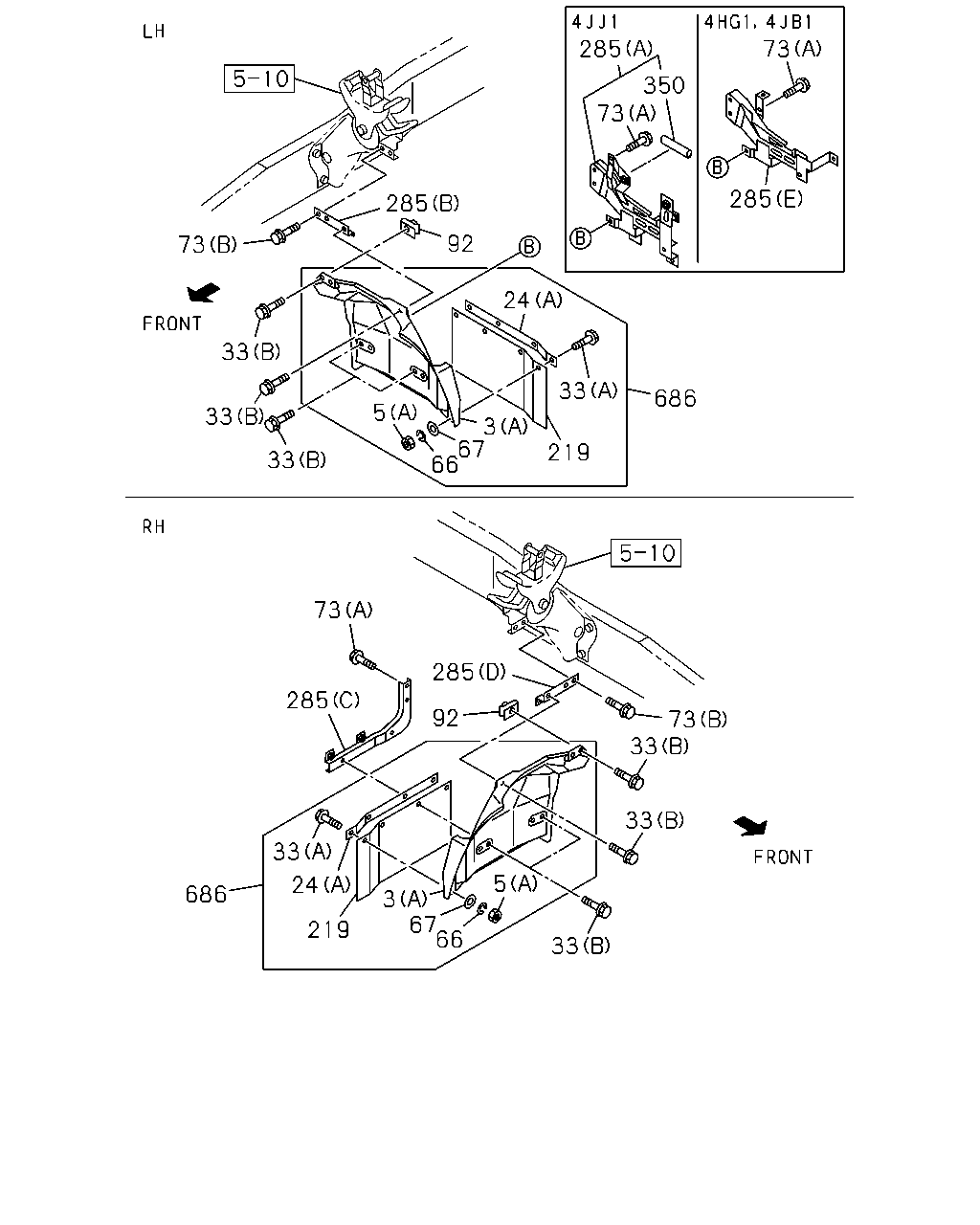

73 285 92 33 24 33 5 33 66 67 3 33 219 686 285 350 73 73 285 73 285 285 92 626 33 24 219 67 3 66 5 33 33 33 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) (B) H=450 B=230	8-97324-878-0	02	1	1012-	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) (B) H=450 B=230	8-97324-878-0	02	1	1012-			●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) (B) H=330 B=380	8-97324-879-0	02	1	1012-	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1012-	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1012-		●		●
3	08.153 GUARD; MUD,RR (A)	8-98004-030-4	01	1	1012-	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-98055-620-2	01	1	1012-	●	●	●	●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	1012-1209	●	●	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1210-	●	●	●	●
5	08.155 NUT; FLAP RUBBER 4JJ1-TCC ENG(RDU) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1012-				●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1012-	●	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	1012-	●	●	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1012-1209	●	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1012-	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1012-	●	●	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	1012-1209	●	●	●	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	1012-1209	●	●	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1012-	●	●	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1012-	●	●	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1012-	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-98010-741-1	02	1	1012-	●	●	●	●
285	08.155 BRACKET; MUD COVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98082-272-0	01	1	1012-	●
285	08.155 BRACKET; MUD COVER 4JJ1-TCC ENG(RDU) (A)	8-98082-272-0	01	1	1012-		●	●	●
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) (E)	8-98169-721-0	01	1	1012-	●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4JB1 ENG(RLF) (E)	8-98169-721-0	01	1	1012-		●
285	08.155 BRACKET; MUD COVER (D)	8-98059-689-0	01	1	1012-	●	●
285	08.155 BRACKET; MUD COVER (C)	8-98131-079-0	01	1	1012-	●	●
285	08.155 BRACKET; MUD COVER (B)	8-98038-865-1	01	1	1012-	●	●	●	●
285	08.155 BRACKET; MUD COVER (D)	8-98001-313-2	01	1	1012-			●	●
285	08.155 BRACKET; MUD COVER (C)	8-98001-314-2	01	1	1012-			●	●
350	08.155 PROTECTOR; EDGE,MUD COVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.008 L=80	5-22439-006-0	01	1	1012-	●
350	08.155 PROTECTOR; EDGE,MUD COVER 4JJ1-TCC ENG(RDU) 03.008 L=80	5-22439-006-0	01	1	1012-		●	●	●
686	08.155 FLAP ASM; MUD	8-98001-302-6	01	1	1012-	●	●	●	●
686	08.155 FLAP ASM; MUD	8-98055-455-4	01	1	1012-	●	●	●	●
